BOOM DETAILS

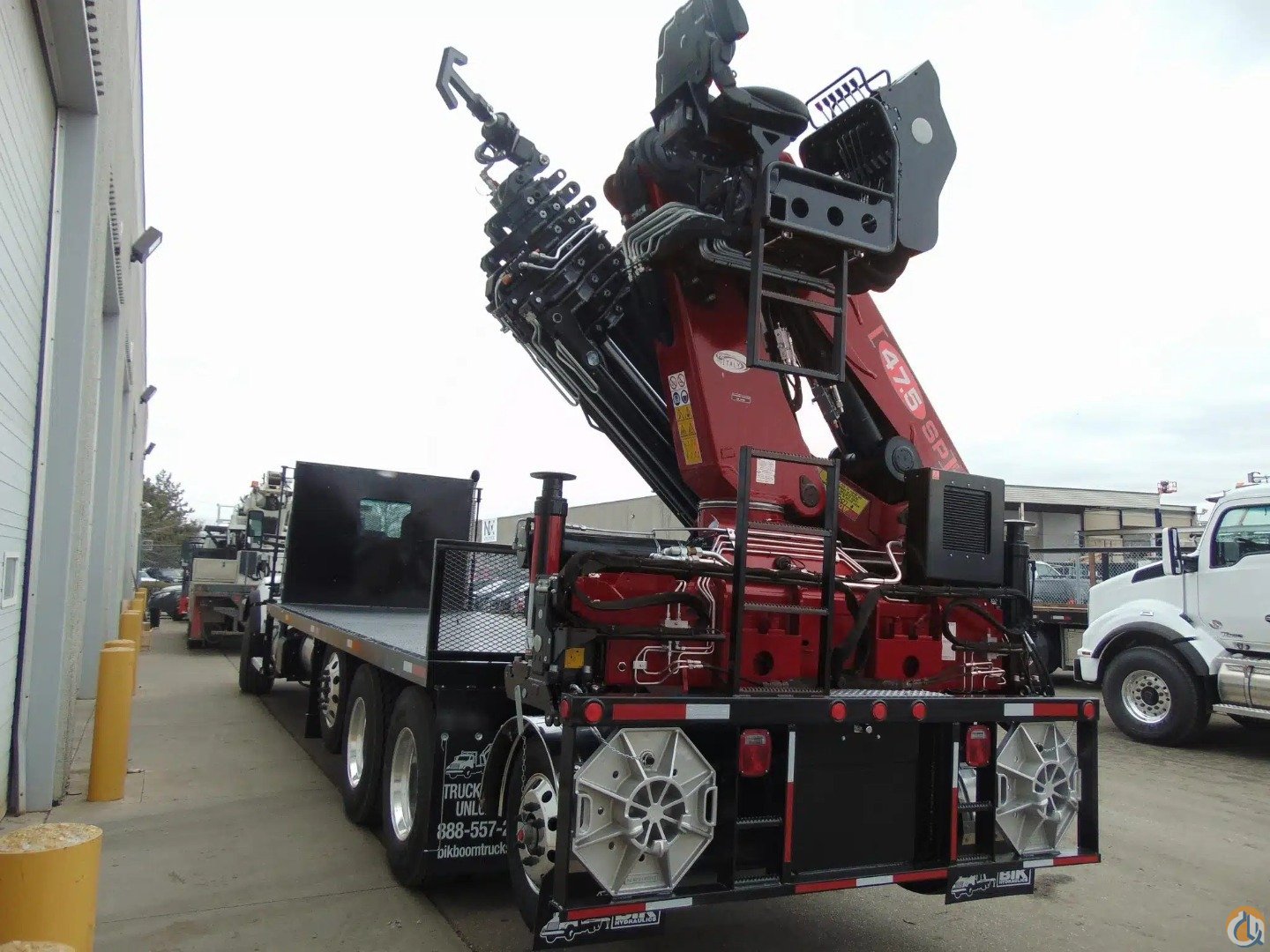

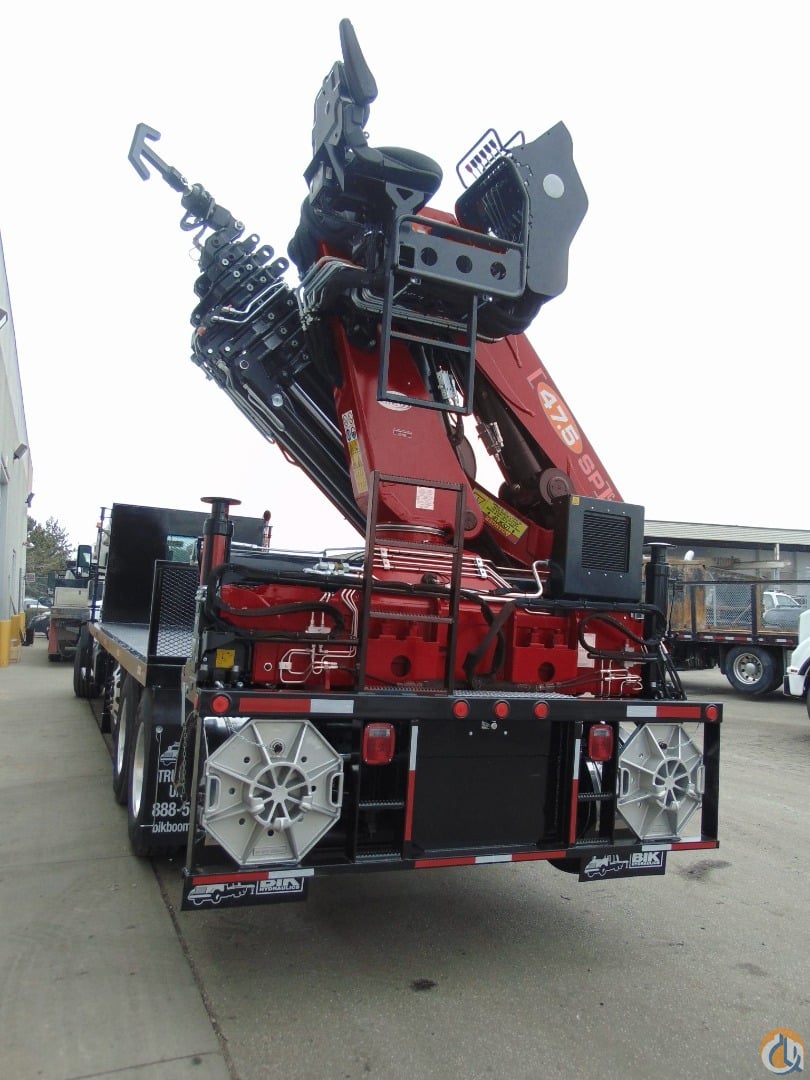

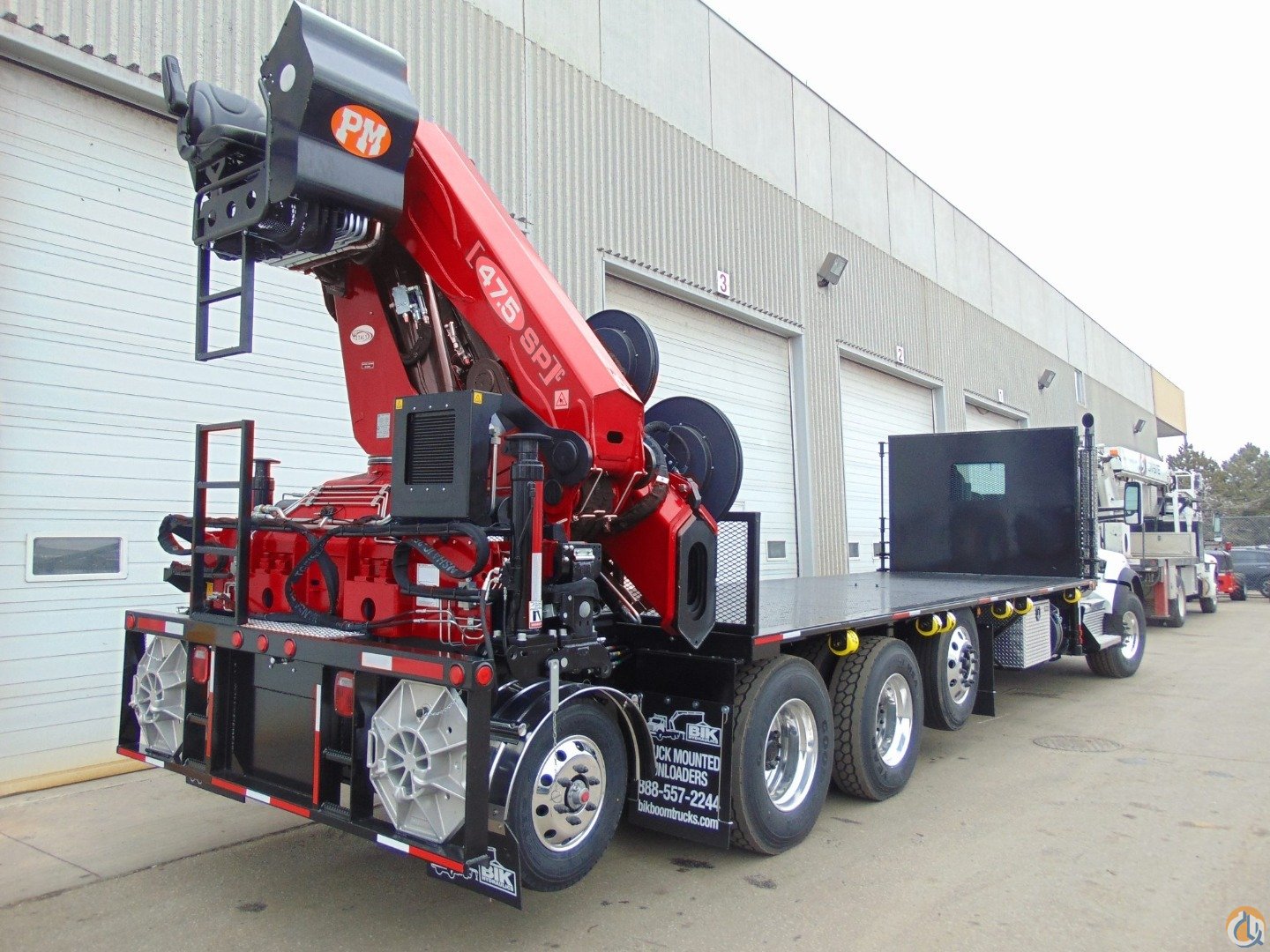

NEW PM 47529S-LC-PX KNUCKLE BOOM:
- Folding Hydraulic 8 Ext. Knuckle Boom – 74’ Horizontal Reach (86’ Vertical)
- Horizontal Capacity:
- 21,000 lb @ 13’
- 10,200 lb @ 24’
- 5,800 lb @ 37’
- 3,950 lb @ 51’
- 2,900 lb @ 66’
- 2,600 lb @ 74’
- PM Power-Link Connections at Main, Knuckle and Jib Cylinders, High Torque Rack and Gear 410-Degree Non-Continuous Rotation
- Double Pilot Operated on Slewing and Pilot Operating Check Valves on all Cylinders
- Extra-Wide Main Outriggers at Pedestal, Double Beam – Hyd Out & Down 26’ 3” Span – Front Aux Stabilizers – Hyd Out & Down 16’ Span
- Hydraulic Oil Cooler, High Pressure Return Filter and Min. 100-Gallon Hyd Aluminum Oil Tank with Gate Valves Mounted at Front Under Deck
- Lift a 10’ Cage up Close at 2’ in Front of Boom with Special LC Type Extra Retraction Feature of the Extensions
- Simplified Hydraulics – Hydraulic Overload LLD Protection and Load Holding Valve – Offers Simplicity, Reliability & Low Maintenance
- Danfoss Proportional Control Valve at Ground and Top Seat with Ladder Access
- Scanreco Proportional Radio Remote Control, Includes: 2 Batteries, In-Cab Charger & Back-up Cord – 5 Level Turtle (Micro) Slow Down Mode
- Crane Painted PM Blue – Certified Painting Quality System – Load Tested and Certified
- Warranty: 1 Year Parts & Labor on Entire Boom; 3 Year on Structural Components by PM – 24/7 Crane-Tech Support by BIK
DECK DETAILS
NEW – 21’ X 102” LOW PROFILE STEEL FLAT DECK: TO FIT 9’ TALL CAGES
- Steel Headboard w/Side Wrap Winches
- Steel Checker Plate Floor
- Winch Bar and Holder
- Integral 6” Sub-Frame and Extension at Rear as Torque Box for Boom with all Proper Engineered Sheer Plating, X-Braces & Support
- 2 Deck Access Ladders at Headboard, 2 Ladders at Rear
- Reflectors and Mud Flaps
- 6 Sliding Winch and Track Under DecK
- Deck Painted Gray
TRUCK DETAILS

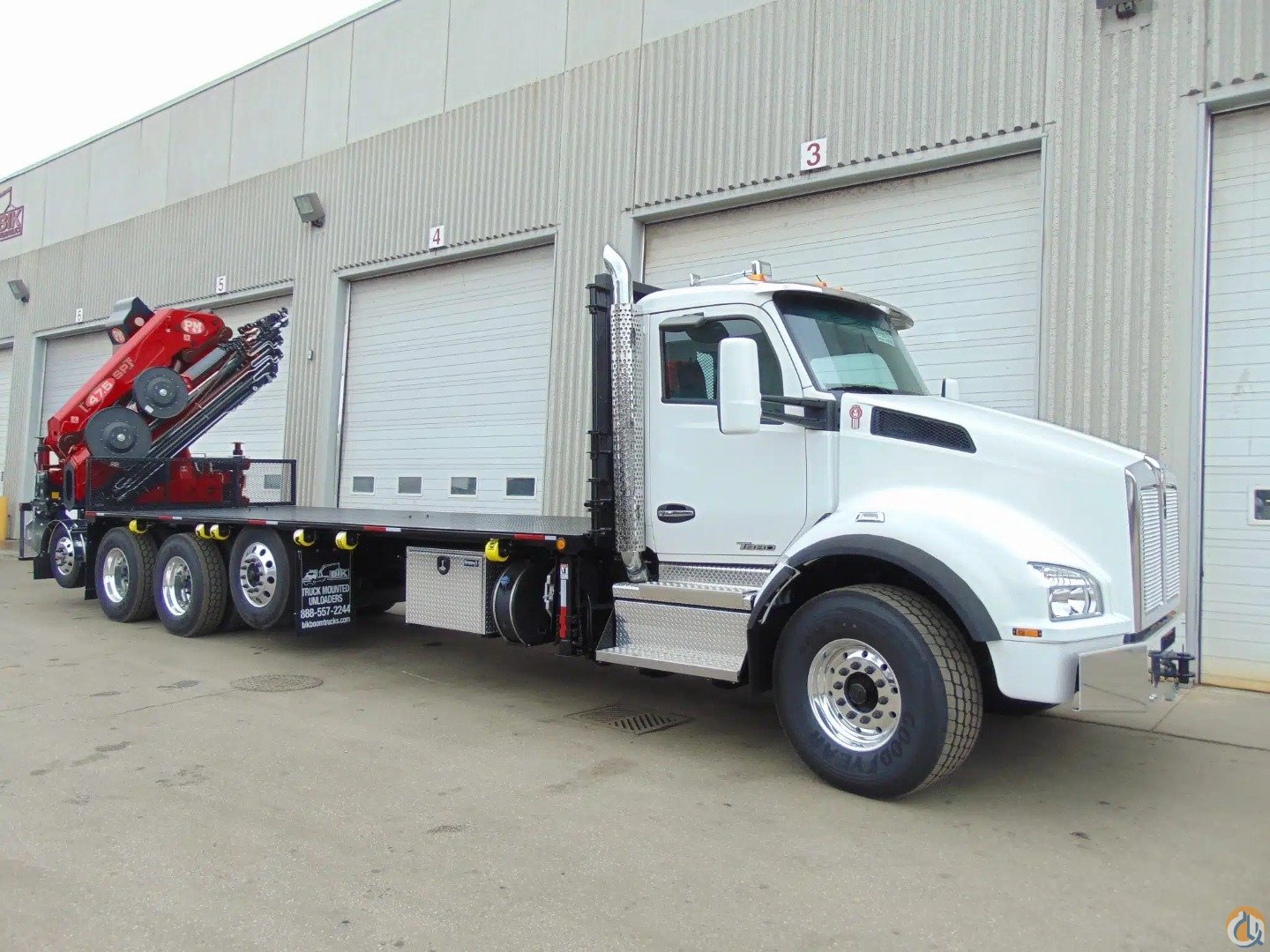

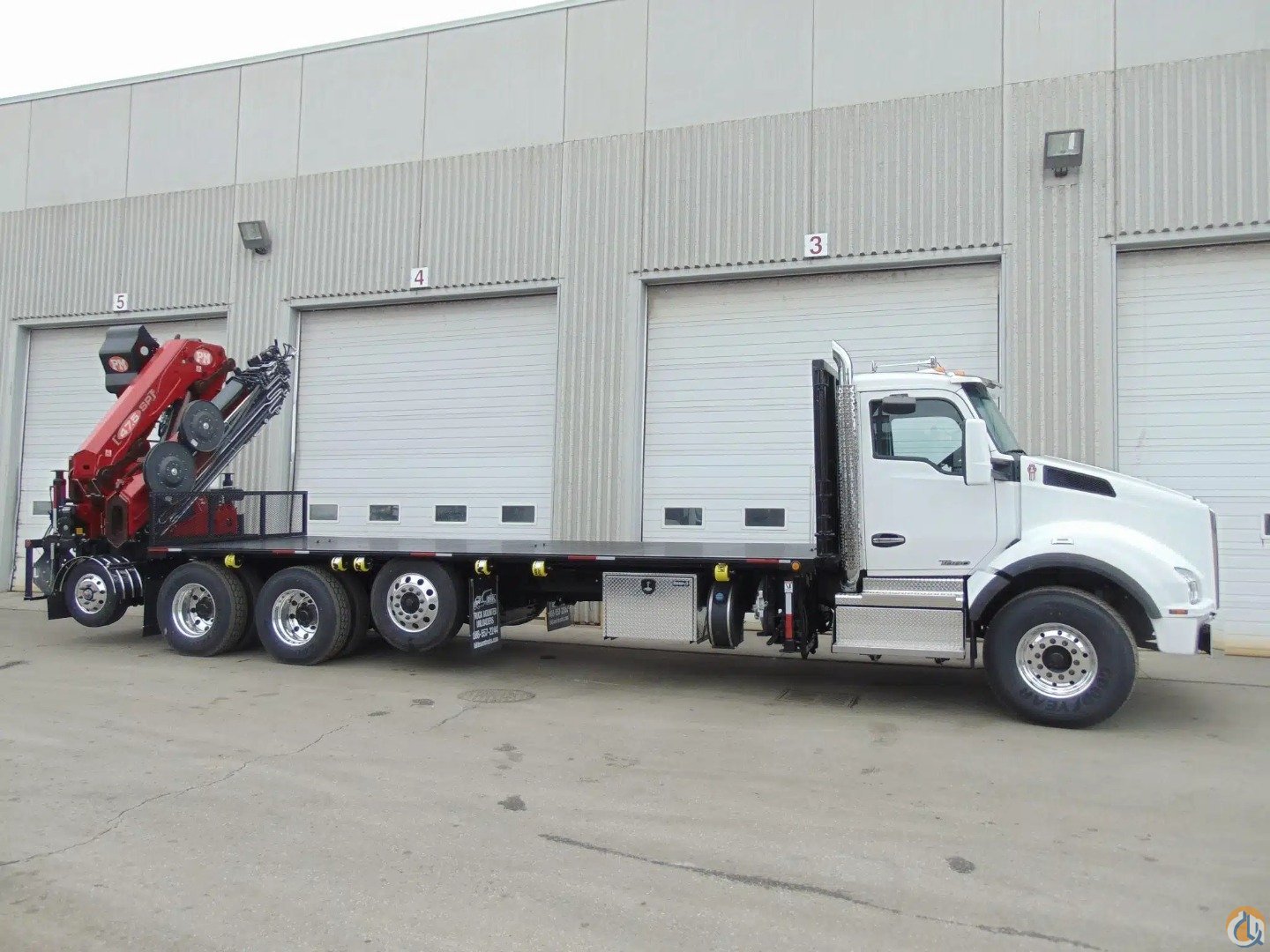

NEW – KENWORTH T880 5-AXLE TRUCK: 88,000 LBS GVWR – CAB WHITE
- Paccar 485 hp – 1,650 ft/lb Torque, Jake Brake
- 20,000 lb Front Steer Axle with 4425/65T22.5 Tires on Aluminum Rims
- 13,000 lb Self-Steer Lift Axle Ahead of Tandem
- 46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims
- 9,000 lb Tag Axle Under Boom
- Longer WB (316”) to Accommodate 24’ Deck
- 54” Spread at TA, Double Frame

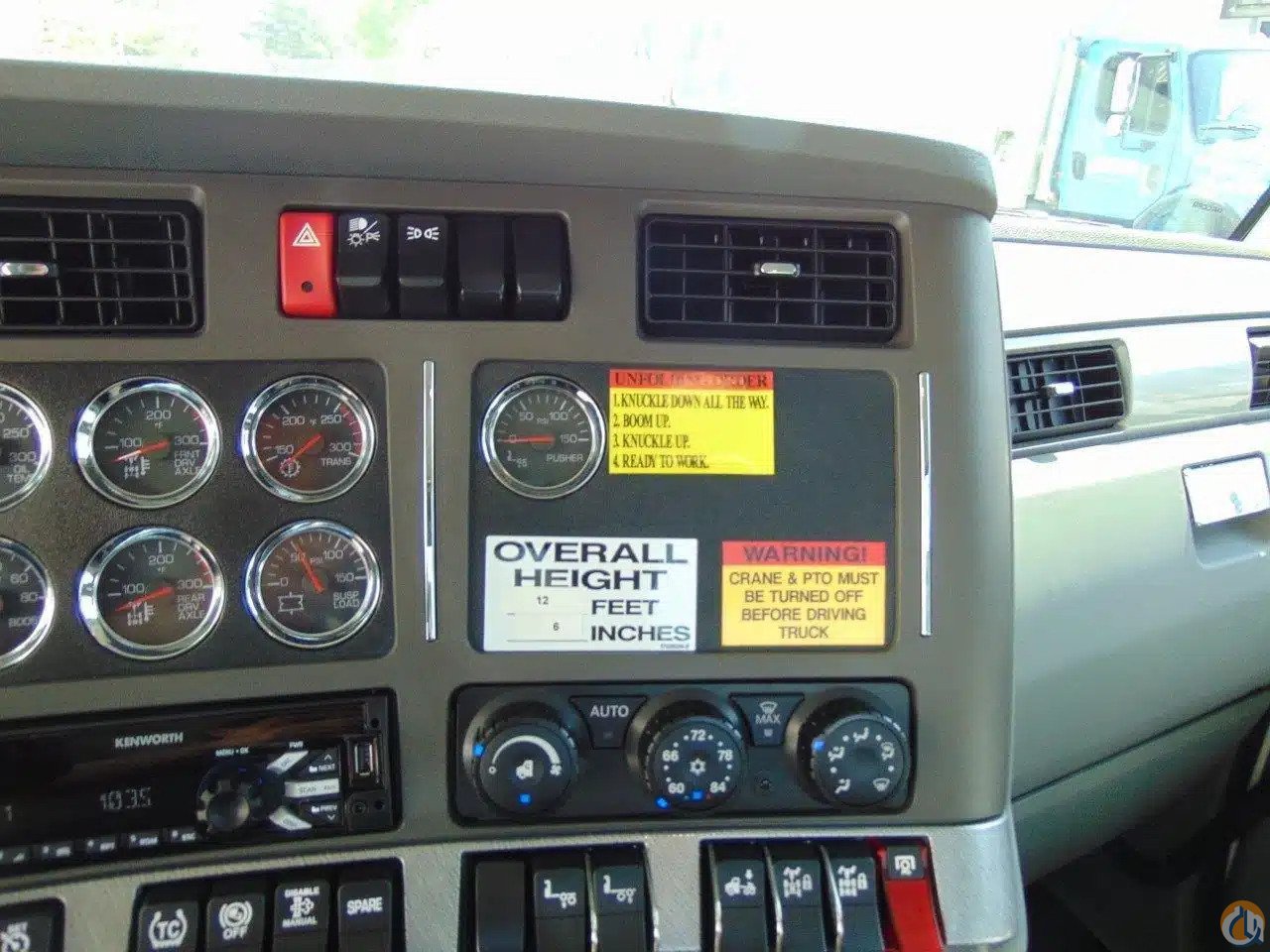

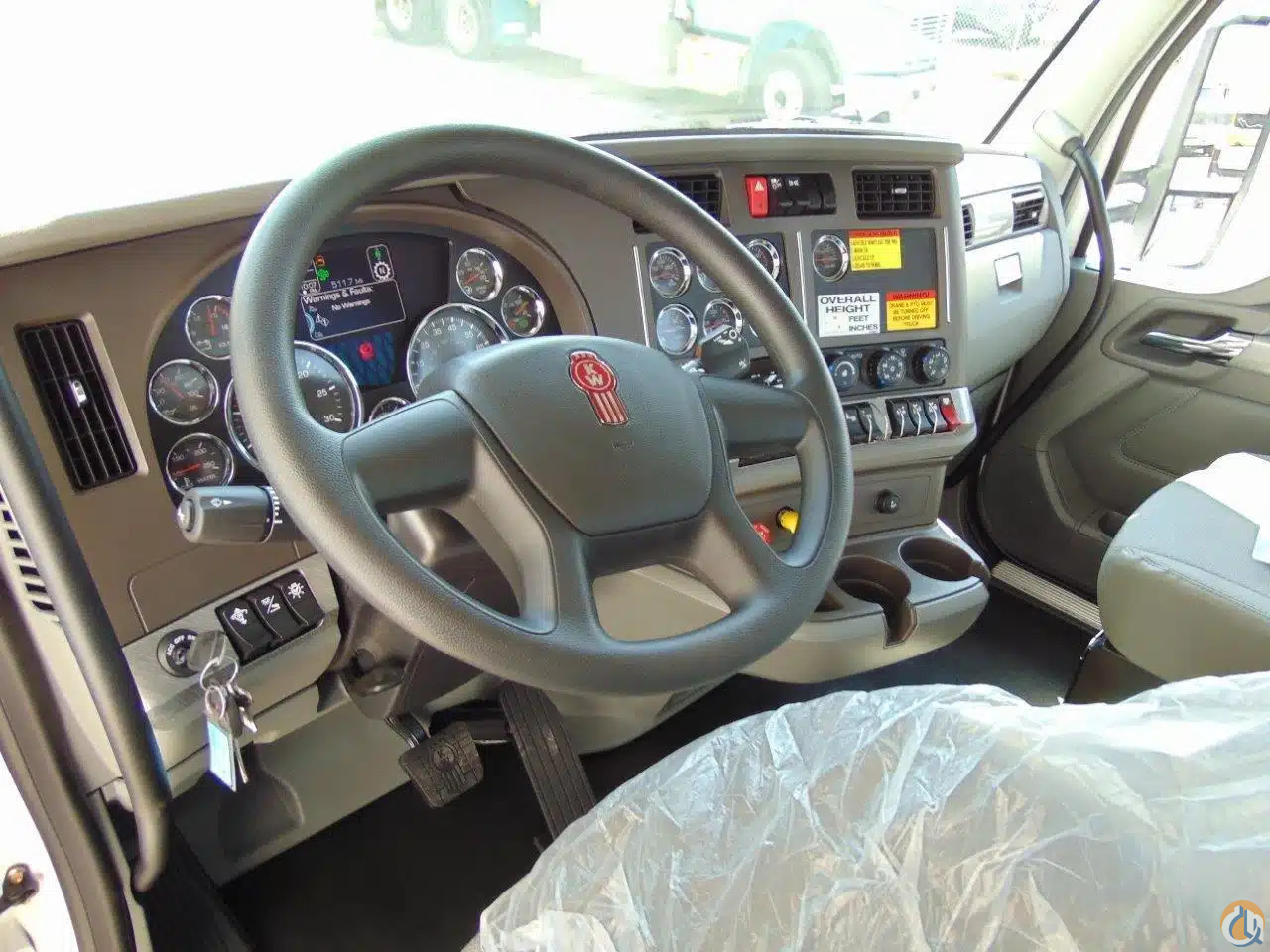

- Loaded with Options Including: A/C, Tilt/Telescopic Steering, Power Window & Locks, AM/FM/MP-3 w/Bluetooth, Air Driver Seat and Standard Passenger Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock ups, Trailer Air Tow Package, Chromed Front & Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc
Additional Options Available:
- 19’ Long Removable Center Divider for Steel Flat Deck Proposed Above
- 24’ Aluminum Flat Deck with Alum Headboard and Removable Center Divider (Instead of Steel)
- 1” Drawplate Installed at Rear of Truck (for Possible Pintle Hook)
- Pair of Aluminum Stabilizers (2 Pcs) with Holders
- Standard 18-Spd Transmission (Instead of Automated 18-Spd)
