Lower odometer reading: 27,389 miles
Upper odometer reading: 4,870 hours

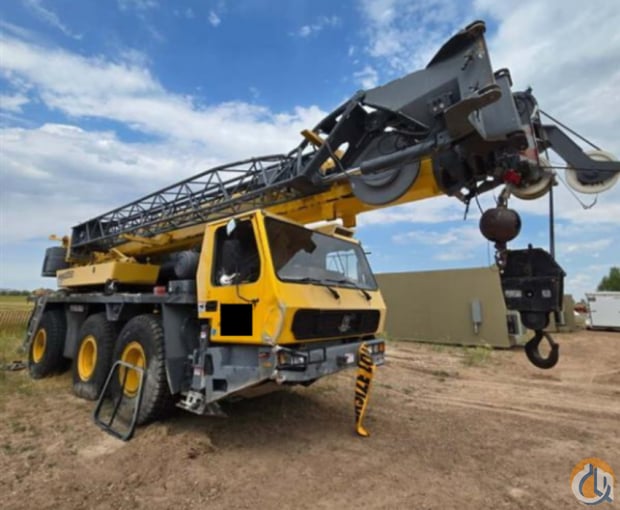

General Overview

Type: All-Terrain Mobile Crane
Production Years: 1996–2006
Max Lift Capacity: 55 USt (50 metric tons)
Main Boom Length: 33 ft – 125 ft (10 m – 38 m)
Jib Length: 28 ft – 49 ft (8.7 m – 15 m)
Max Tip Height: 182.7 ft (55.7 m) with jib [cranemarket.com]

Dimensions

Transport Length: 36.16 ft
Transport Width: 9.39 ft
Transport Height: 11.42 ft
Width with Outriggers Extended: 20.35 ft
Carrier Length: 28.75 ft
Tail Swing Radius: 10.5 ft [ritchiespecs.com]

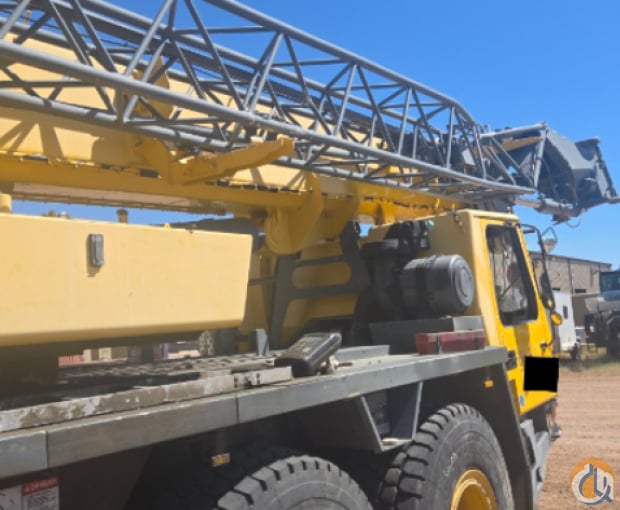

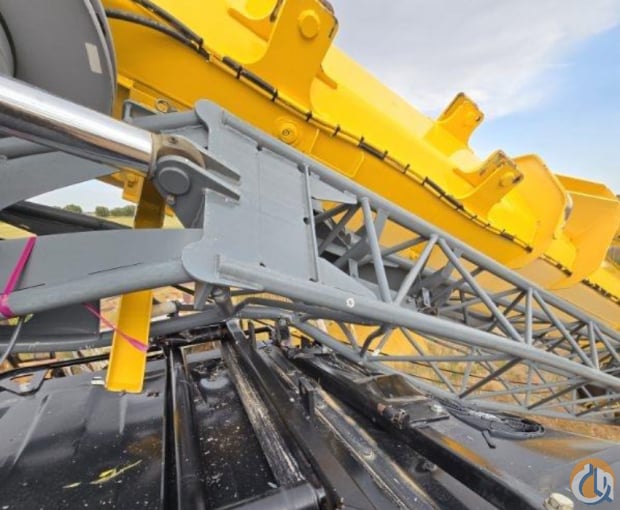

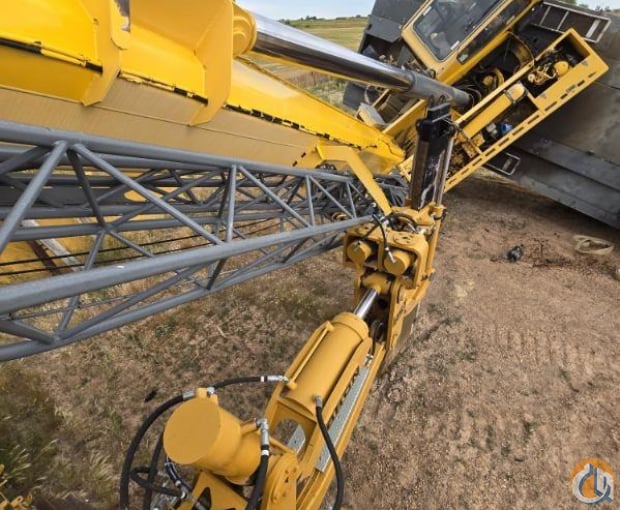

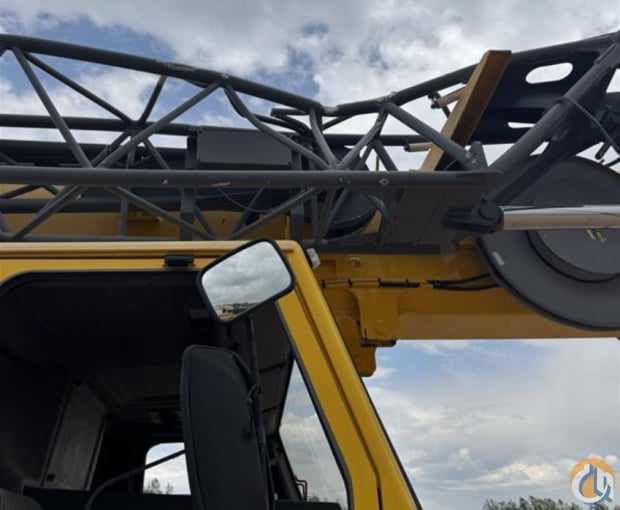

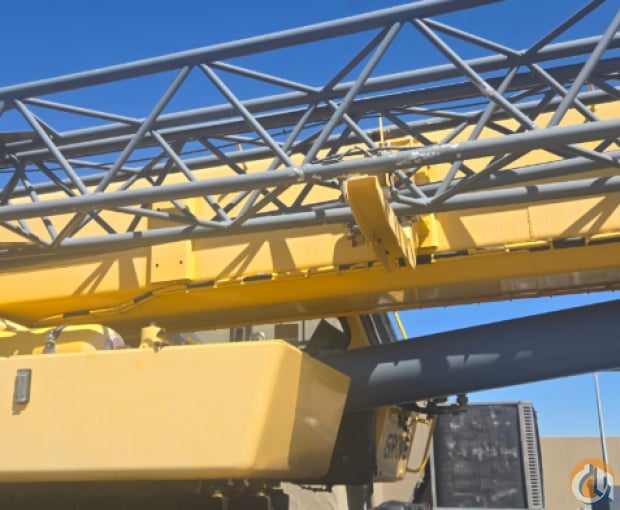

Boom & Working Range

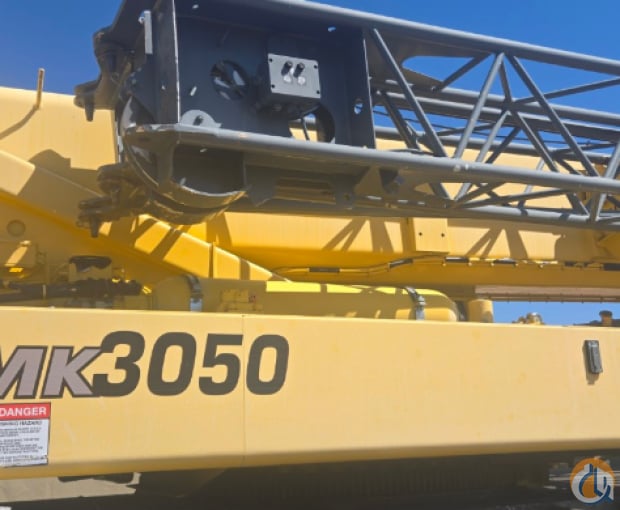

Boom Sections: 5-section, full-power boom
Boom Elevation Range: -3° to 82°
Swing Speed: 2.5 rpm [ritchiespecs.com]

Engine & Transmission

Engine: Mercedes-Benz OM501LA, turbocharged and after-cooled
Power Output: 349 hp (260 kW)
Transmission: Allison MD 3066 P automatic
Max Speed: 52.9 mph
Fuel Capacity: 95.2 gallons [bigge.com]

Operational Features

Operating Weight: 74,180 lbs
Number of Axles: 3
Hydraulic System Fluid Capacity: 158.6 gallons
Operating Voltage: 24 V
Alternator Output: 100 amps [ritchiespecs.com]

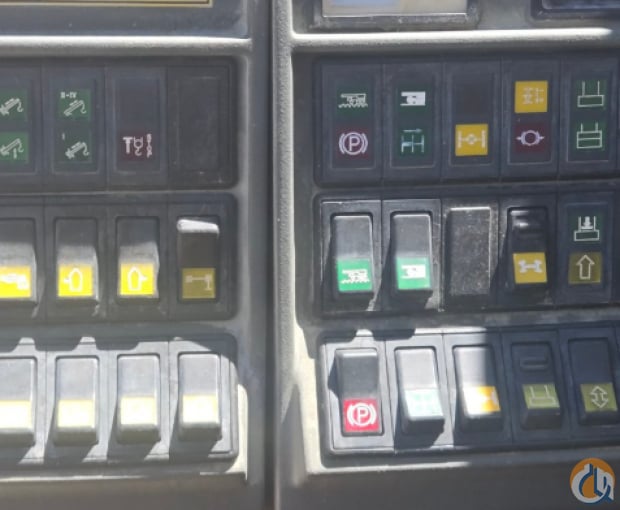

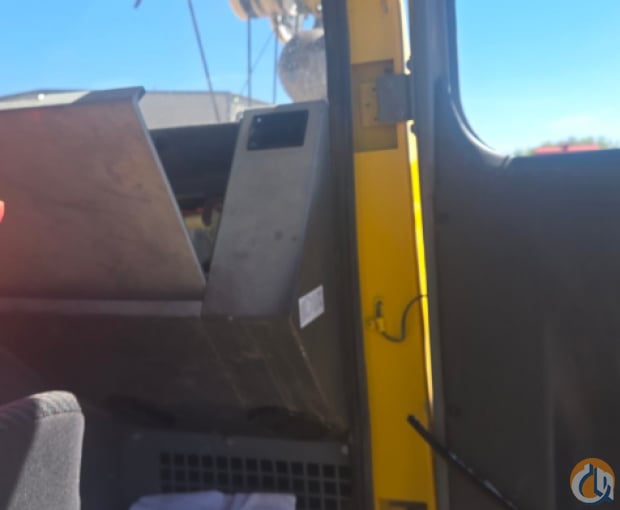

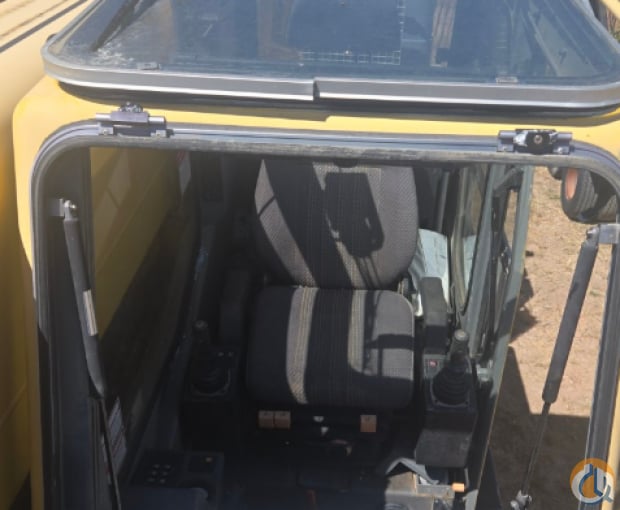

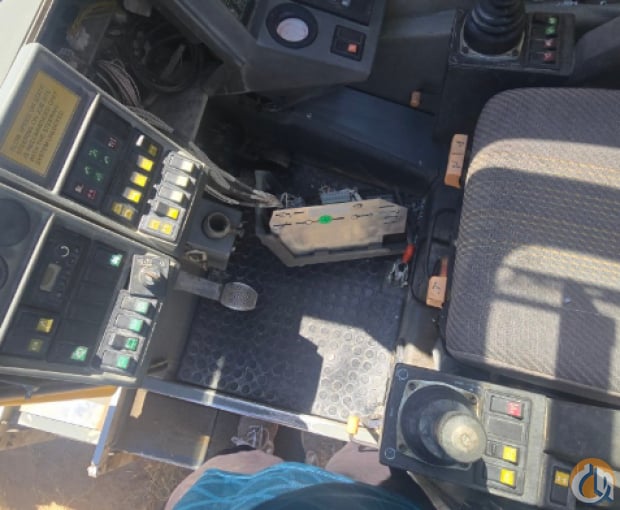

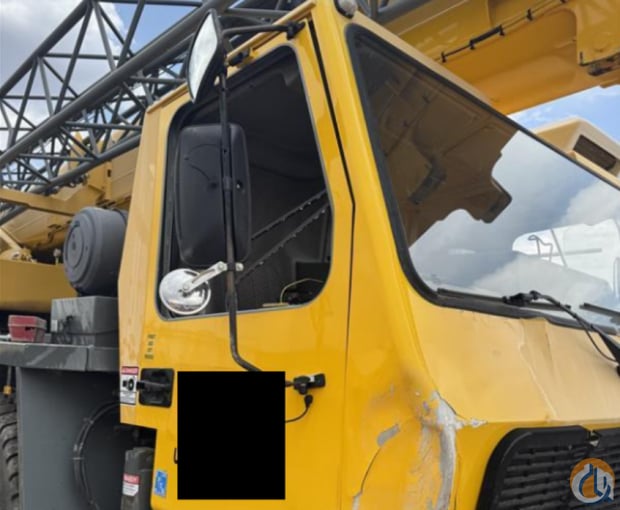

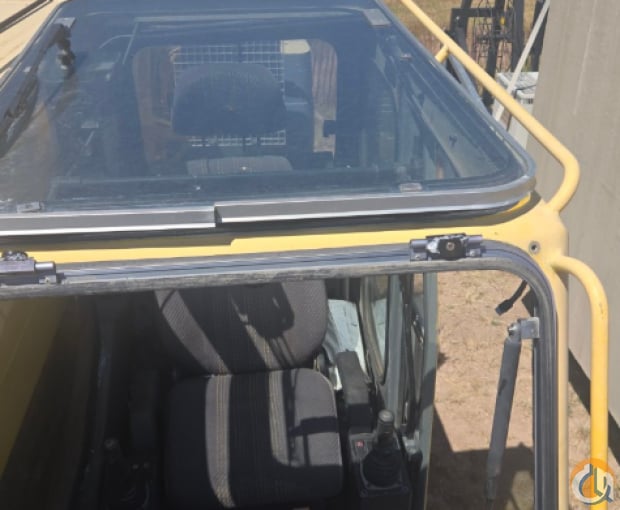

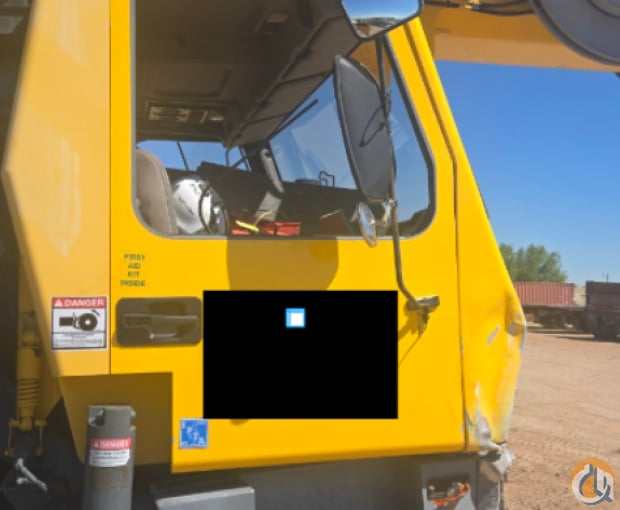

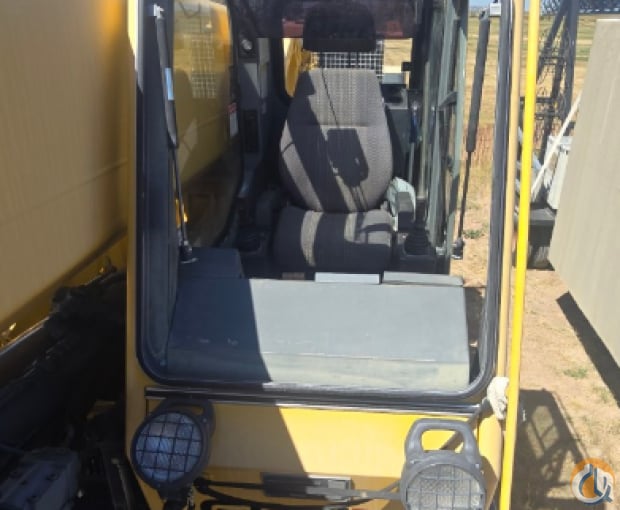

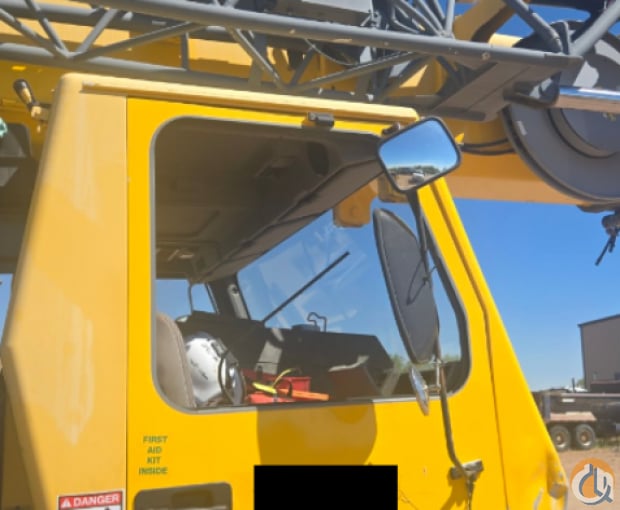

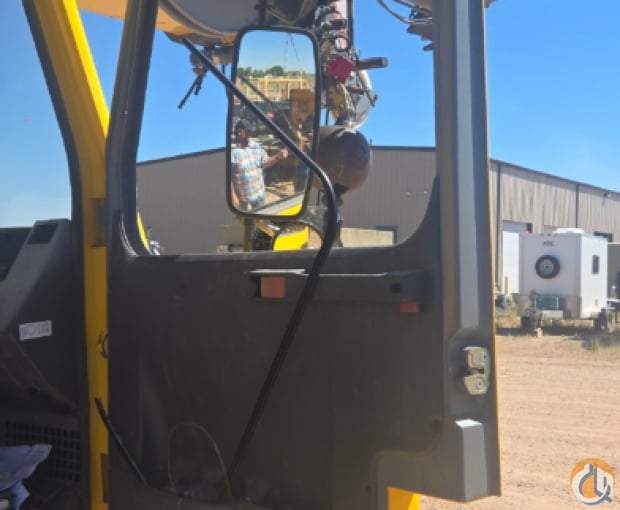

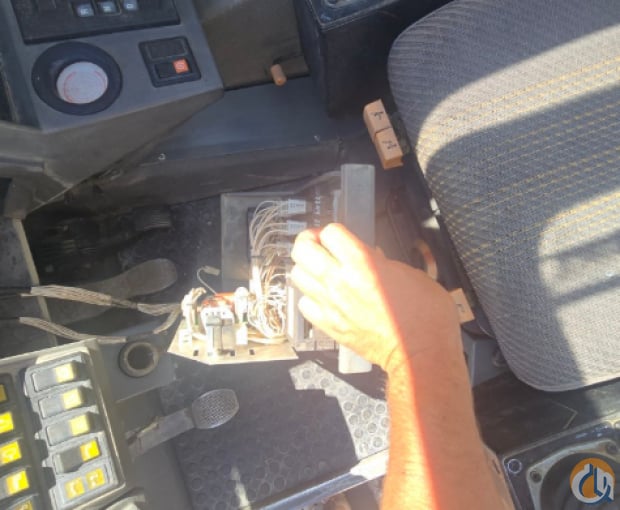

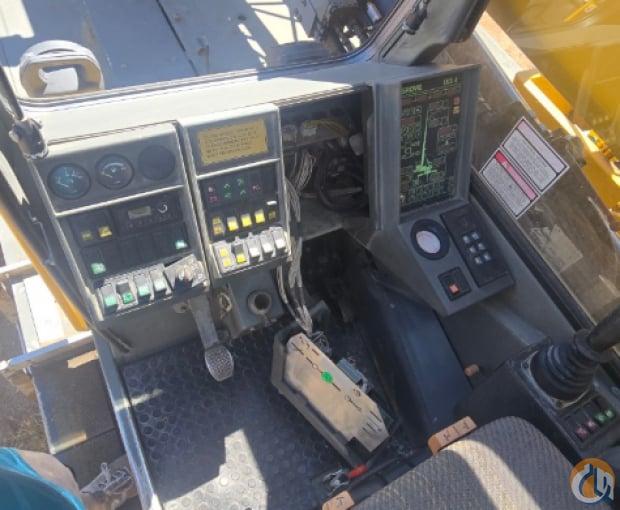

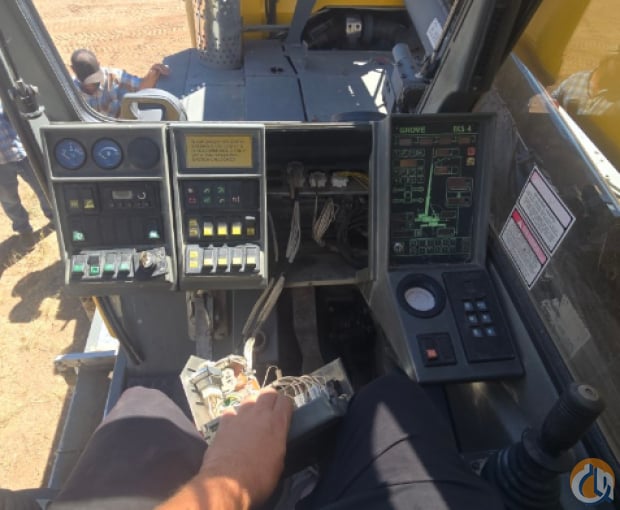

Cab Features

Full-vision aluminum cab with safety glass
Adjustable, hydraulically suspended operator’s seat
Engine-independent heater

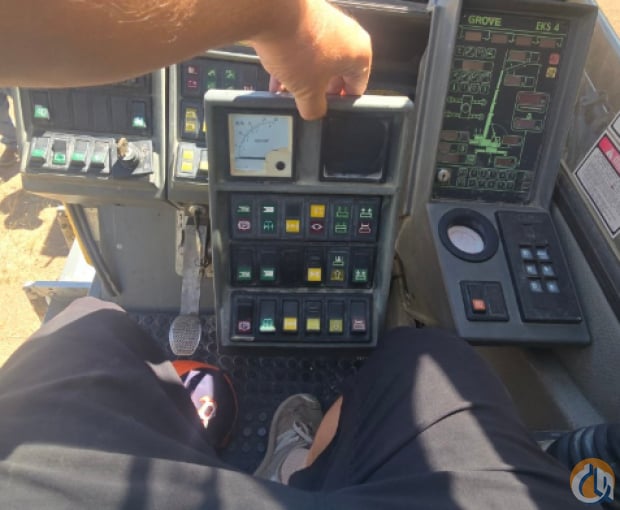

Armrest-integrated crane controls
Cab tilts forward 60° for maintenance access [bigge.com]

Safety Systems

Load moment and anti-two block system
Audio/visual warnings
Control lever lockout

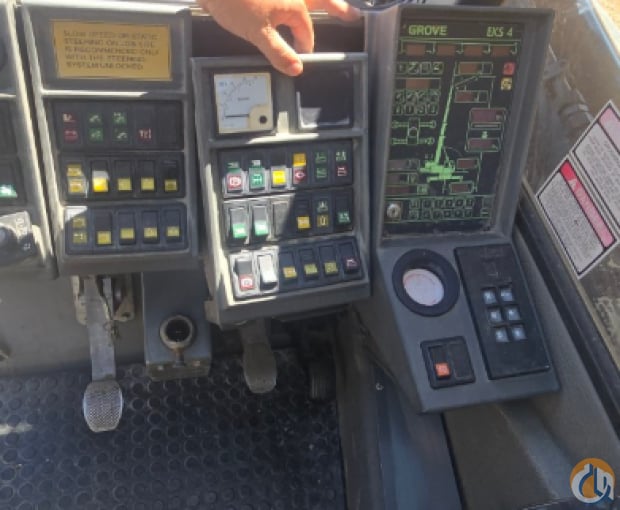

Electronic display of boom radius, length, angle, tip height, and load indicator

***DUE TO BIDDERS NOT HONORING THEIR BIDS, PLEASE DO NOT BID IF YOU ARE NOT READY TO PAY AND PICK-UP***

****BUYERS ARE RESPONSIBLE FOR ATTAINING THEIR OWN PACKING LIST*****

***BUYERS ARE RESPONSIBLE FOR ALL LOAD OUT COSTS AND TRANSPORTATION. ALL BIDS MUST BE APPROVED BY THE SELLER.****

Seller to negotiate shipping and invoice terms prior to final payment. Loading , domestic and international transport rates are available for any crane. Ex-works from location

All inspections must be completed before the bidding ends. All sales are final and the winning buyer is expected to make full payment upon request to do so.

To inspect, contact Kelli Alexander at Crane Salvage at (864) 878-7444
