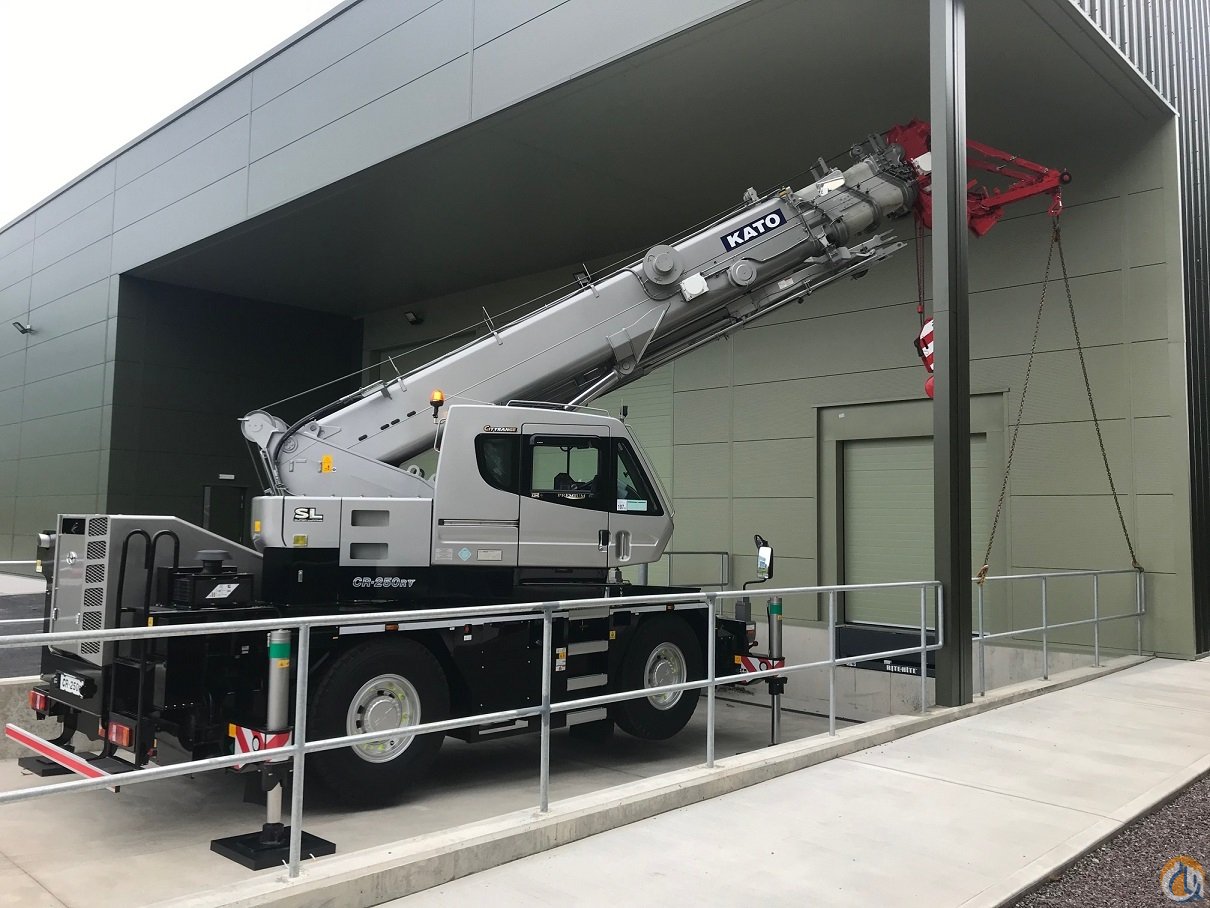

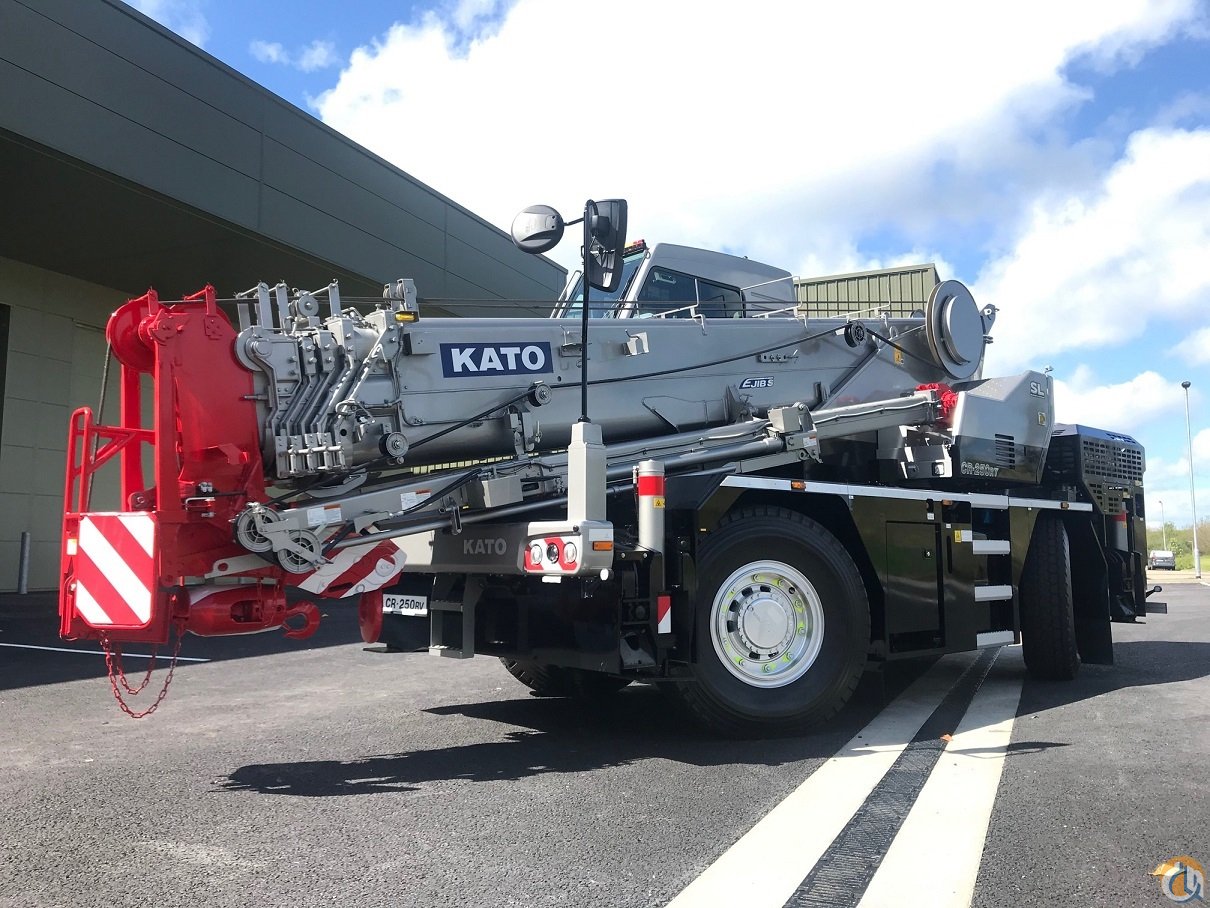

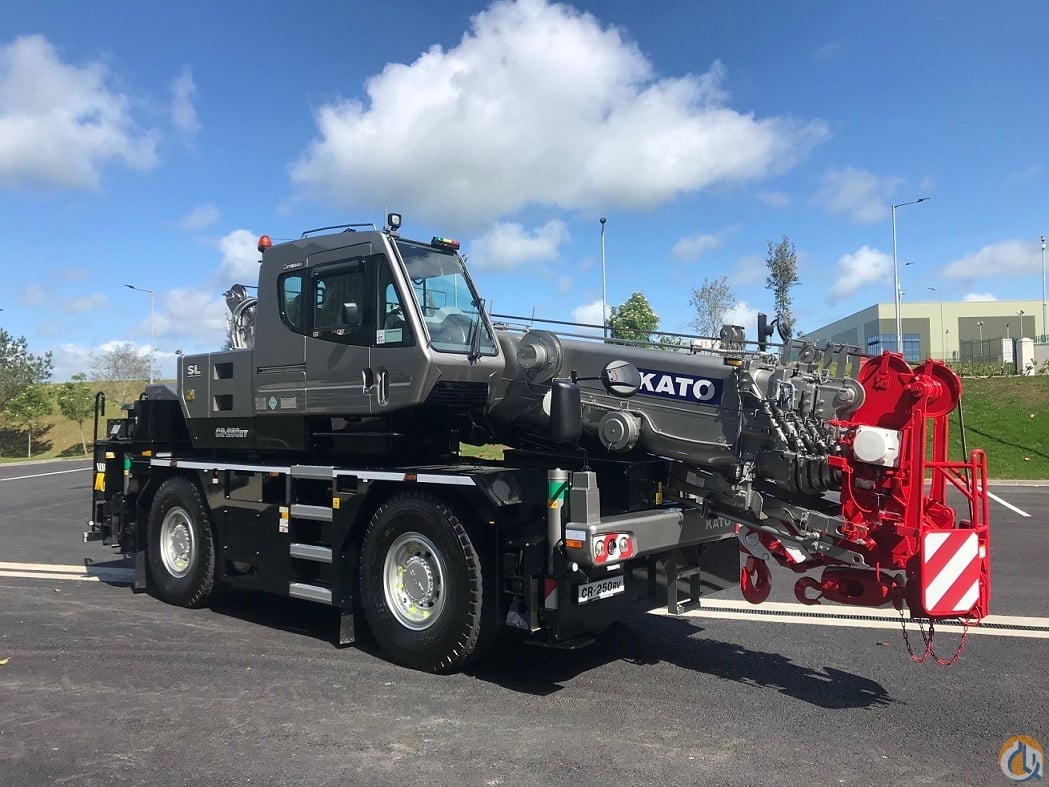

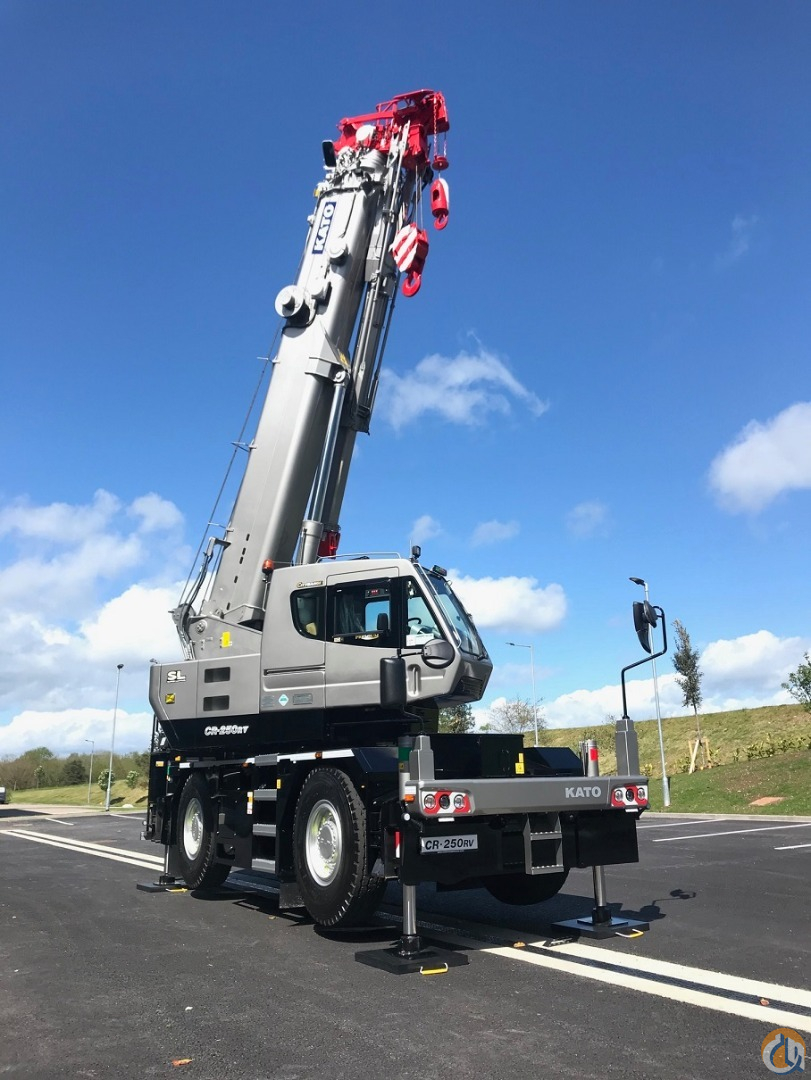

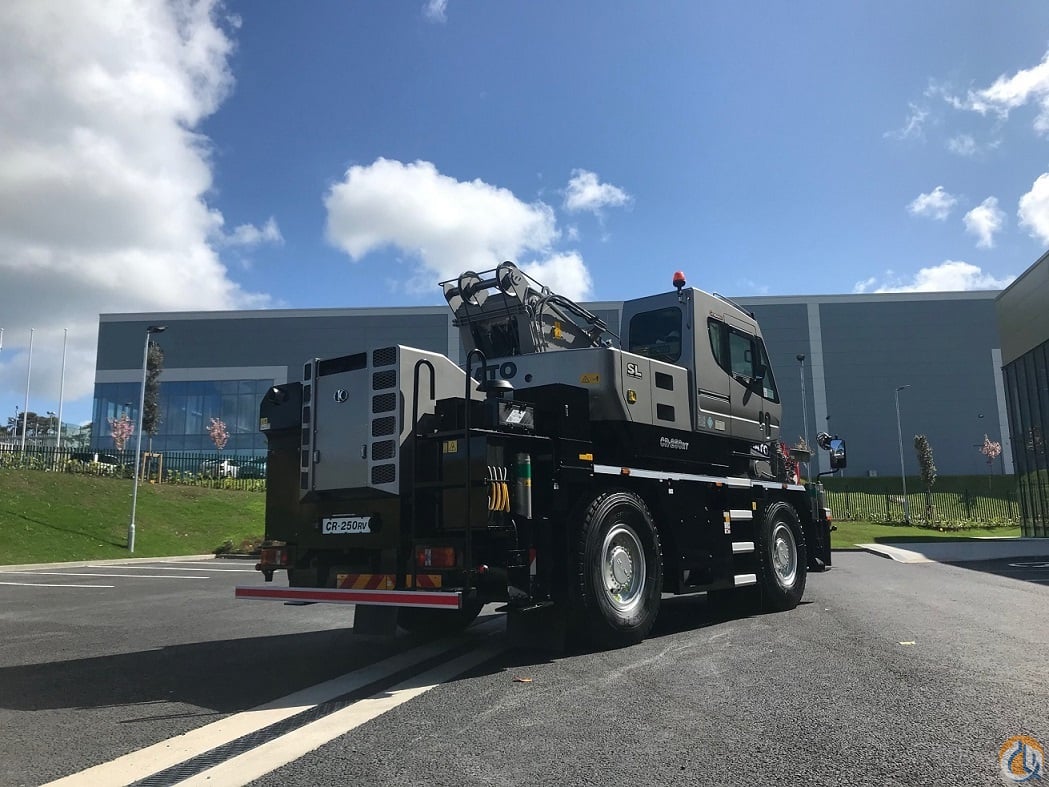

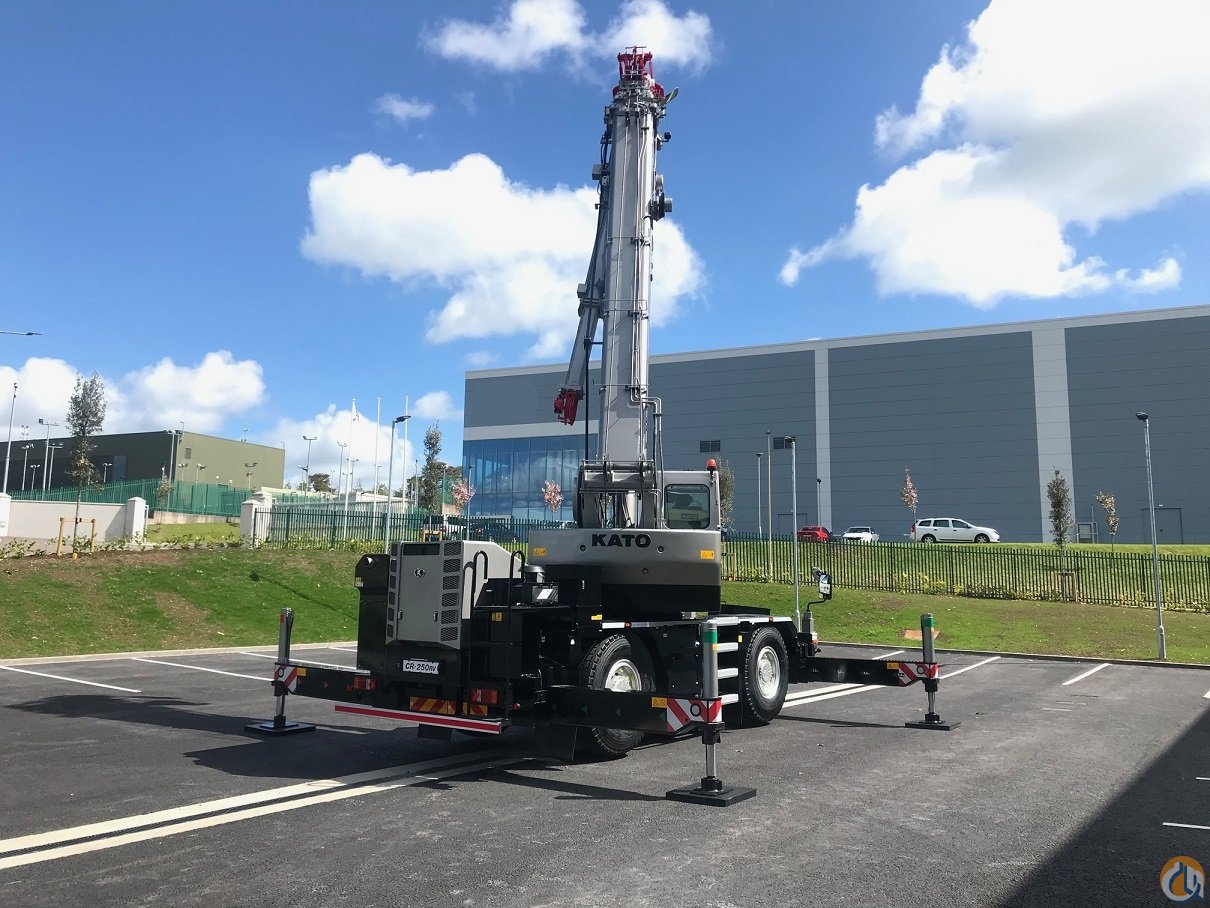

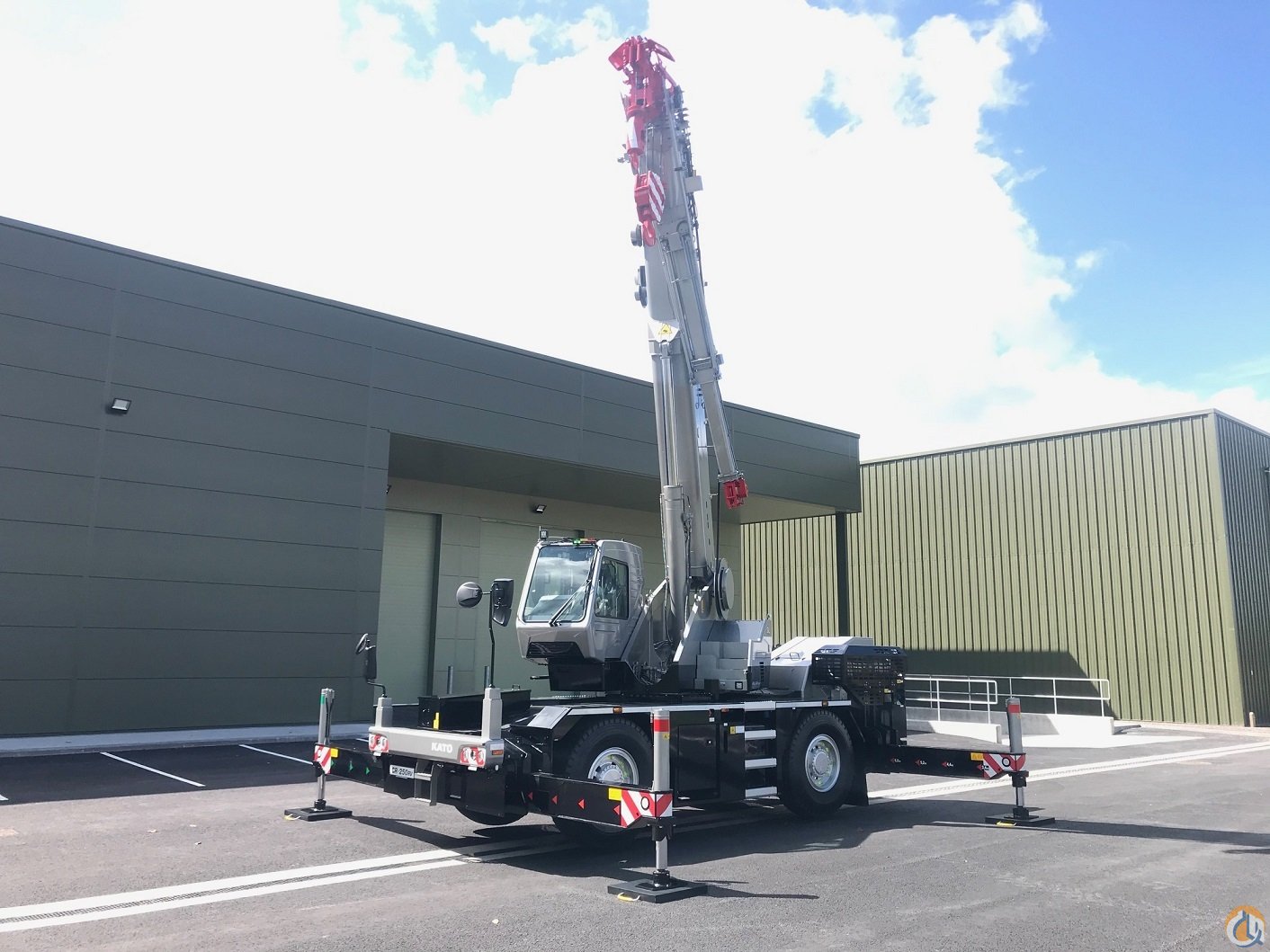

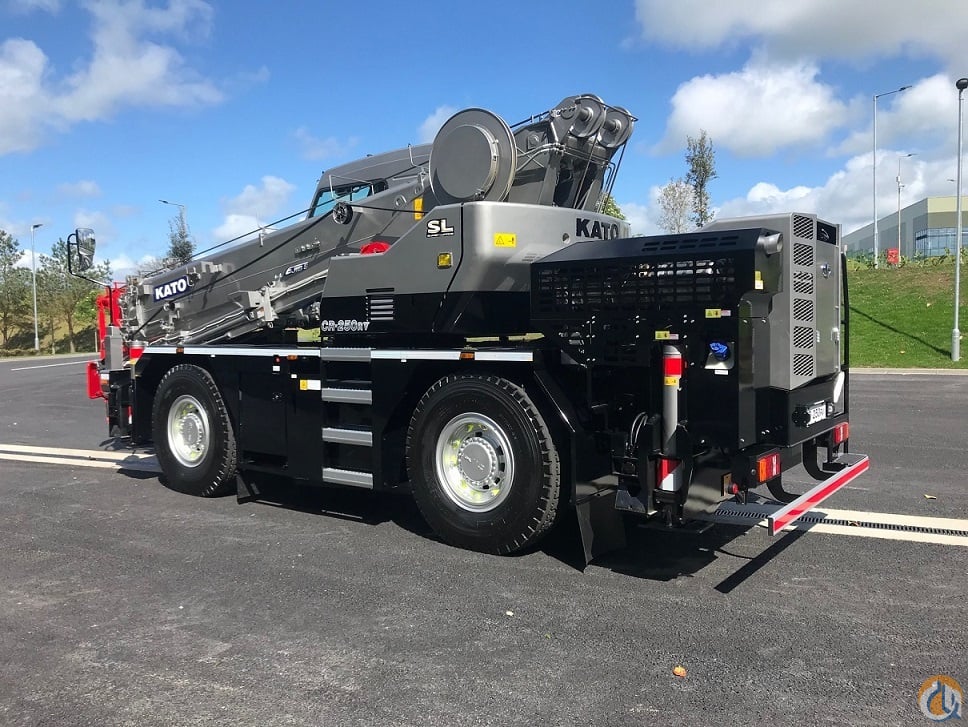

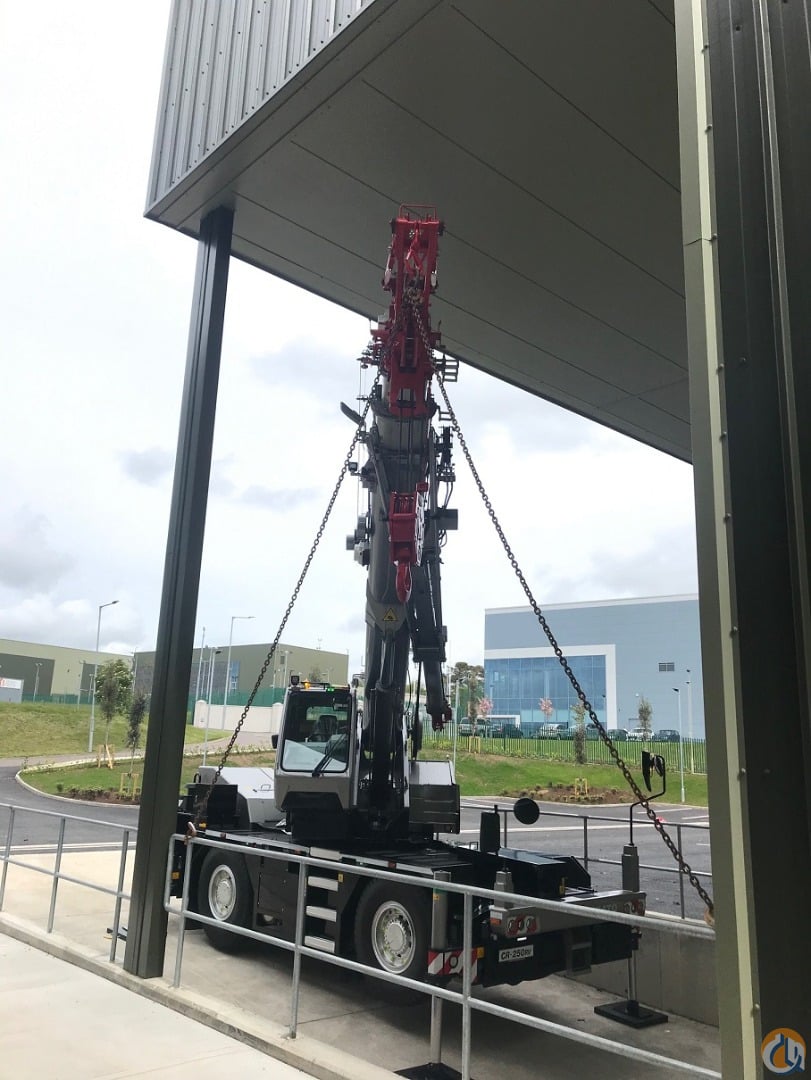

NEW KATO CR-250Rv , 25 Ton City Crane

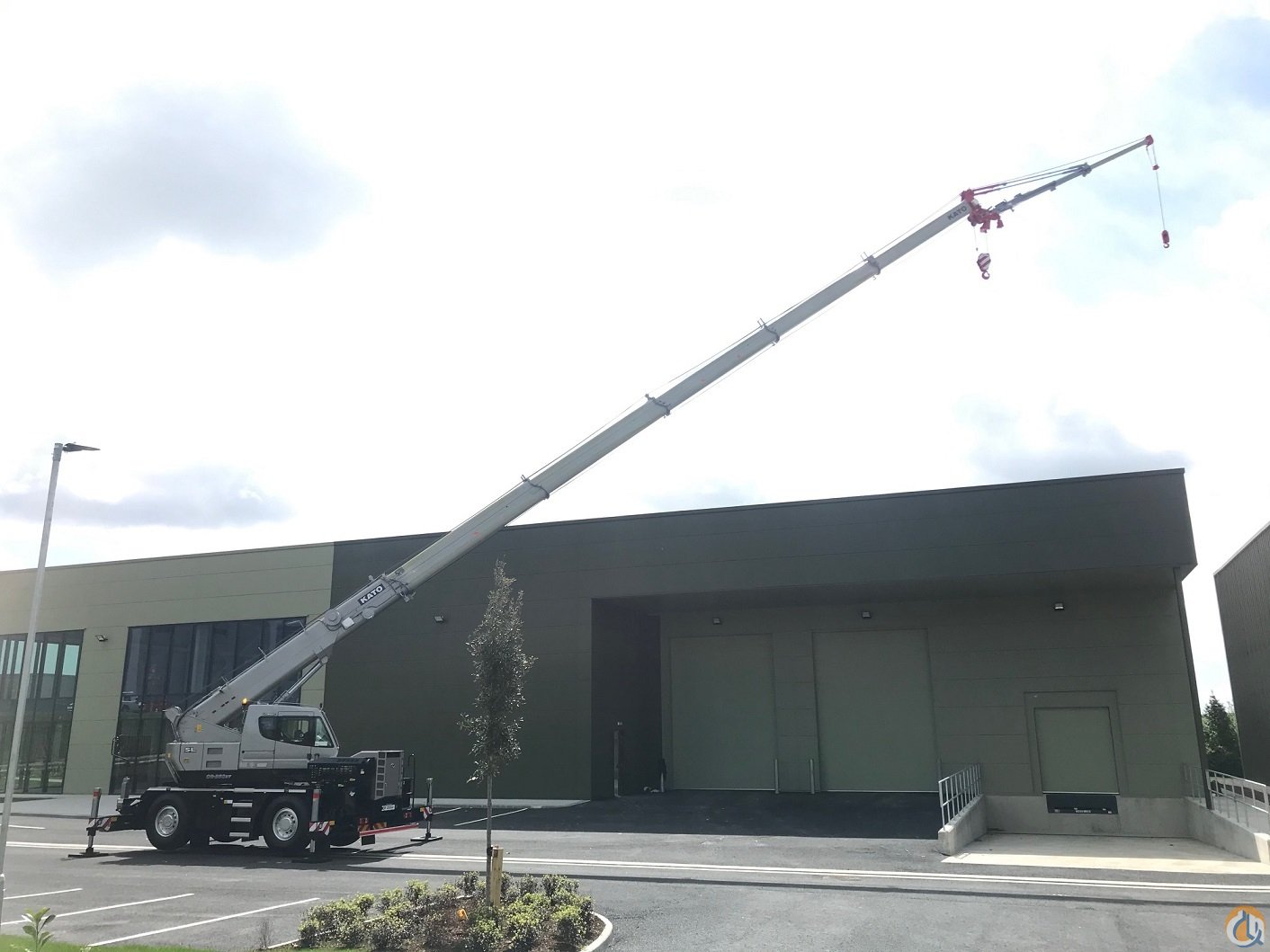

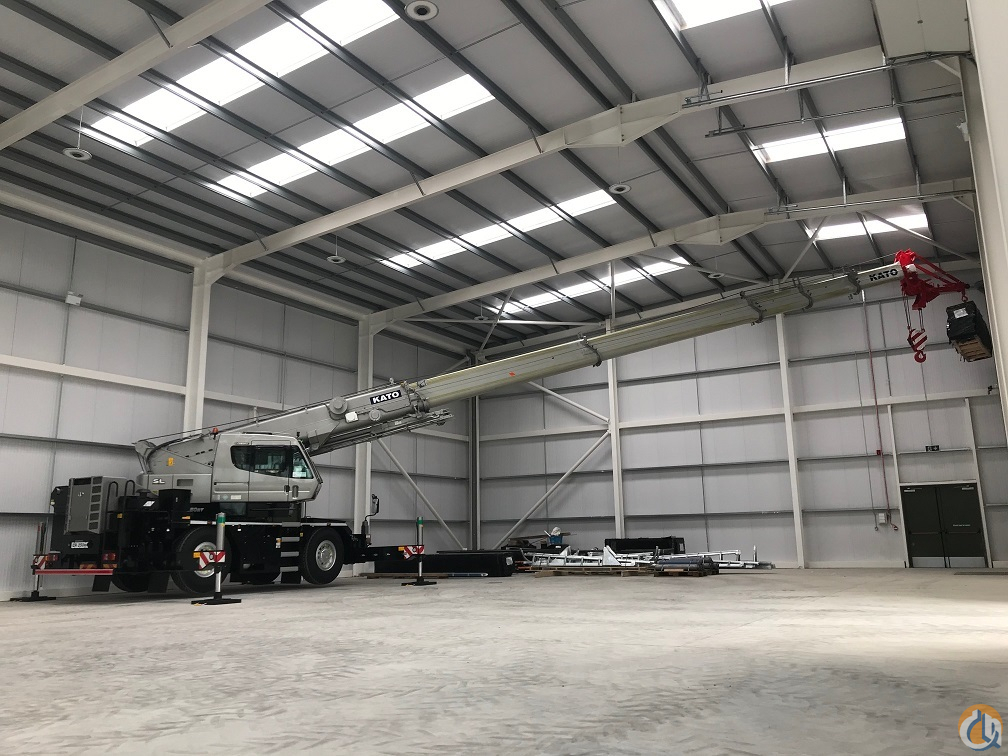

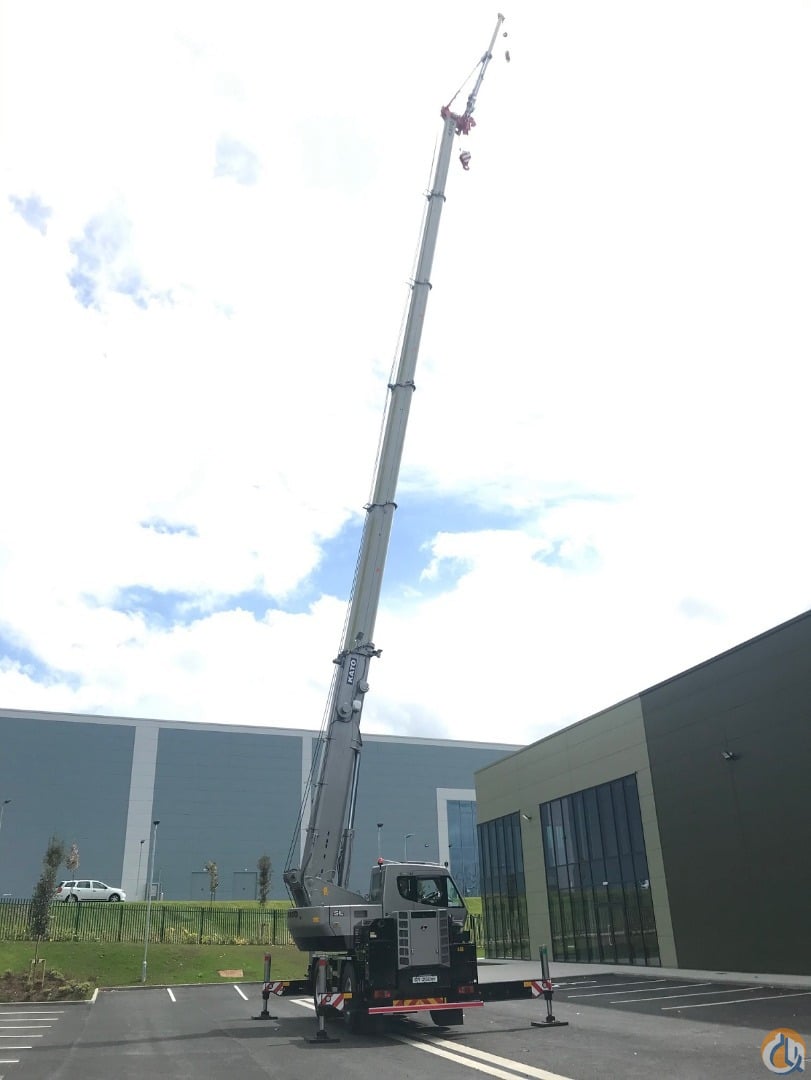

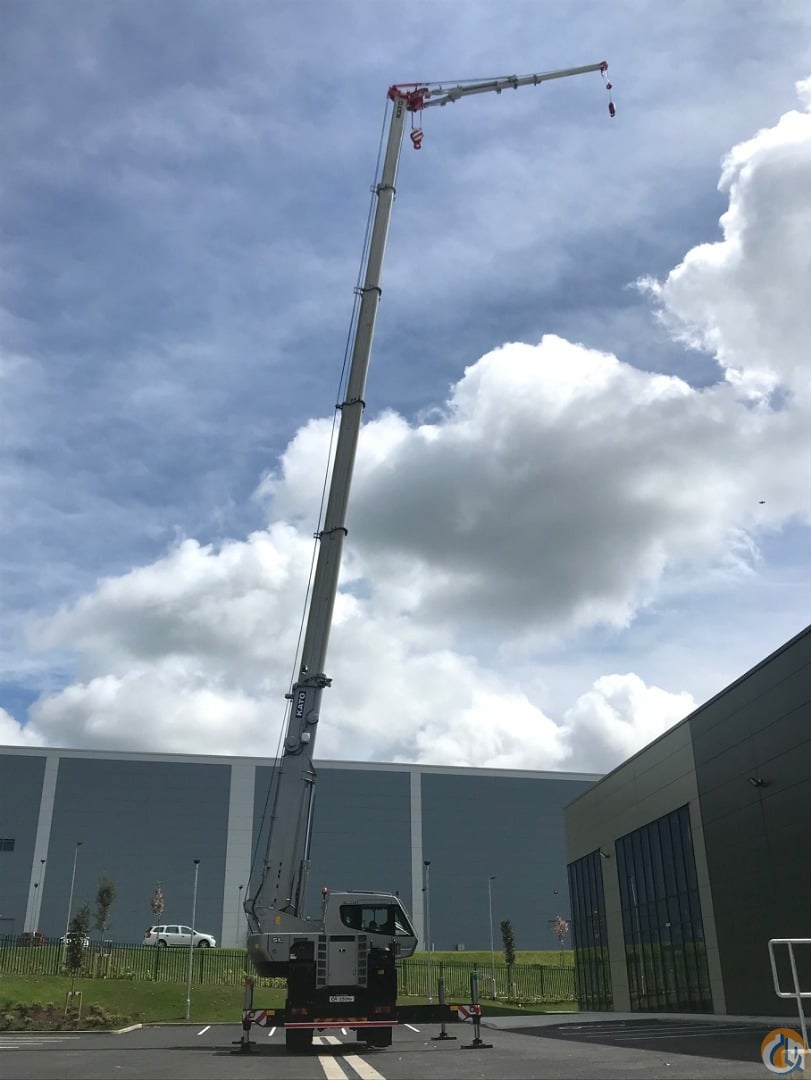

A Fully Powered 29 Meter Main Boom which can telescope with 100% of its Load.

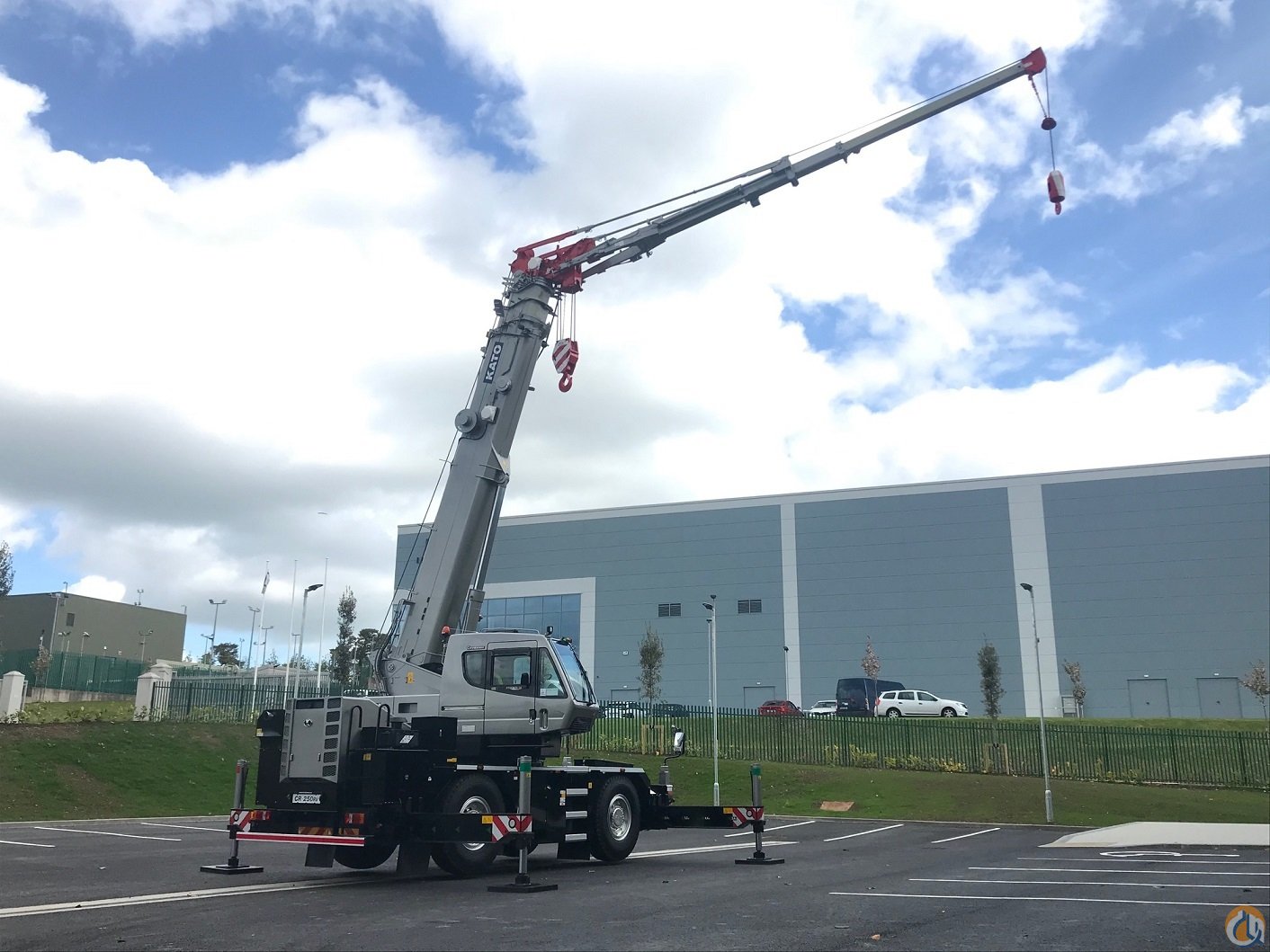

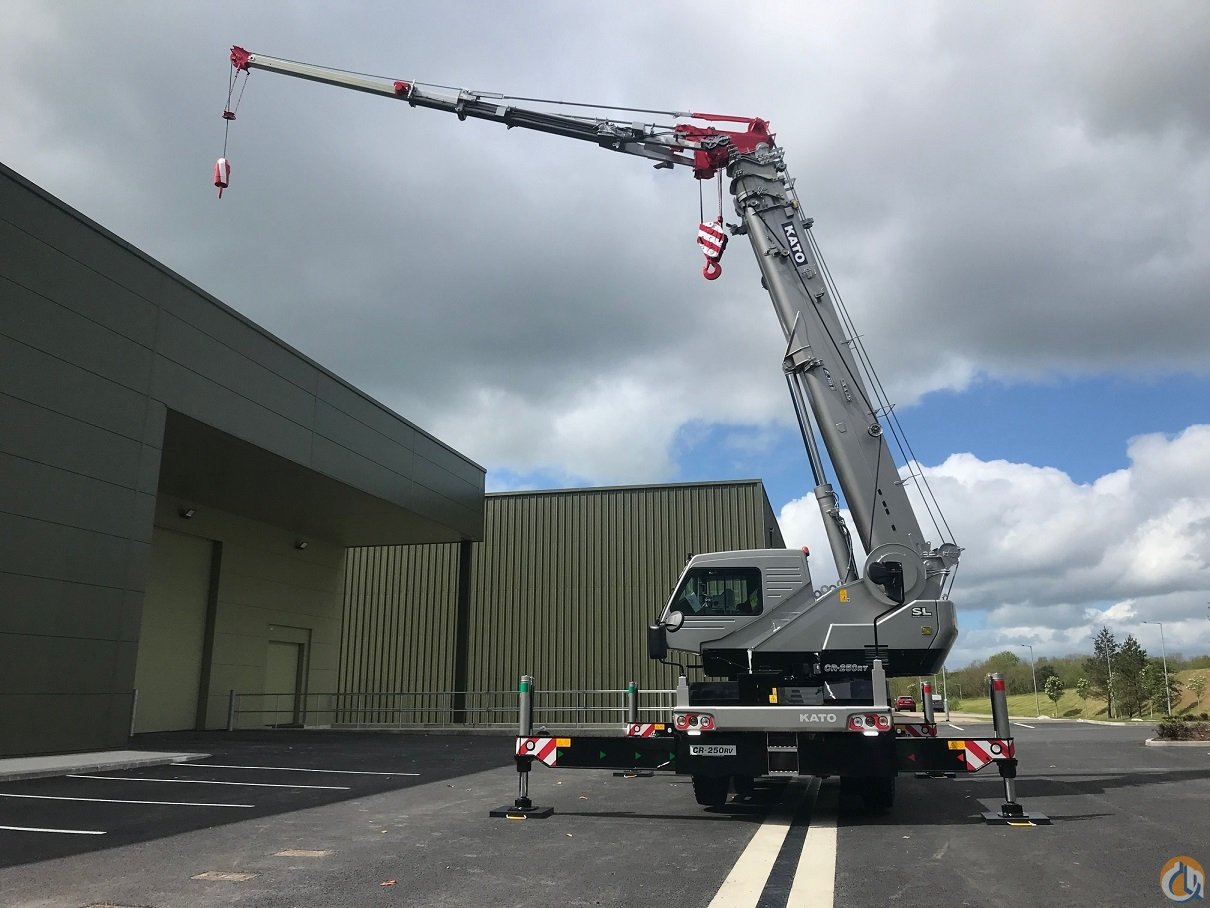

Super Luffing Jib - 5.3 to 8.2 Meter Fully Hydraulic Fly Jib (Hydraulically Luffing & Hydraulically Telescoping)

2 – Winches, Main plus Auxiliary ( Auxiliary Winch Capacity 4t)

Cummins QSB6.7 European Compliant Stage V Engine with 209Kw output ( 33% increase over previous CR250 ).

7.5t Searcher Hook as Standard

Maximum Rated Lifting Height (Boom Jib) of 38.1 meters

Maximum Travelling Road Speed of 62km p/h

Some New Crane Features

• A Hydraulically Luffing & Hydraulically Telescoping Fly Jib ( from 5.3 Metres to 8.2 Metres ) which can be mounted within a 5.7 Meter area from the slew centre and which is also fully powered and can telescope and offset under 100% load.
• ABS Braking system as Standard
• Newly adopted Hydraulic Pneumatic Suspension for a smoother ride and greater Operator comfort

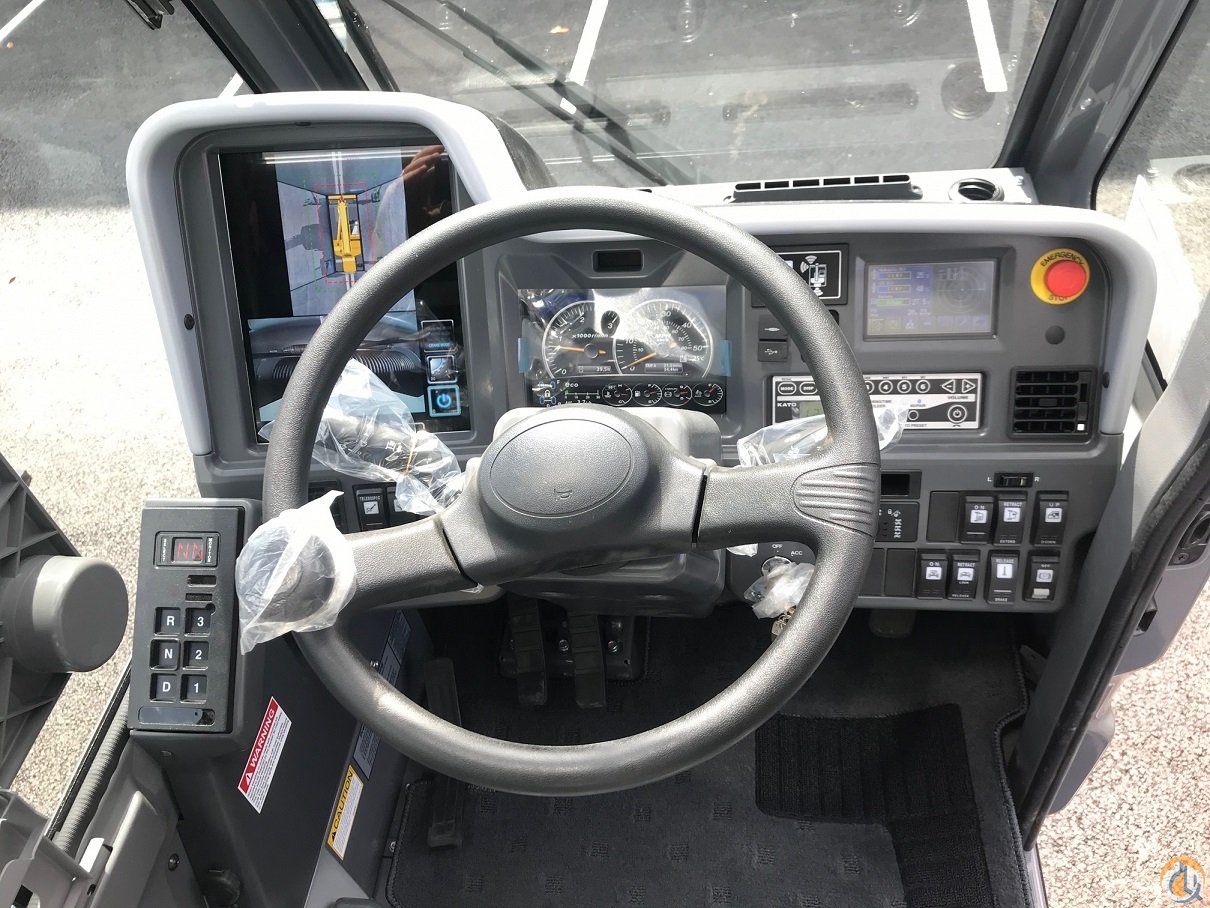

• Newly developed 12 inch touch screen controller for Crane Safe Load System.
• Semi - Automatic Crane Levelling System
• Bluetooth Radio with Handsfree function
• LCD Meter Cluster

• Immobilizer Key Entry Security System

• K-COR – Data recording & analysis system (SD Card)

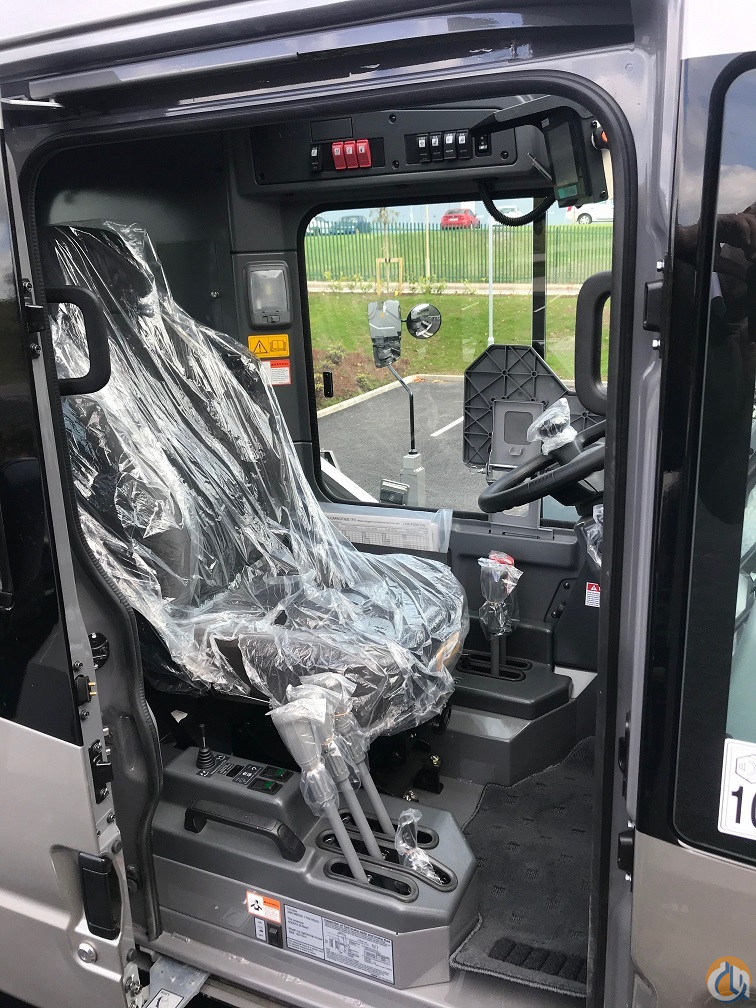

• New Operators Cab Design
• Axle weights of under 12,000Kgs.

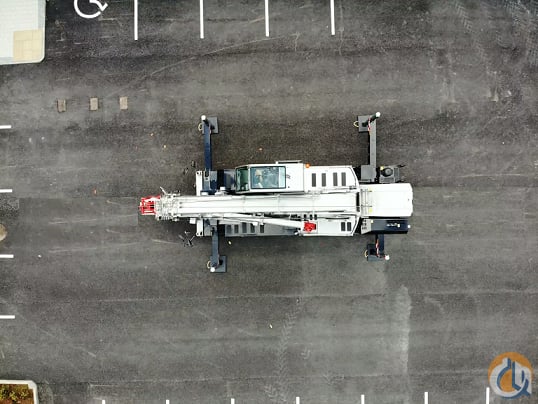

• Compact Overall Dimensions.

If you require any further information or you would like to receive a detailed quotation please do not hesitate in contacting us.
