ELLIOTT M87R equipped as follows:

-          87’ working height

-          77’ side reach

-          Unit includes base assembly supporting rear-mounted rotating turret

-          Hydraulically powered continuous rotation mechanism

-          Oil reservoir mounted to truck frame

-          Hydraulic controls mounted to turret

-          Electronic proportional three stick remote controls on platforms

-          Remote start/shutdown at upper and lower controls

-          Base mounted “MH” type hydraulically powered, individually controlled rear main outriggers

-          “A” style secondary outriggers behind cab

-          Four (4) 24”x24”x1” composite outrigger pads with (2) steel holders

-          Automatic rotation lockout-prevents boom from rotating to side where “MH” outriggers are not fully extended horizontally

-          2,000 lbs. Planetary winch with anti-two block switch, horn, 5/16” cable & retainer lug

-          Platform-mounted jib with hydraulic winch with 500 lb capacity. Stows in basket

-          Steel three section telescoping boom

-          Pump and holding valves on all cylinders

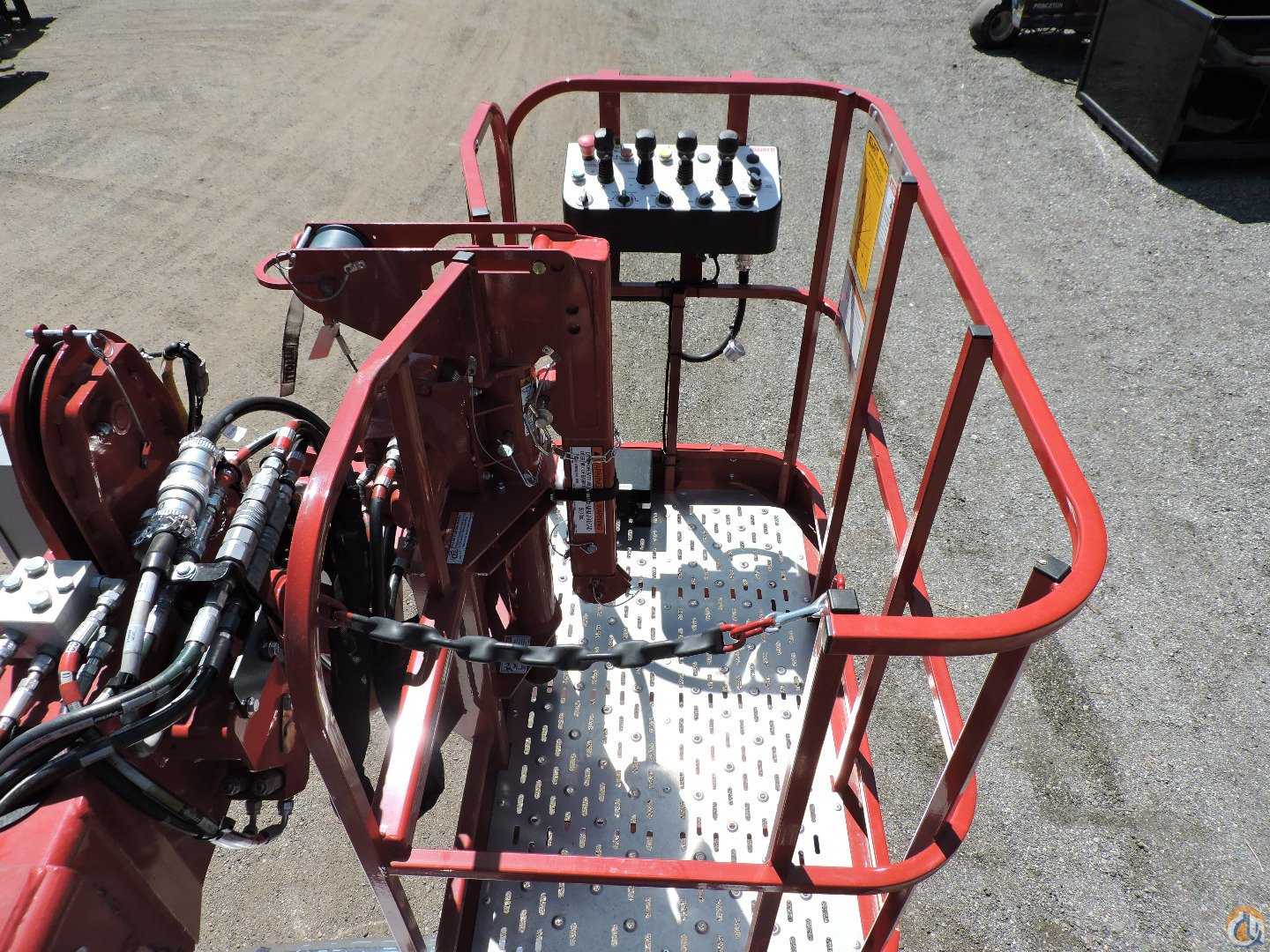

-          Electronic/hydraulic self-leveling and rotating 30”x 54” work platform with remote level from platform, aluminum floor

-          Platform capacity 600 lbs.

-          110 volt line to platform

-          (2) Sign forks on platform

-          18’ aluminum bed with grip deck coating and LED lights

-          98” x 36” x 24” aluminum cross body box

-          Standard rear bumper w/steps and grab handles

-          Walkway access to platform when boom is stowed

-          12-volt emergency pump with switch at upper and lower controls

-          PTO hour meter

-          Hot shift PTO

-          Backup alarm

-          Two body harnesses and lanyards

-          Safety triangle kit

-          HiReach painted White



MOUNTED ON:



2026 Ford F750 equipped as follows:

-          31,000 GVWR

-          270 hp 6.7L V8 diesel engine

-          Engine block heater

-          Ford Torqshift 6-speed automatic transmission

-          10,000# front axle

-          21,000# rear axle

-          50 gallon aluminum fuel tank

-          11R22.5 front and rear tires

-          Aluminum wheels

-          Chrome front bumper and grill

-          Hydraulic brakes

-          Air conditioner

-          Air suspension driver seat

-          Two-man passenger bench seat

-          Power locks and windows

-          Heated and motorized mirrors

-          AM/FM radio with Bluetooth

-          Cab color: white

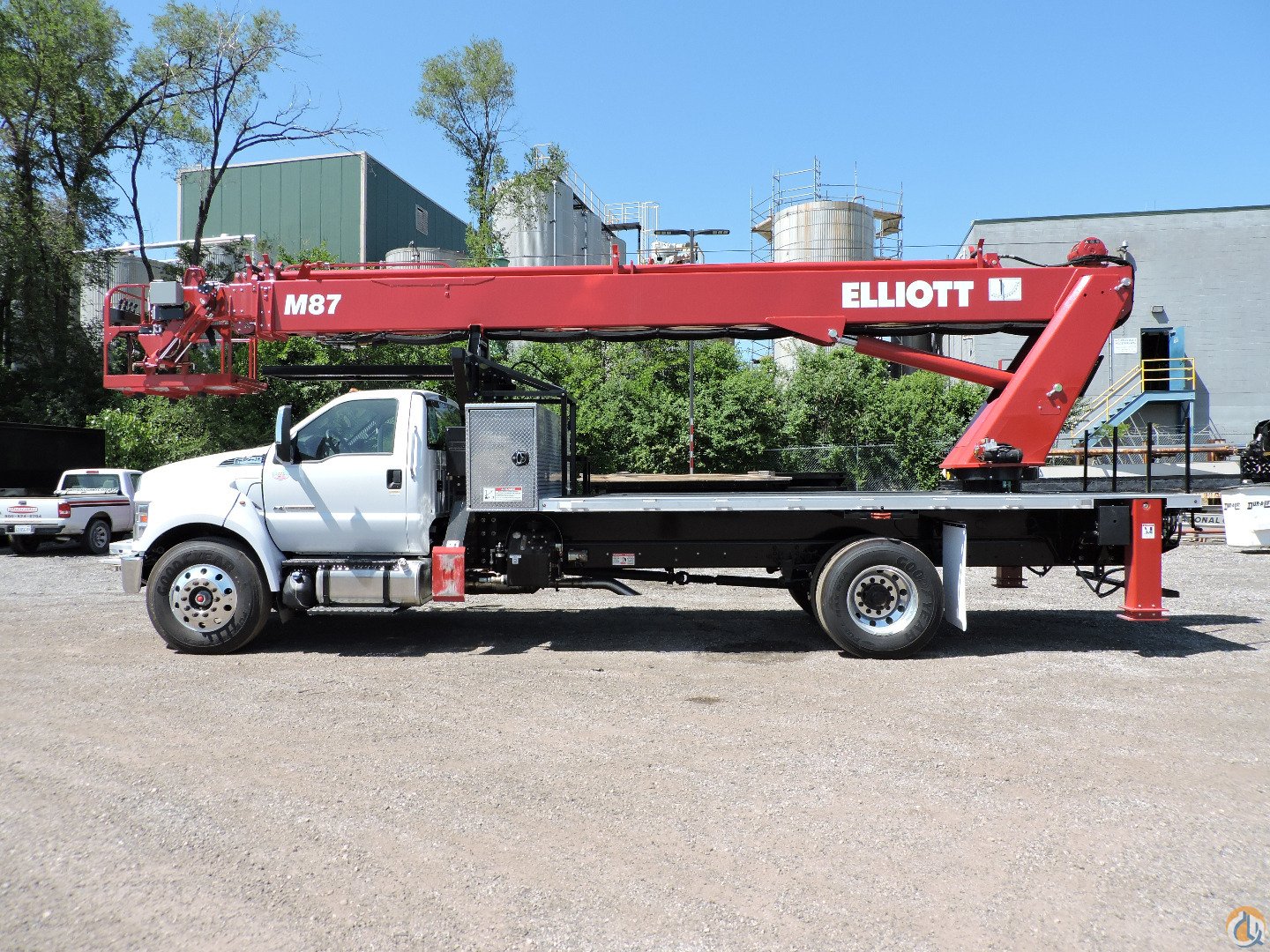

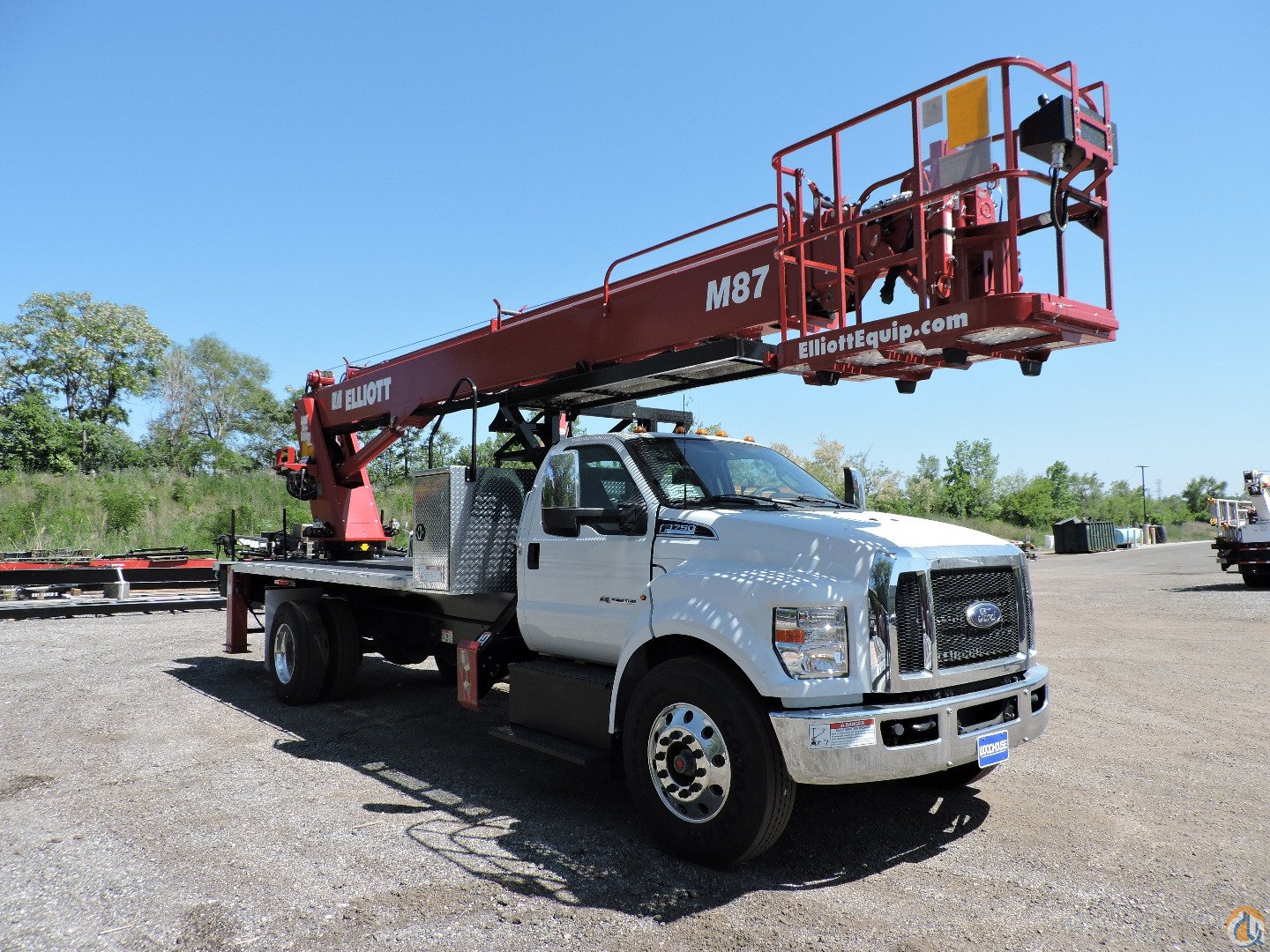

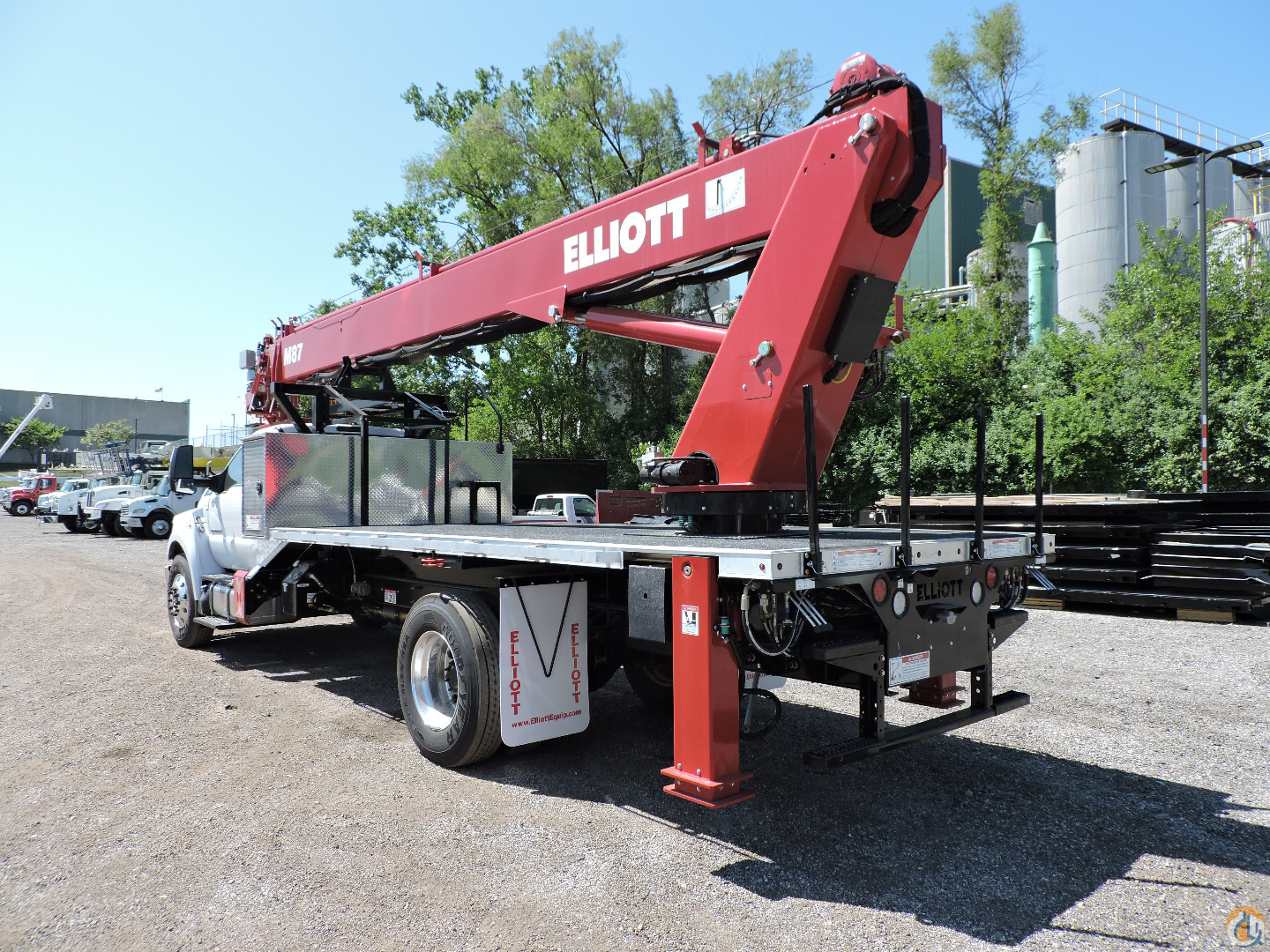

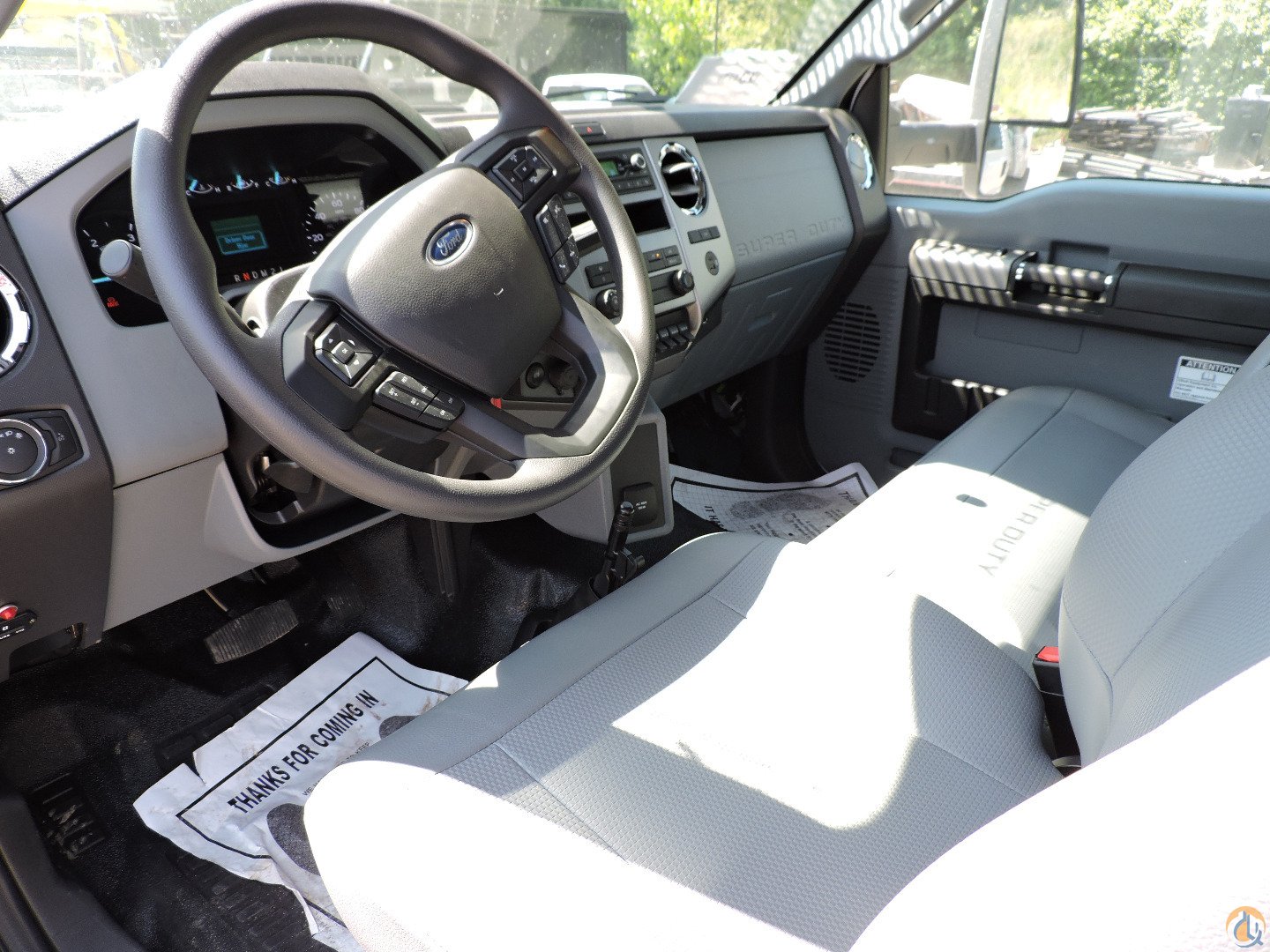

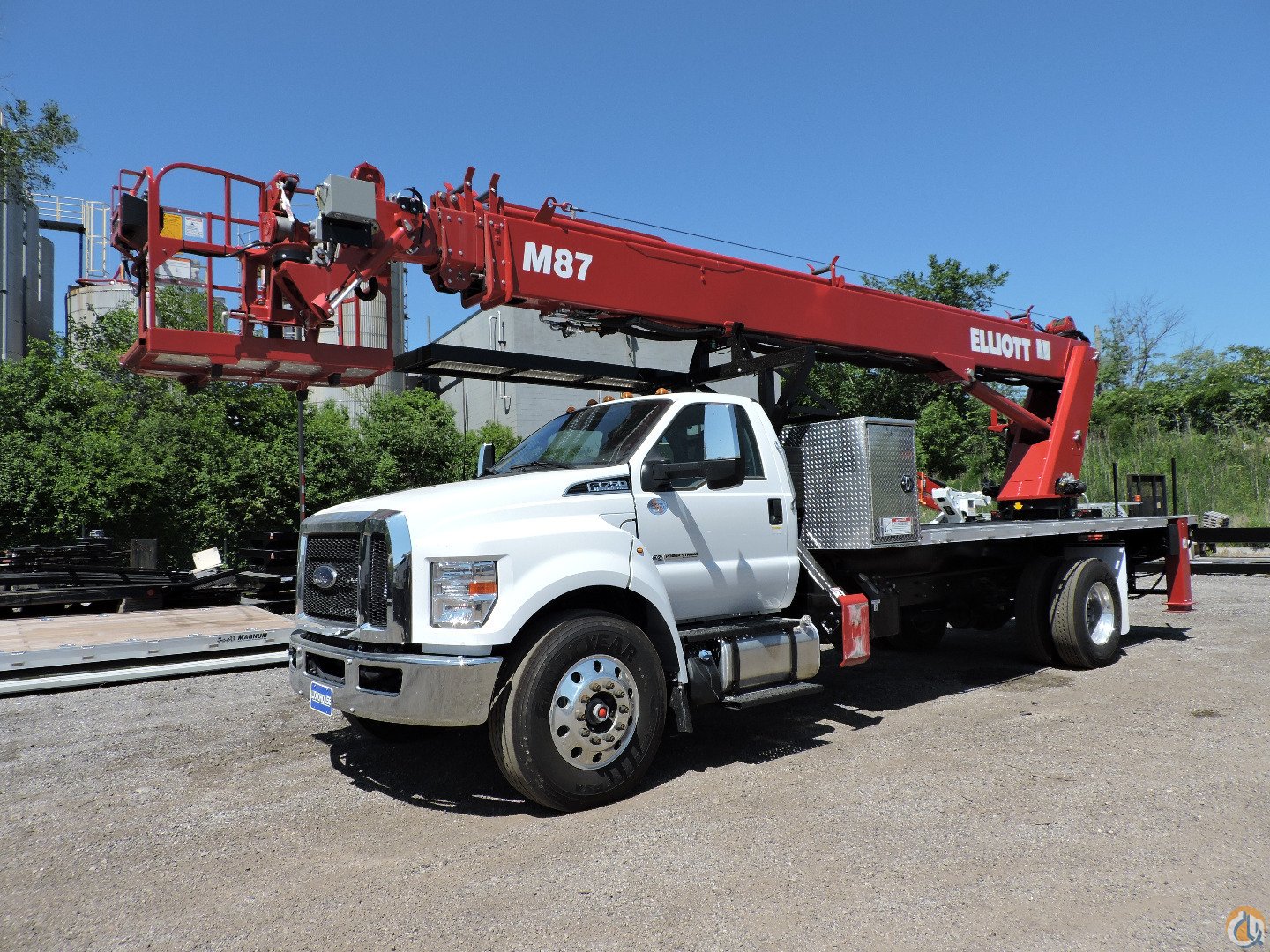

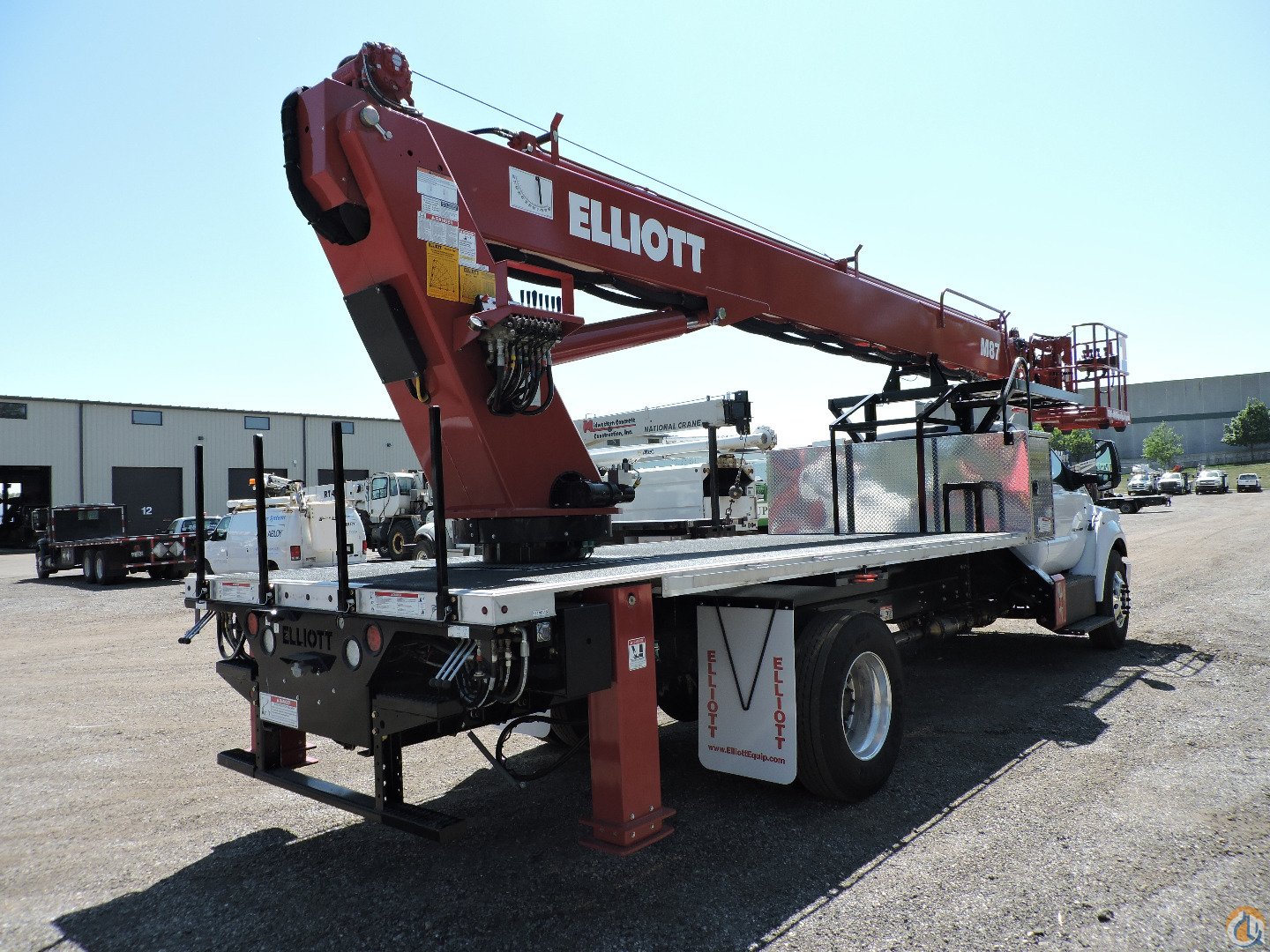

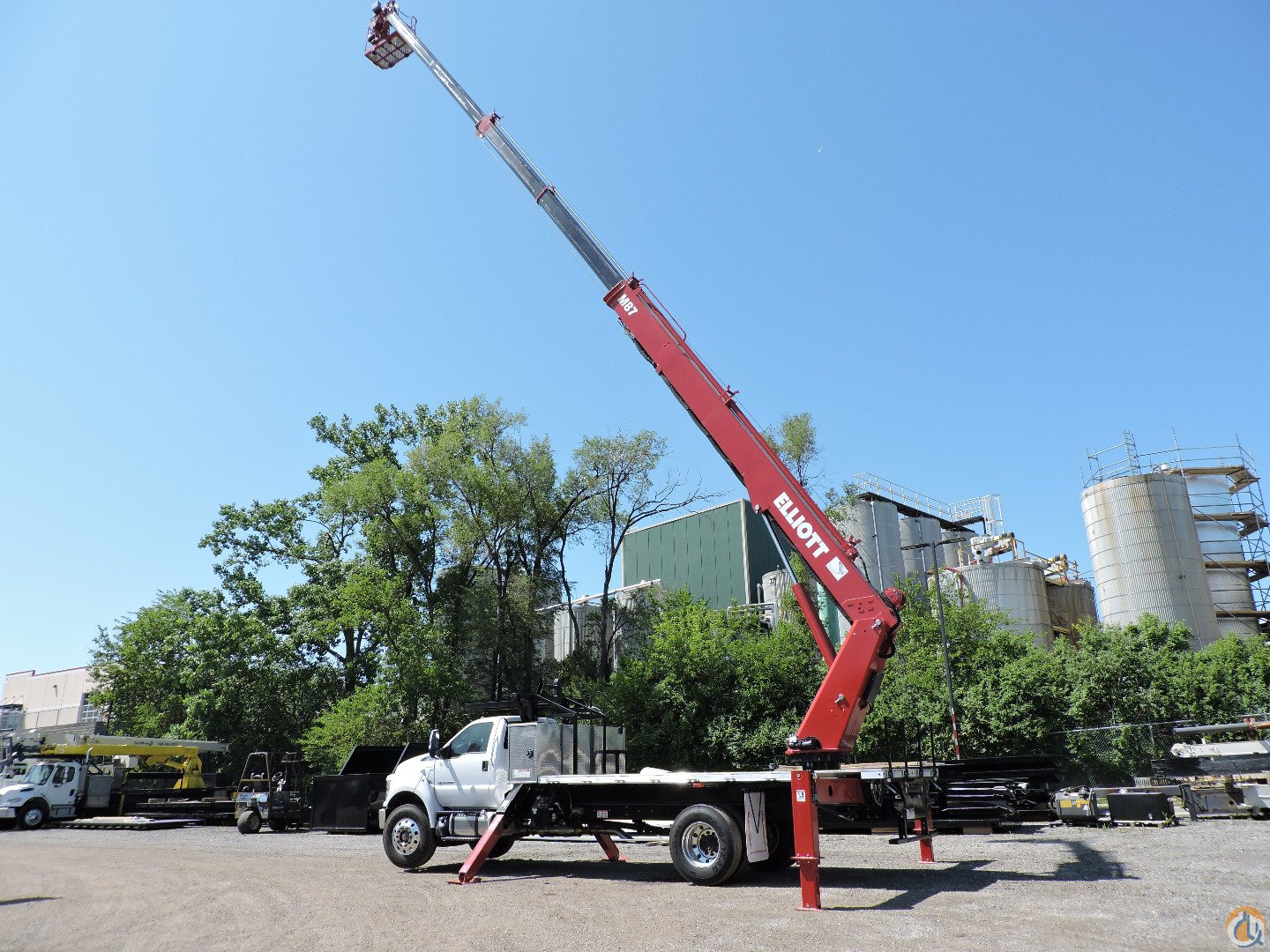

STOCK PHOTOS
