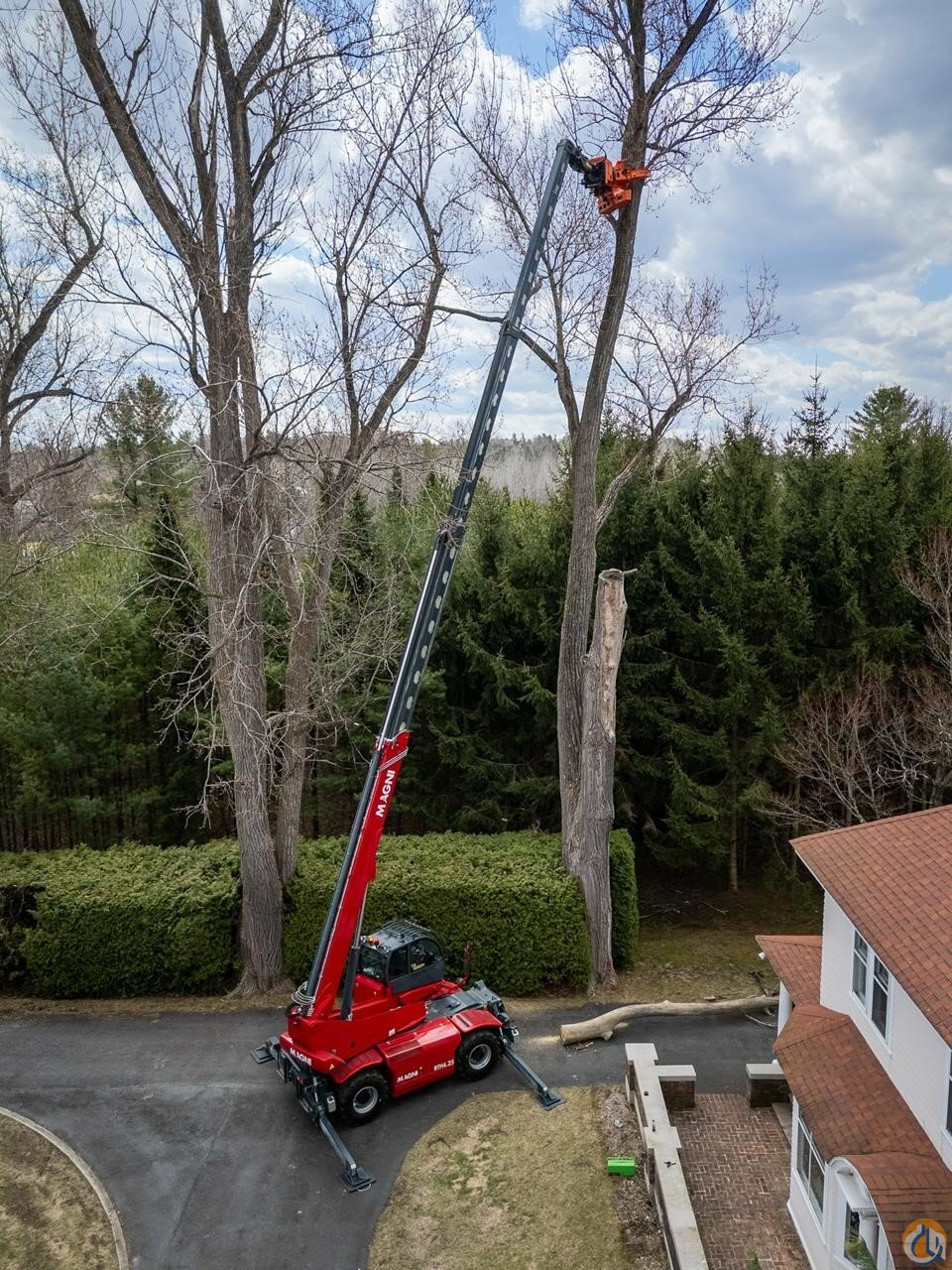

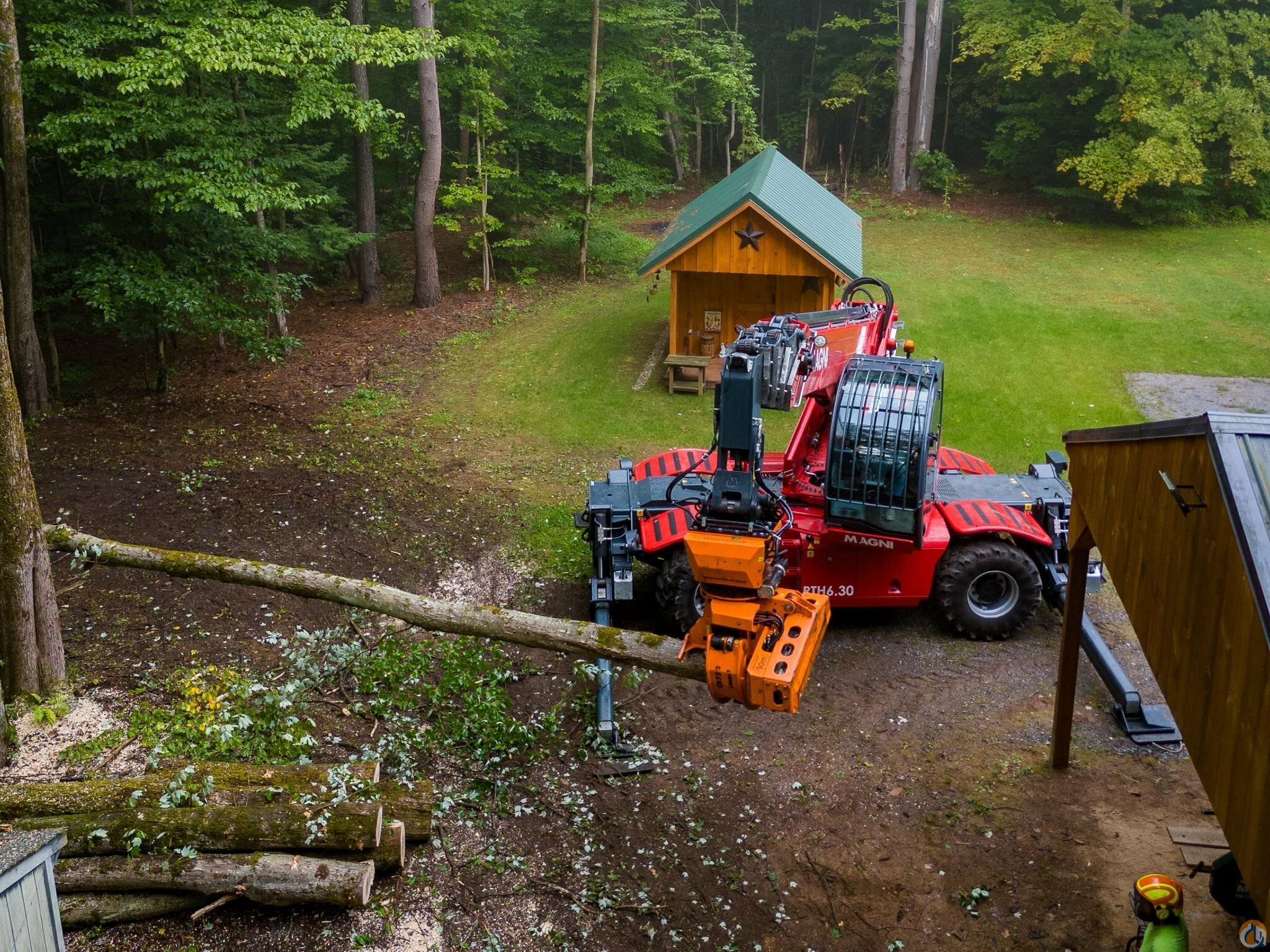

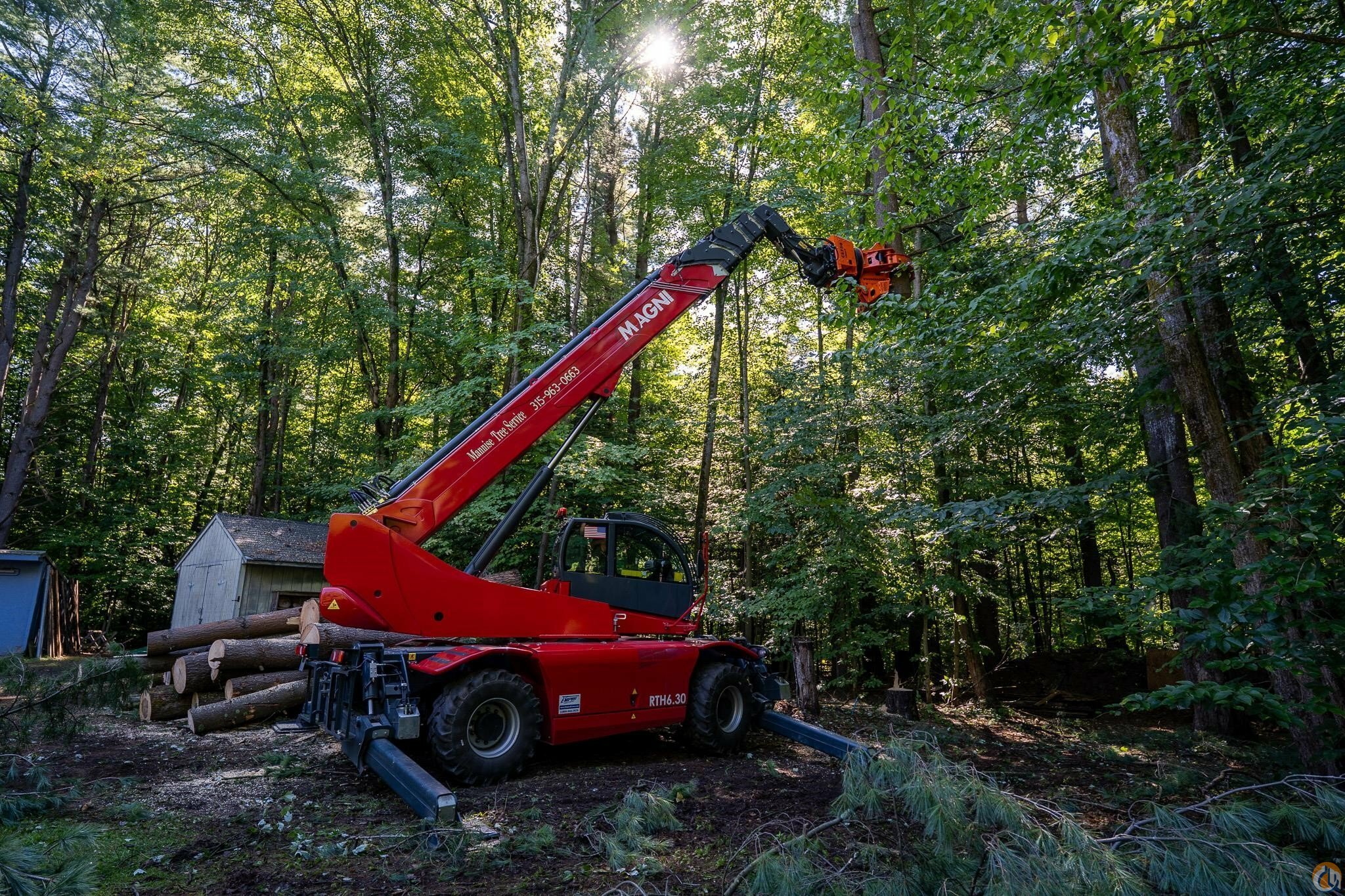

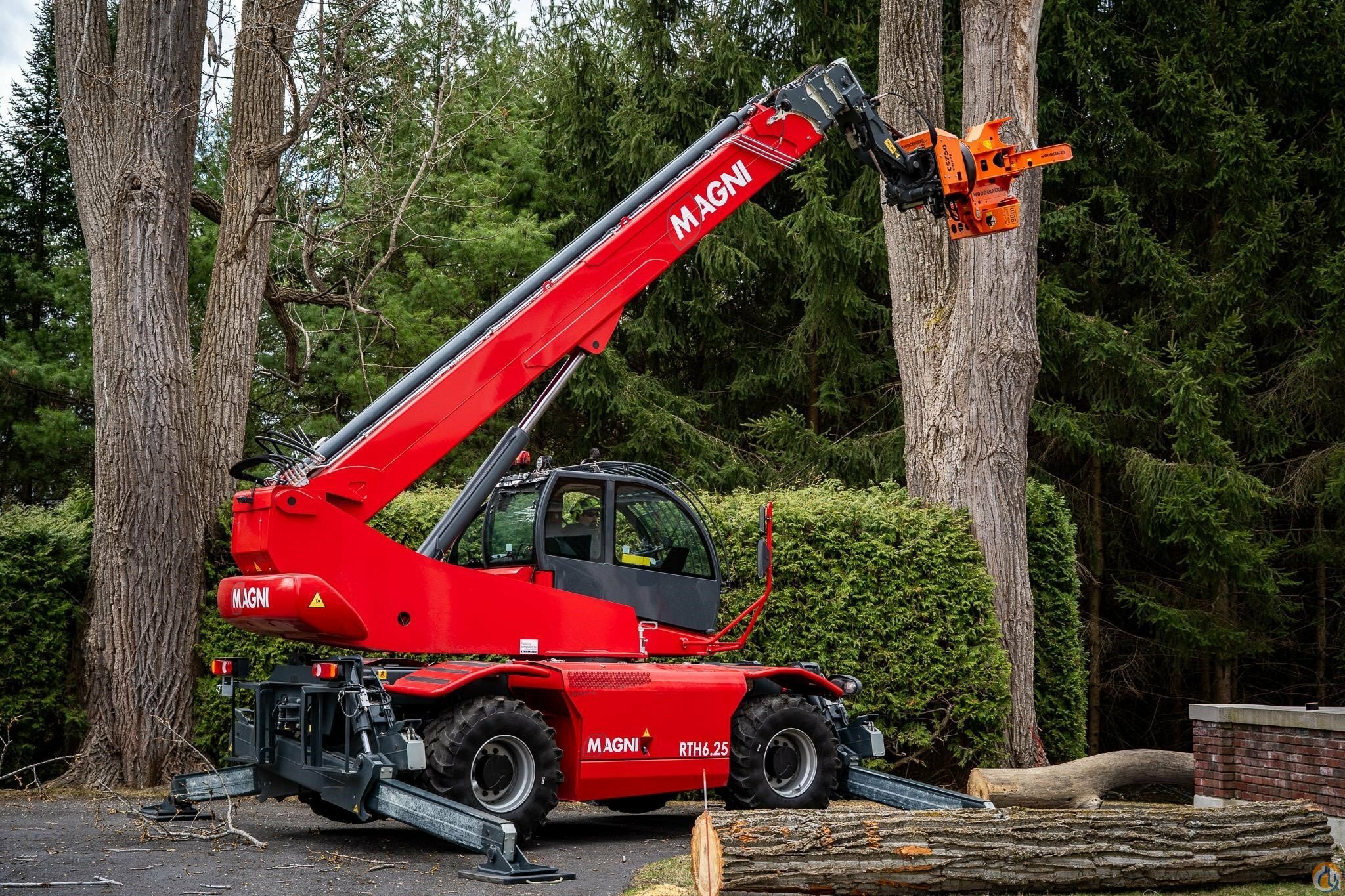

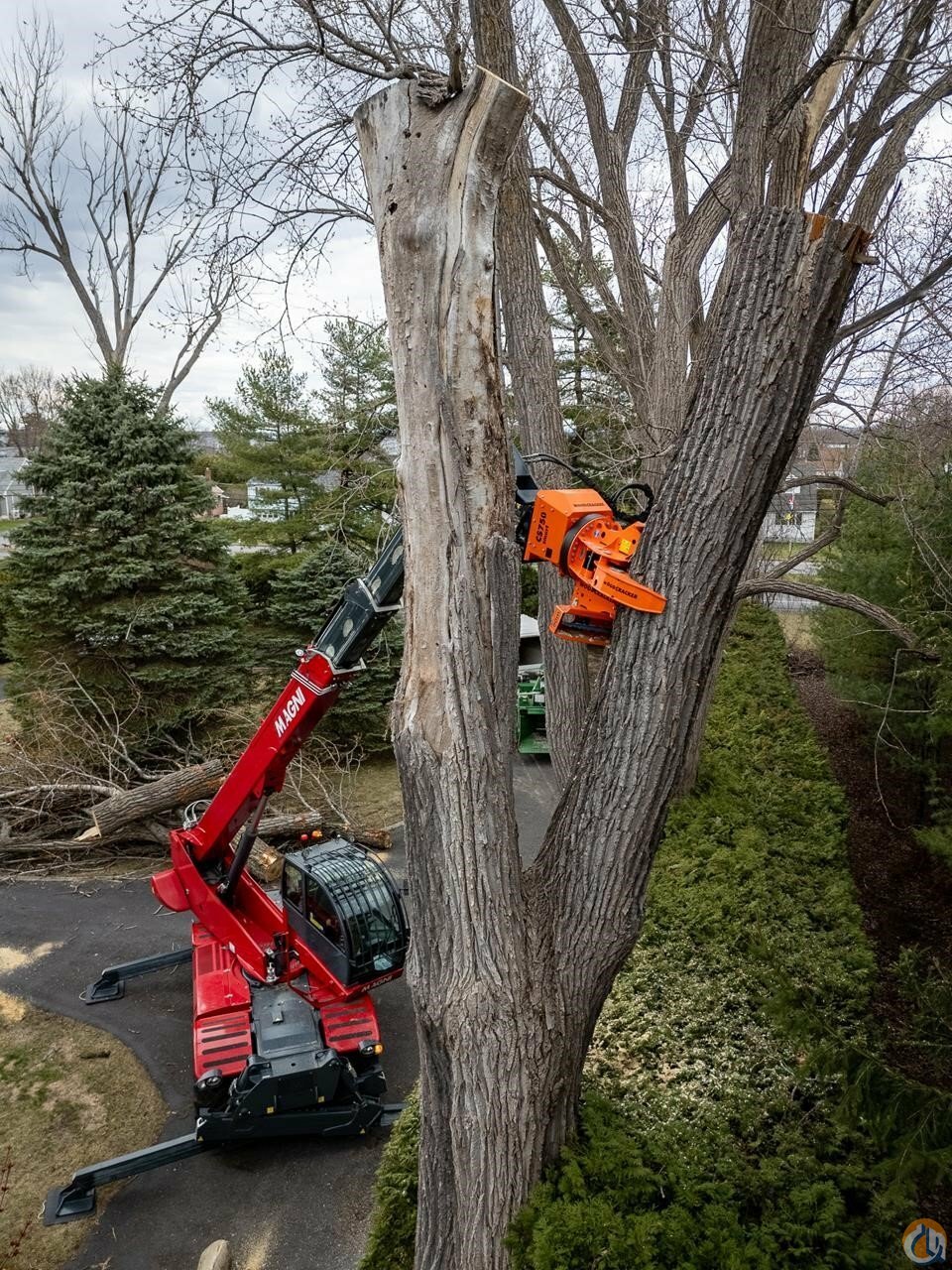

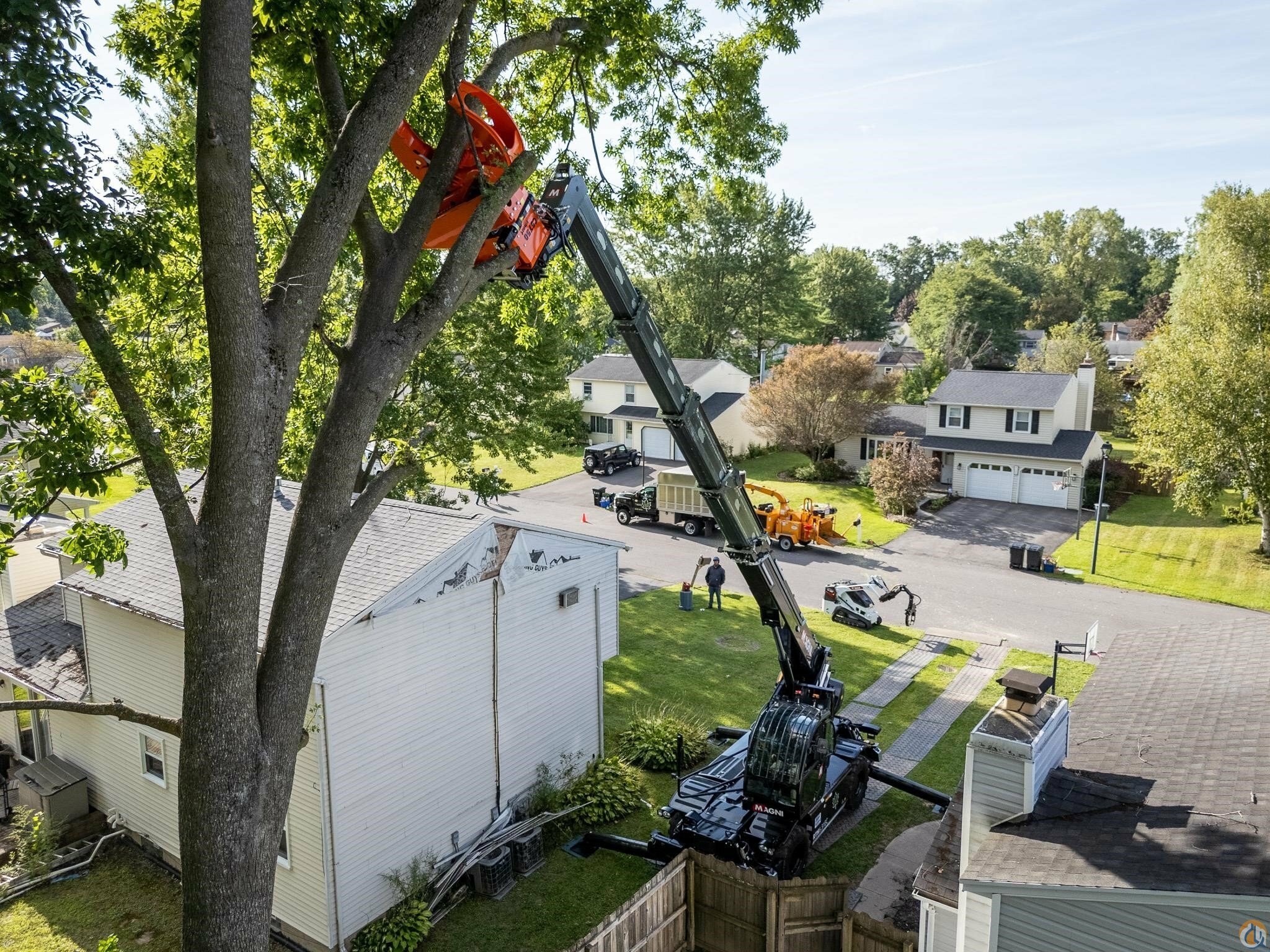

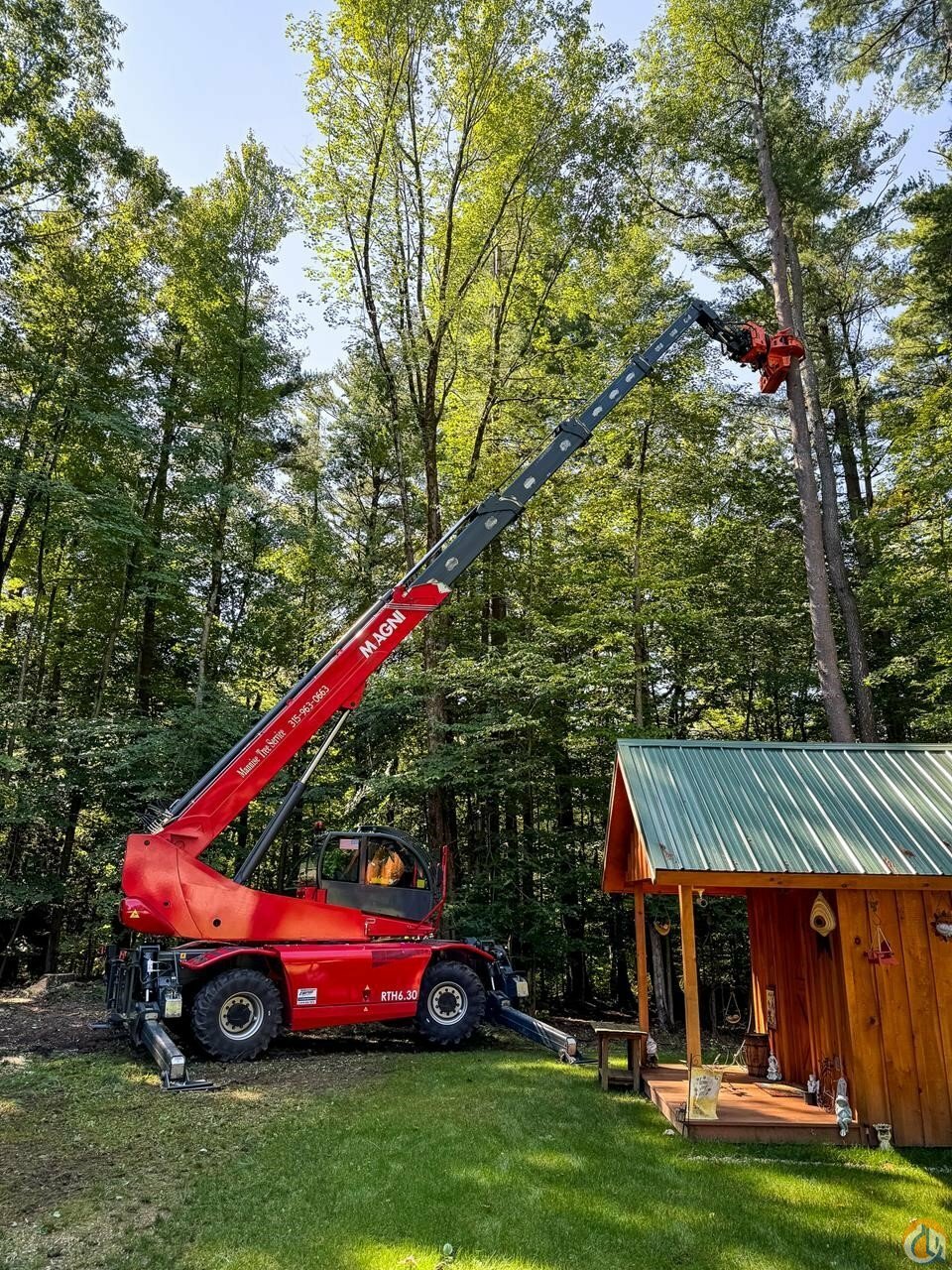

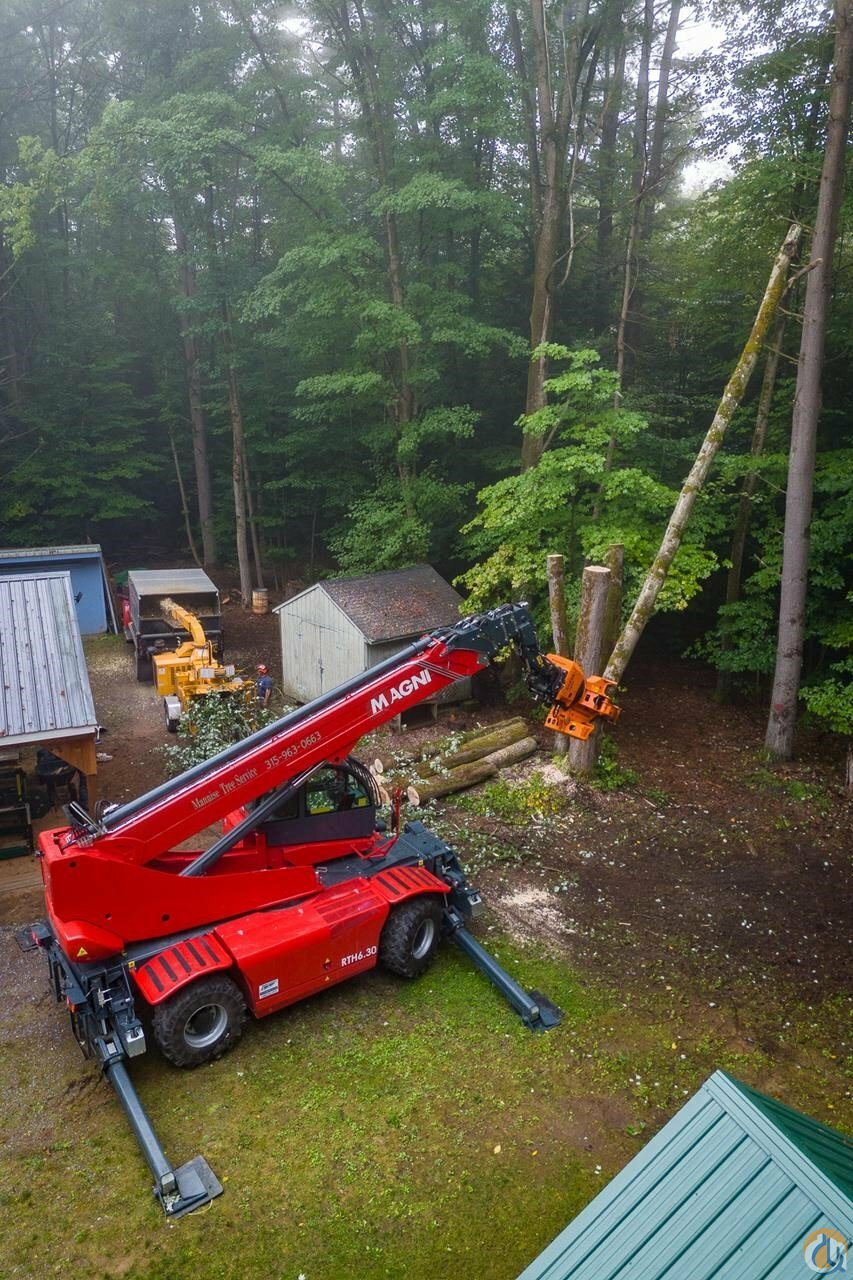

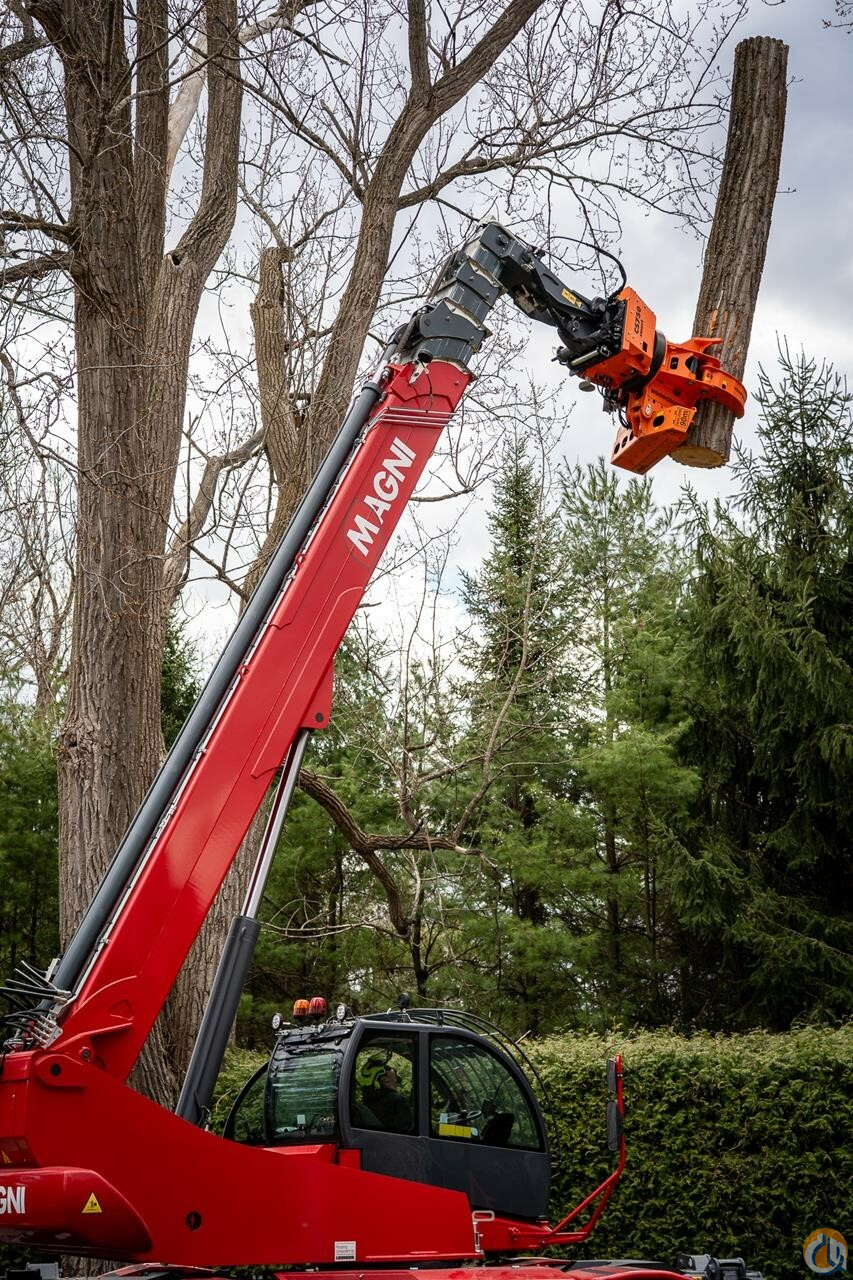

MAGNI RTH6.31 WITH WESTTECH CS750 SMART WOODCRACKER


Specifications with Woodcracker:

• Lifting capacity boomed in: 7,950 lbs.
• Lifting capacity at max. height: 3,300 lbs.
• Lifting capacity at max. reach: 600 lbs.
• Lifting height: 101’
• Max reach: 55' 9"
• CS750 Smart Woodcracker max. cutting diameter: 30"
• CS750 Smart Woodcracker max. cutter opening: 50"


Specifications without Woodcracker:

• Lifting capacity: 13,200 lbs.
• Lifting capacity at max. height: 5,500 lbs.
• Lifting height: 101’
• Max reach: 88’ 3”


Other Specifications:

• Stabilizers: Telescopic scissor
• Engine: Volvo TAD 582 VE Stage V
• Rated power: 160kW 218hp 2300rpm
• Number of gears: 2/2
• Length: 26’ 1”
• Width: 8’ 4”
• Speed: 25 mph
• Rotation: 360° Continuous
• Standard air conditioning: Yes
• Automatic attachment recognition: Yes
• Reversible fan: Yes


Key Benefits with Magni/Woodcracker Combo:

• Superior Safety: Equipped with advanced safety features such as Load Monitoring System, safety sensors, cameras, boom and cab protection from debris.
• Increased Productivity: Faster, more efficient tree removal than manual methods. Quick repositioning with the 360-degree Magni rotator.
• Reduced Labor Costs: Mechanized cutting minimizes manual sawing and climbing, allowing labor to be allocated elsewhere on the job.
• Excellent Versatility: Use multiple attachments to get the job done more efficiently. Magni offers jibs, hooks, platforms, winches and more!
• Enhanced Precision: Telescoping boom provides accurate limb cutting without property damage and allows cleaner cuts than manual sawing.
• Wireless Remote: With the wireless remote option, the operator can position themselves accordingly on site rather than being limited to sawing.
