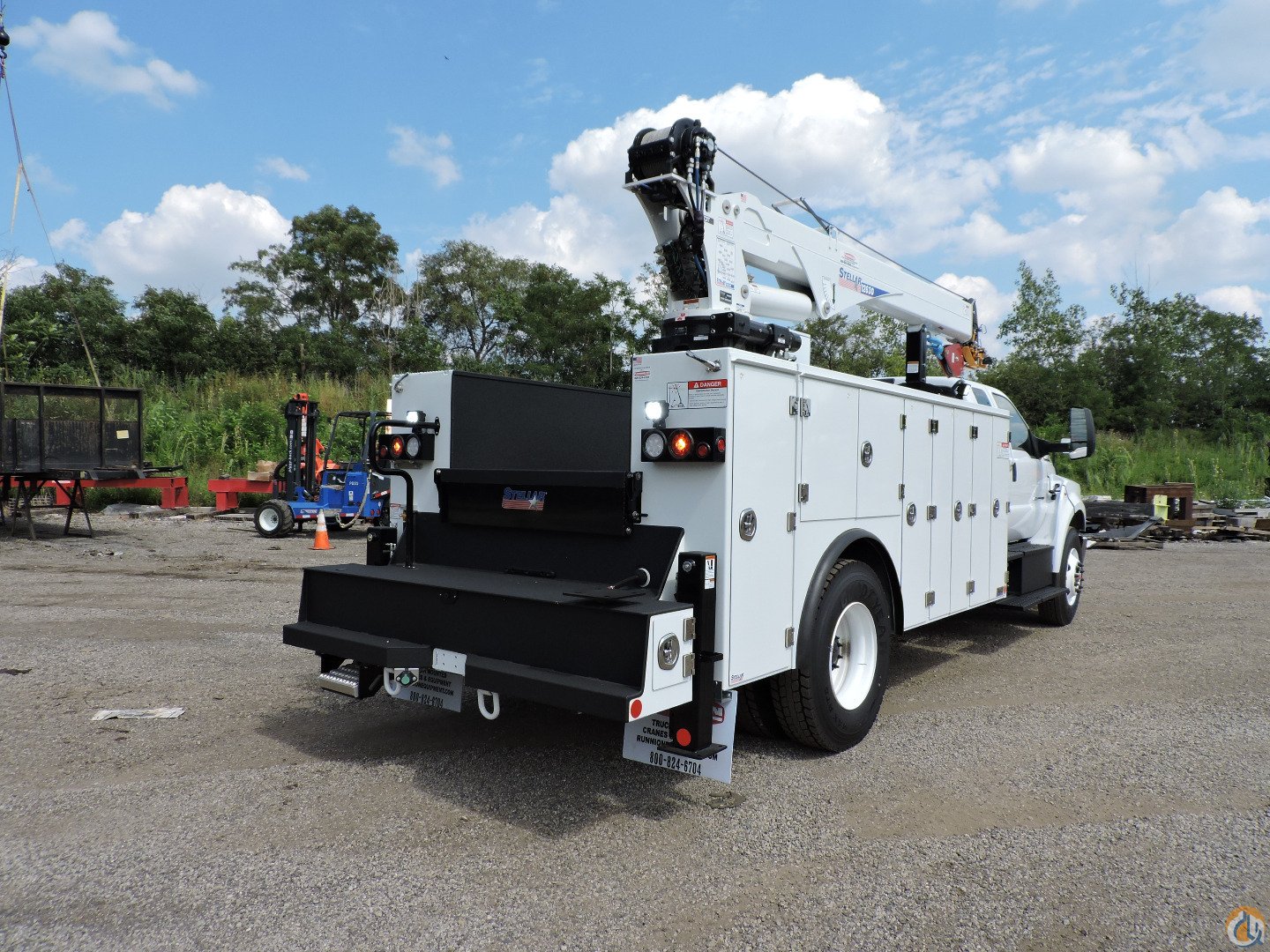

Stellar TMAX2-14 Aluminum Mechanic Body equipped as follows:

-          Aluminum doors and side packs

-          Torsion box understructure with isolated steel crane compartment

-          Master-Lock system

-          168” long

-          50” loadbed width

-          Six (6) recessed cargo tie-downs

-          Two (2) rear mounted grab handles

-          12” aluminum fold down tailgate – painted black

-          21” step bumper with thru compartment

-          Vise mounting plate – receiver workbench mount

-          Step, slide out for TMAX mechanics work bench bumper

-          Rubber fenderettes

-          All compartments raised to 60” H x 22” D

-          Overlapped doors on SS1V/CS1V and horizontal compartments

-          2 & 3 point stainless steel compression latches

-          Stainless steel “Billet Style” hinges

-          Spring loaded door stops

-          Dual-seal automotive type compartment weather seal

-          LED compartment lights

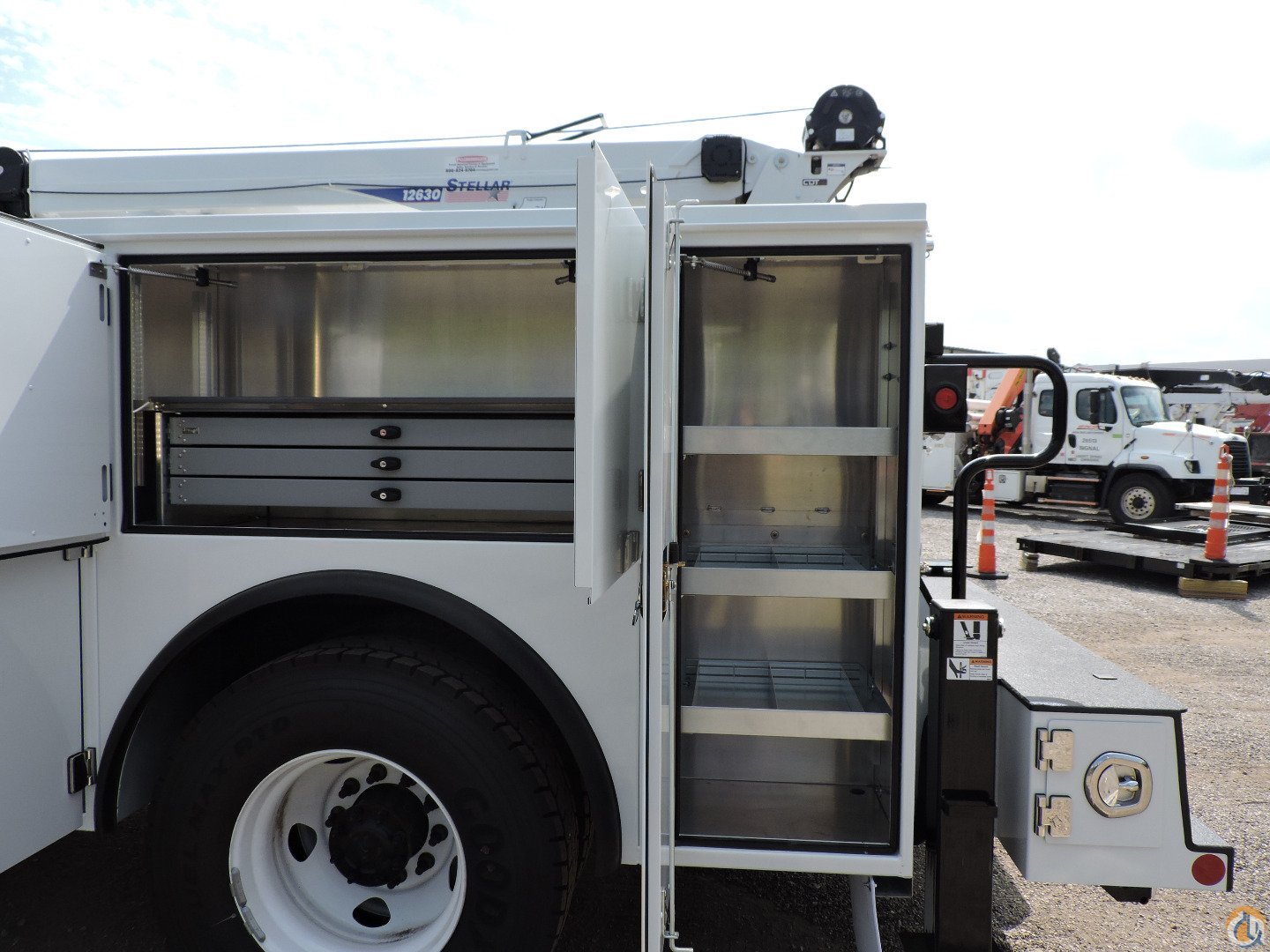

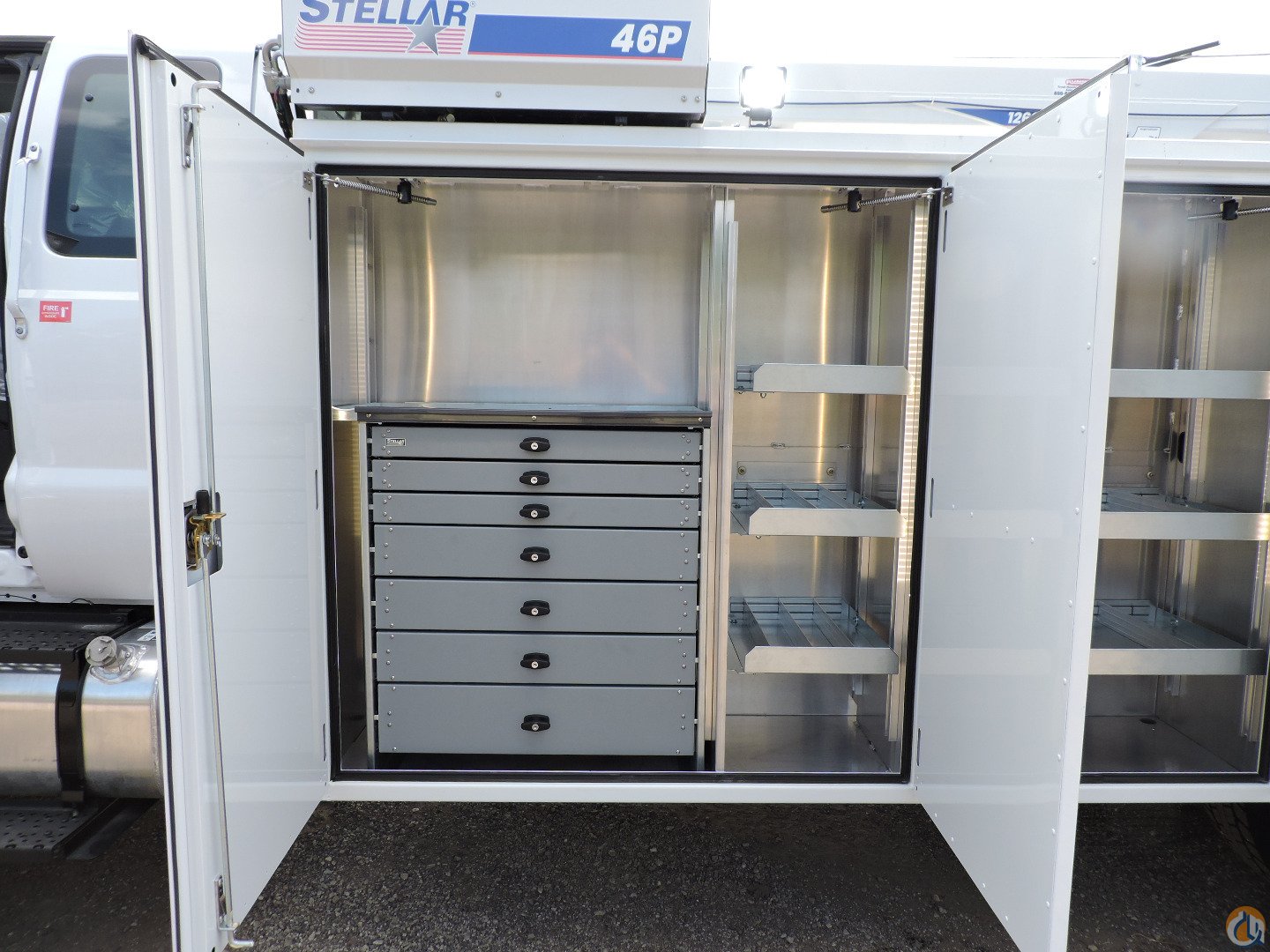

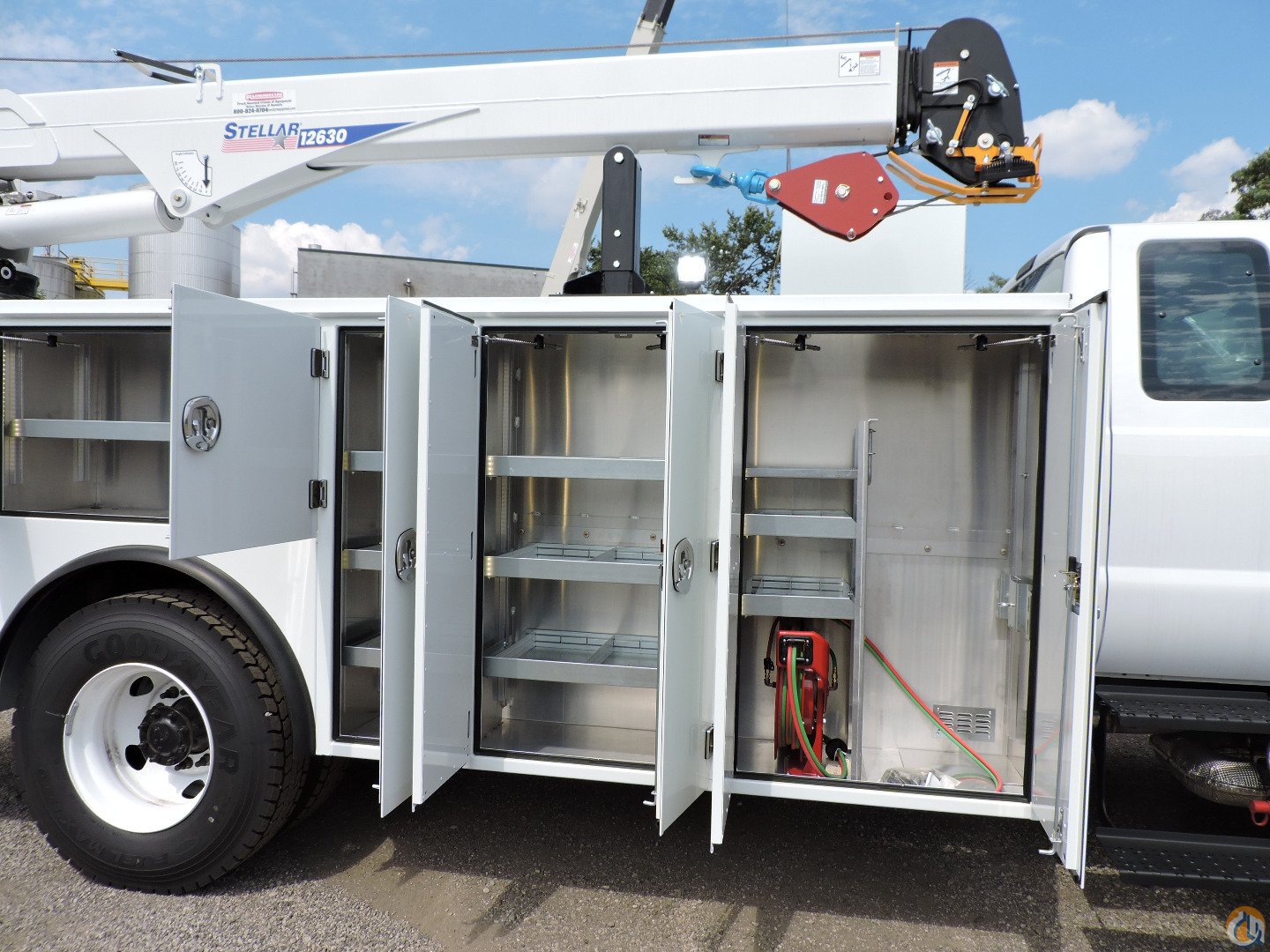

-          SS1VF – Heavy duty aluminum drawer set – 35.5” H x 34” W x 18” D – 3-3”, 3-5”, 1-7”, One (1) shelf with (3) dividers with drawer lightbar

-          SS1VR – Three (3) shelves with (3) dividers

-          SS2V - One (1) shelf with (3) dividers – 36” wide

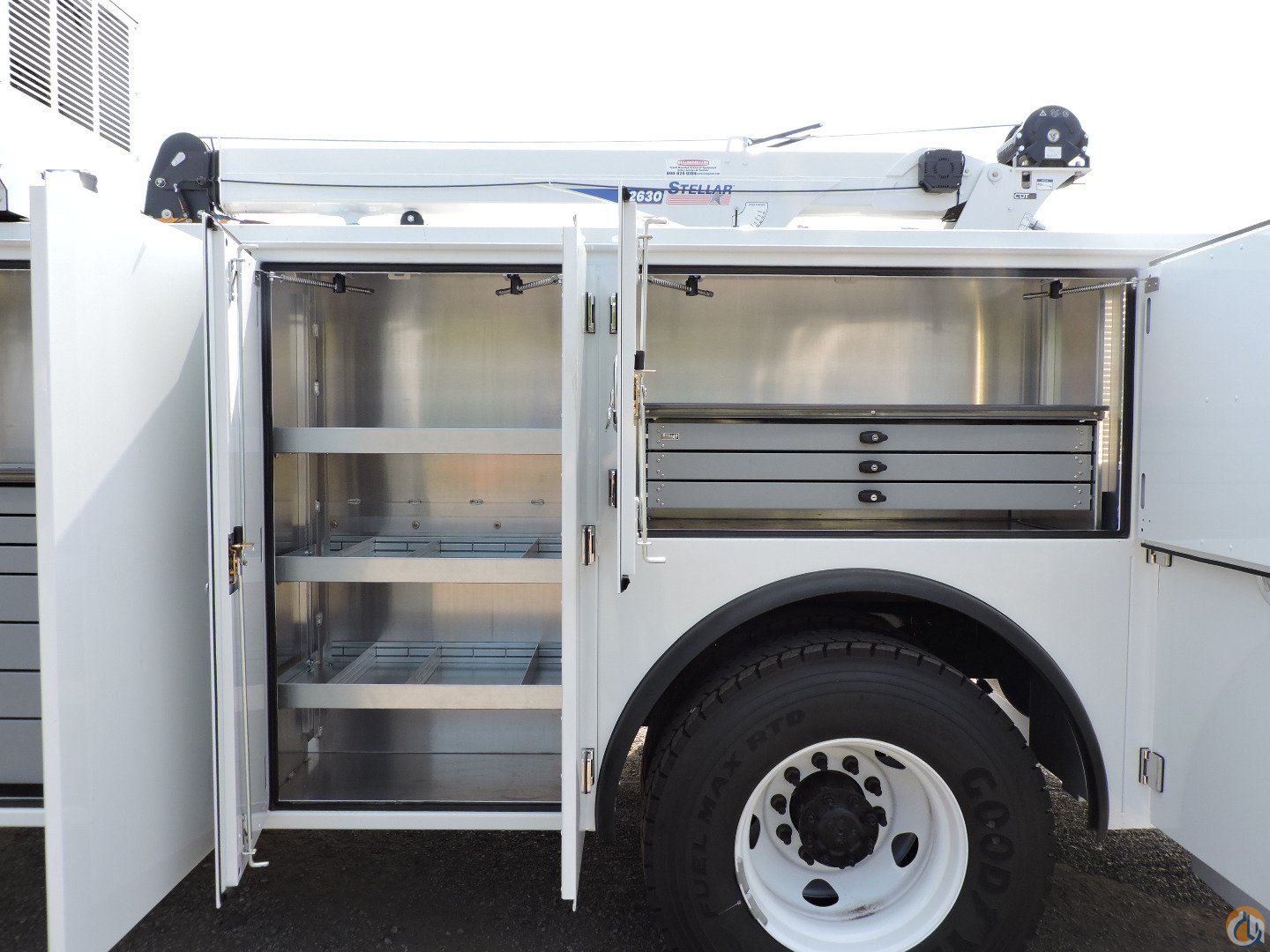

-          SS Horizontal – Heavy duty aluminum drawer set, 11”H x 48”W x 18”D, 3-3”

-          SS Rear – Three (3) shelves with (3) dividers

-          CS1V – Divider kit with shelves and Oxy-Acetyln bottle holder holds 2 bottles

-          CS2V – Three (3) shelf with (3) dividers – 32” wide

-          CS3V – Three (3) shelf with (3) dividers – 19” wide

-          CS Horizontal – Shelf with 3 dividers – 52” wide

-          CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

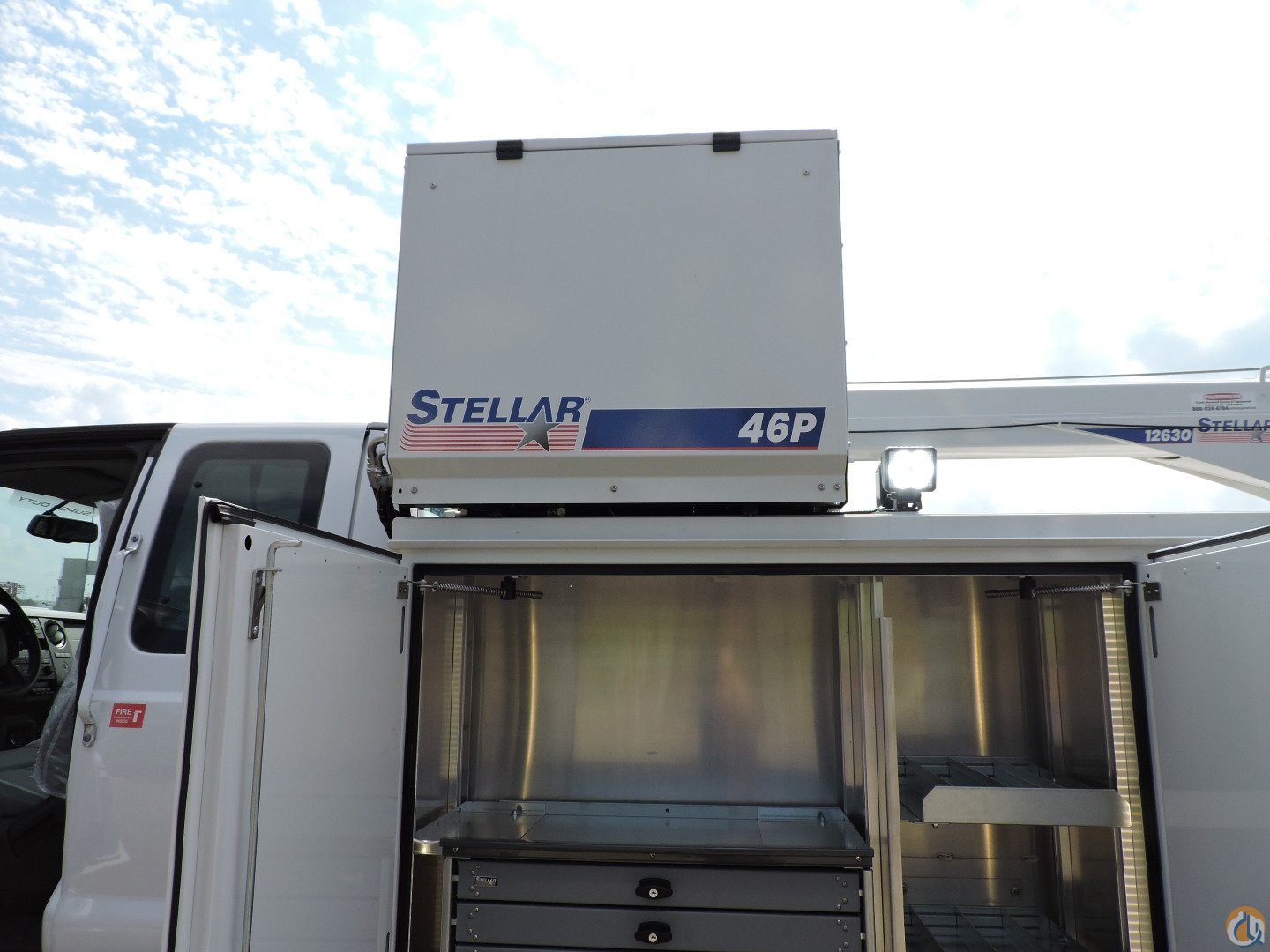

-          Stellar 46P hydraulic driven air compressor produces 46CFM @ 175 PSI

-          22-gallon air tanks

-          FLR system – ¾” air feed for ½” hose reel (filter, lubricator, regulator)

-          LED floodlights – Four (4) total. 1 on boom support, 1 SS behind compressor, 1 on each rear taillight box

-          Dual LED Trilliant lights - mounted on boom tip – gravity rotating

-          Backup alarm

-          ICC safety kit – 2.5# fire extinguisher and reflector kit

-          Weld-on receiver hitch

-          Spray-on bed liner for load bed walls and floors

-          Prime painted white

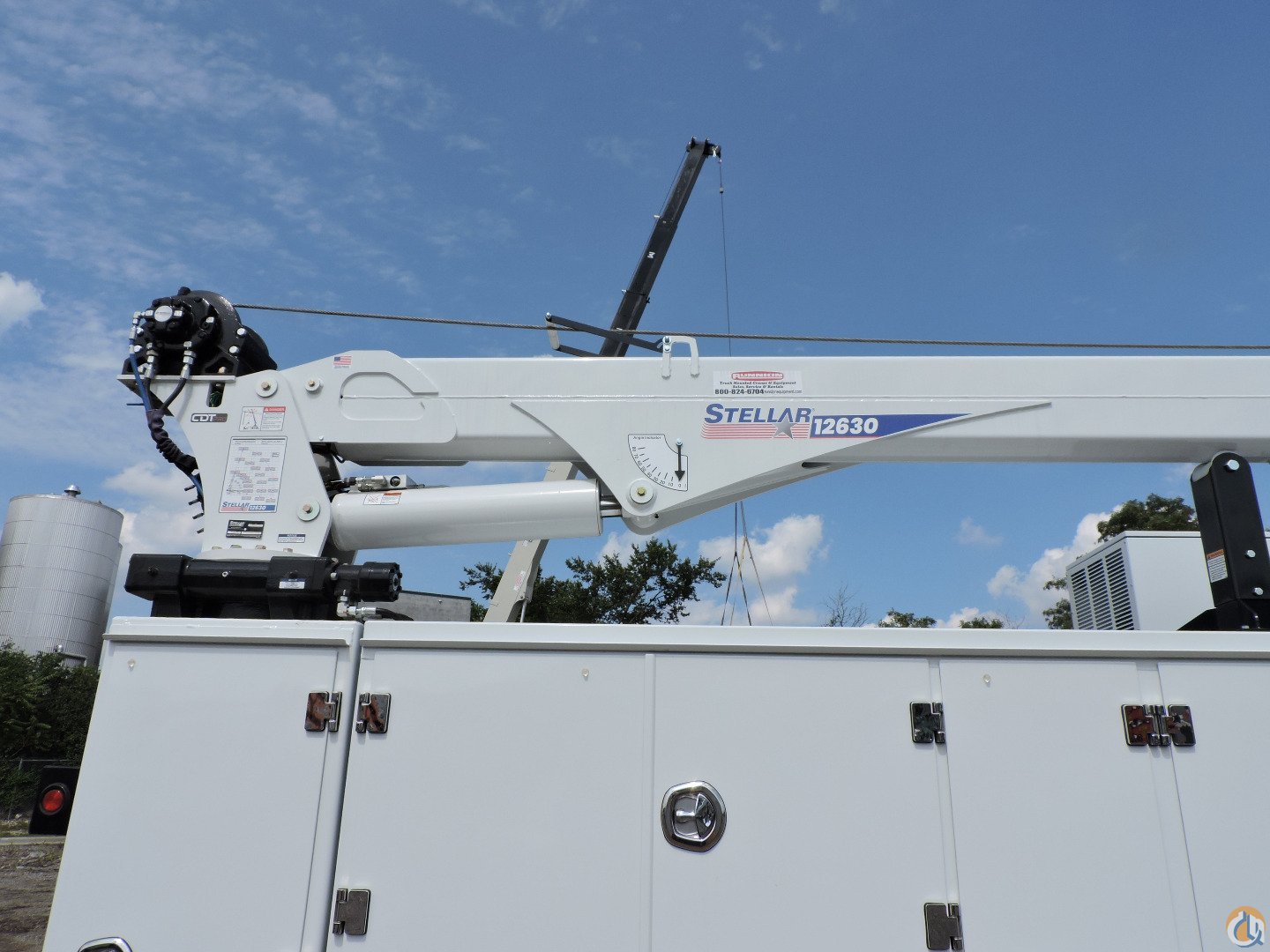

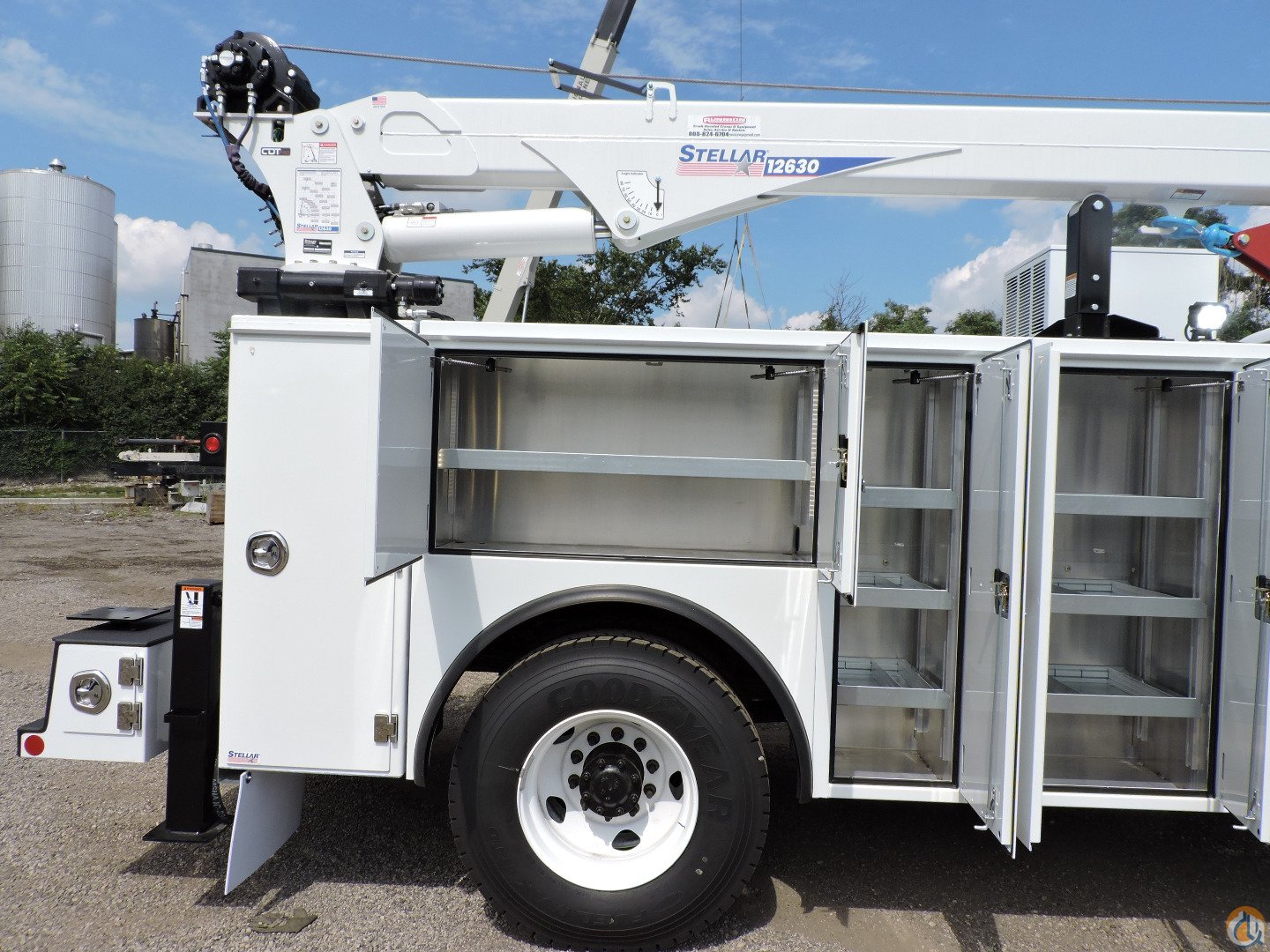

Stellar 12630 telescopic crane equipped as follows:

-          77,800 ft/lb rated when in boost mode

-          12,000# maximum capacity

-          30’ maximum hydraulic reach

-          Hexagonal boom – optimized to deliver dramatically less boom flex and side to side movement

-          Boom elevation: -10° to 80°

-          400° non-continuous rotation – durable enclosed rotation system with a cast iron base and an internal mechanical stop

-          Planetary winch with 100’ of 7/16” wire rope

-          Max line pull speed 55ft/min

-          Quick release snatch block stow

-          Adjustable boom support, roller rest

-          Proportional radio remote control – LCD features real time load capacity, maximum distance with the current load, boom angle, and percentage of load

-          CDTplus boost mode allows for a momentary 18% increase in the capacity of the crane, and a Safe Mode to keep the crane and operator safe should a load indicating device fail to operate correctly

-          On-Demand speed control ramps engine RPM up only when the crane is being used. When crane is not used for 5 seconds engine RPM returns to idle. This lowers fuel consumption and reduces noise pollution in the work area

-          Greasable pivot bushings, each pivot pin location includes bushings and grease zerks to provide for years of use

-          Hydraulic stabilizers

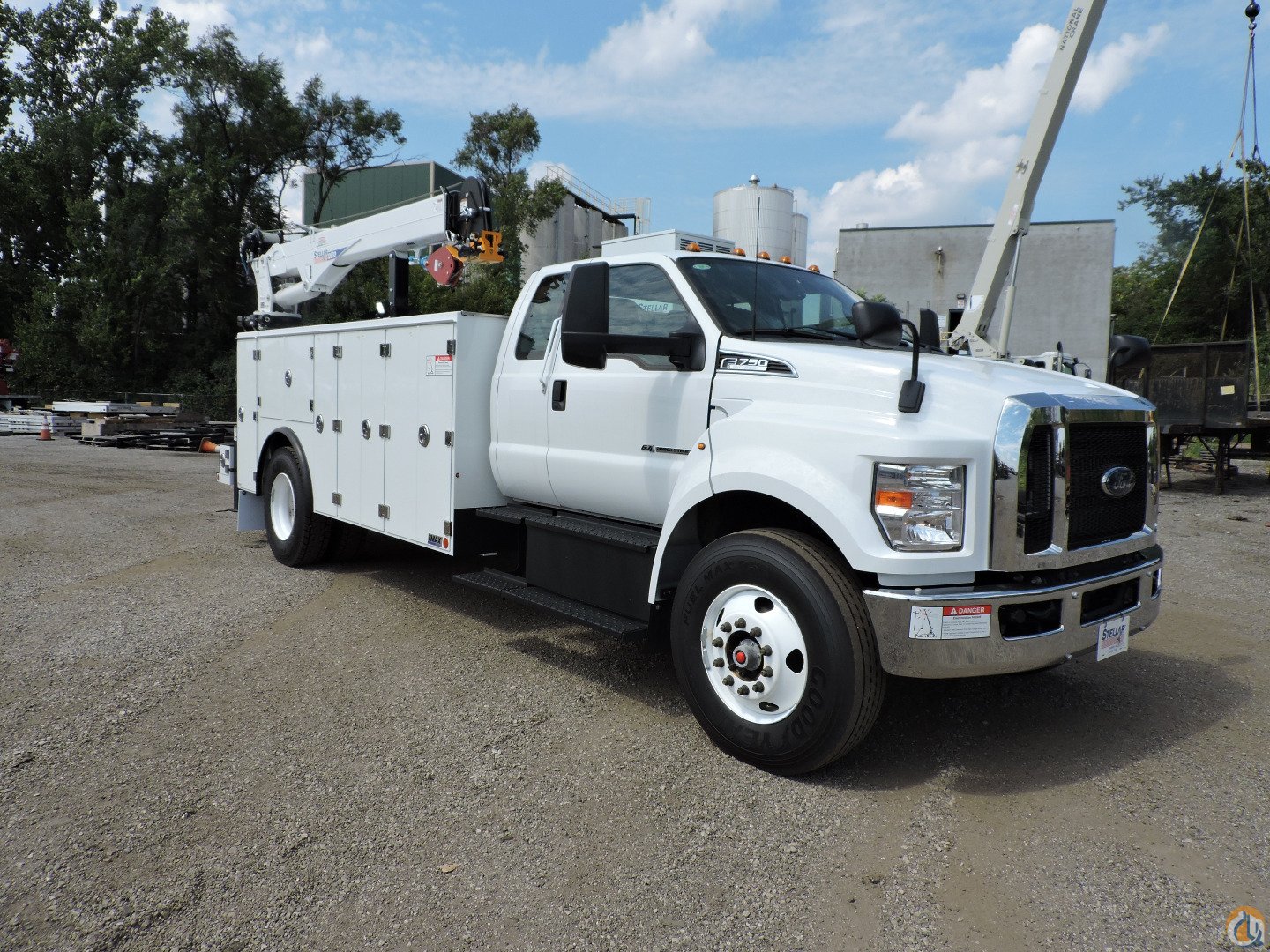

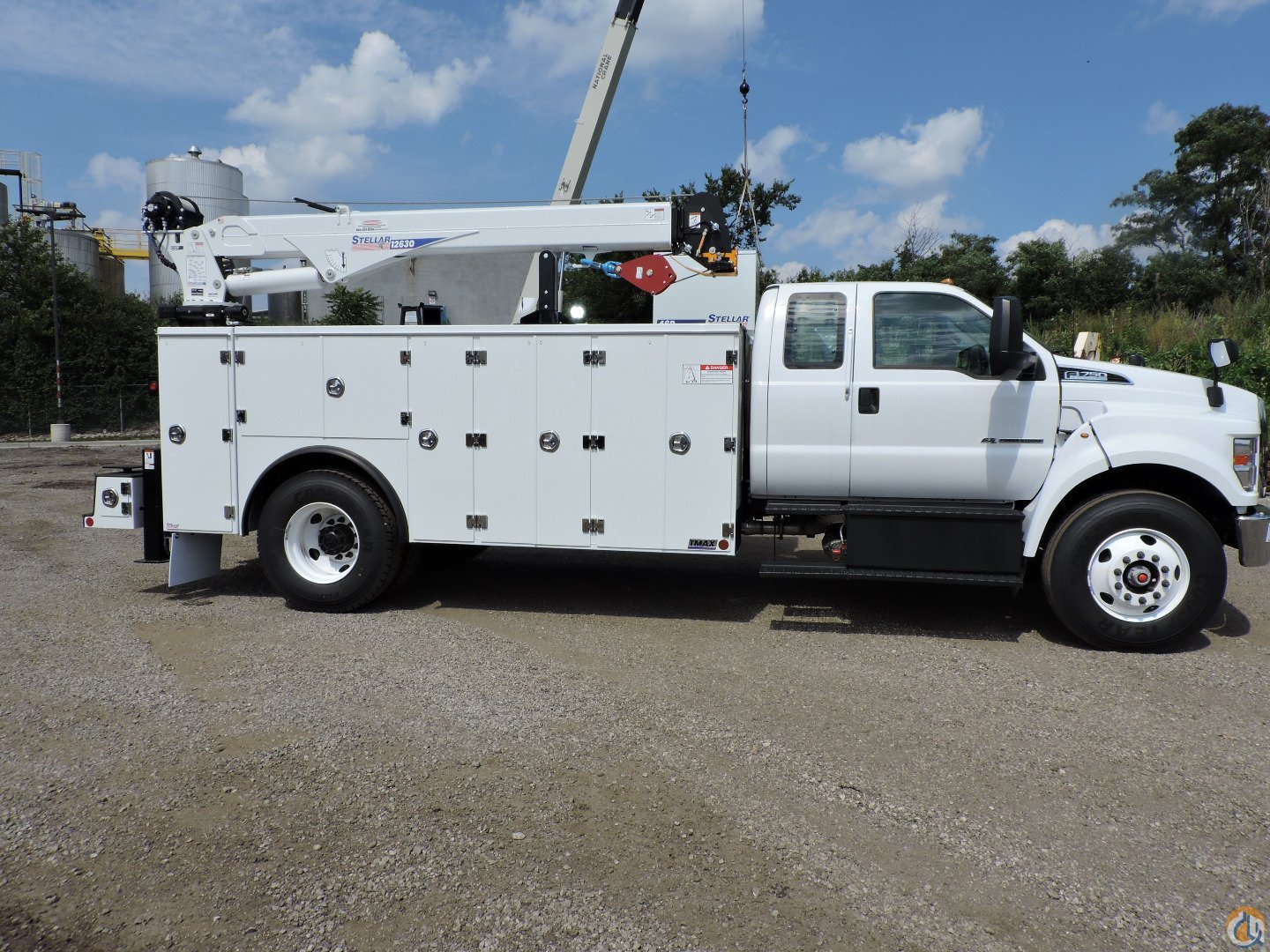

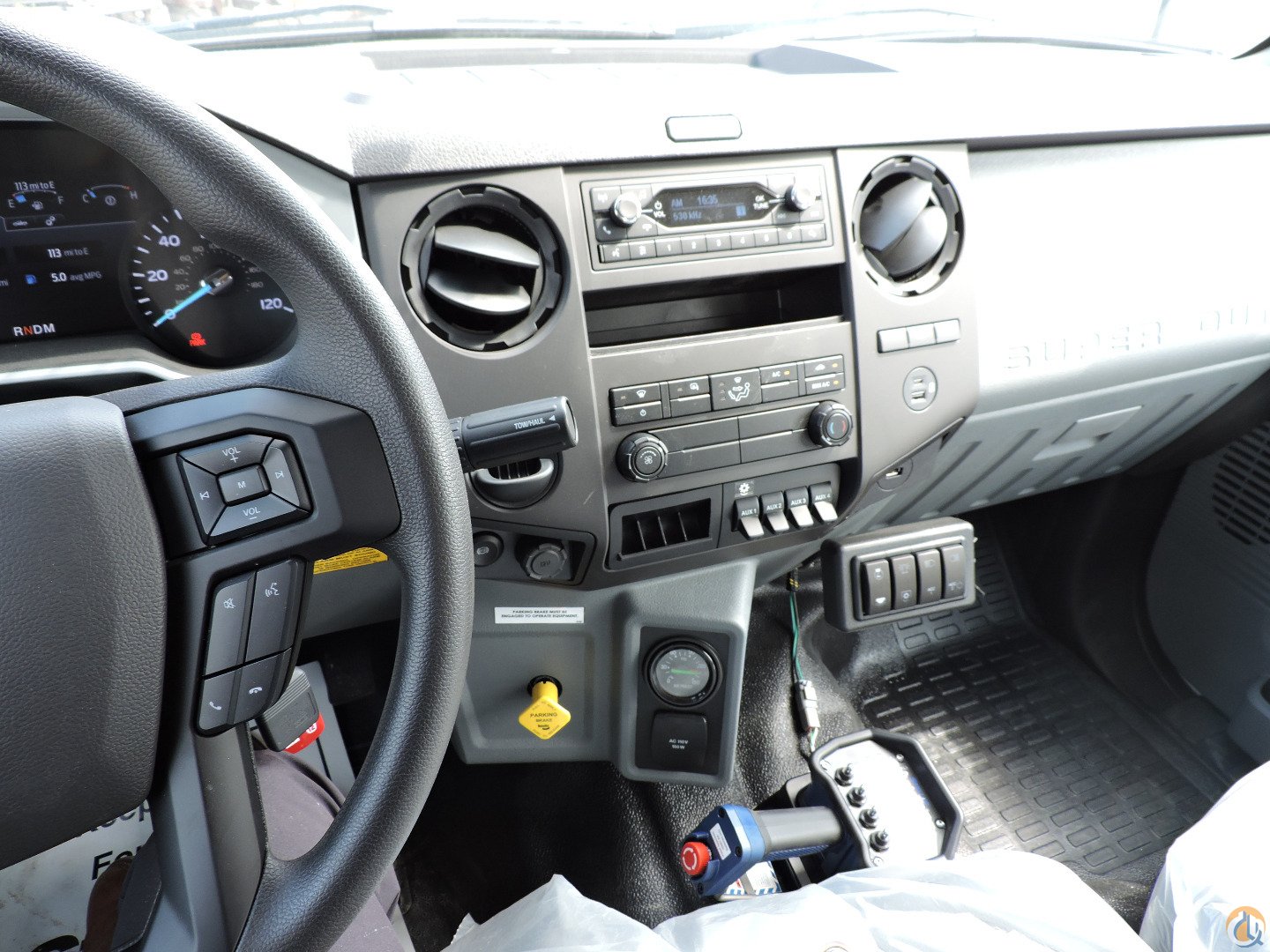

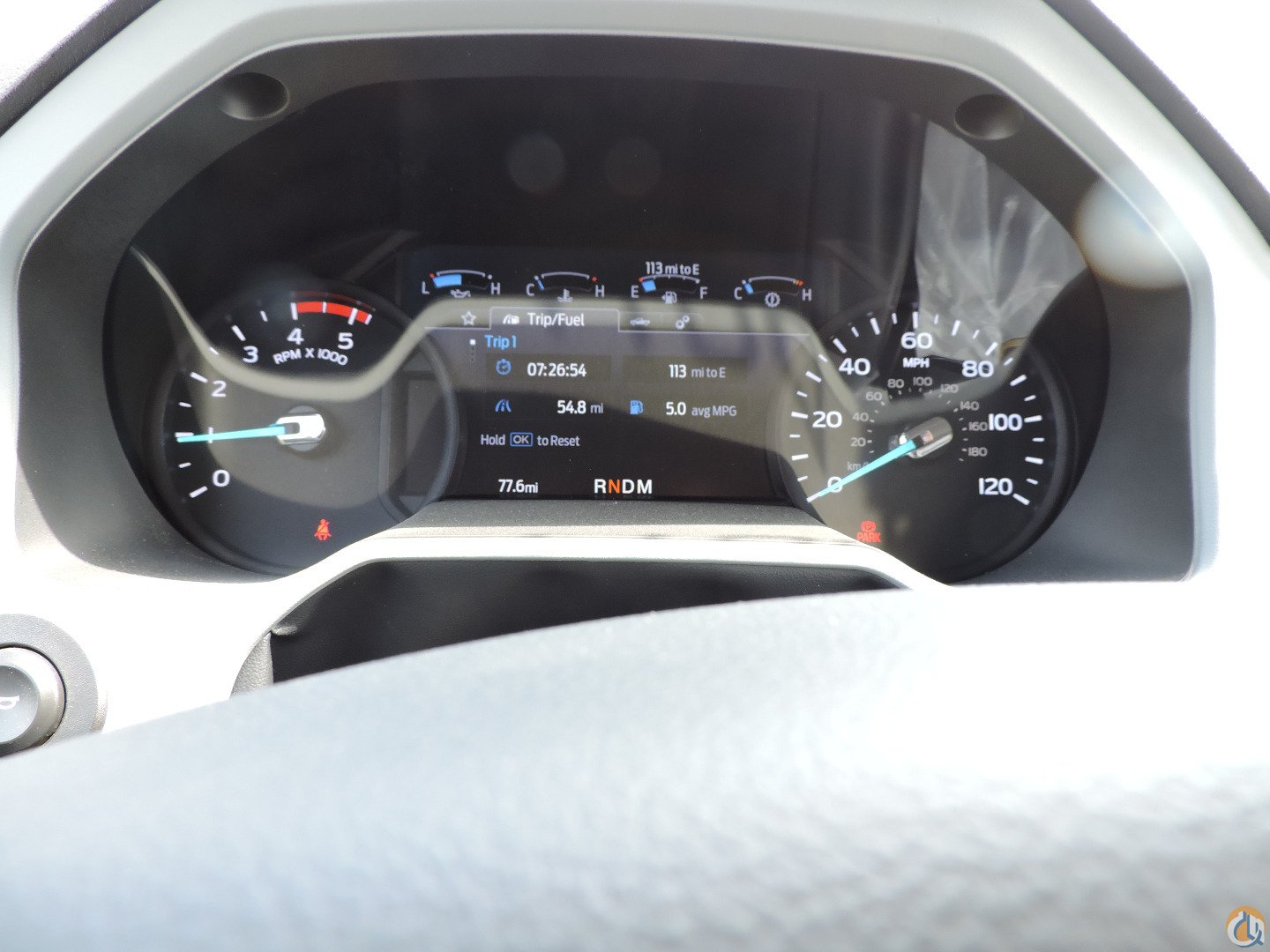

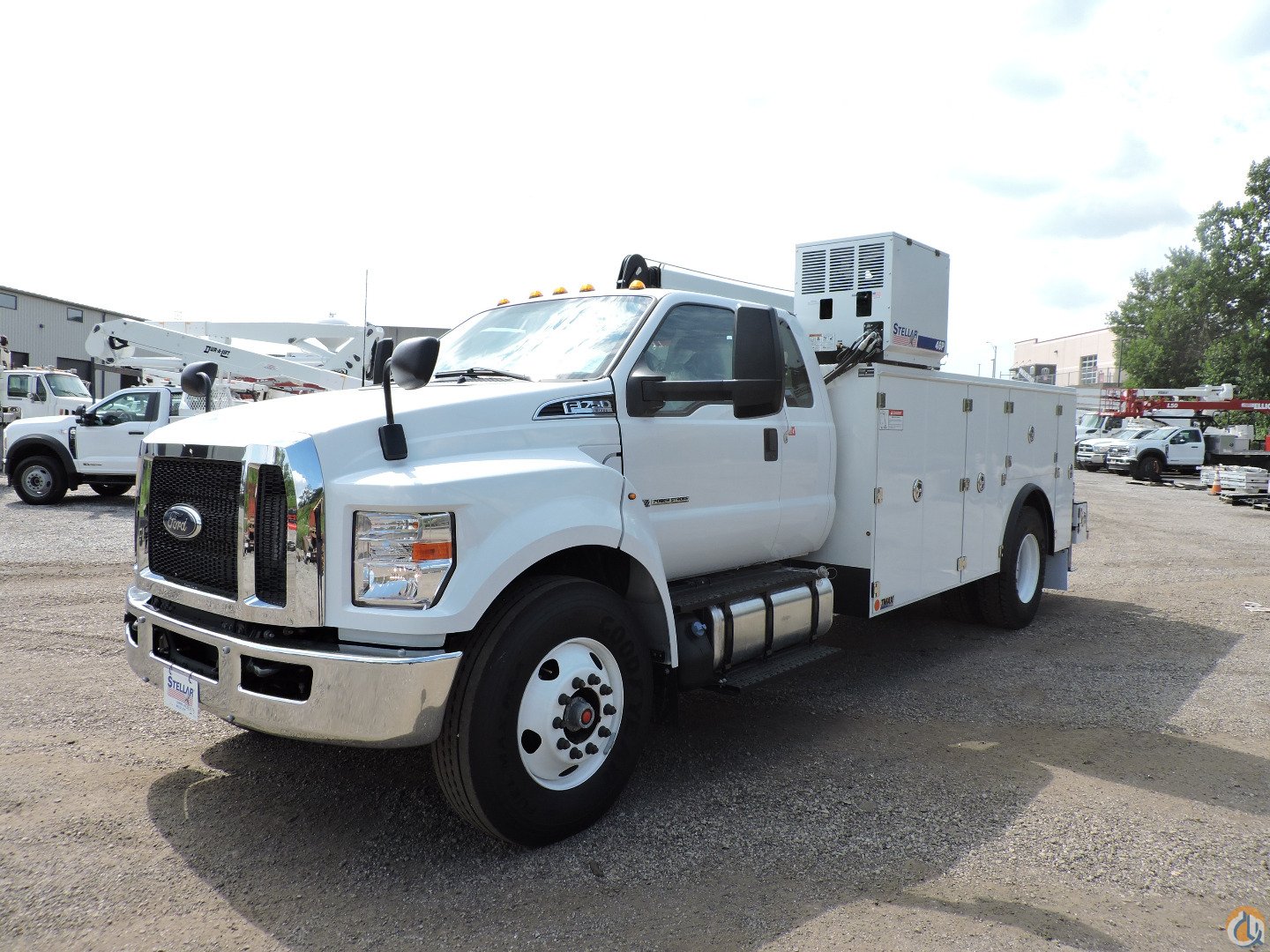

2026 Ford F750 Supercab equipped as follows:

-          Extended cab

-          33,000# GVW

-          6.7L Power stroke V8 turbo diesel – 270HP

-          Air brakes

-          Exhaust brake

-          Engine block heater

-          Ford torqshfit HD 10-speed automatic

-          Front axle: 12,000#

-          Rear axle: 21,000#

-          Chrome bumper
