88 USt lift capacity
35.8' -196.9' main boom
27.9'-52.5' Double folding swing-away Jib
Manual Offset 20°/40
Swing away rooster sheave
50 USt 3-sheave block
8 USt Hook
Axles 8x6x8
2 hoist
Remote control
Wheels: 445/95R25
Steel Rims

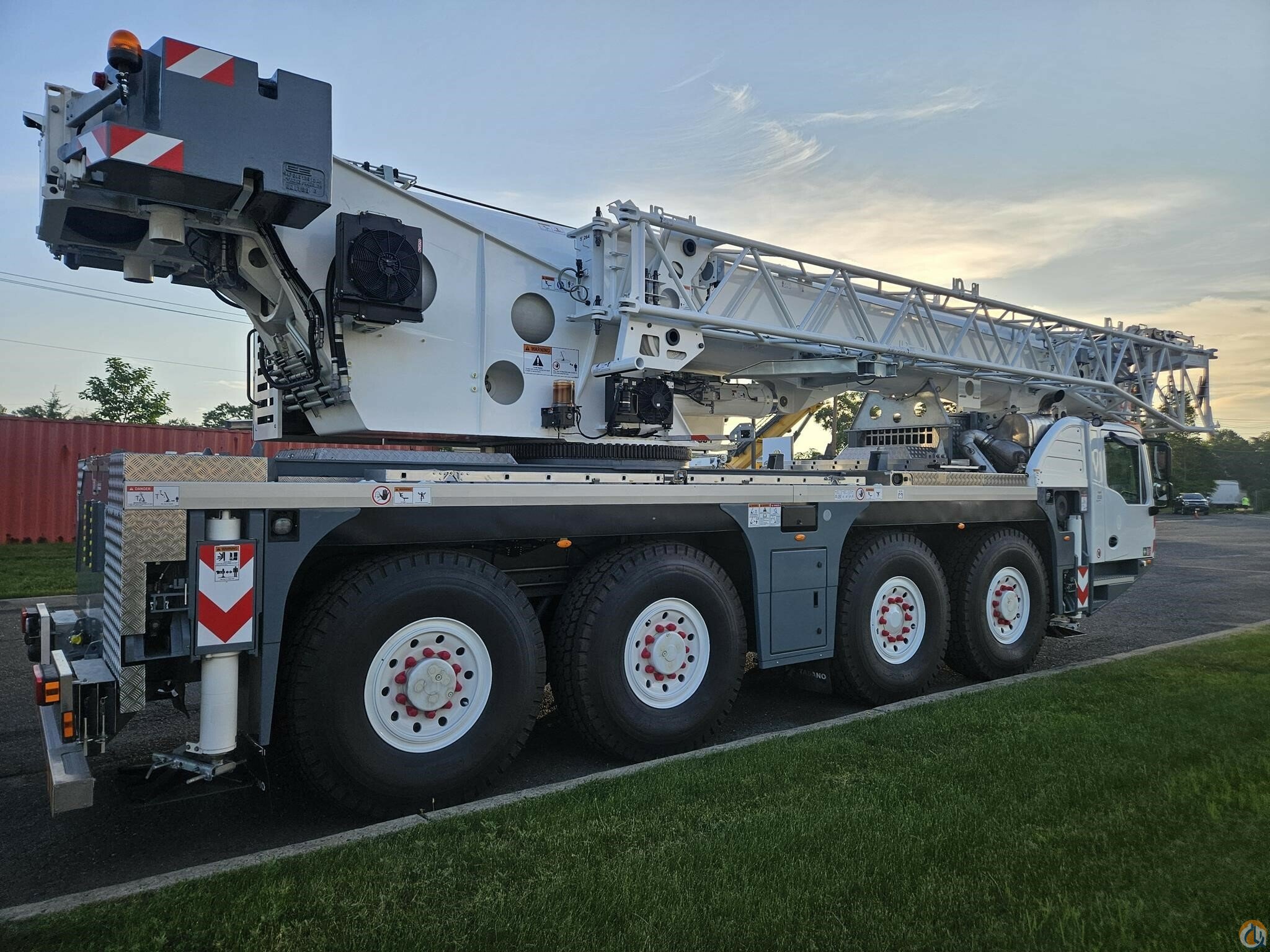

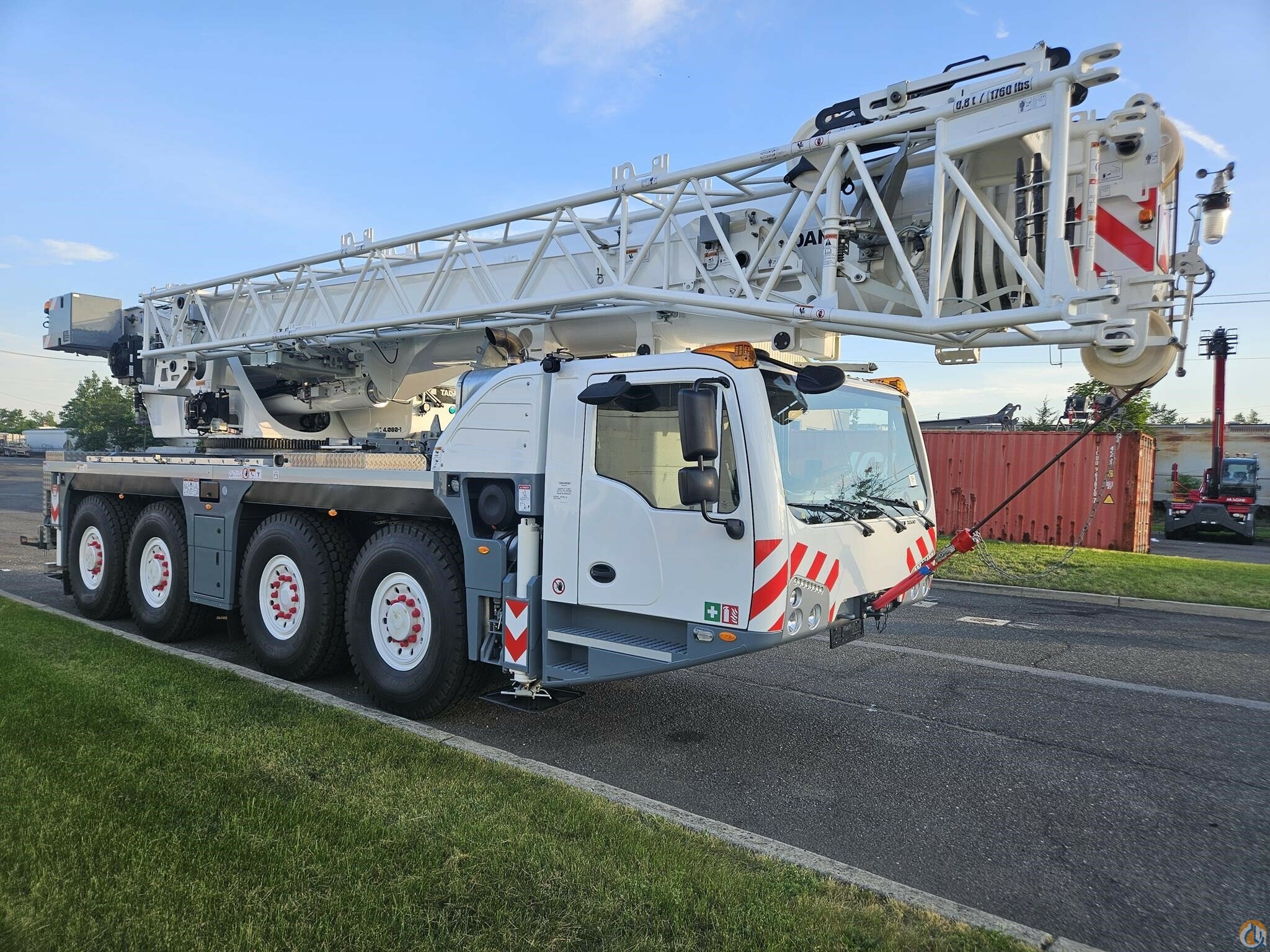

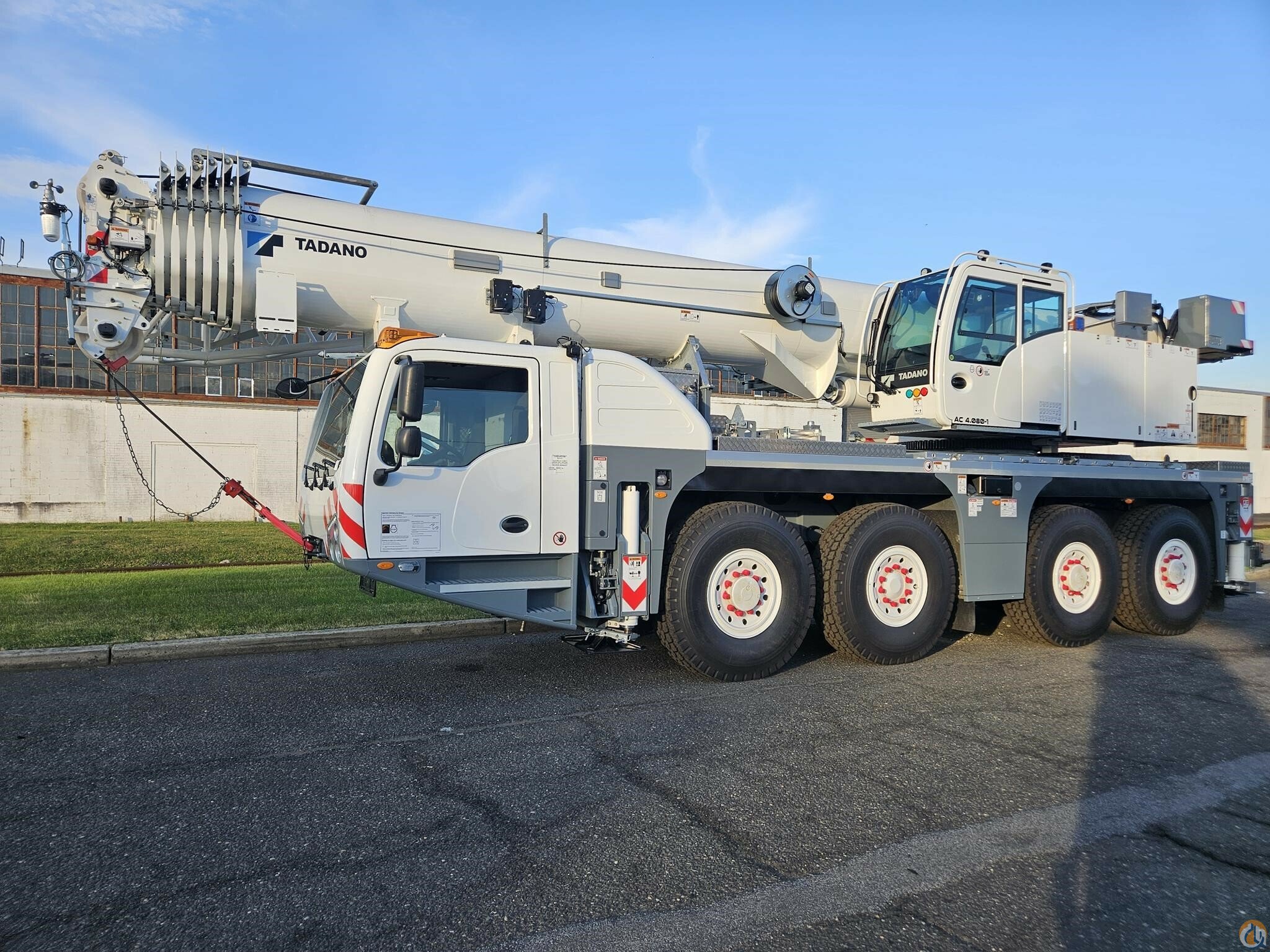

The AC 4.080-1 blends outstanding reach with exceptional versatility. Its compact size on 4 axles gives this all terrain crane best-in-class jobsite accessibility. Fully equipped and roadable within a 18.2-ton / 16.5t axle load, extra transport is rarely needed. With a main boom length of 196.9 ft / 60m, the AC 4.080-1’s reach can expand even further with a 21.3 ft / 6.5m extension that can be offset by 25° and 50°. Its capacity is a generous 26.2-ton / 23.8t. Whether used as a main crane or a powerful assist crane, the lifting capacity in steep boom positions makes the AC 4.080-1 unbeatable in its class.
