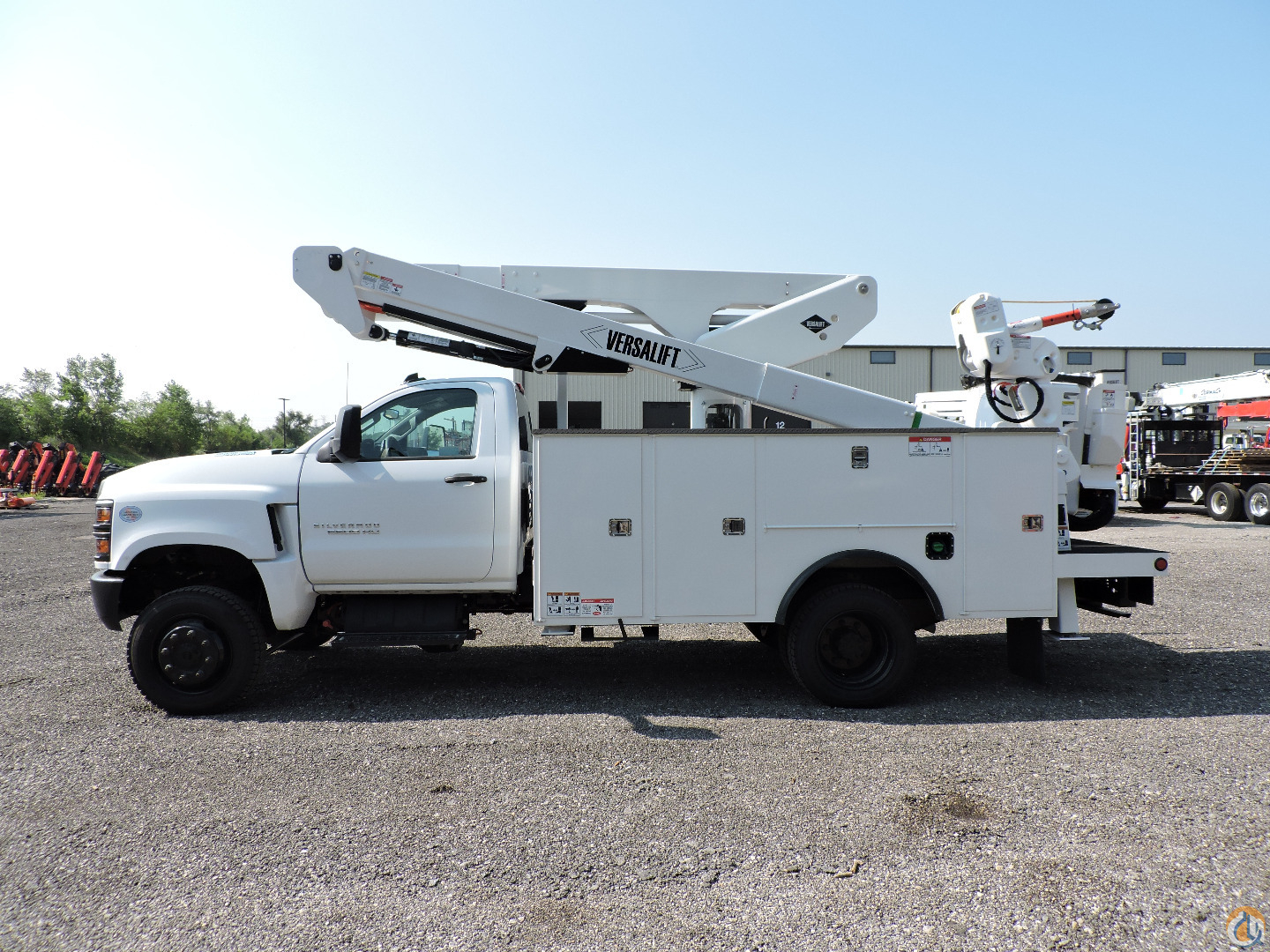

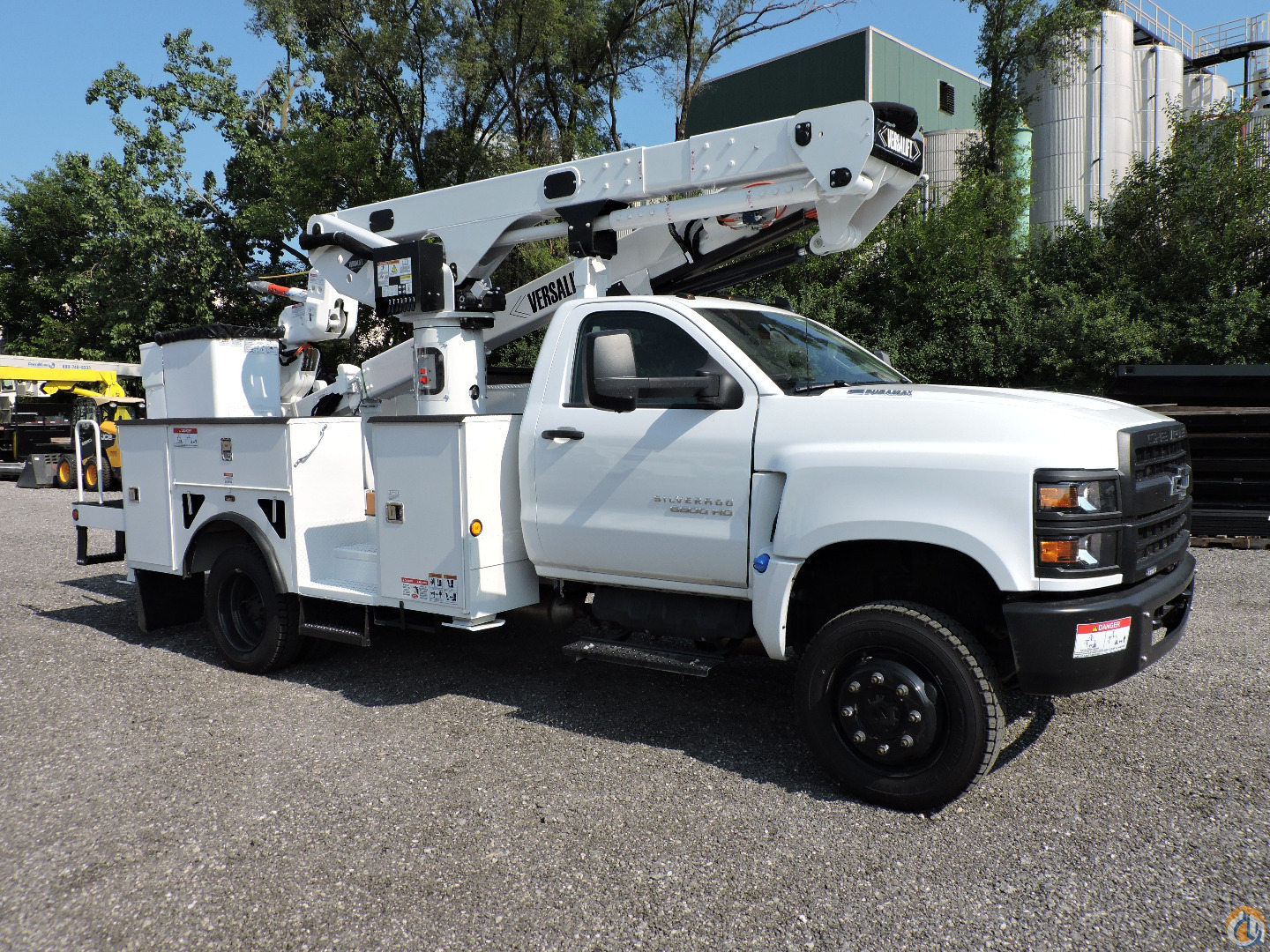

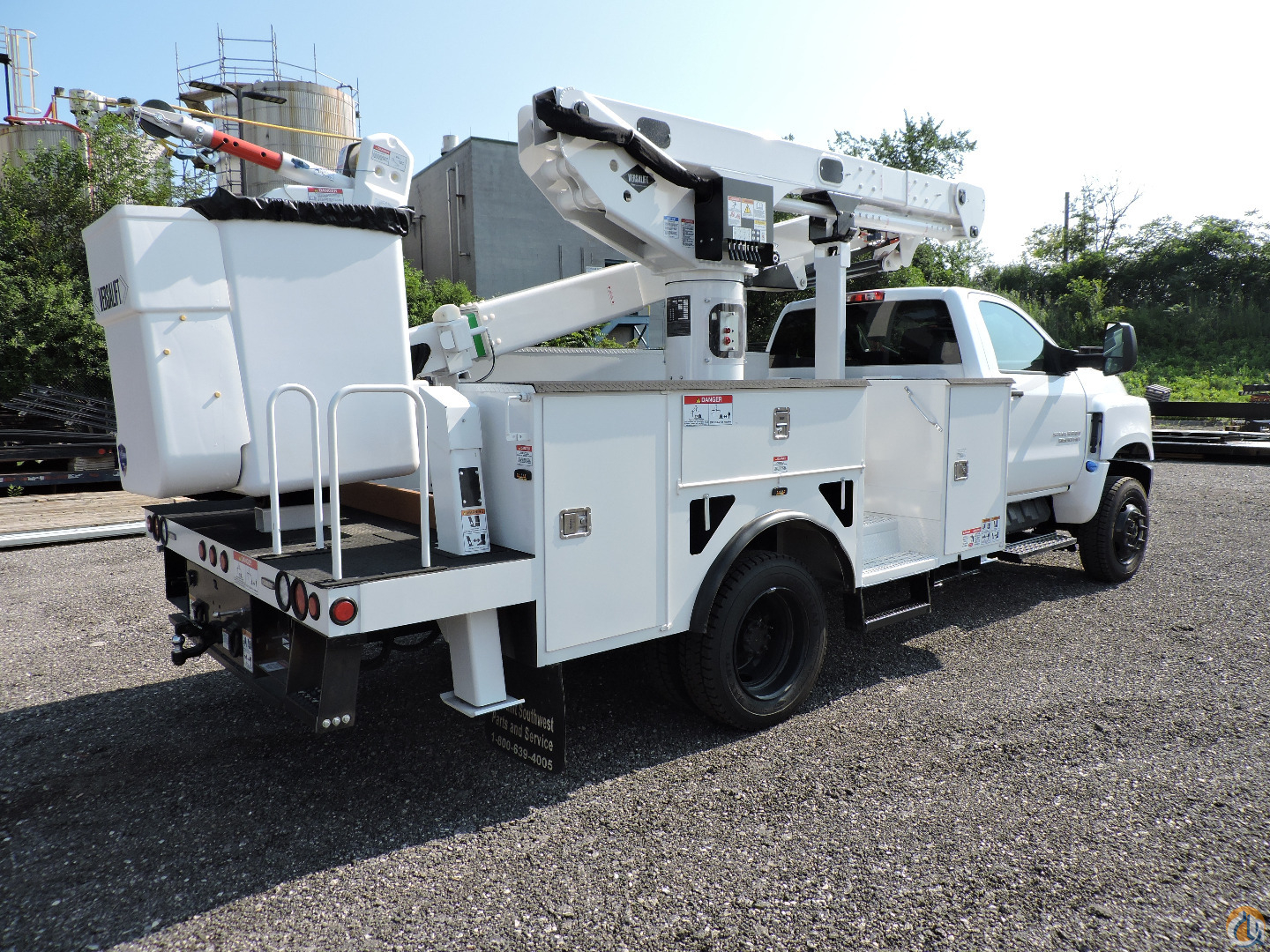

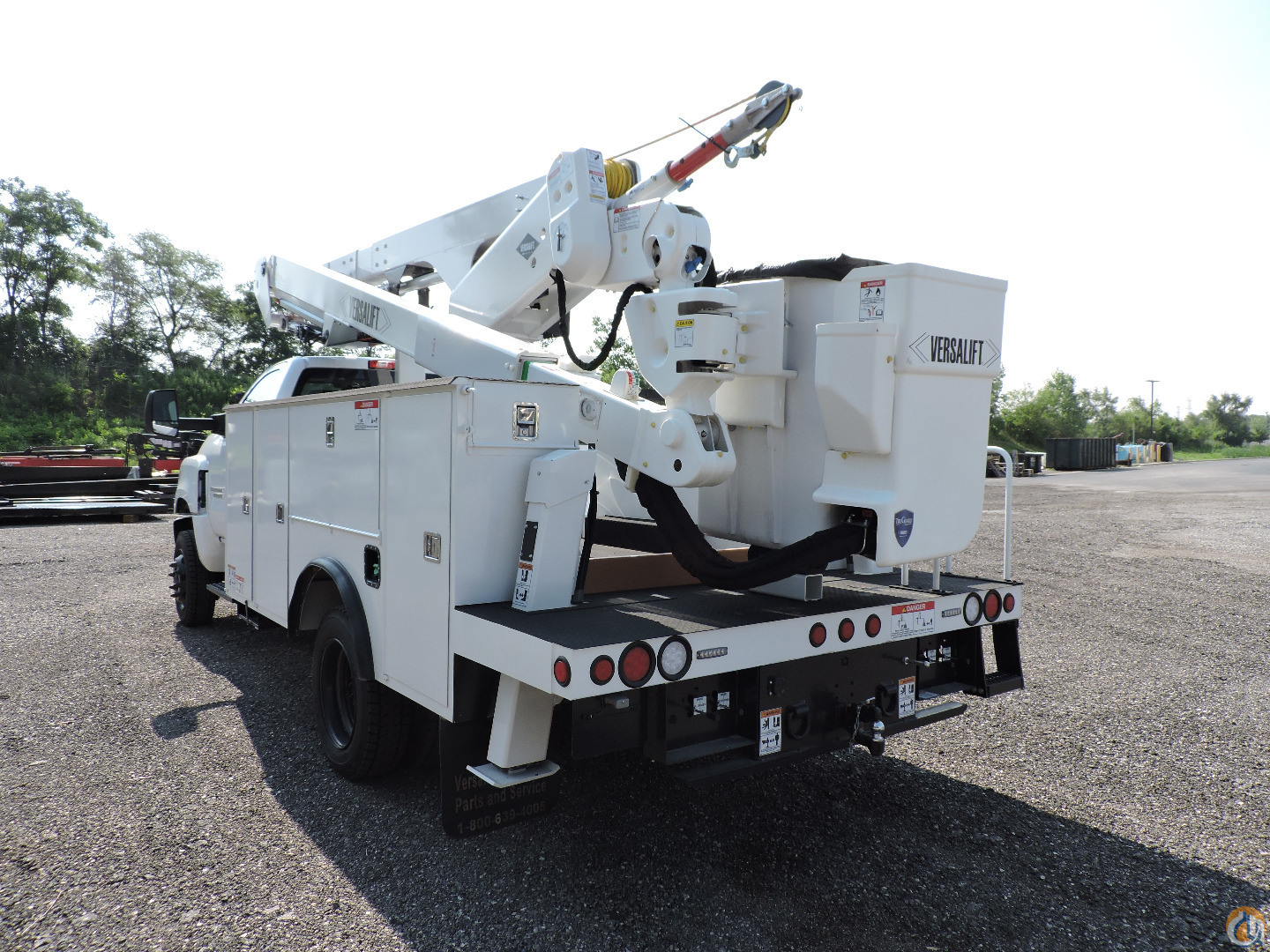

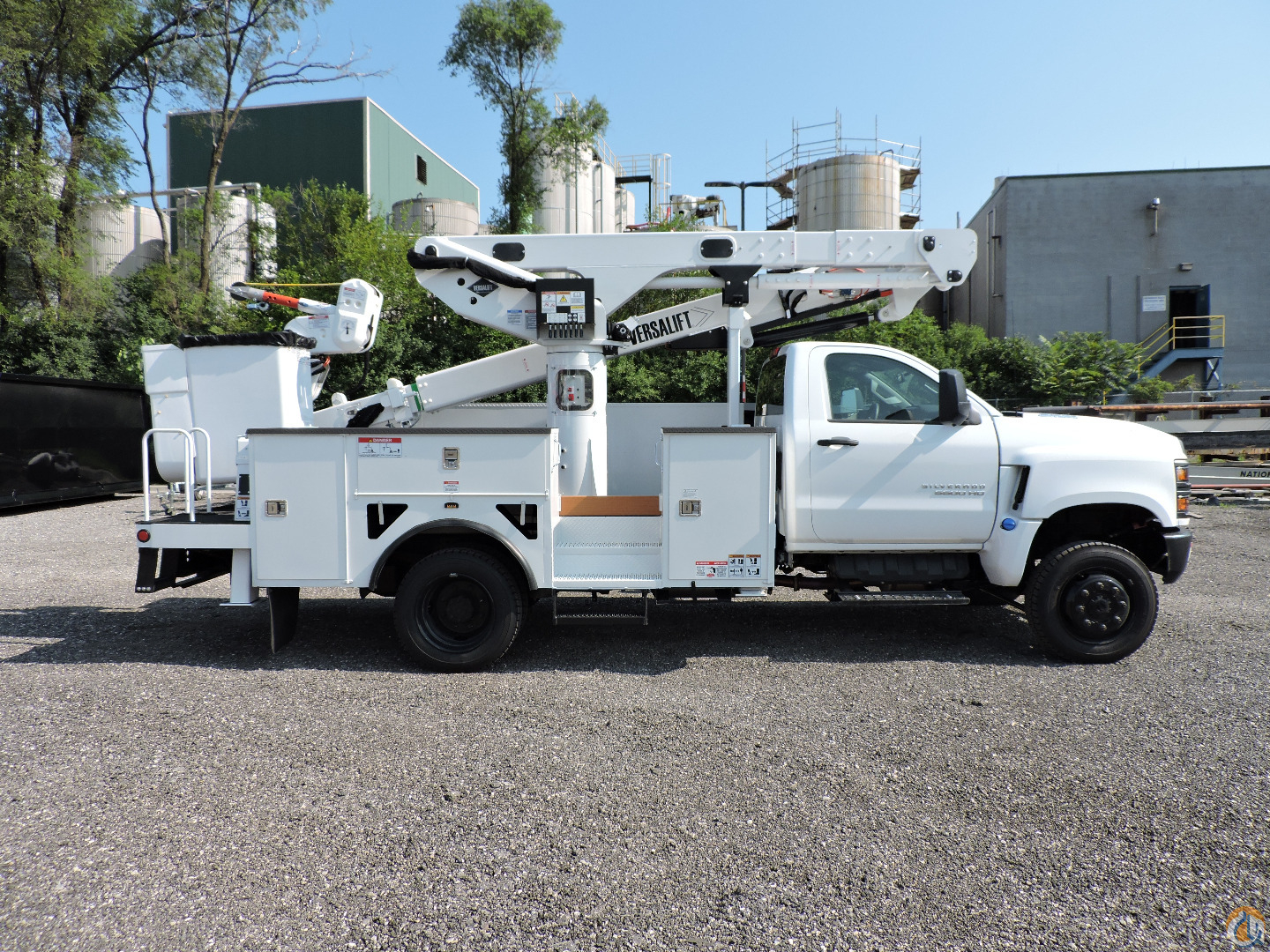

VERSALIFT VST-47-MHI equipped as follows:

-          52 ft. 4 in. working height

-          30 ft. 9 in. horizontal side reach

-          Platform capacity of 300 lbs

-          Side mounted closed one-step 24 in. X 30 in. X 42 in. fiberglass platform

-          Platform liner and vinyl cover

-          TruGuard™ dielectric isolating system with right hand single-stick control. All control handles are isolated and tested per ANSI 92.2. The high resistive dielectric system is protected from direct environmental and job related contamination. TruGuard™ technology incorporates the use of full hydraulic controls with durable metal handles and linkages

-          180 degree Hydraulic platform rotator

-          Hydraulic dual arm articulating jib pole and winch package for up to 1,000 lbs. capacity, including insulated jib pole

-          360 degree continuous rotation

-          Six GPM open center hydraulic system with a 3000 psi operating pressure

-          Side mounted telescopic upper boom allows low stowing of platform. Fiberglass inner boom and patented ELECTROGARD provide insulation gap of 41 inches fully retracted meeting ANSI A92.2 requirements for Category C 46KV and below

-          Chassis insulating system (fiberglass lower boom insert) providing 12 in. insulation gap and including accommodations to bridge insulation gap for testing per ANSI 92.2

-          ELECTROGARD and inner boom finished with white urethane paint over a white gel coat

-          Non-lube bearings used throughout

-          One set of hydraulic tool outlets with pressure limit valve. Valve can be adjusted from 1000 to 2500 psi

-          Sub frame mounted main A-frame outriggers with pivot feet, two control valves, and a selector valve

-          A-frame outriggers with pivot feet

-          Outrigger boom interlock system for main and auxiliary outriggers

-          Integral reservoir with a 17-gallon (64.4 l) capacity and dual sight gauges.

-          Individual full pressure controls at the turret actuate all boom functions and is equipped with a selector valve  to override upper controls

-          12 volt DC backup pump providing power to all boom functions

-          Auto boom latch for mounting on inner boom. The rotary auto boom latch works off the lift hydraulic pressure to open and close

-          Standard white urethane paint

-          Safety harness and lanyard

-          Brand FX service body

MOUNTED ON:

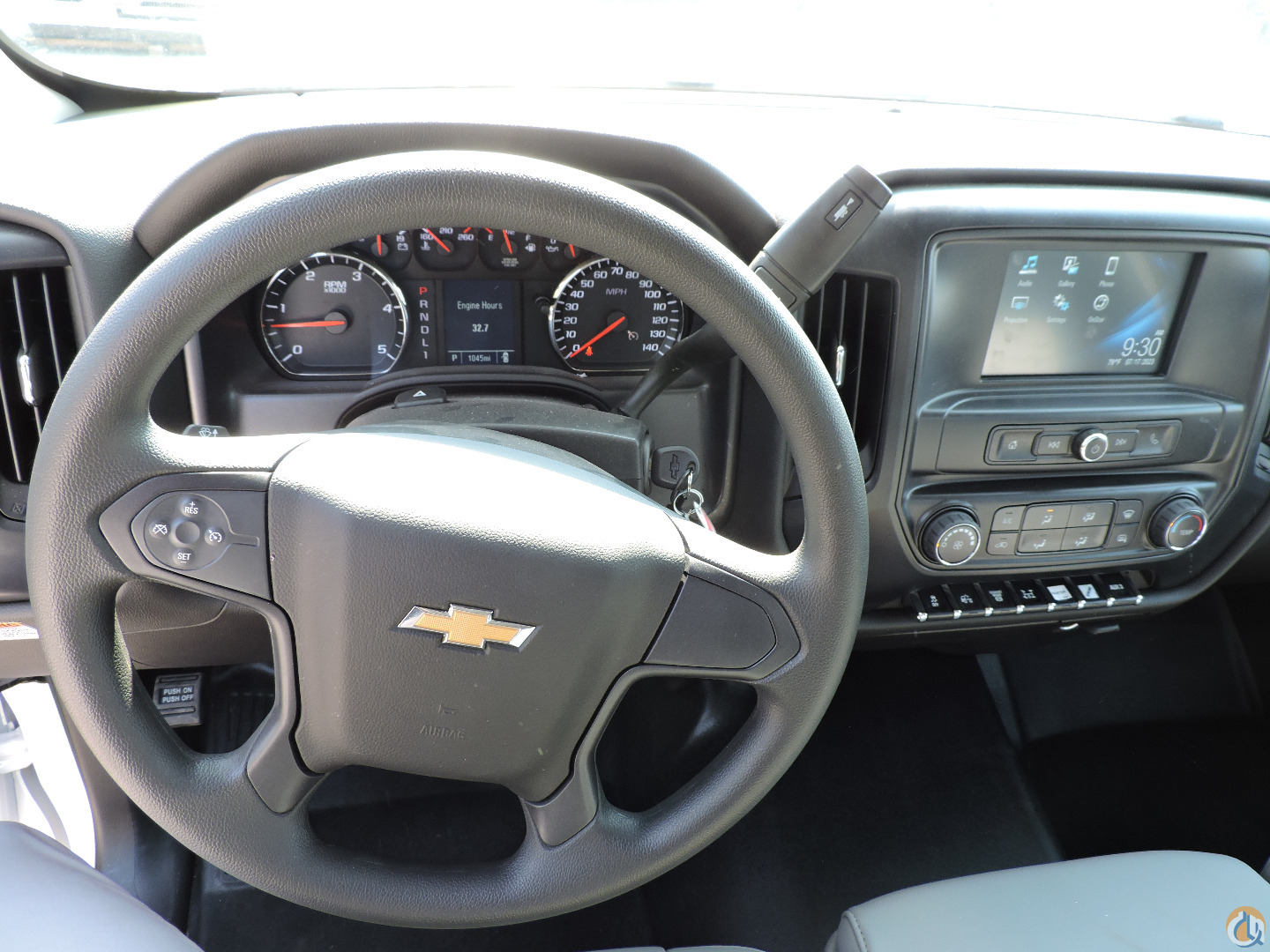

2022 Chevy 5500 equipped as follows:

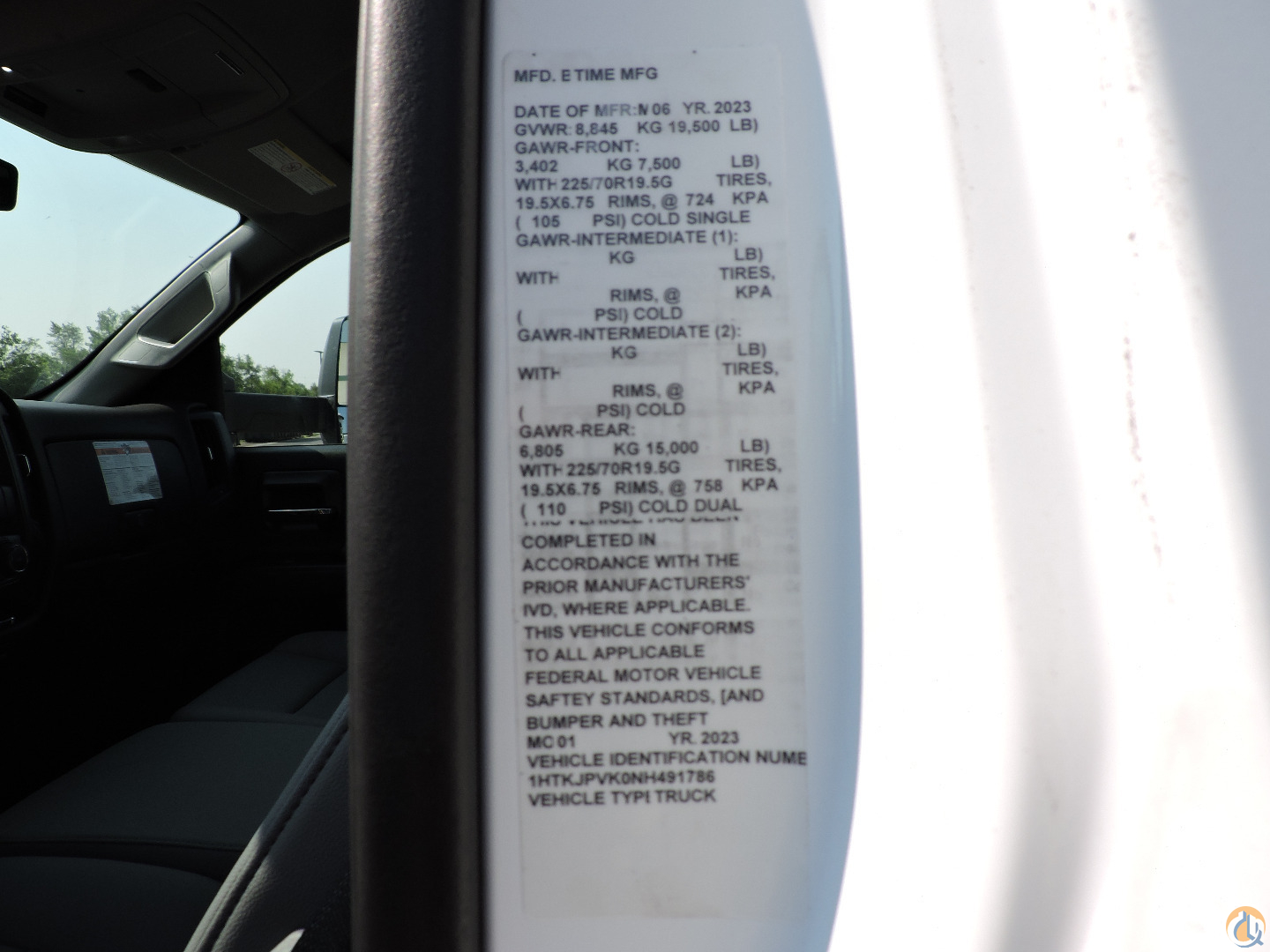

-          19,500 lbs GVW

-          6.6L Duramax V8 Turbo diesel engine

-          6-speed Allison A1700RDS automatic transmission

-          Front axle – 7,500 lb, multi-leaf suspension

-          Rear axle – 15,500 lb multi-leaf suspension

-          110-volt AC power outlet

-          1300 cold-cranking amps heavy-duty dual batteries

-          Air conditioning

-          Engine block heater

-          225/70Rx19.5G all traction tires

-          AM/FM stereo with Bluetooth USB port, and auxiliary jack

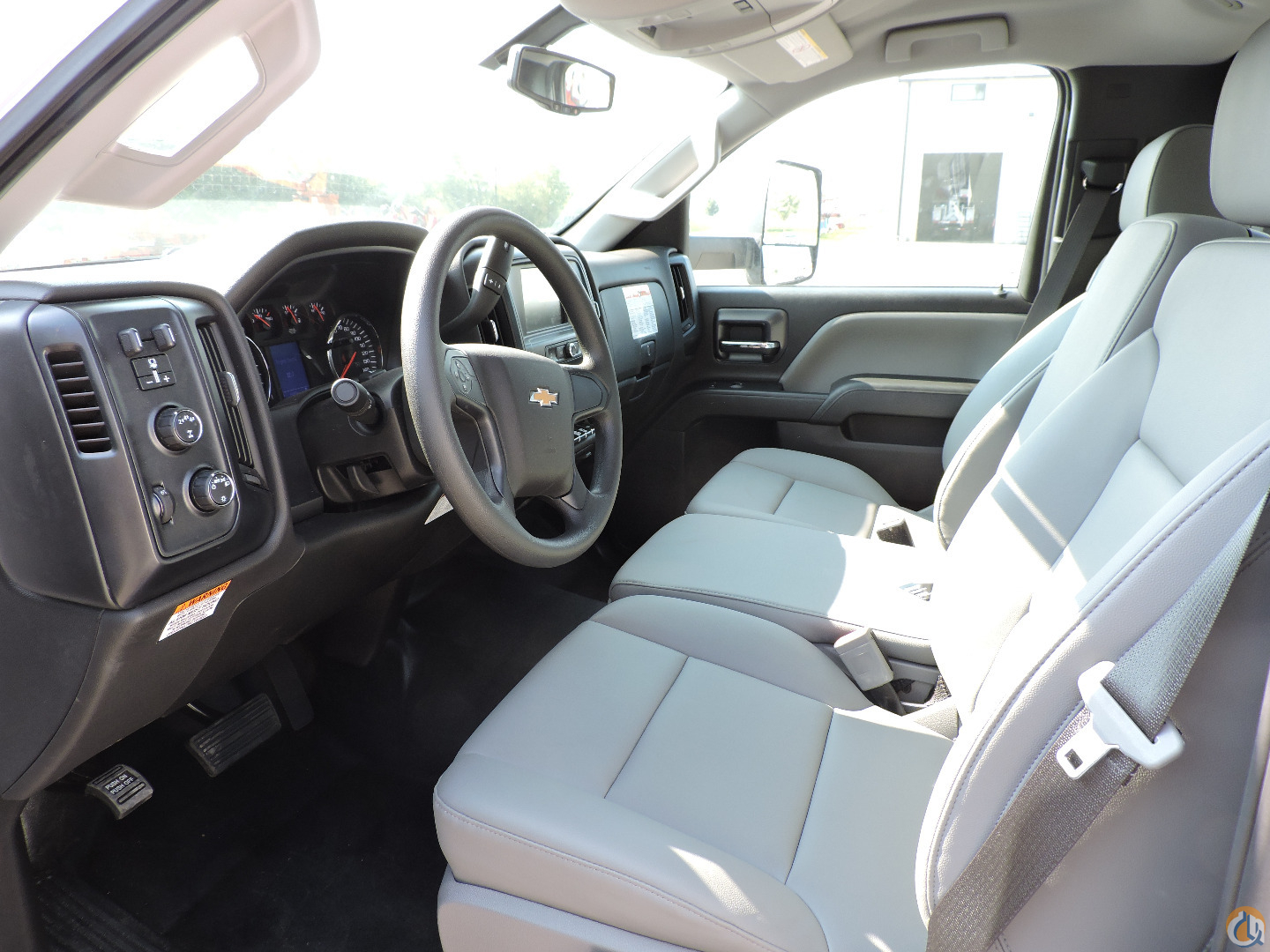

-          40/20/40 split vinyl bench seat

-          Back up camera

-          Transfer case skid plate shield

-          Painted Summit White
