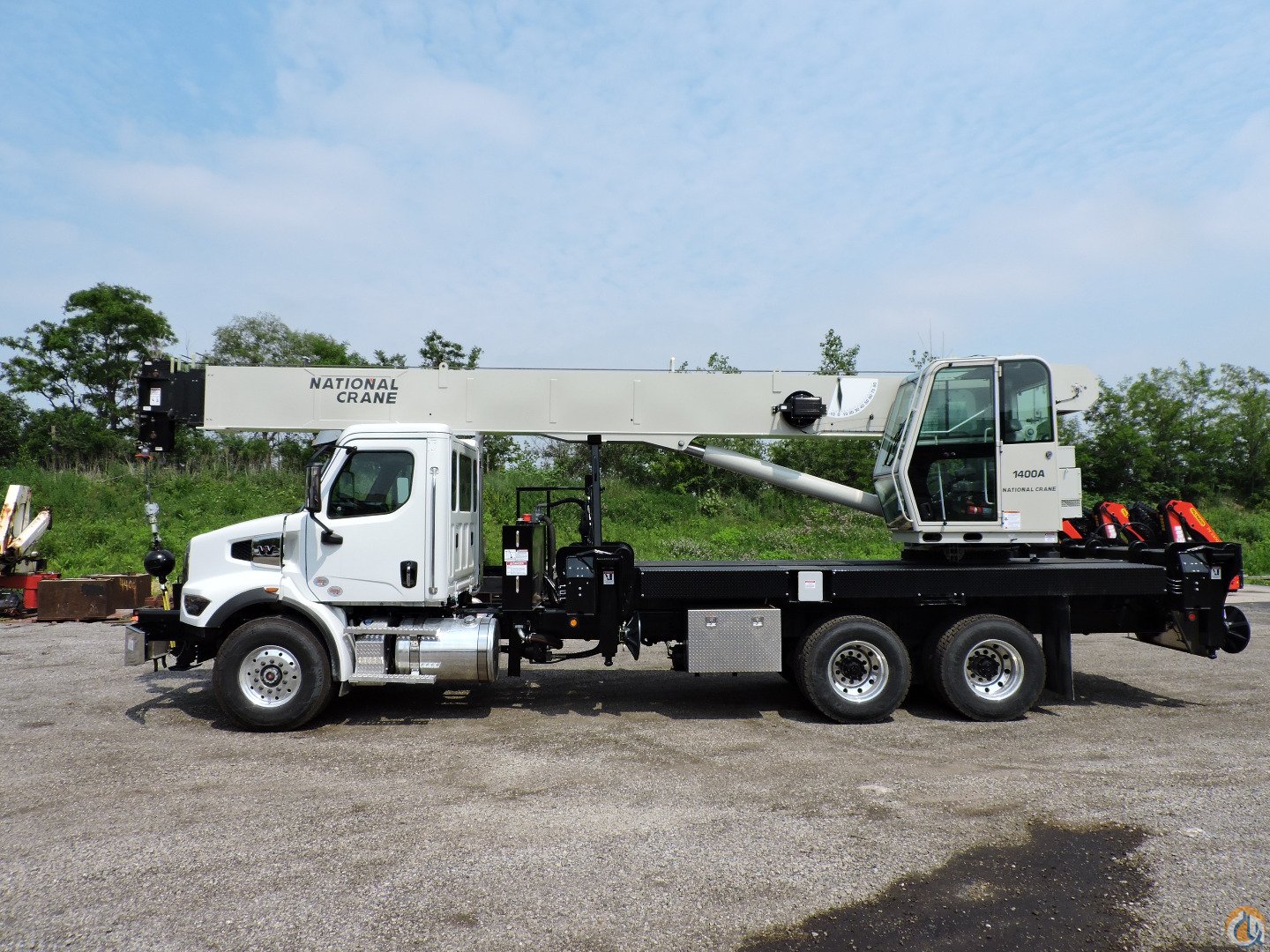

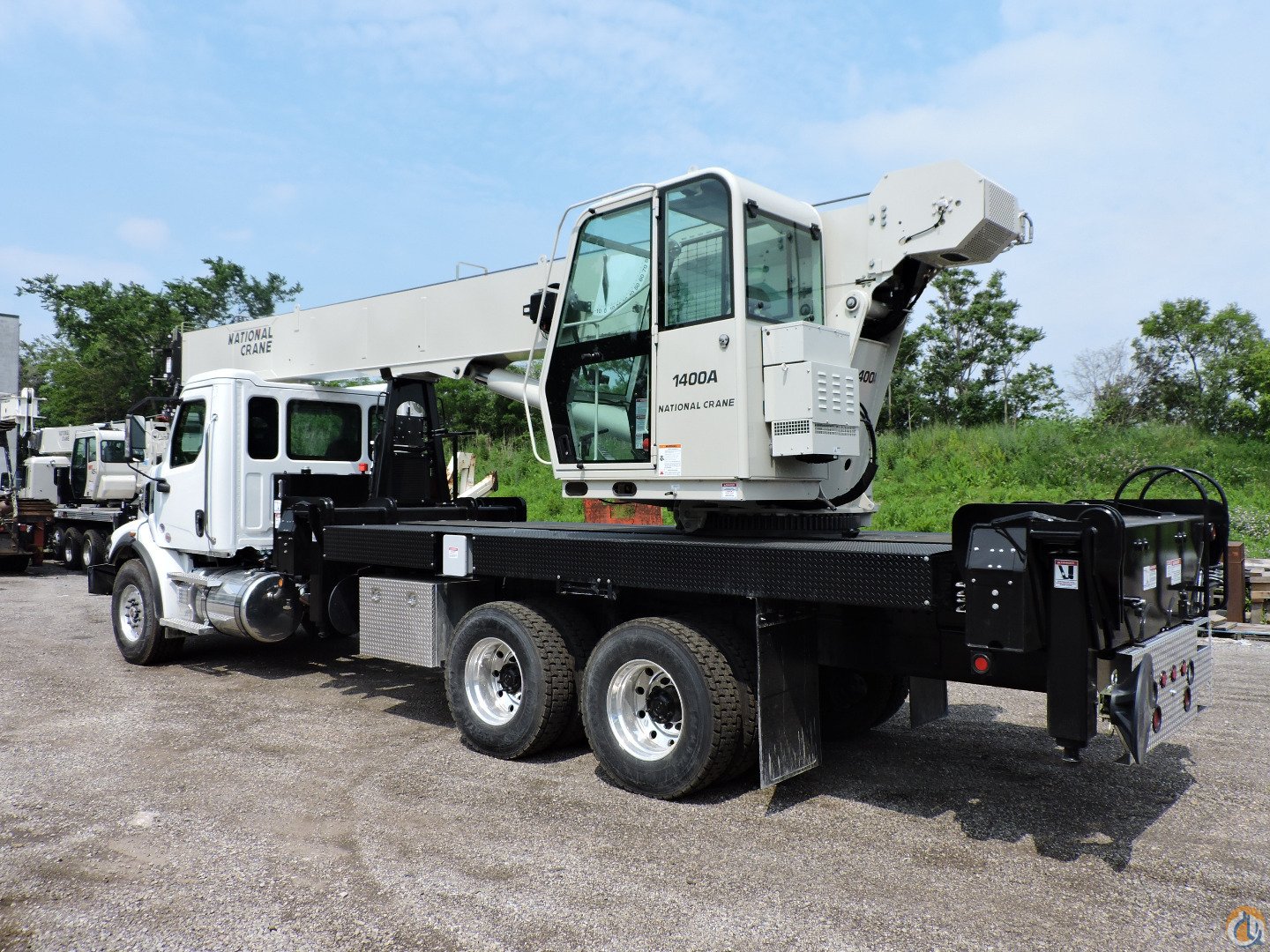

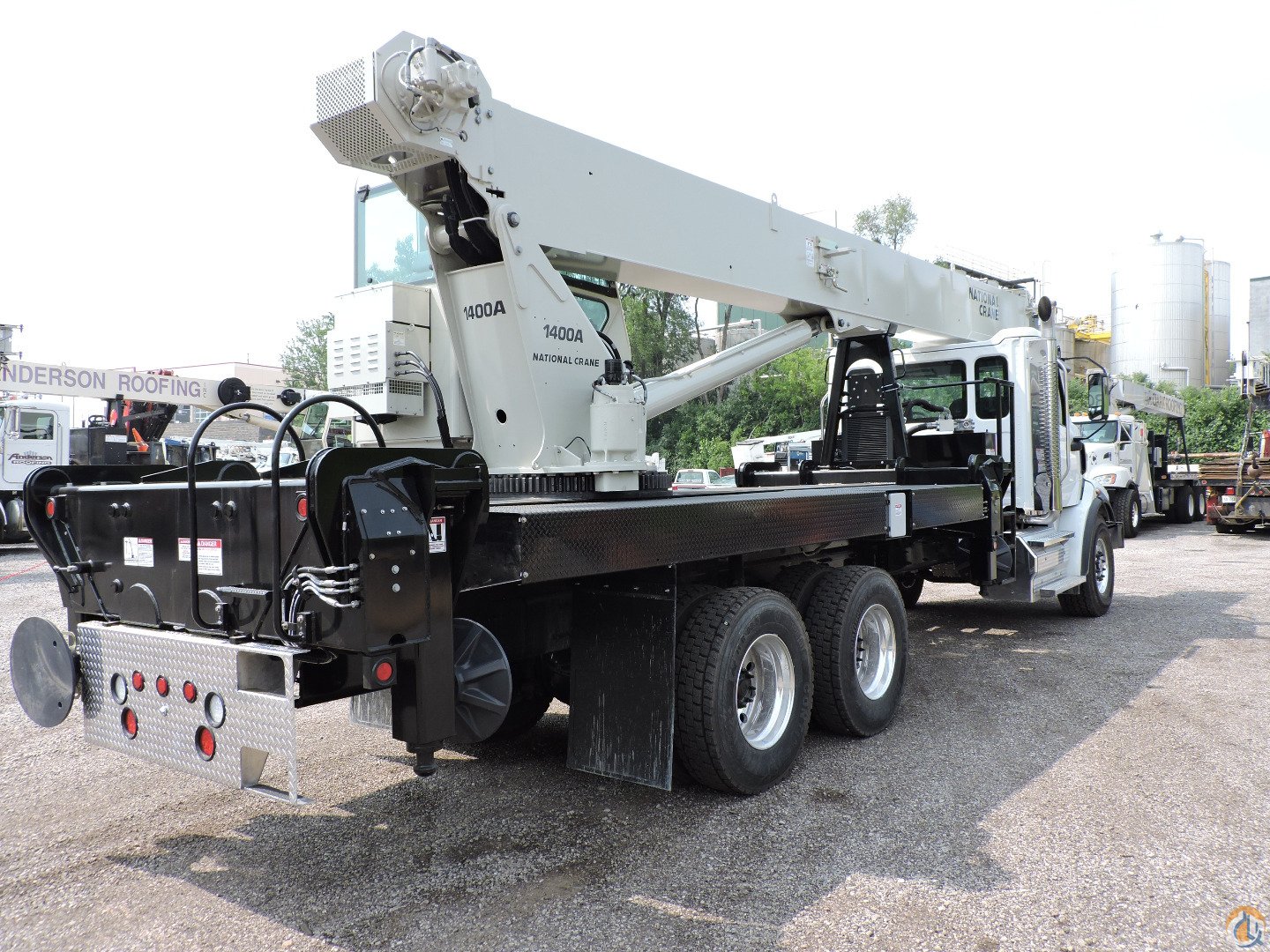

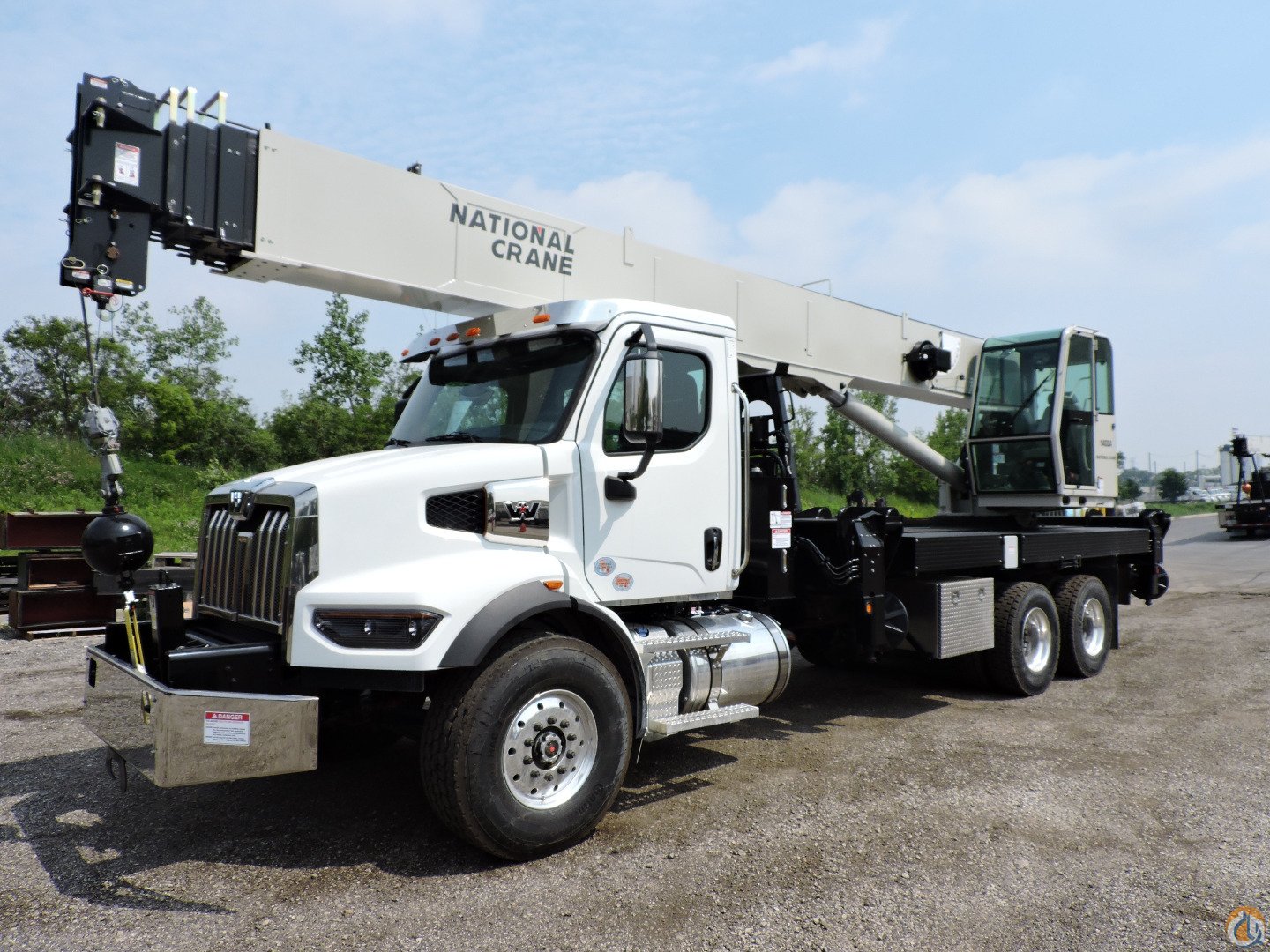

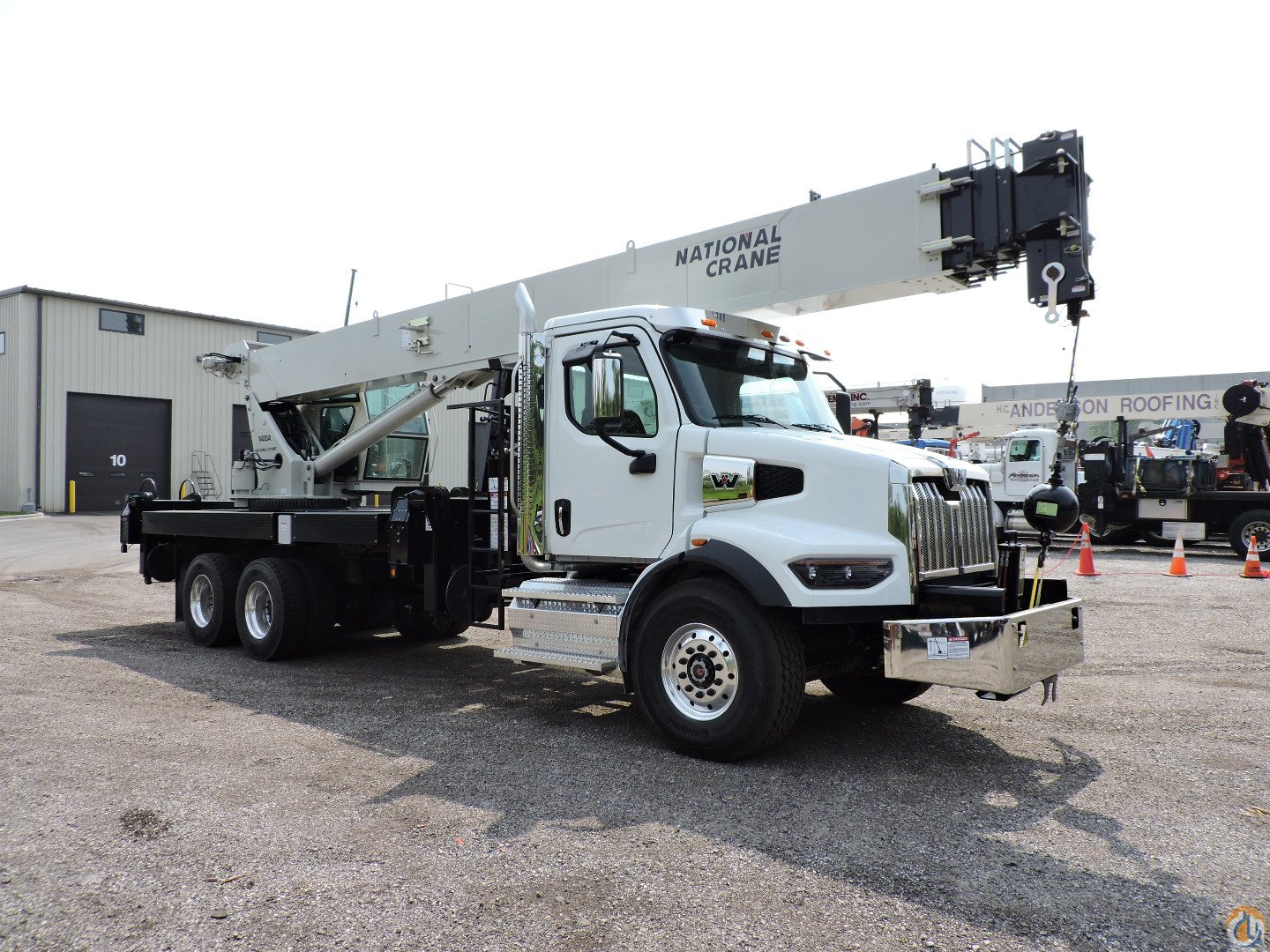

National Crane 14127A equipped as follows:

-          33-ton capacity

-          31.6’ to 127’ full power telescopic five section boom (137’ tip height)

-          Outrigger motion alarm

-          Two sets of out and down crossframe outriggers with 24.7’ span (17’ span for reduced capacity)

-          20” diameter polymeric removable outrigger pads

-          Additional outrigger controls at operator’s seat

-          Level bubbles at outrigger control stations

-          Single front outrigger for 360-degree stability includes “First Up” feature

-          LMI computer overload shutdown/warning system

-          RCL displays information on length and angle of boom, working radius, rated load, and total weight being lifted

-          Internal anti-two block wiring

-          Deluxe Operator cab

-          Single axis joysticks in seat arm rests

-          Engine start/stop switch

-          Horn from operator’s cab

-          Air conditioning and diesel fueled cab heater

-          360-degree continuous rotation “Glide Swing” with manual foot brake control in cab

-          Manually applied rotation lock for bearing with 360-degree positioning

-          Adjustable swing speed

-          High performance planetary winch

-          9,000 lb. single part line pull

-          2-speed winch with 5/8” rotation resistance wire rope

-          Round downhaul weight headache ball with top swivel; 5-ton capacity rating

-          Electronic drum rotation indicator, last layer indicator

-          Heavy duty boom rest

-          Hydraulic oil cooler



-          99-gallon hydraulic oil reservoir

-          Sight gauge

-          Suction line gate valve

-          One aluminum tool box 36” x 24” x 24”

-          Painted “National Platinum”

-          Back up alarm

-          Hour meter



MOUNTED ON:

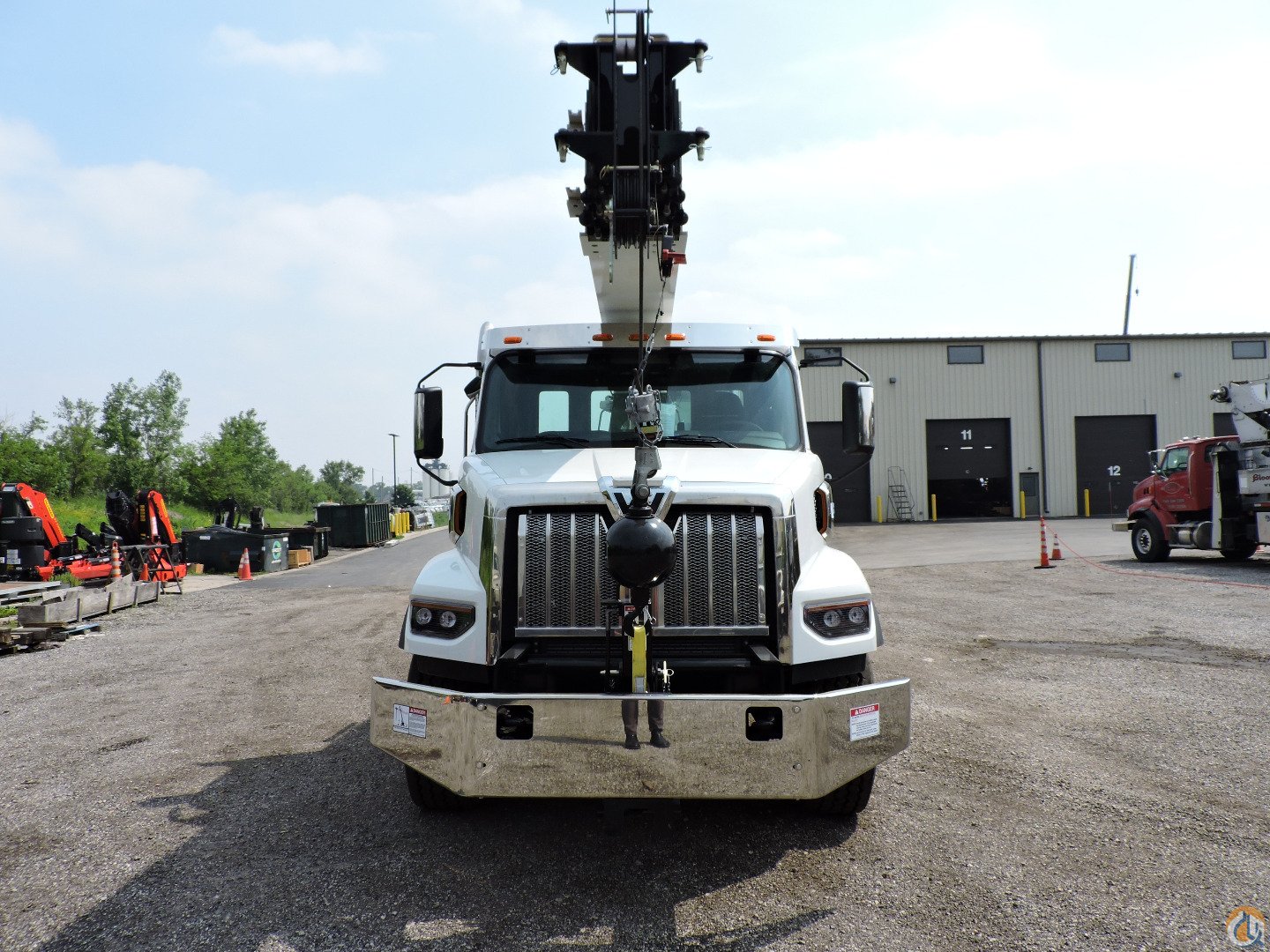

2026 Western Star 47X equipped as follows:

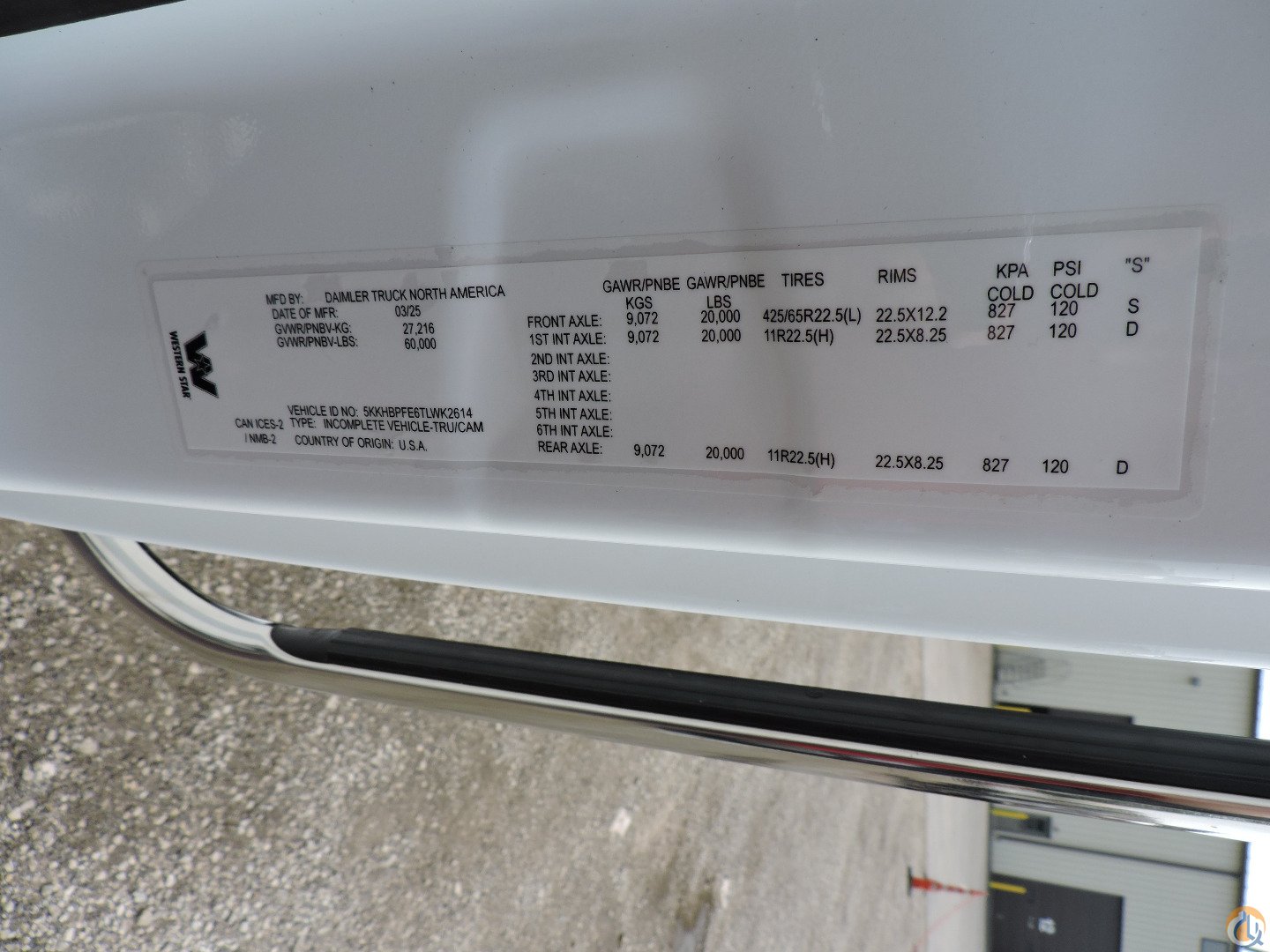

-          54,000 lb GVWR

-          Cummins L9 350 hp @ 2,200 rpm, 1,050 lb-ft @1,200 rpm

-          Engine block heater

-          Allison 3000 RDS automatic transmission

-          20,000lb set forward front axle with taperleaf front suspension

-          40,000lb rear axle with Hendrickson Haulmaax EX suspension

-          Differential lock tandem axles

-          Air dryer with heater

-          Tires:  FR –425/65R22.5 front tires

-          Tires:  RR –11R22.5 rear tires

-          Aluminum wheels with polished outer finish

-          80-gallon fuel tank

-          Polished aluminum diamond plate DEF tank cover

-          Driver’s Seats – Air ride, high back, black Mordura

-          Passenger Seat – Mid back, battery box, black Mordura

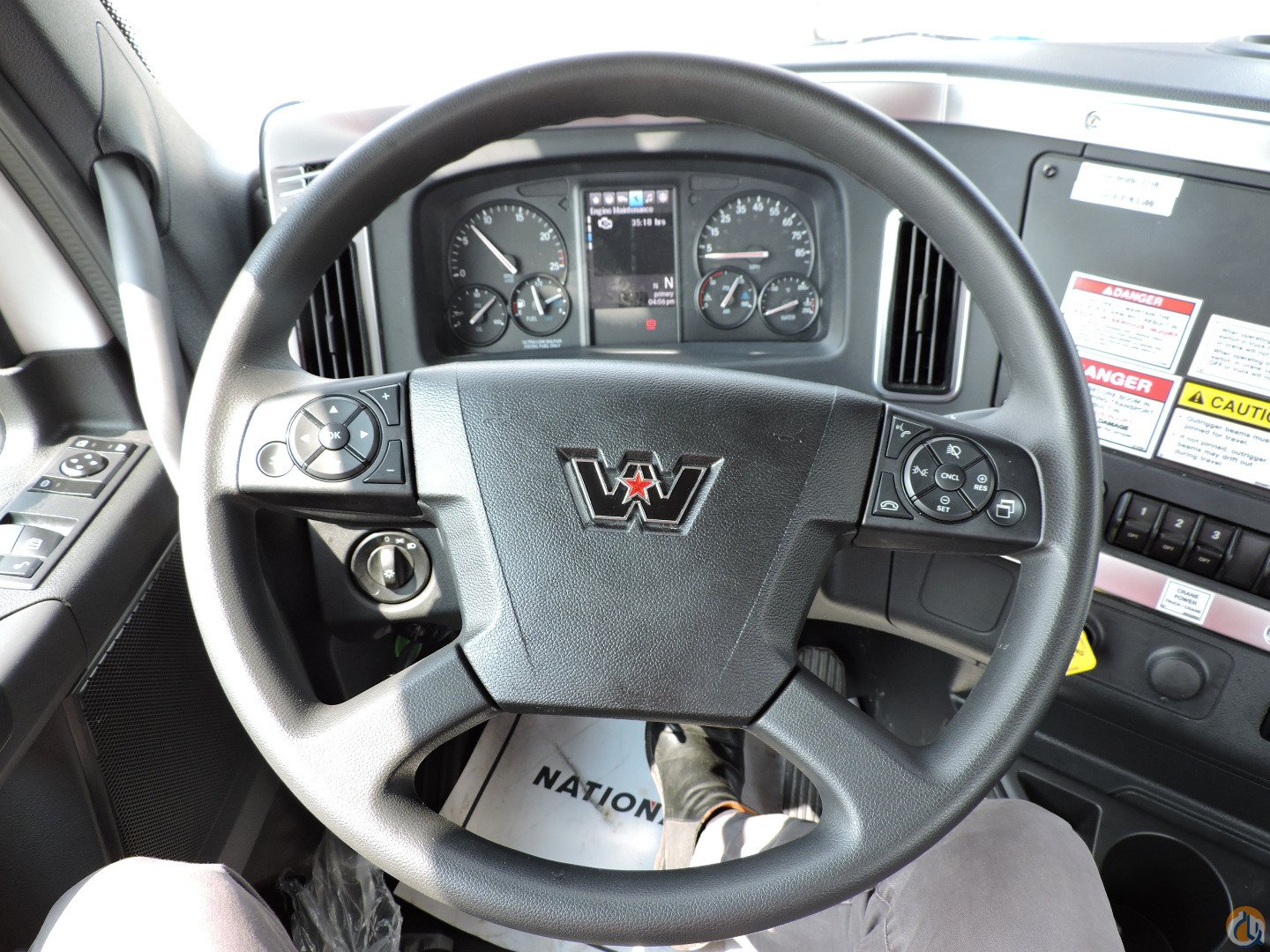

-          Adjustable steering column - tilt/telescope

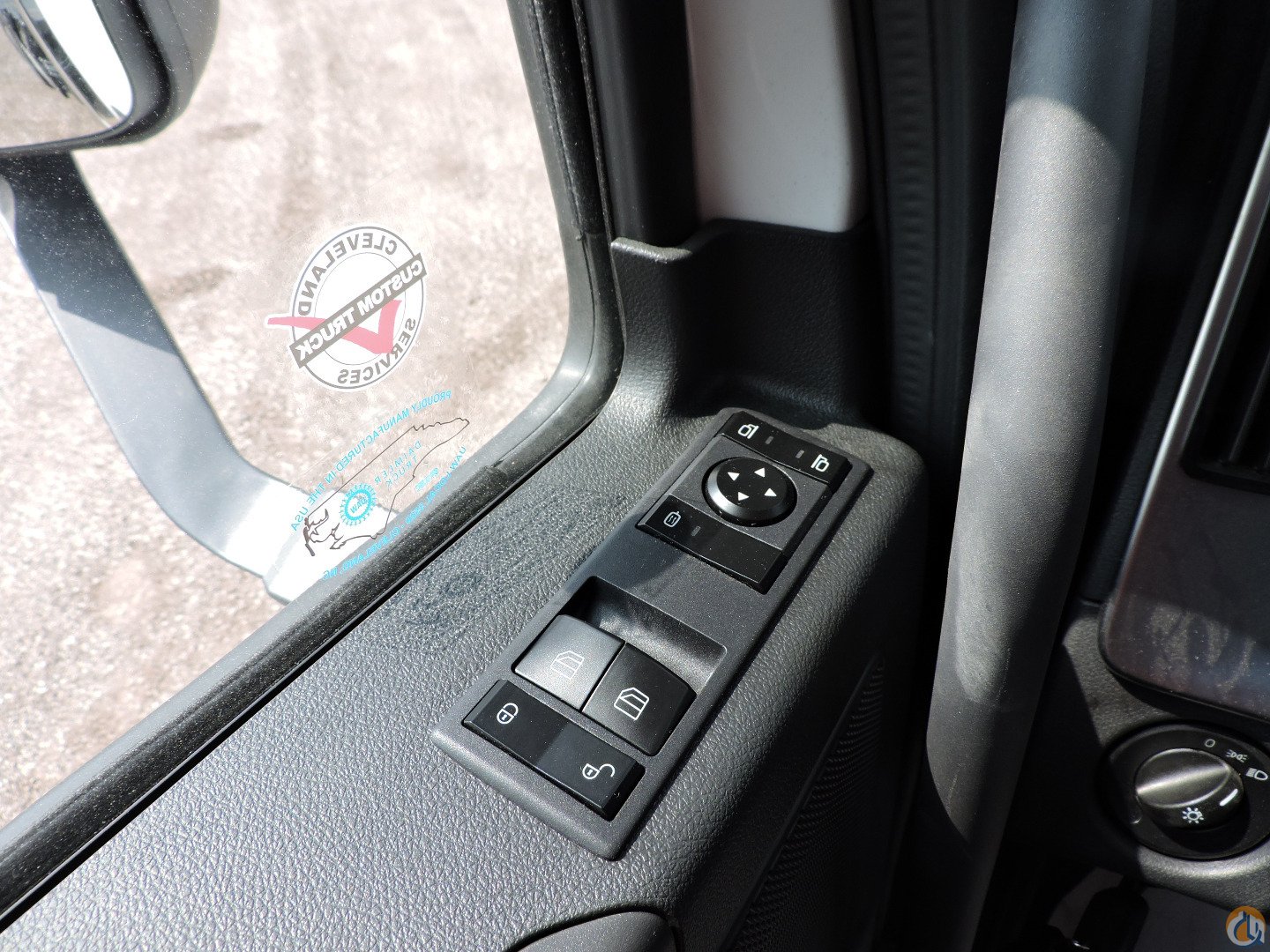

-          Power door locks with keyless entry

-          Air conditioner

-          Bright steel bumper

-          Exterior sun visor, stainless steel

-          Air horn

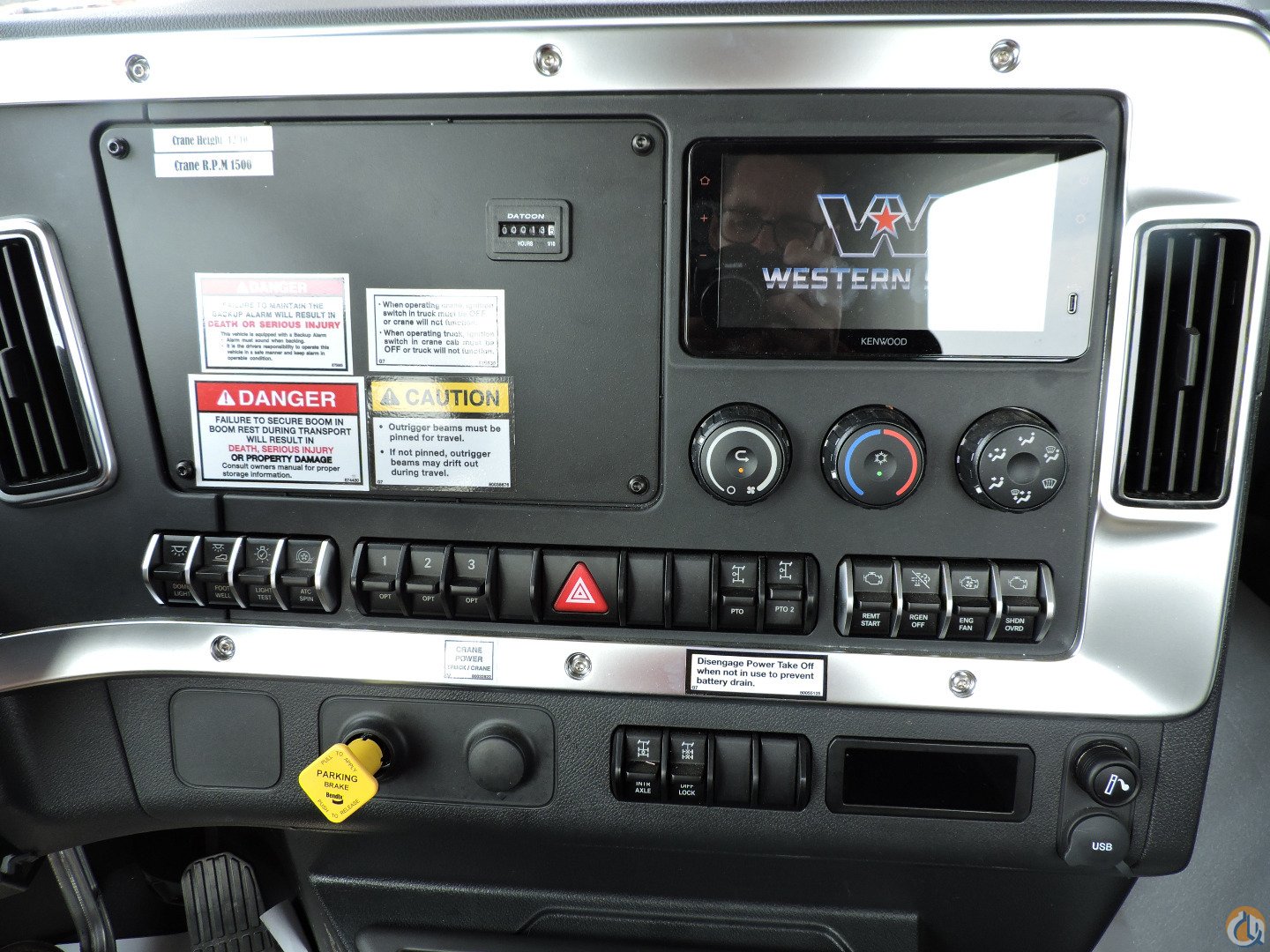

-          AM/FM/WB radio with Bluetooth, and USB

-          Heated mirrors

-          Painted Sand Gray
