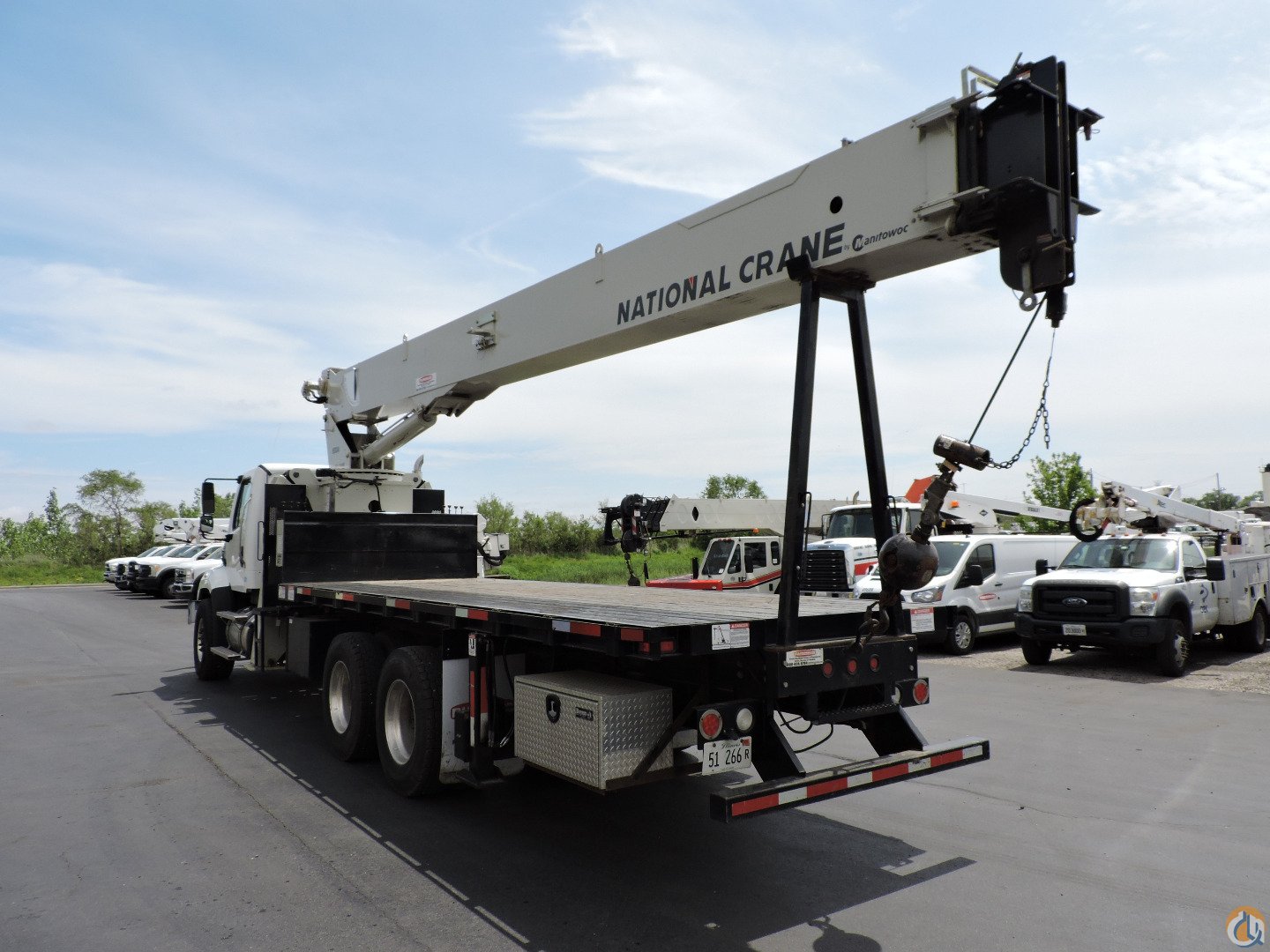

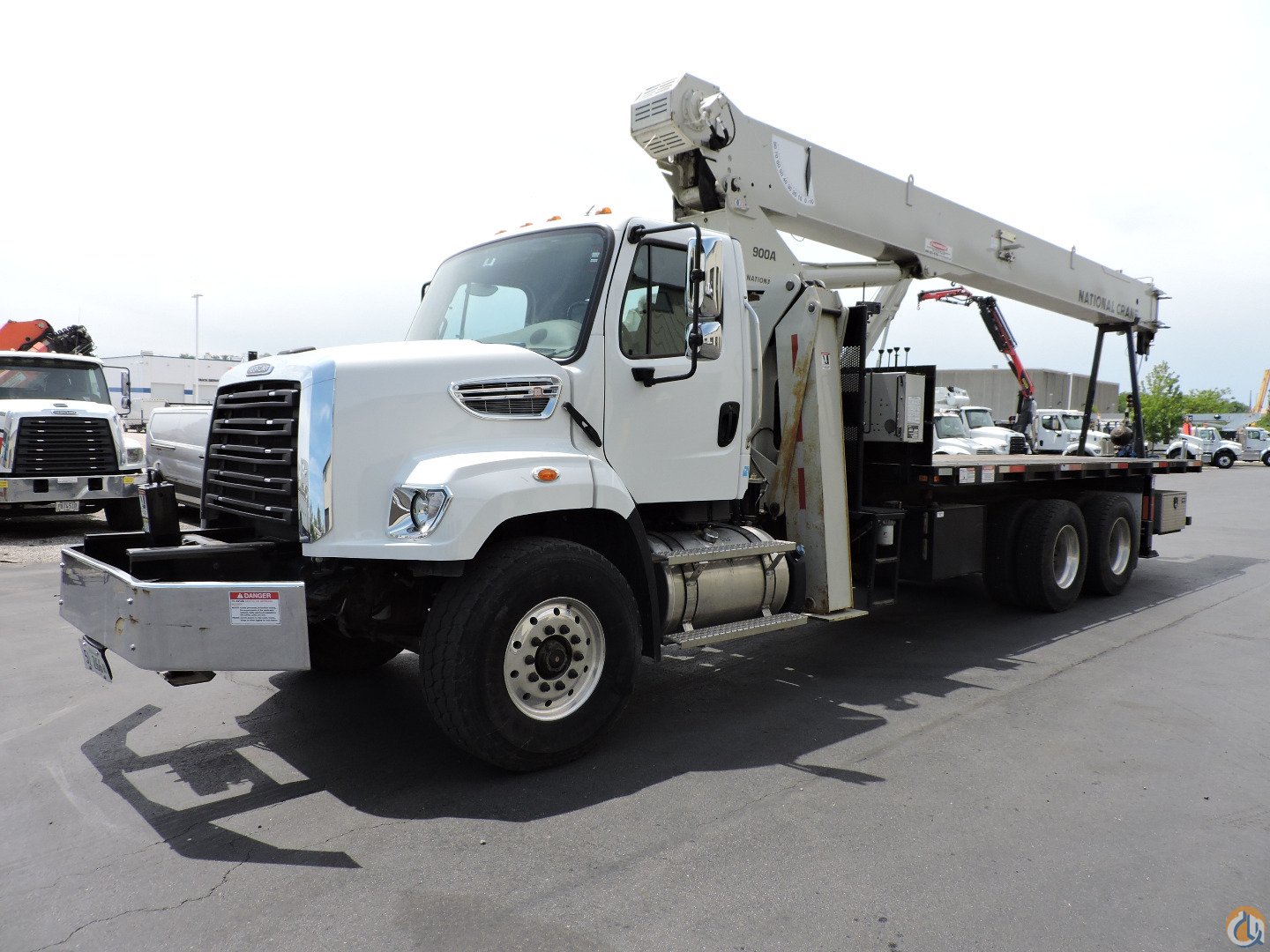

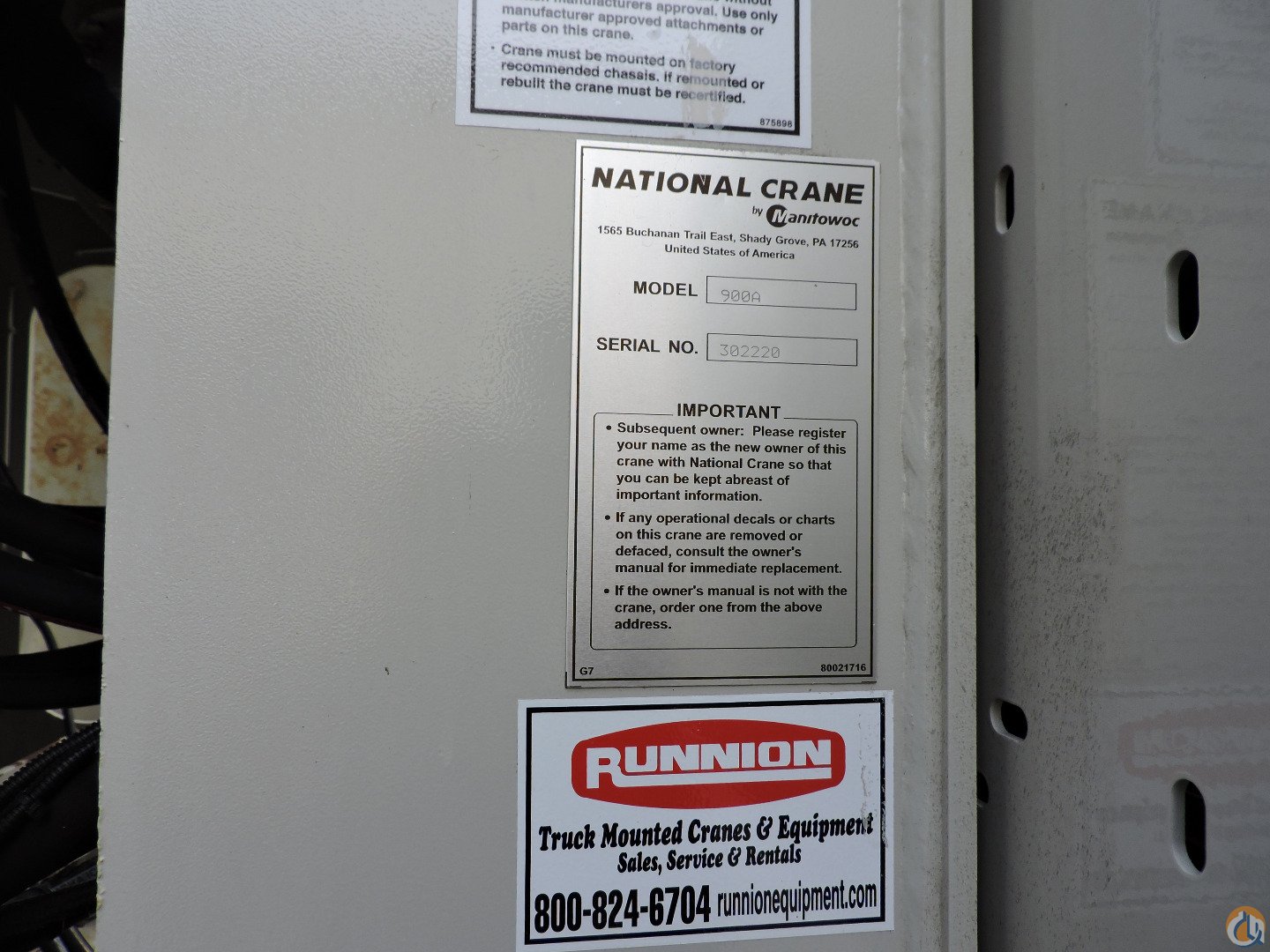

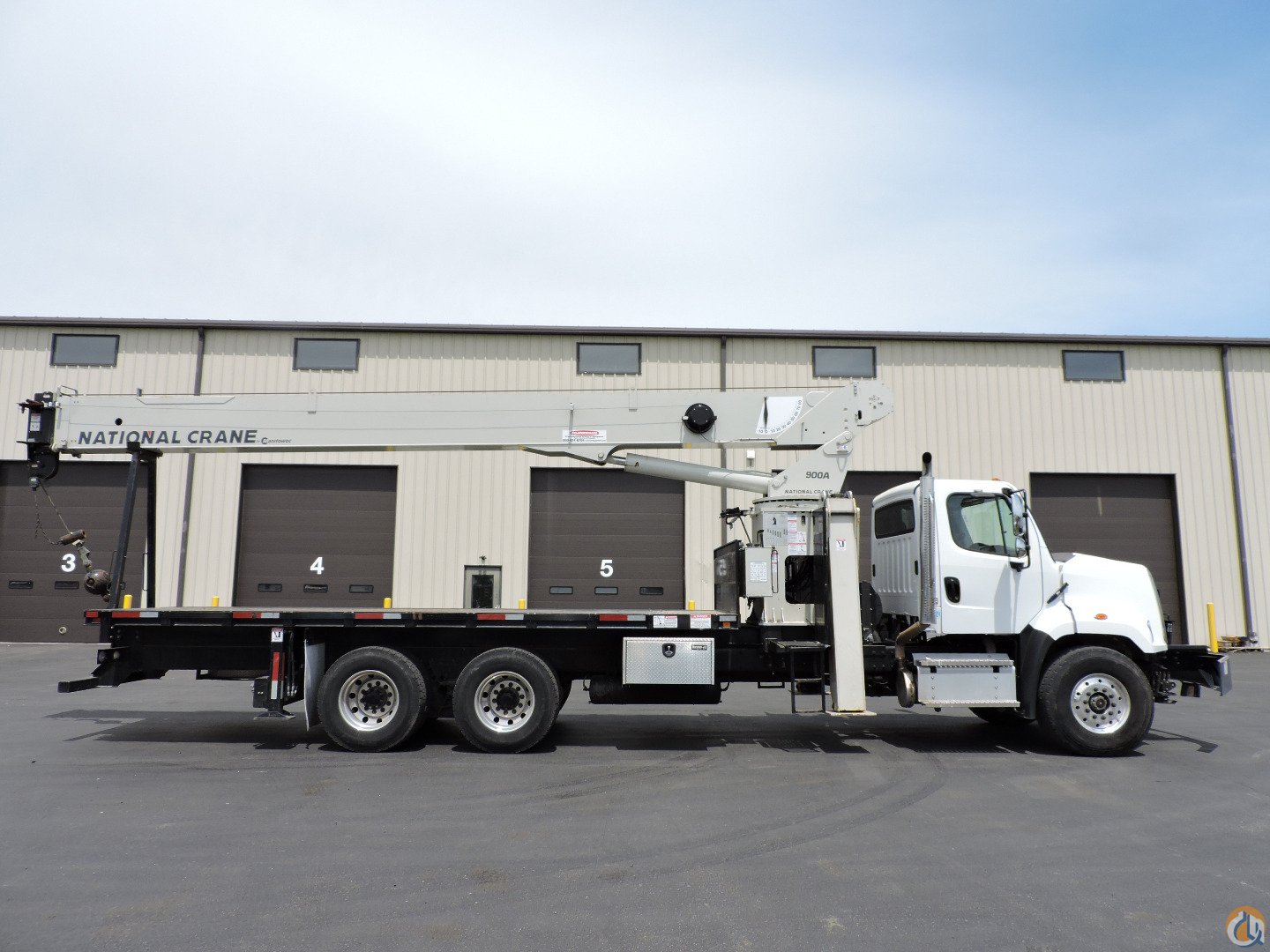

National Crane Model 9103A equipped as follows:

-          26-Ton capacity

-          31’ to 103’ four (4) section hydraulic telescopic boom 113’ sheave height

-          Calibrated for future jib

-          “A” type box slide outriggers – 21’ span

-          Out and down rear hydraulic stabilizers - 16’ span

-          Outrigger motion alarm

-          Single front outrigger for 360° stability

-          Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case includes keyed override

-          Anti-two block reel and cable run inside boom

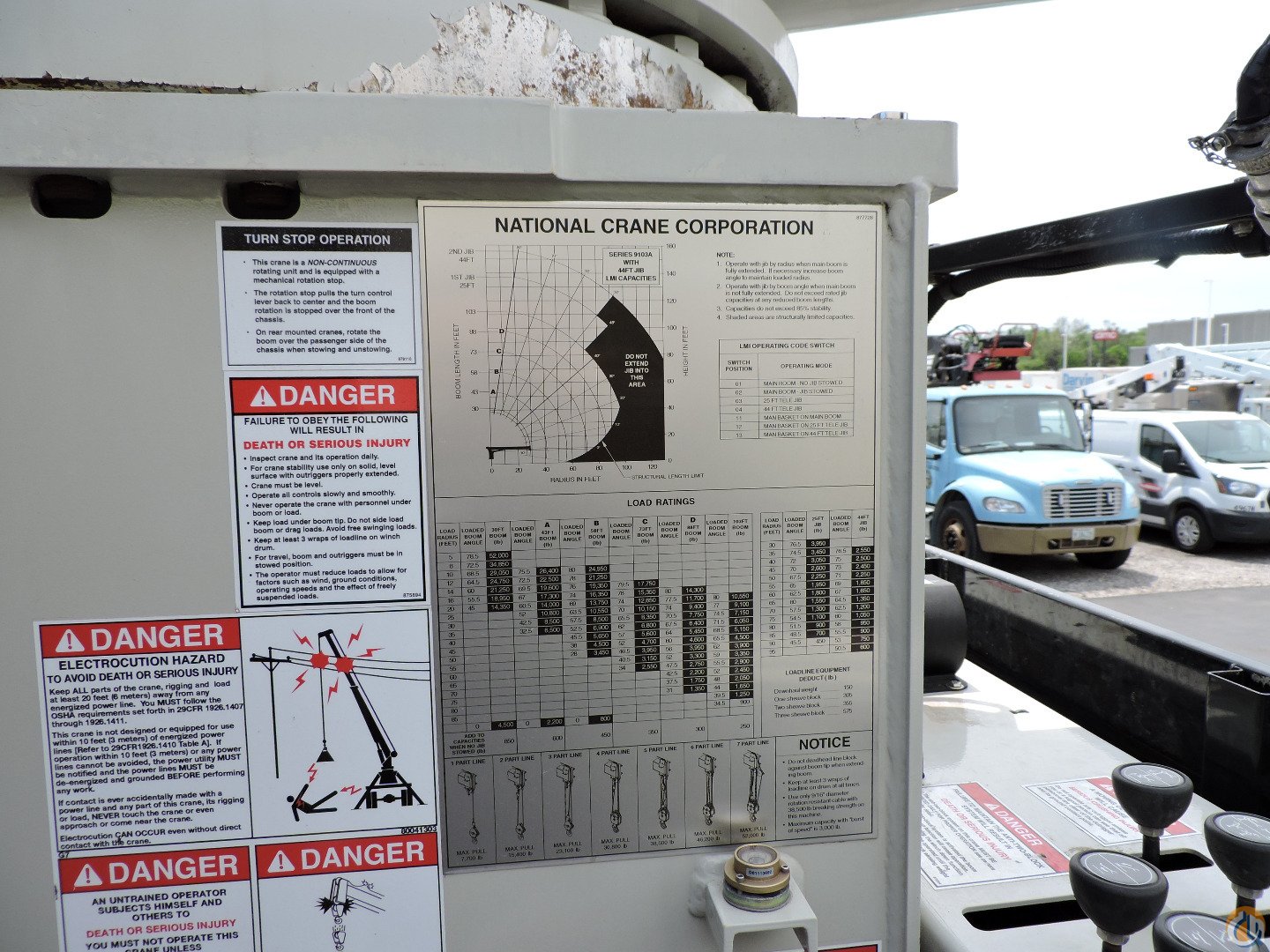

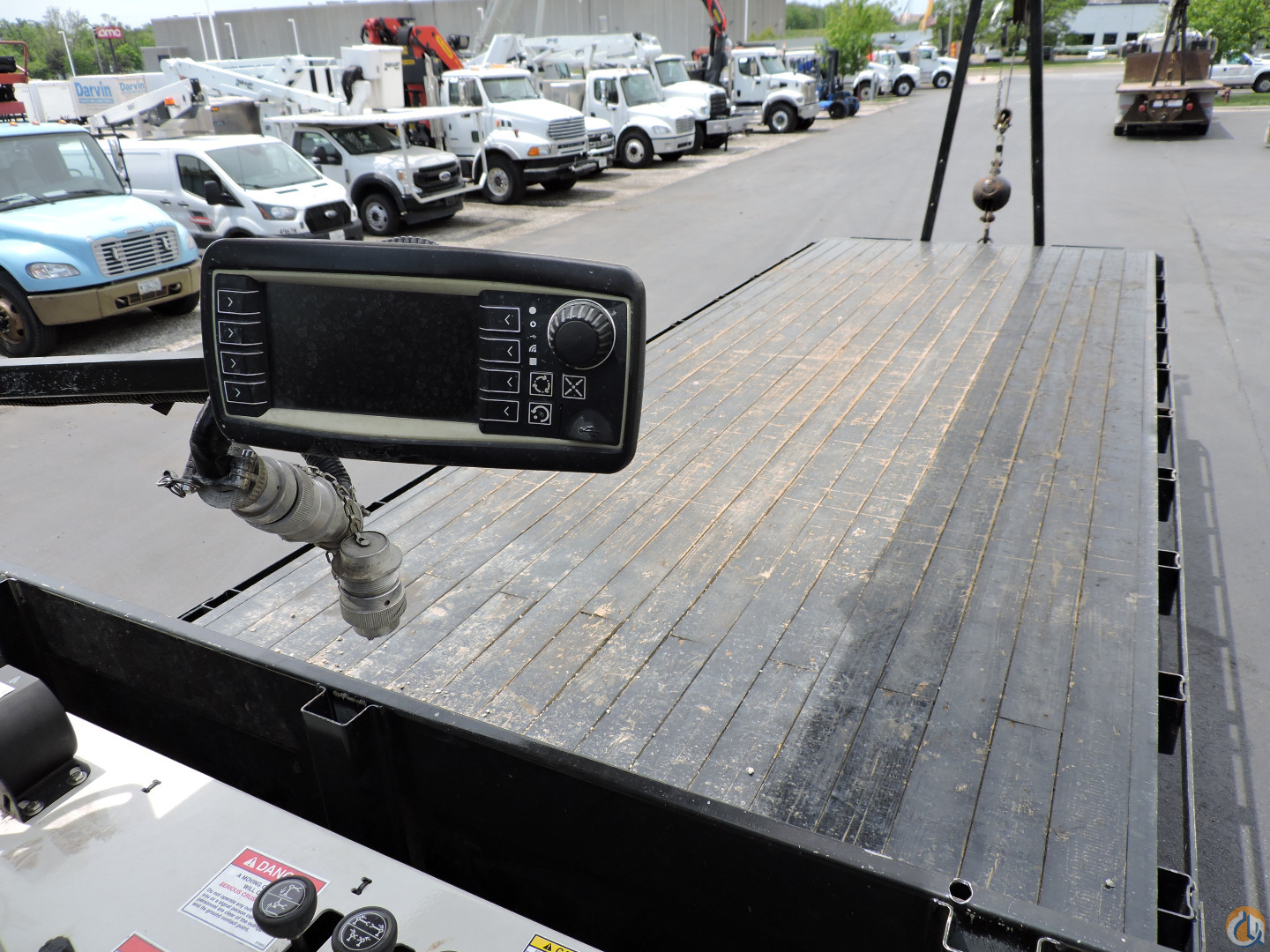

-          Rated Capacity Limiter offers a console display of boom length and angle, load on the hook and available load capacity that can be lifted, when capacity is reached red warning light and horn are activated and RCL halts crane movement to prevent overload. A key override is provided for systems operation in the event of emergency boom position

-          Hi-performance planetary winch with 9/16” spin resistant wire rope, round style headache ball weight with top swivel, hook and safety latch

-          Burst-O-Speed winch with 135 fpm and 206 fpm line speed

-          Dual side controls with operator platforms, foot throttles, horn and kill switches. Operator platform 40” above ground for maximum visibility

-          375° non-continuous rotation

-          Adjustable swing speed control

-          Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions

-          Air shift PTO

-          66-gallon hydraulic tank with return oil diffuser and sight gauge

-          Hydraulic tank suction shut-off valve

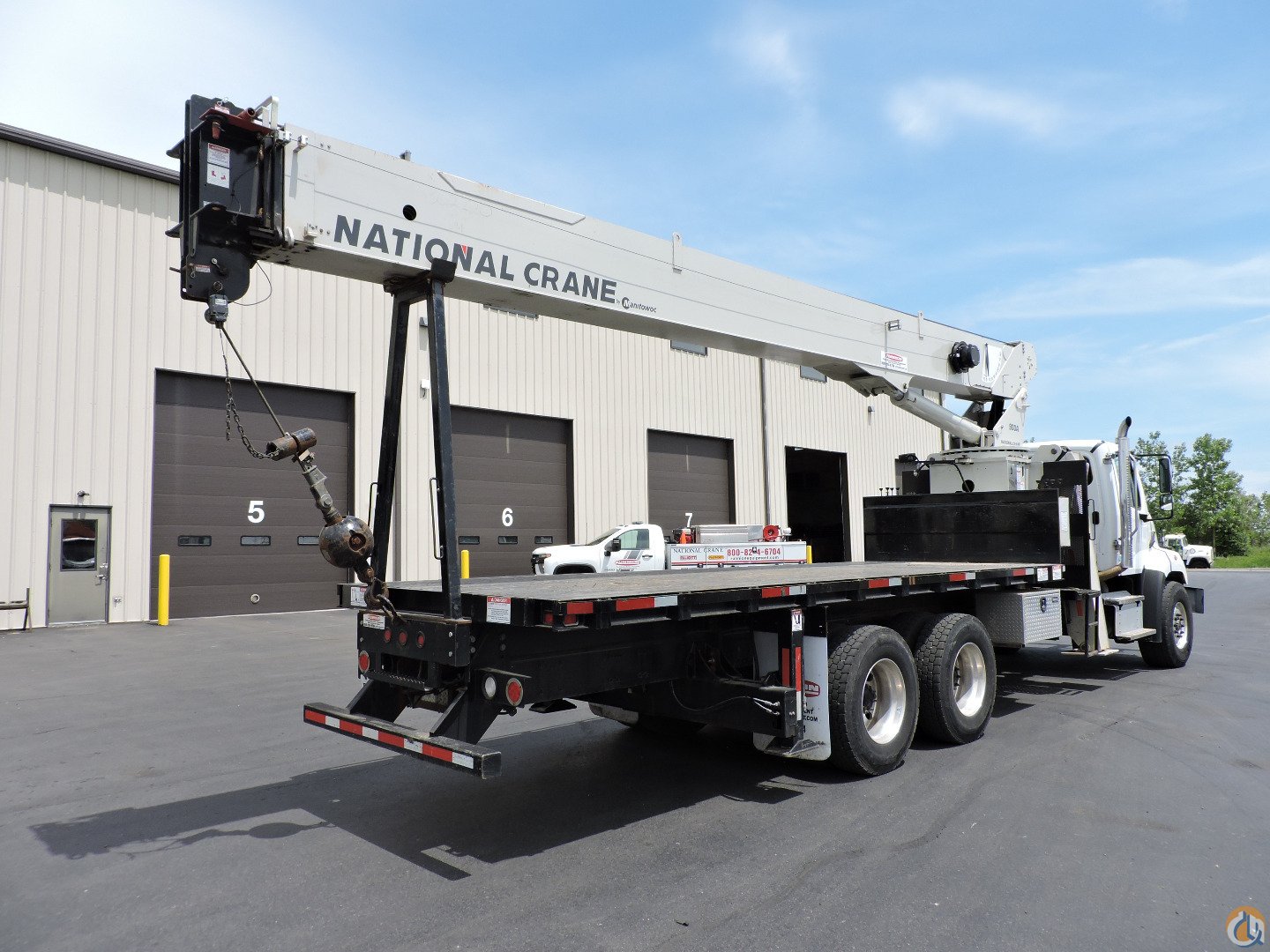

-          22’ wood deck with steel bulkhead

-          Back up alarm

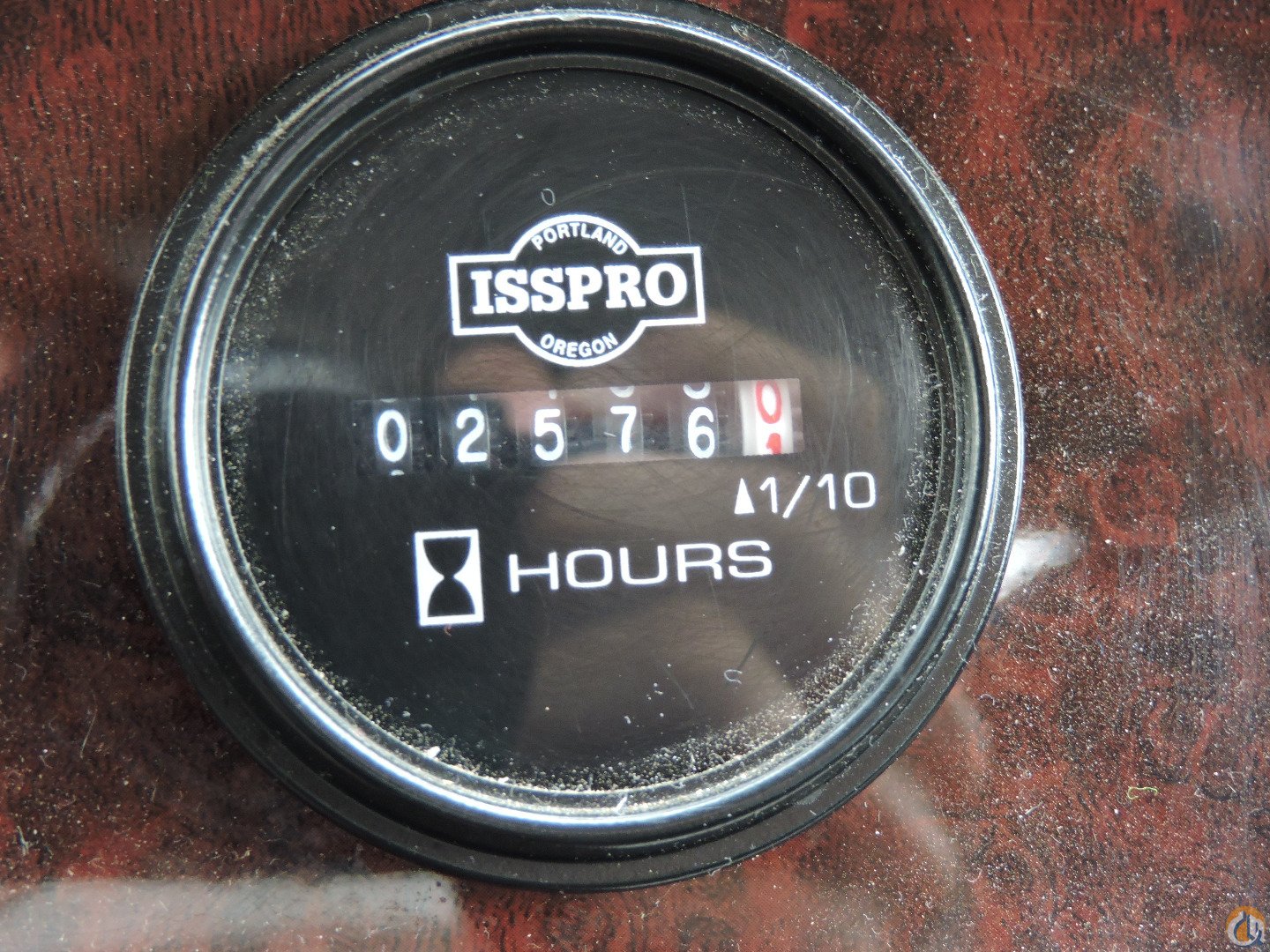

-          Hour meter

-          One removable boom rest

-          Rear bumper under ride protection

-          Painted “National Platinum”

-          36” x 18” x 18” aluminum tool box



MOUNTED ON:

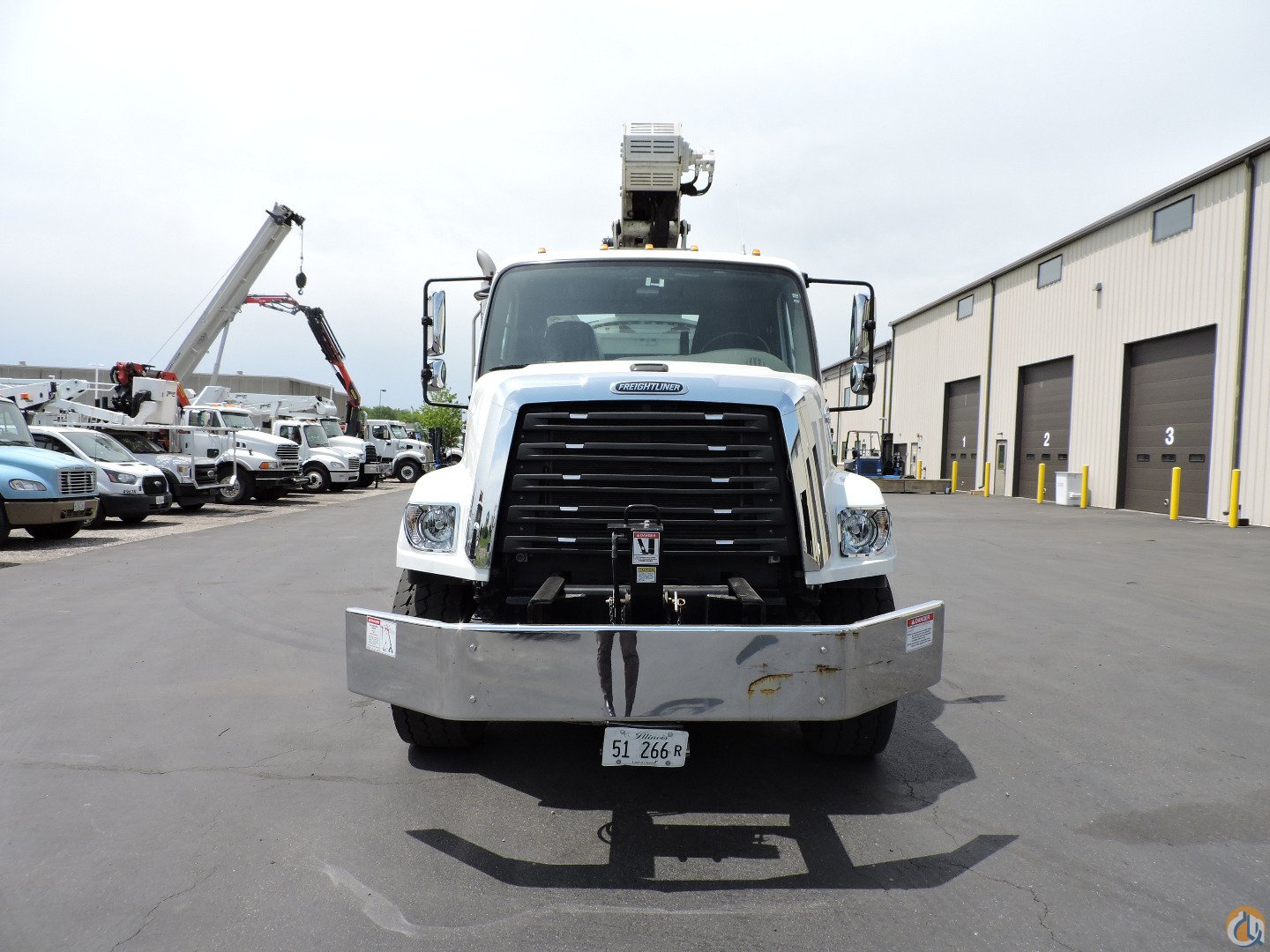

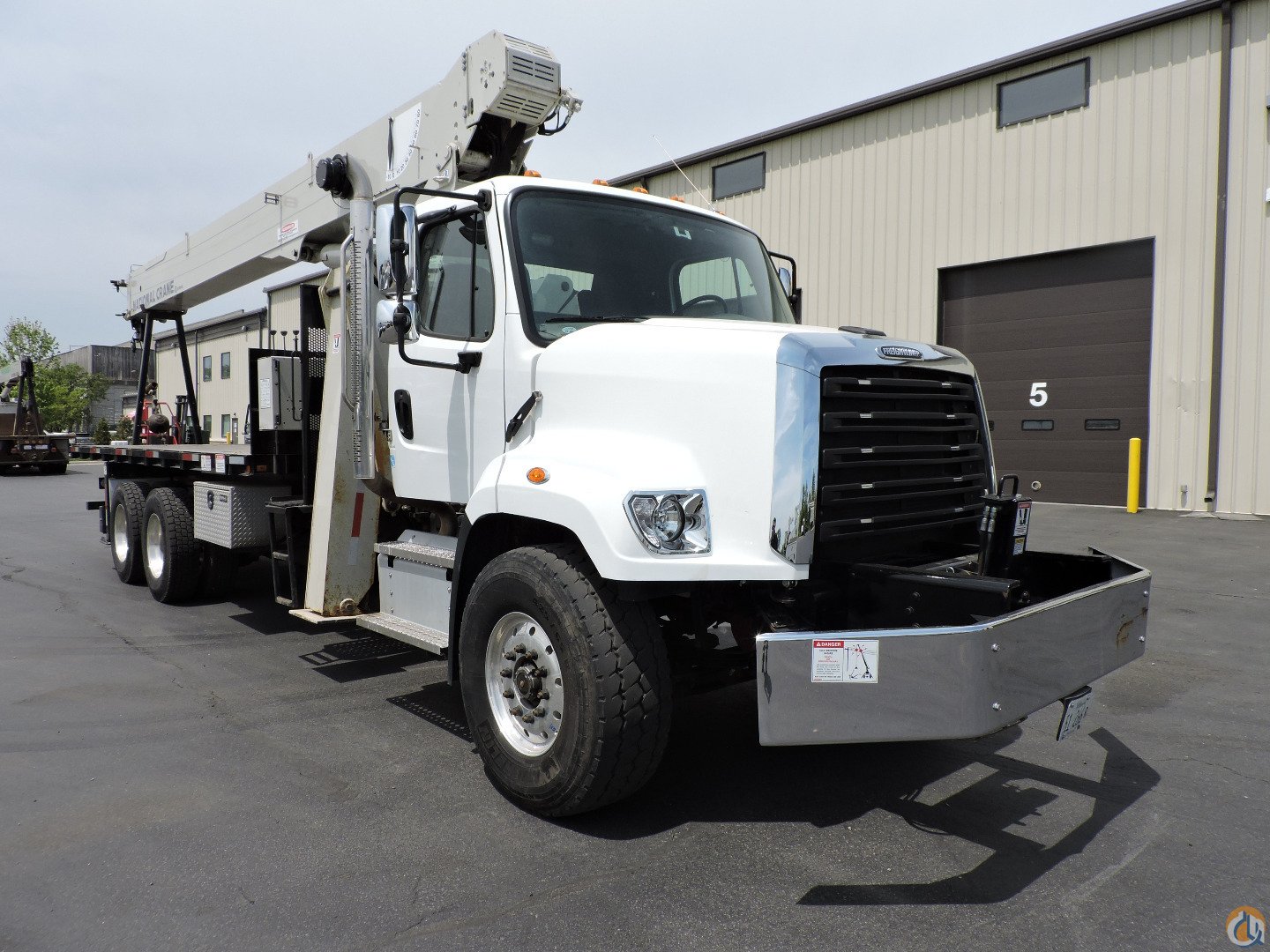

2022 Freightliner 108SD equipped as follows:

-          Cummins L9 - 380 HP @ 2100 RPM, 1250 lb/ft @1200 RPM

-          Eaton Fuller RTO- 14908LL transmission

-          Front axle 20,000 lbs

-          Taper leaf springs, shocks 20,000 lbs

-          Rear axle 40,000 lbs

-          Ratio 4.33 rear axle

-          Hendrickson Haul-max rear suspension, 40,000 lbs

-          Dual locking differential

-          Dual West Coast Heated Mirrors

-          Chrome Steel Bumper

-          Air dryer with heater

-          High back, air ride driver’s seat- cloth

-          High back, fixed, passenger’s seat- cloth

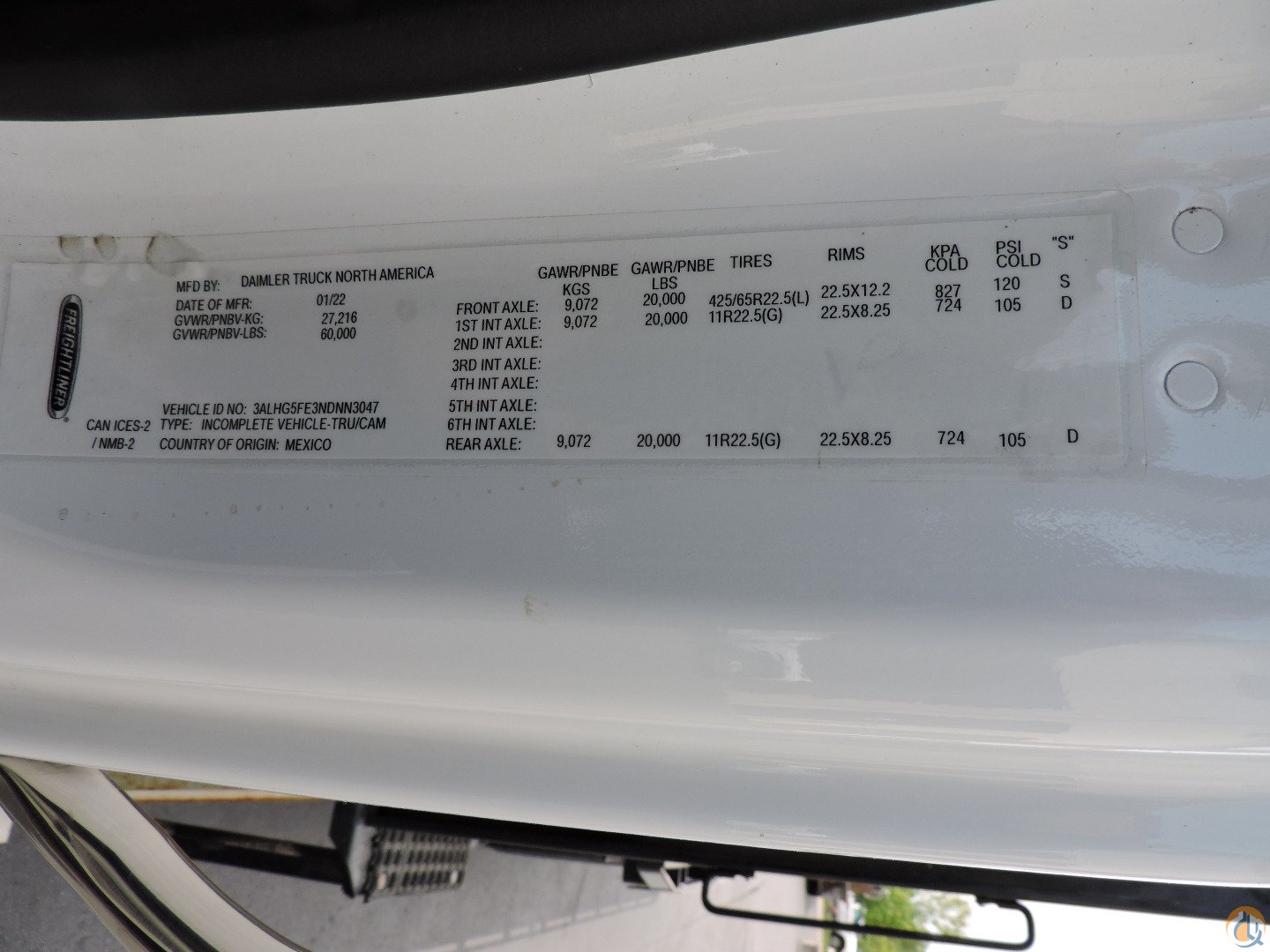

-          Front tires 425/65R22.5

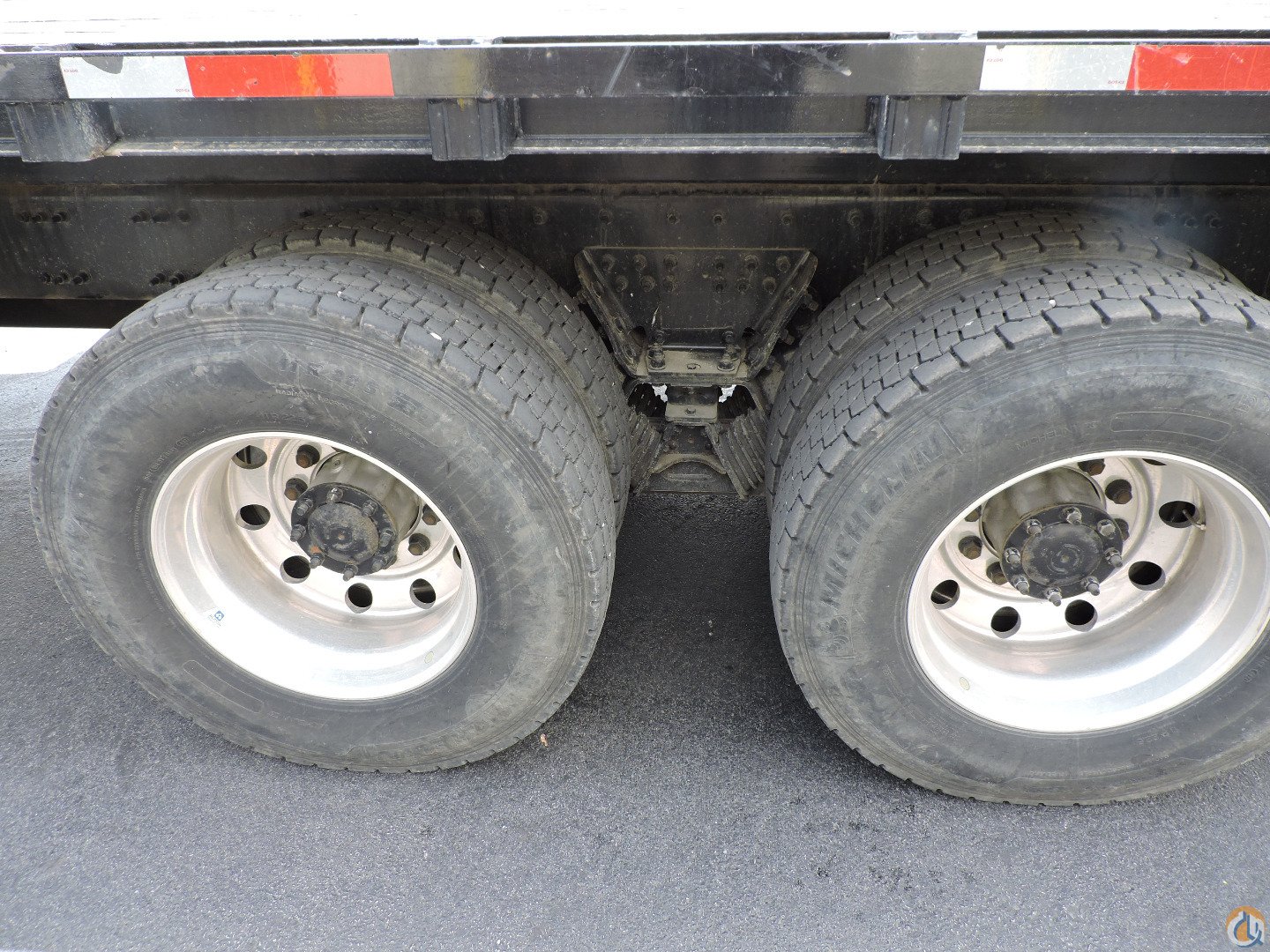

-          Rear tires 11R22.5

-          Front wheels, aluminum, 22.5x 12.25, polished

-          Rear wheels, aluminum, 22.5 x 8.25, polished outside

-          25” aluminum 79-gallon fuel tank with polished bands

-          Adjustable tilt and telescopic steering wheel

-          Powered windows and electric locks

-          AM/FM/WB Radio with Bluetooth and USB

-          ISK ICC safety kit

-          Back-up alarm

-          Painted white
