Upper Hours: 5,089

Lower Hours: 2,057

Mileage: 41,921

Capacity: 275

Engine: Liebherr

Spec:

246' Main

Double swing-away jib (K) 38' – 66', adjustment 0°/20°/40°

Continuously variable hydraulic adjustment for the swing-away jib (NZK) 0° - 40° (only in combination with item 30 or 32)

Second hoist mechanism

Divisible hookblock, load capacity 156,200 lbs, 3 sheaves, double hook

Crane hook, load capacity 23,100 lbs

Rooster sheave, foldable to the side

Tyres 525/80 R 25 (20.5 R 25)

Engine-independent heater inclusive timer in carrier cabin

Drive 10×8

Eddy-current brake (Telma)

Rim for tyre size 525/80 R 25 (20.5 R 25)

12 V socket in carrier cabin

Calix engine-preheating including 230 V / 110 V external power supply for carrier

Draw eyelets for 37,400 lbs rear

Removable outrigger beams

Battery charger including 230 V / 110 V external power supply

Additional counterweight 44,000 lbs (for total 158,400 lbs)

Second hoist limit switch

Lighting package superstructure: two working floodlights at pivot section (electrically adjustable) and floodlights at the turntable (2× laterally and 2× rear)

Flight warning light, switchable between continuous light and flash light (recommended with battery charger item 560)

12 V socket in the crane cabin

Remote control

Monitoring of the winch through camera and colour display

Camera system inclusive colour display at the head of the telescopic boom and at the additional equipment (if ordered)

Emergency operation of crane hydraulic

Preparation for Dolly

Inscription

Hydraulic oil preheating valve

110 J Second boom head top sheave

Programming of all possible configurations

75 % programming (EN 13000) CE conformity

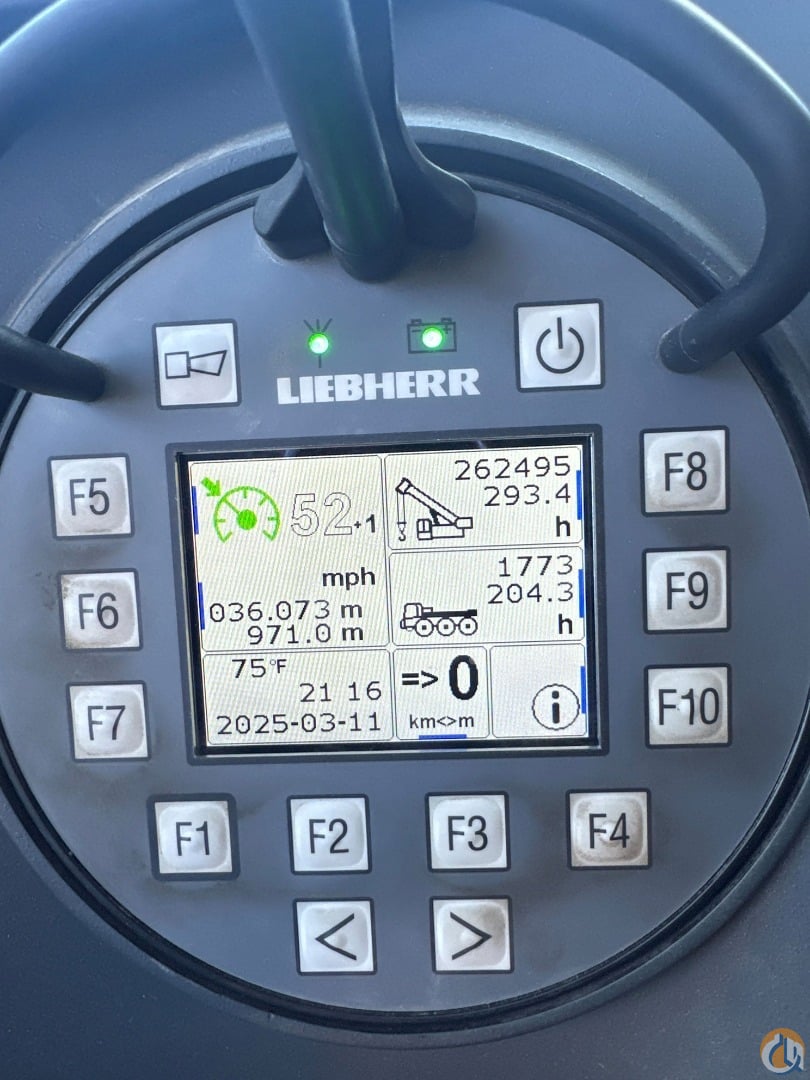

Meter Readings as of March 12, 2025
