Boom Details

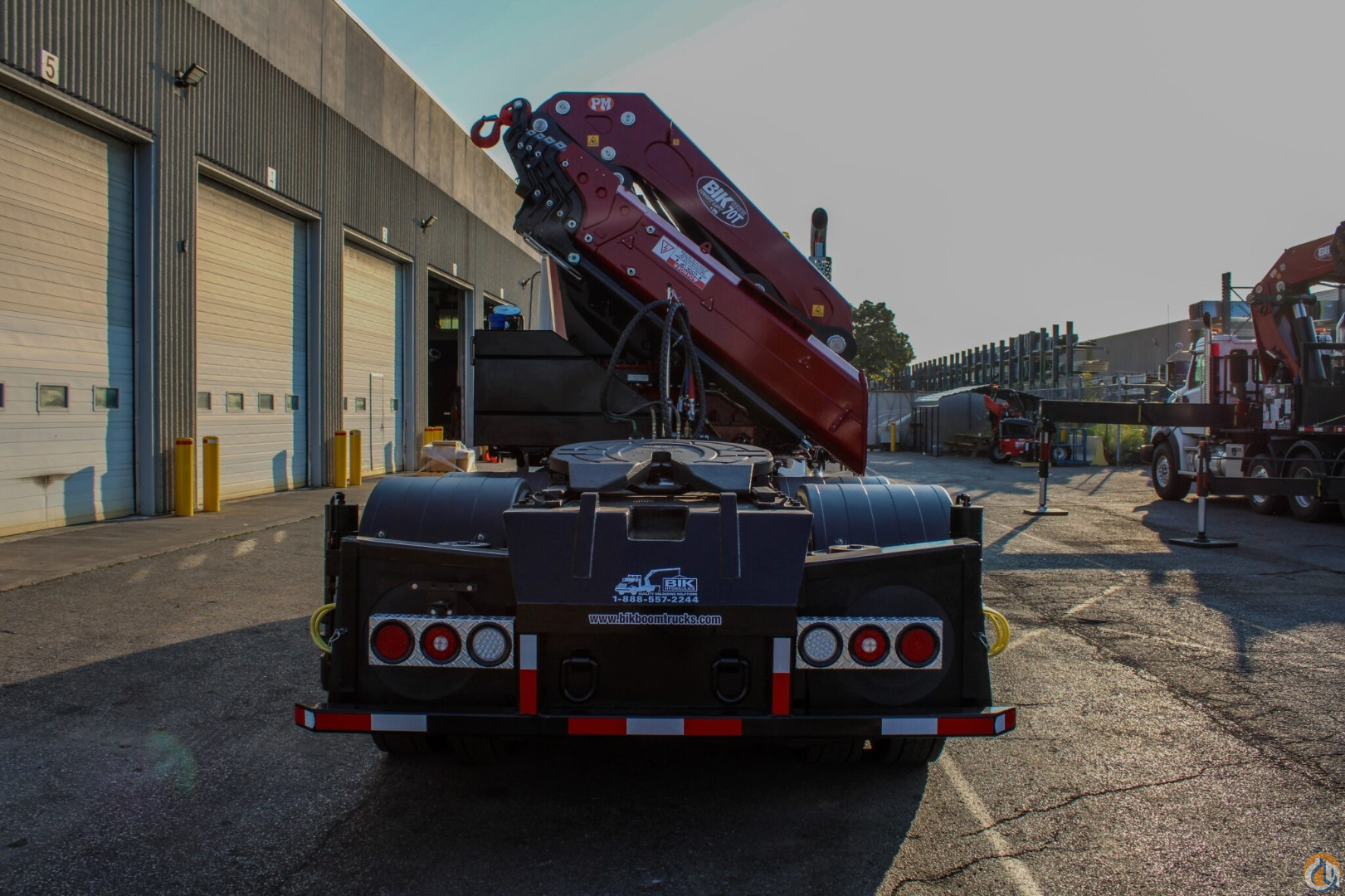

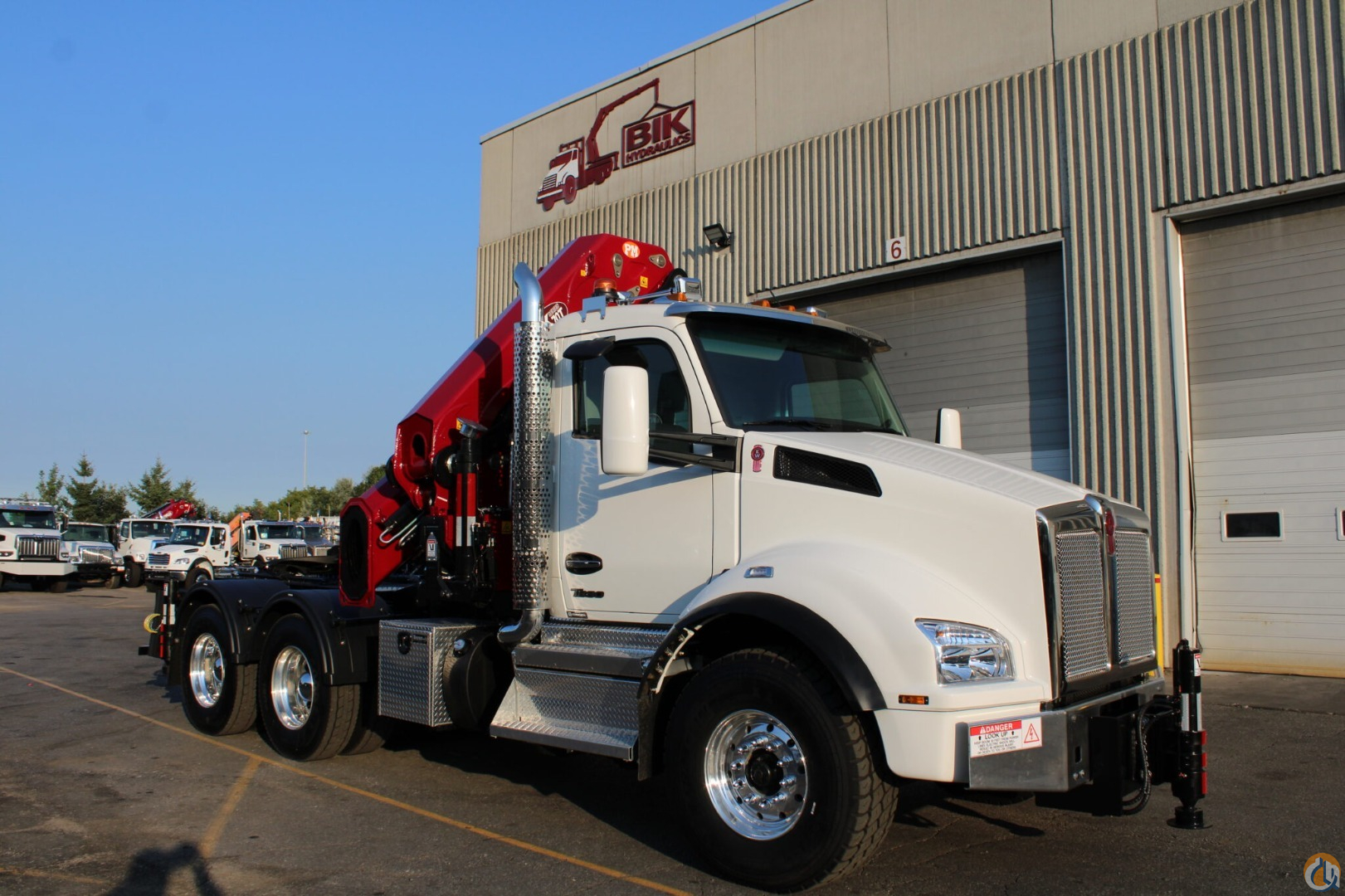

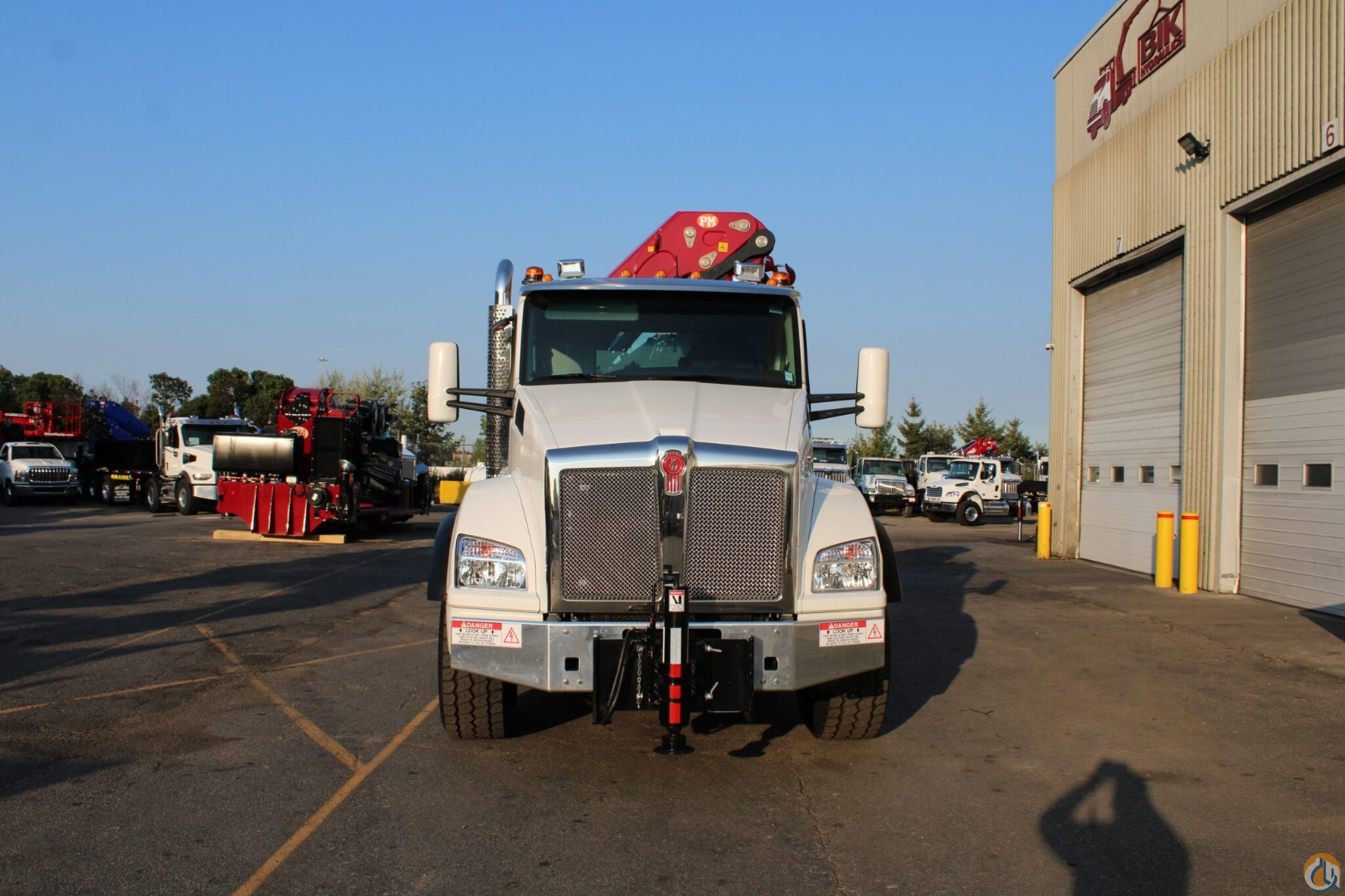

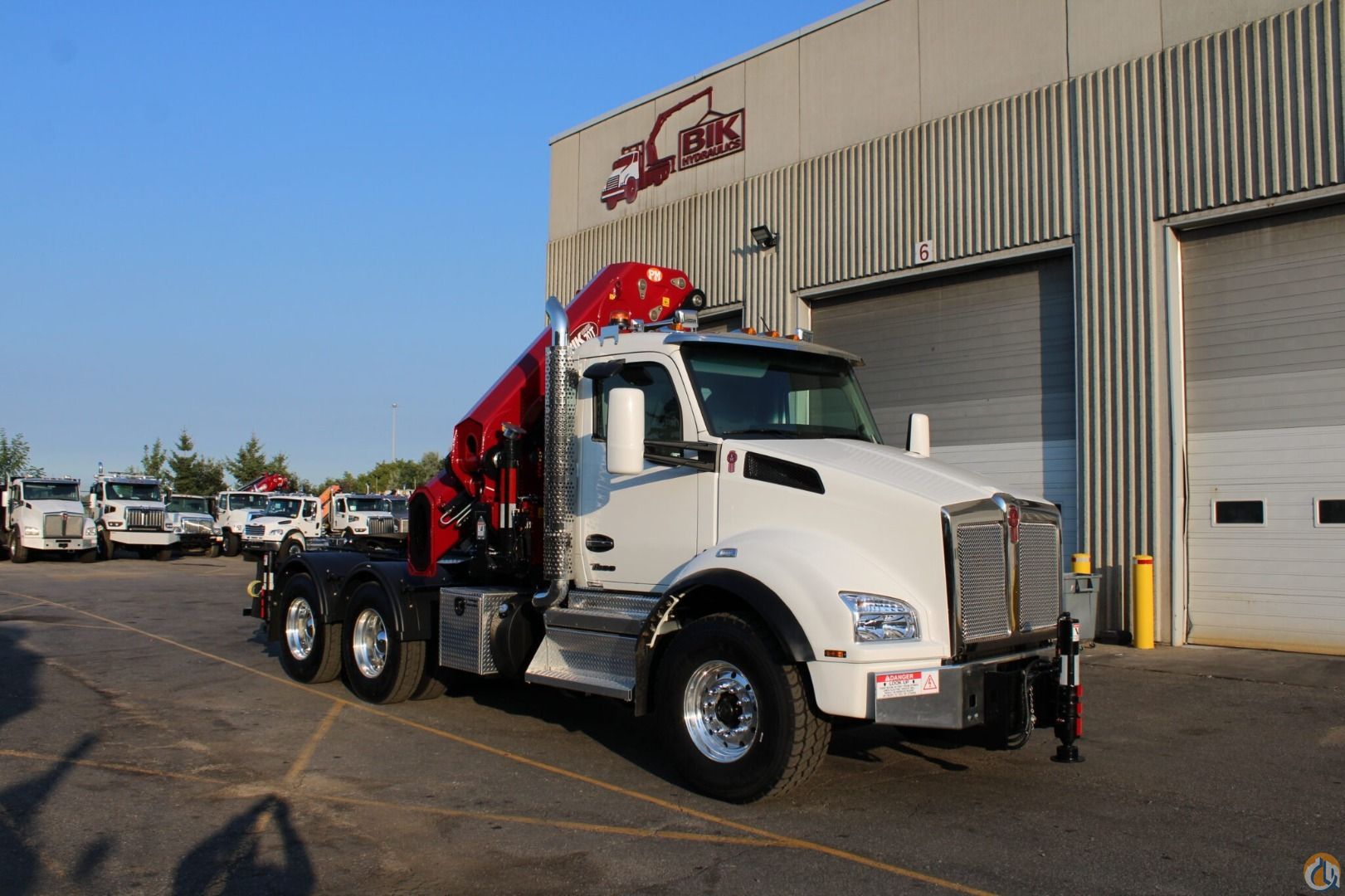

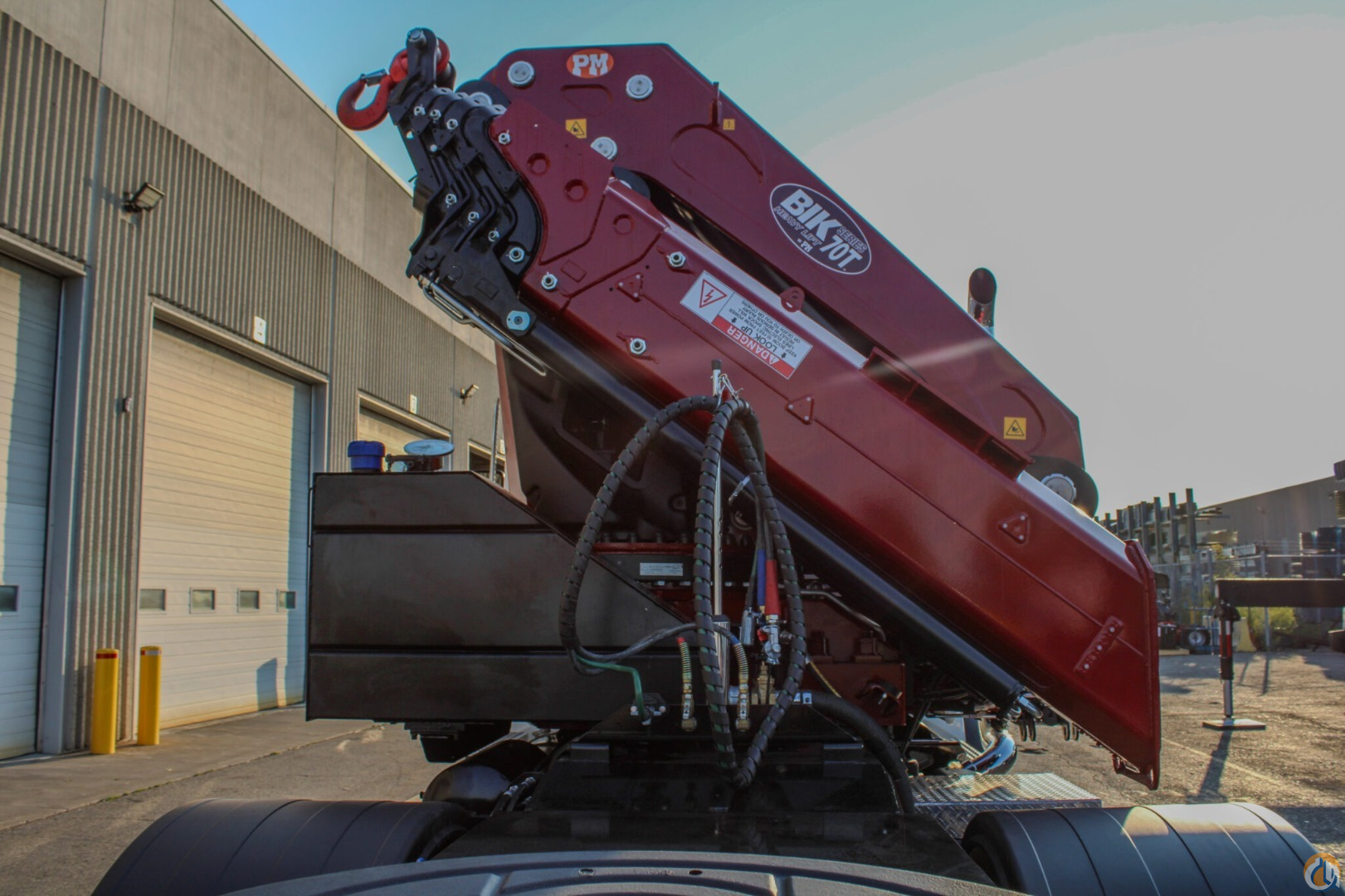

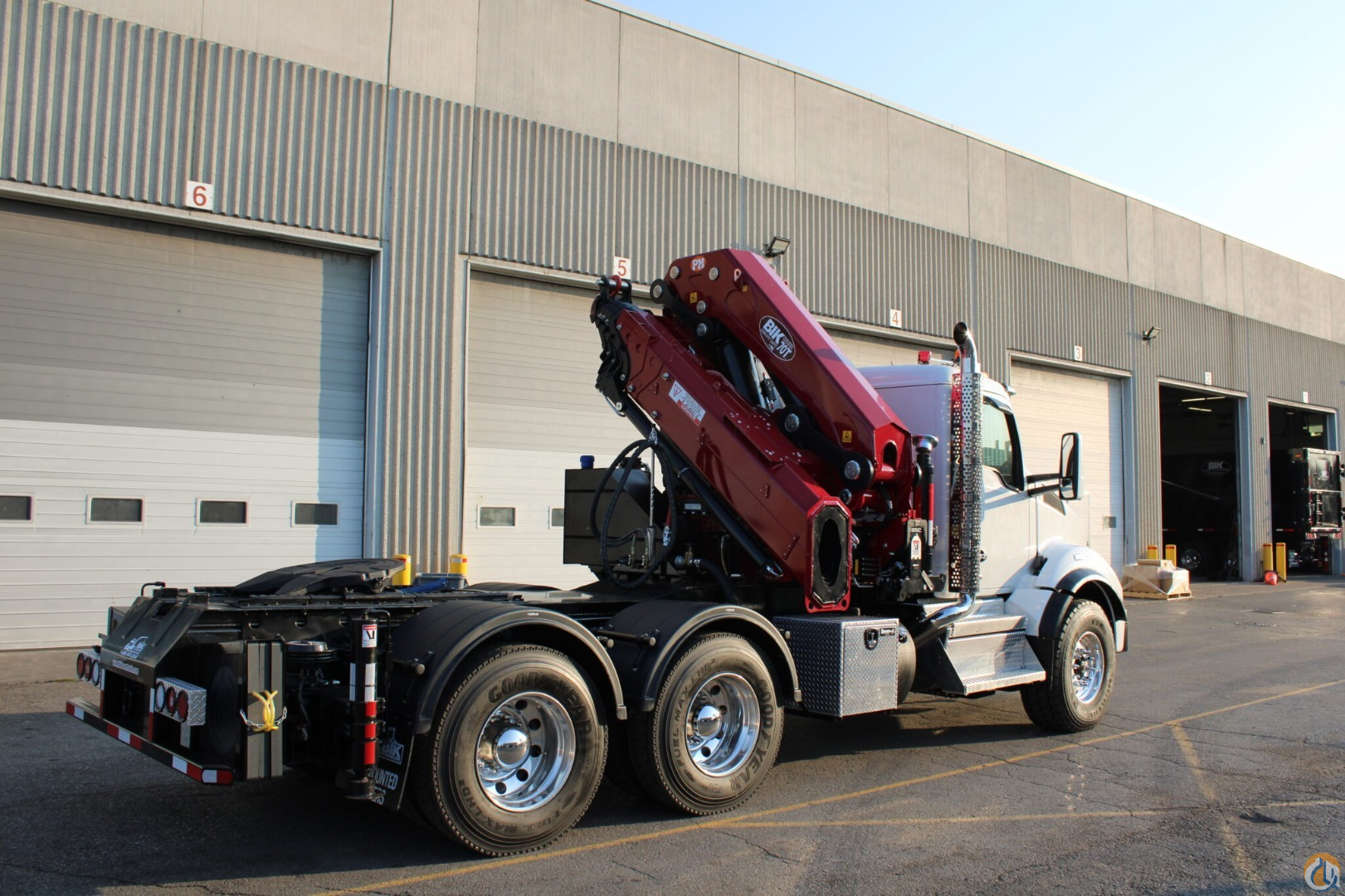

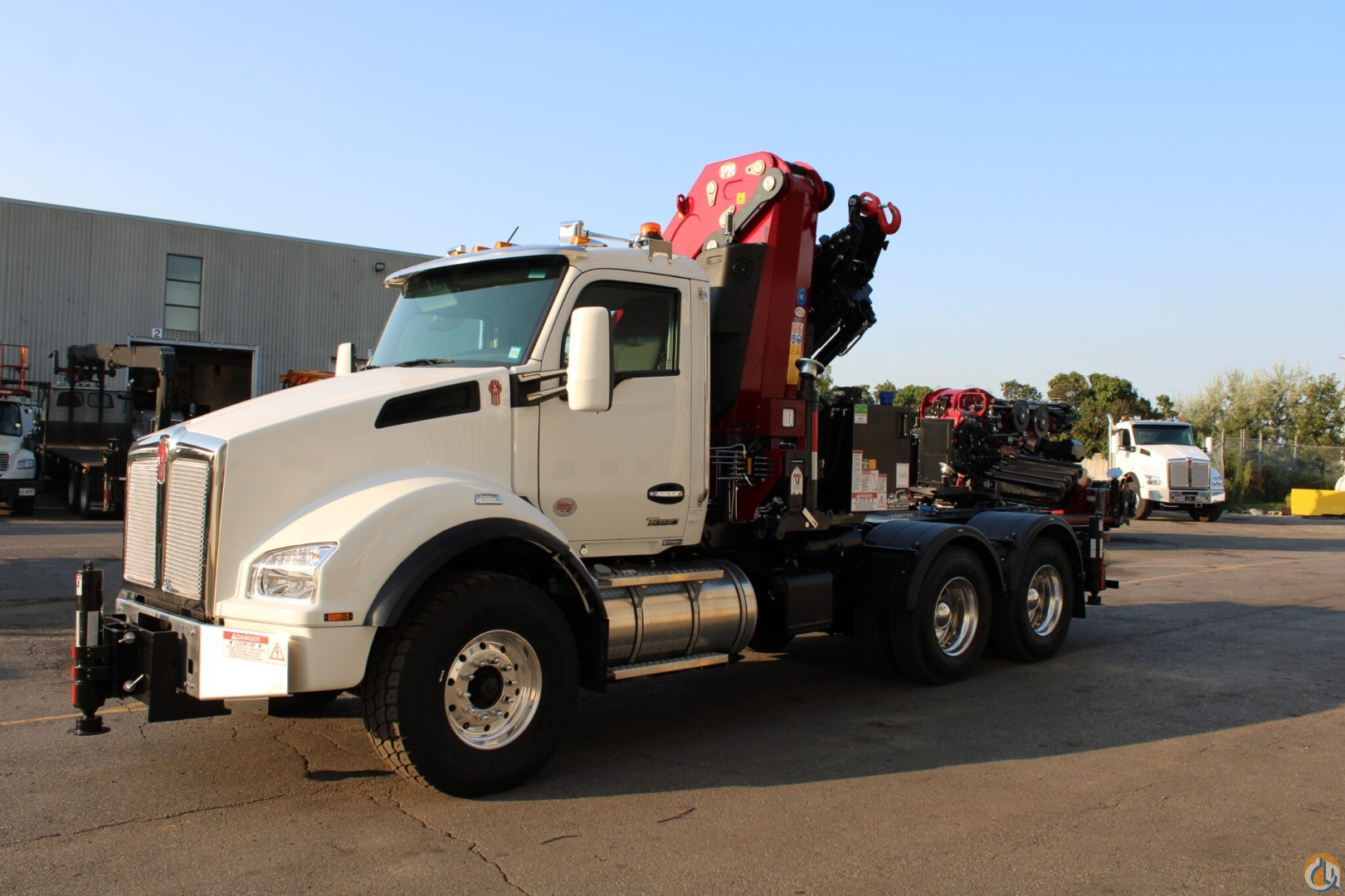

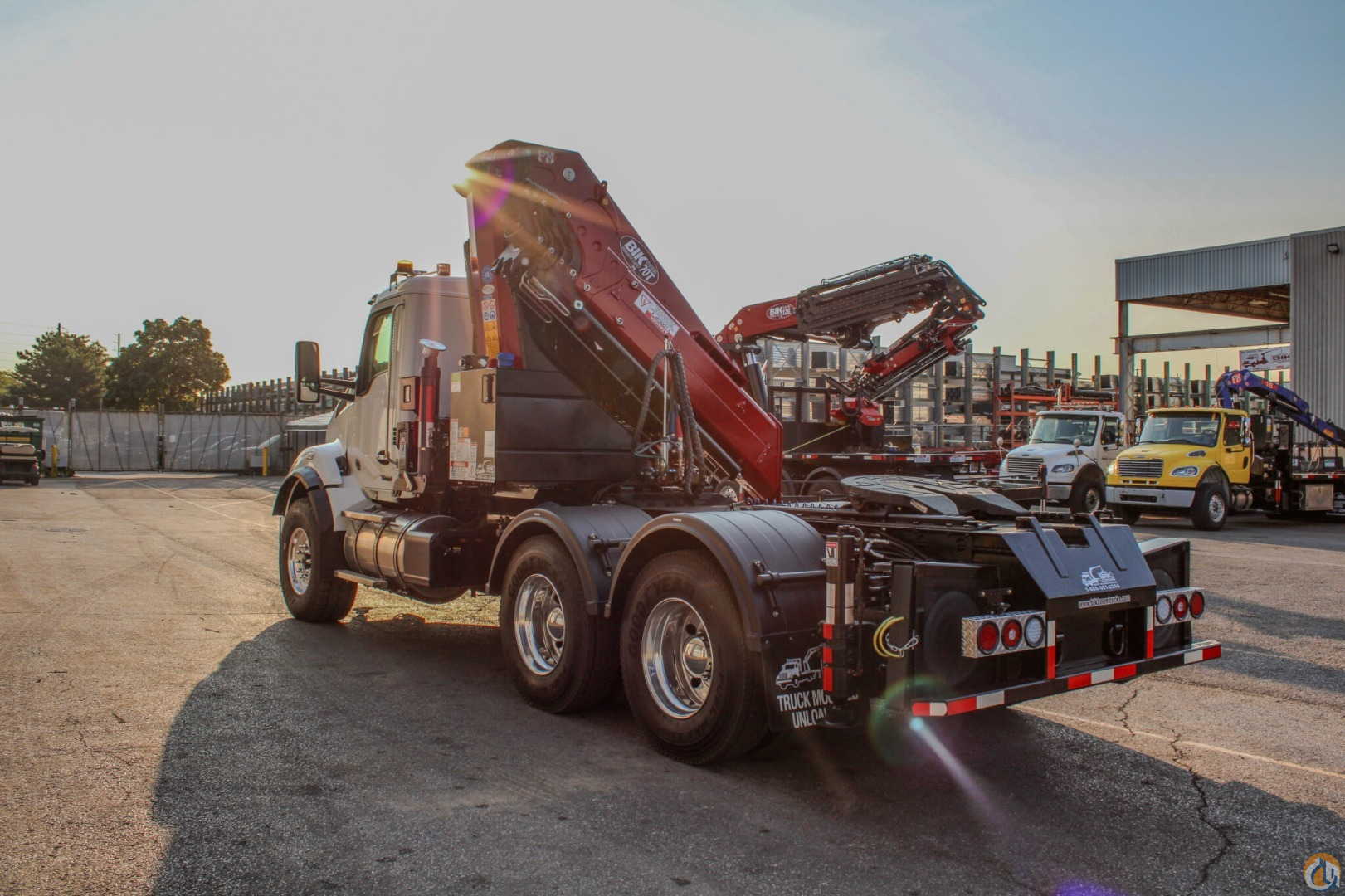

New – BIK “Heavy-Lift” Series HL-70T Knuckle Boom – by PM

• 70.5 ton/m Size, 6 hyd extensions to 53’ hor reach
• Horizontal Capacity:
  • 30,650 lb @  14’
  • 21,500 lb @ 20’
  • 16,200 lb @  27’
  • 12,900 lb @  33’
  • 10,500 lb @ 38’
  • 7,740 lb @  53’,

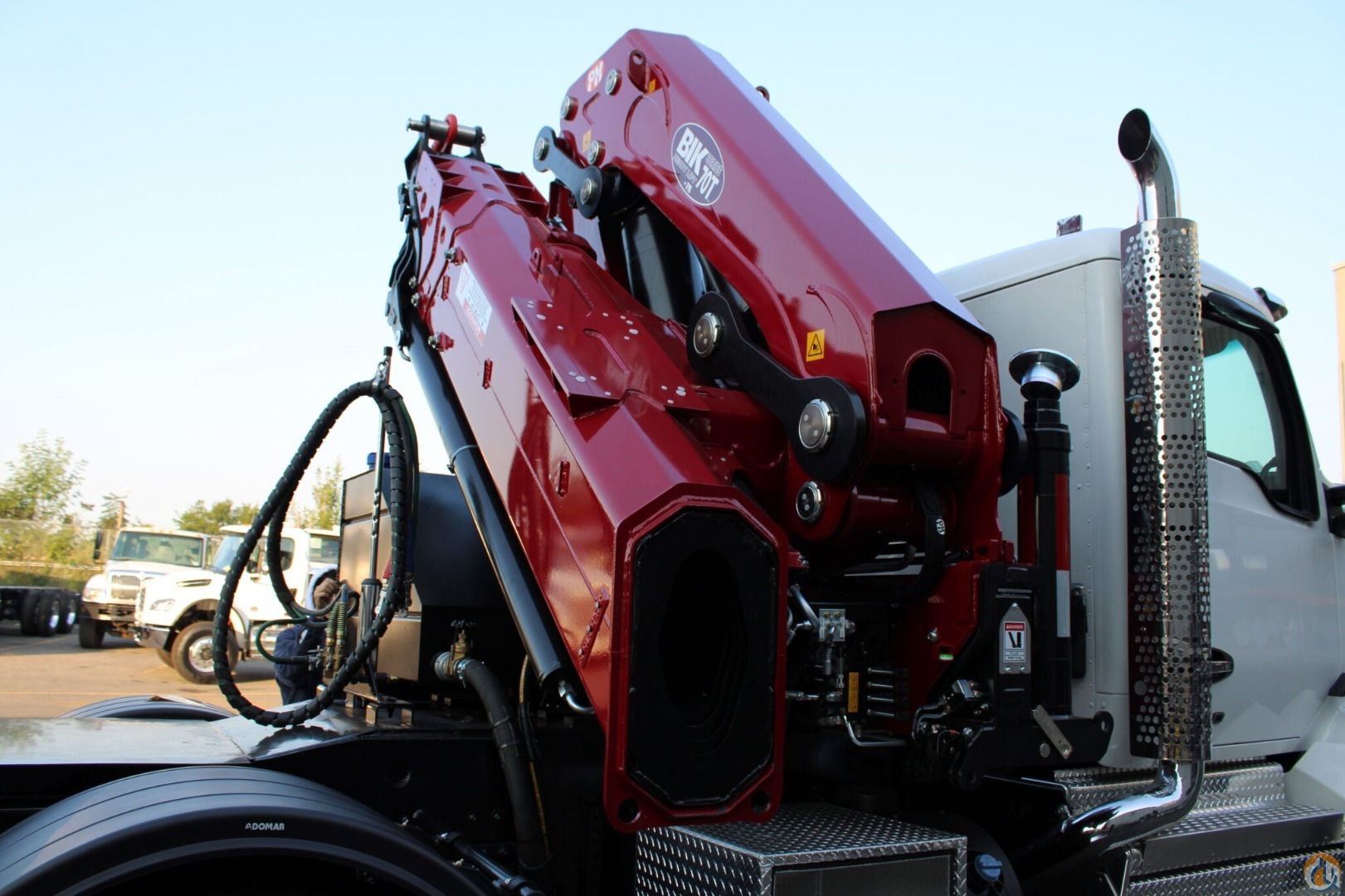

•  Power-Link connecting rods at First Boom, Knuckle & Jib,  –15 degree negative angle at 1st knuckle, 25 degree negative angle at jiB
• Continuous Rotation and Dual Planetary Gear Motors,  – 8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
• Extra Wide Double-Beam – 180 degree Flip Up Type Main outriggers at pedestal – 28’ 4” span – hyd tilting when retracted
• Rear Aux Stabilizers behind t/a drives – 23’ Span,   Single front bumper mounted Stabilizers  for 360 degree load chart operation
• Hydraulic Oil Cooler, high pressure return filter and min. 110 –gallon hyd oil tank with gate valves mounted at front under deck
• Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
• Simplified Hydraulic Overload System allowing maximized uptime and ease of maintenance
• Manual Controls – Danfoss valve located on boom column wth plastic cover and mechanical hour meter
• Crane Painted Dark Red – Certified Painting Quality System – Load Tested and certified

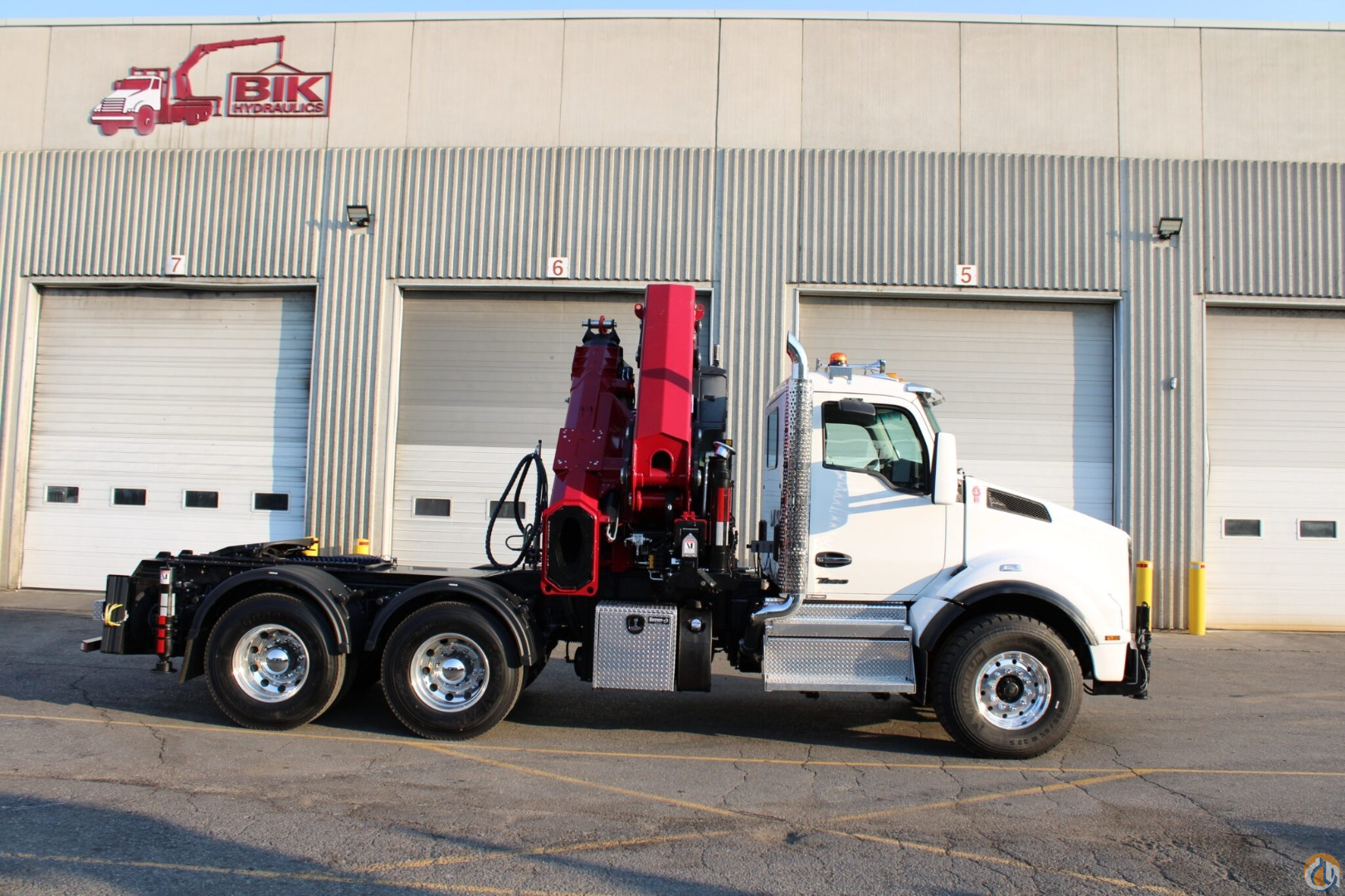

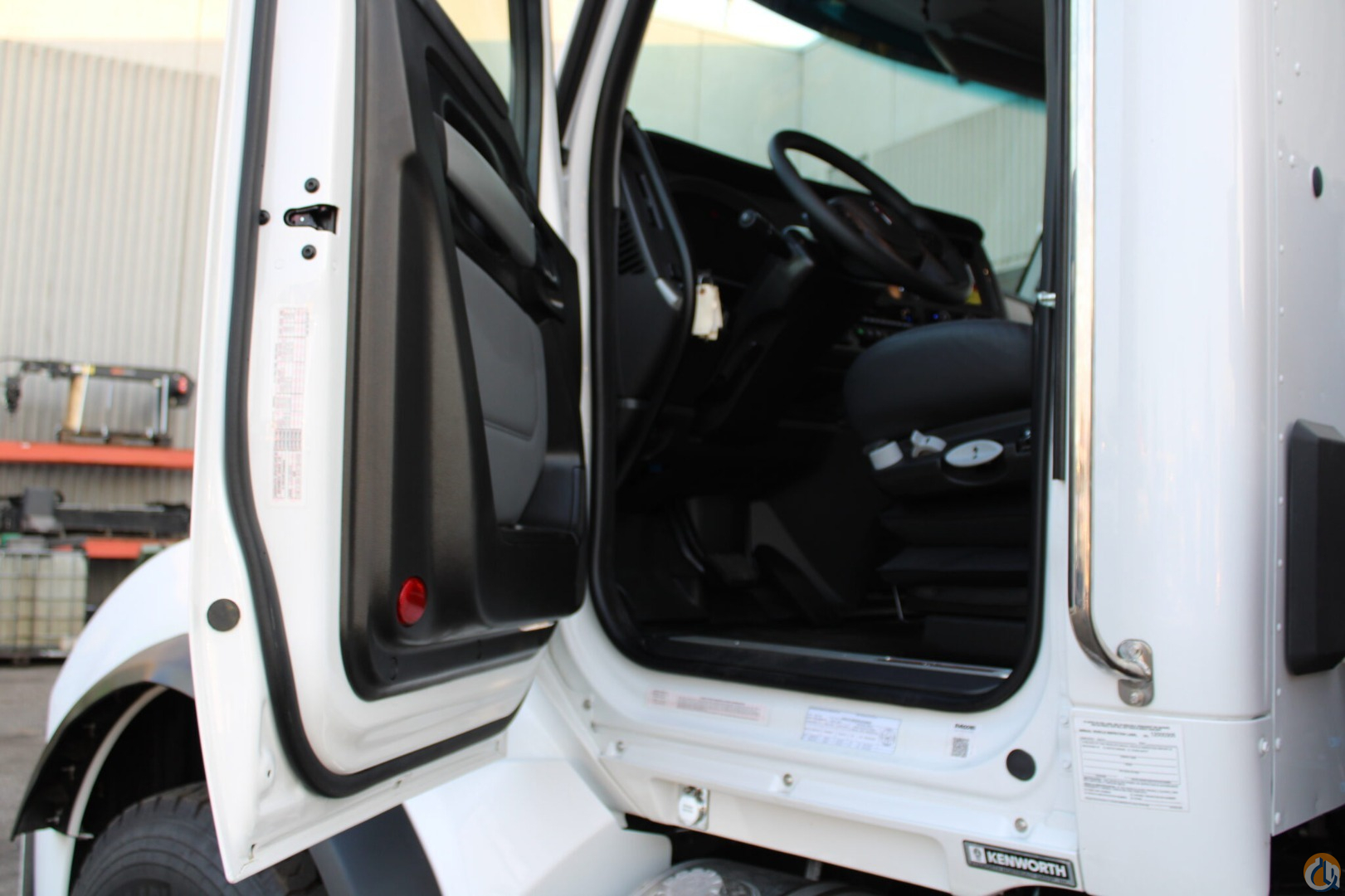

• Installed back of Cab, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength
