Deck Details

New – 22′ x 102″ Steel Platform with Wood Surface

• Steel  with wood surface
• 66” steel headboard with 18” rear steel removable tail board
• Rub rails with pockets, winch bar and holder
• Steel 6” high strength boxed in sub-frame and extension at rear with custom engineered X-bracing/shear plating as torque box for maximized side stability
• 2-steel Deck access Ladders at front, reflectors, conspicuity tape, and Mud-flaps, 8 -Winches

Truck Details

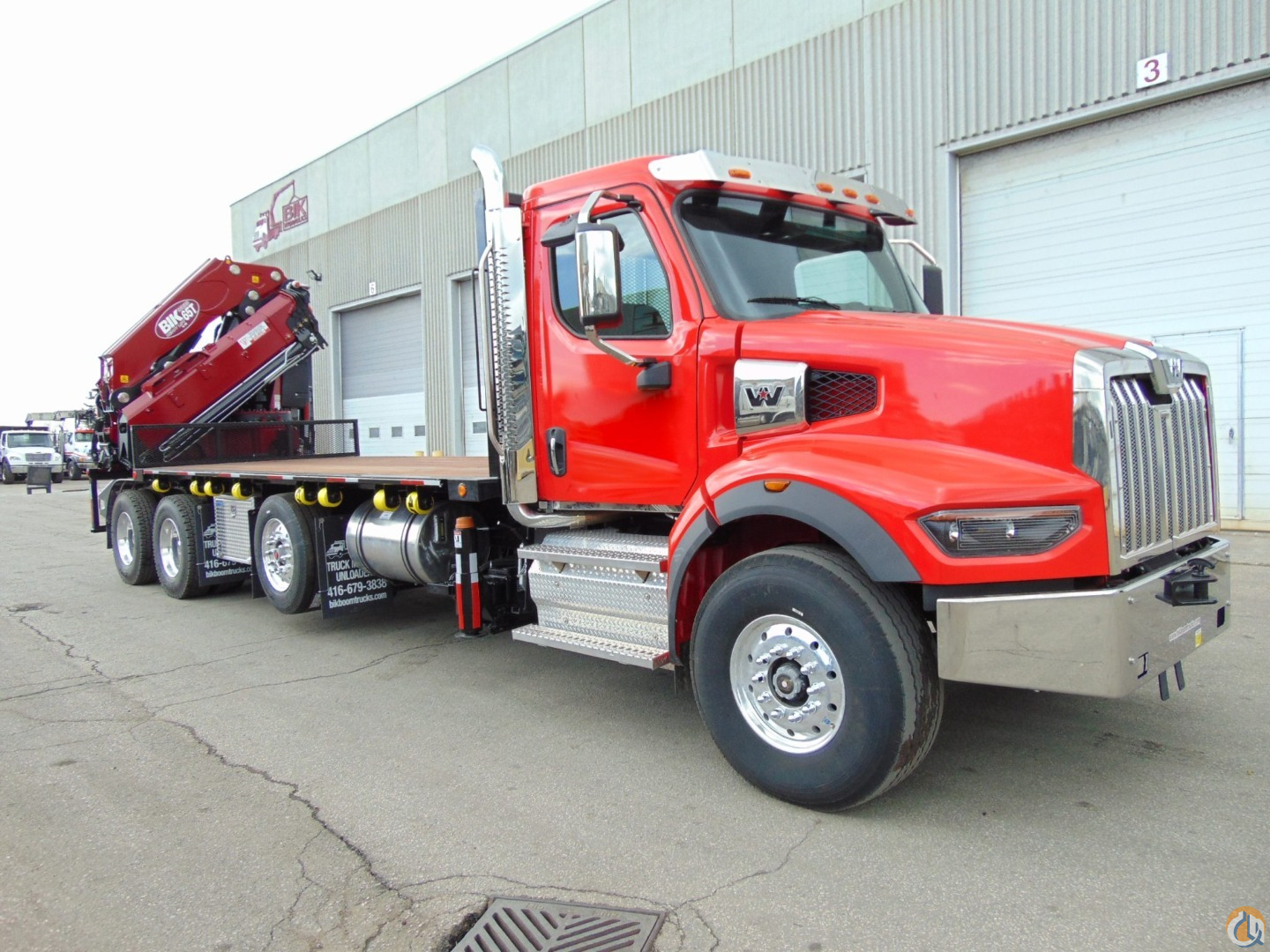

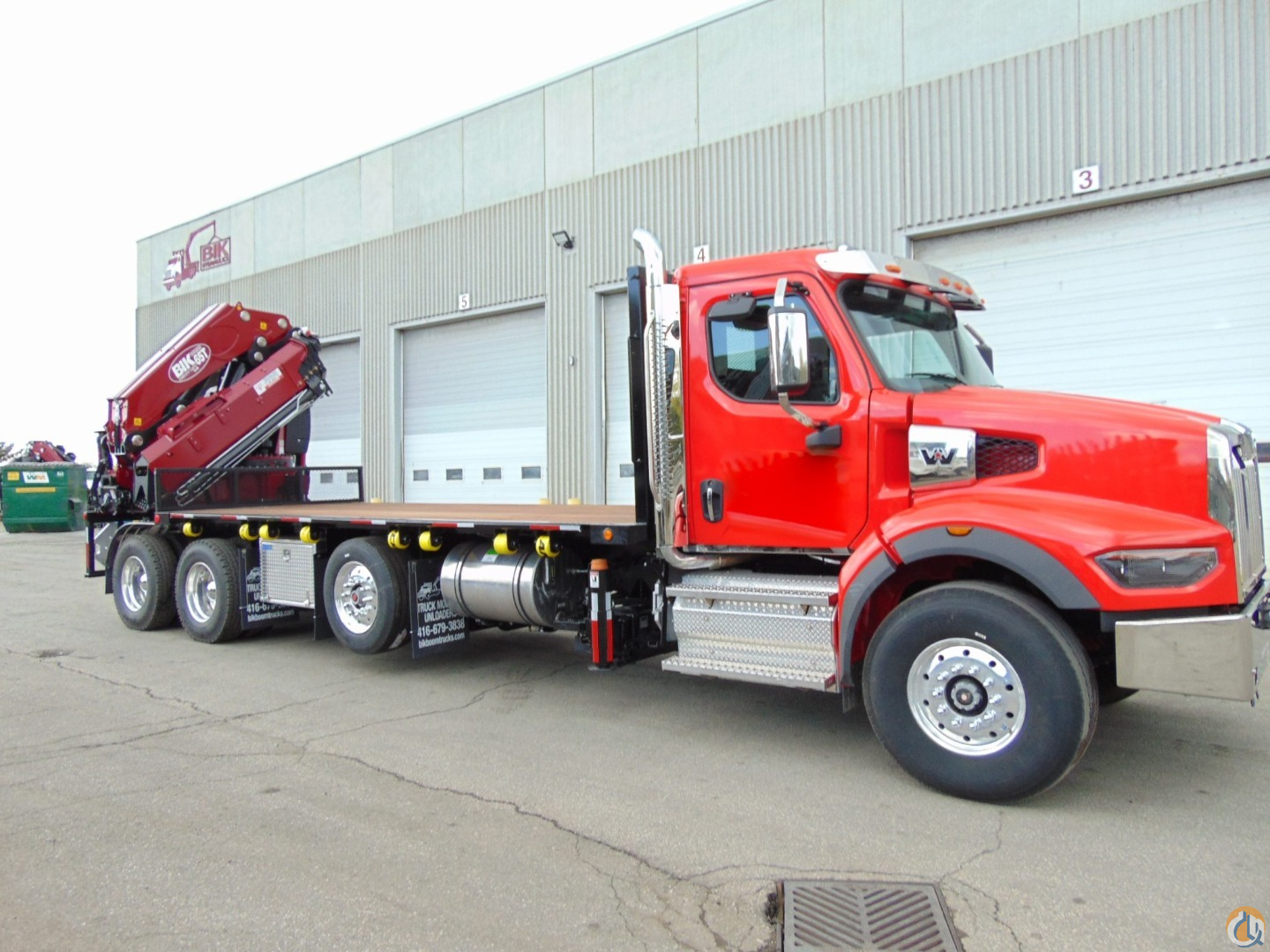

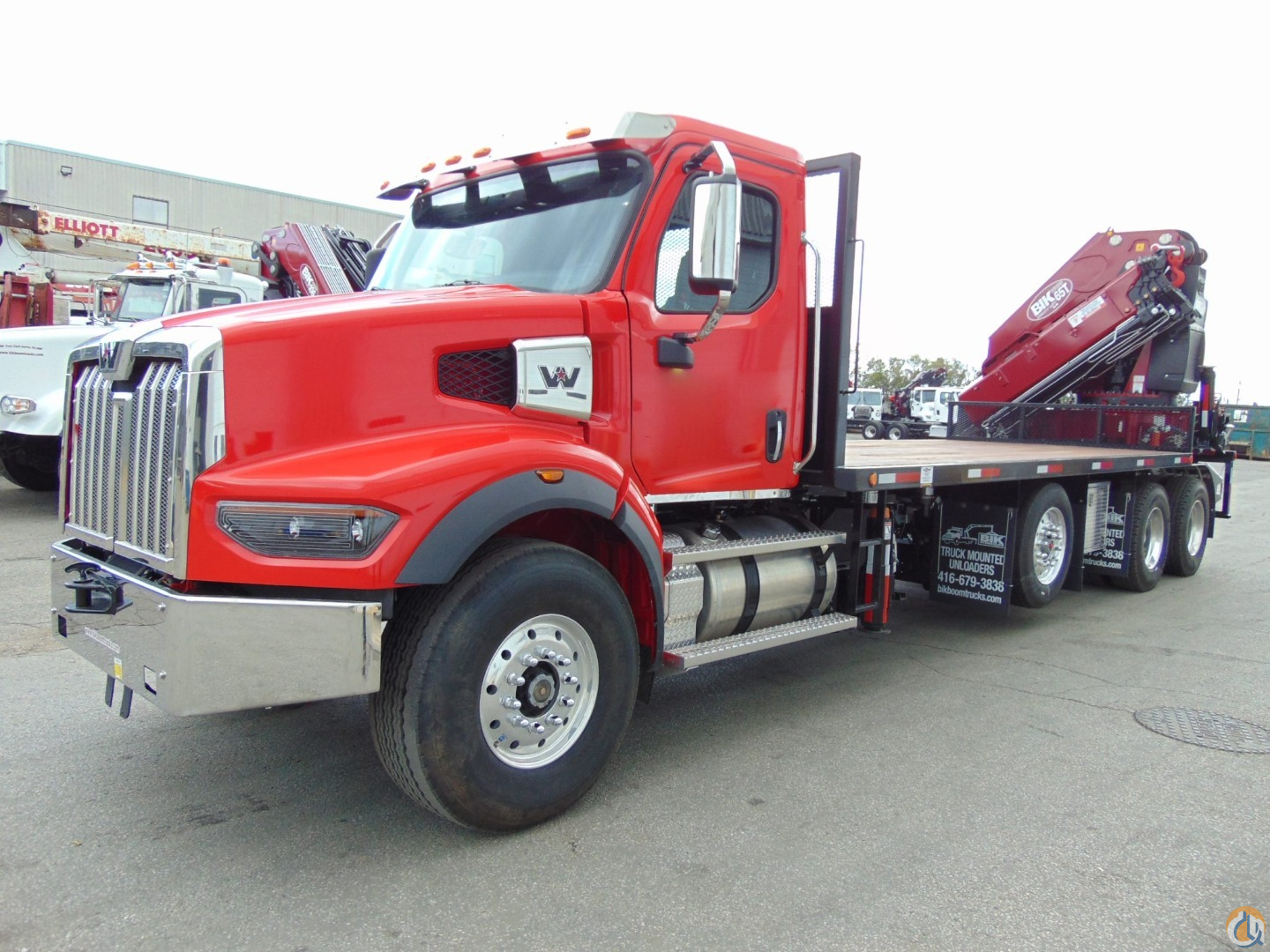

New Western Star 49X 4-Axle Truck :

• 88,000 lb GVWR
• Truck Cab white in colour
• 12L Cummins Diesel 500 hp Eaton 18 spd Standard Shift Trans.
• 20,000 lb front steer axle with 425/65R22.5 Front Floatation tires on Alum rims
• 20,000 lb self steer lift axle ahead of t/a SPIF Cetified
• 46,000 LB Rears on Tuftrac Susp with  11R22.5 tires with steel white rims
• Full double frame chassis

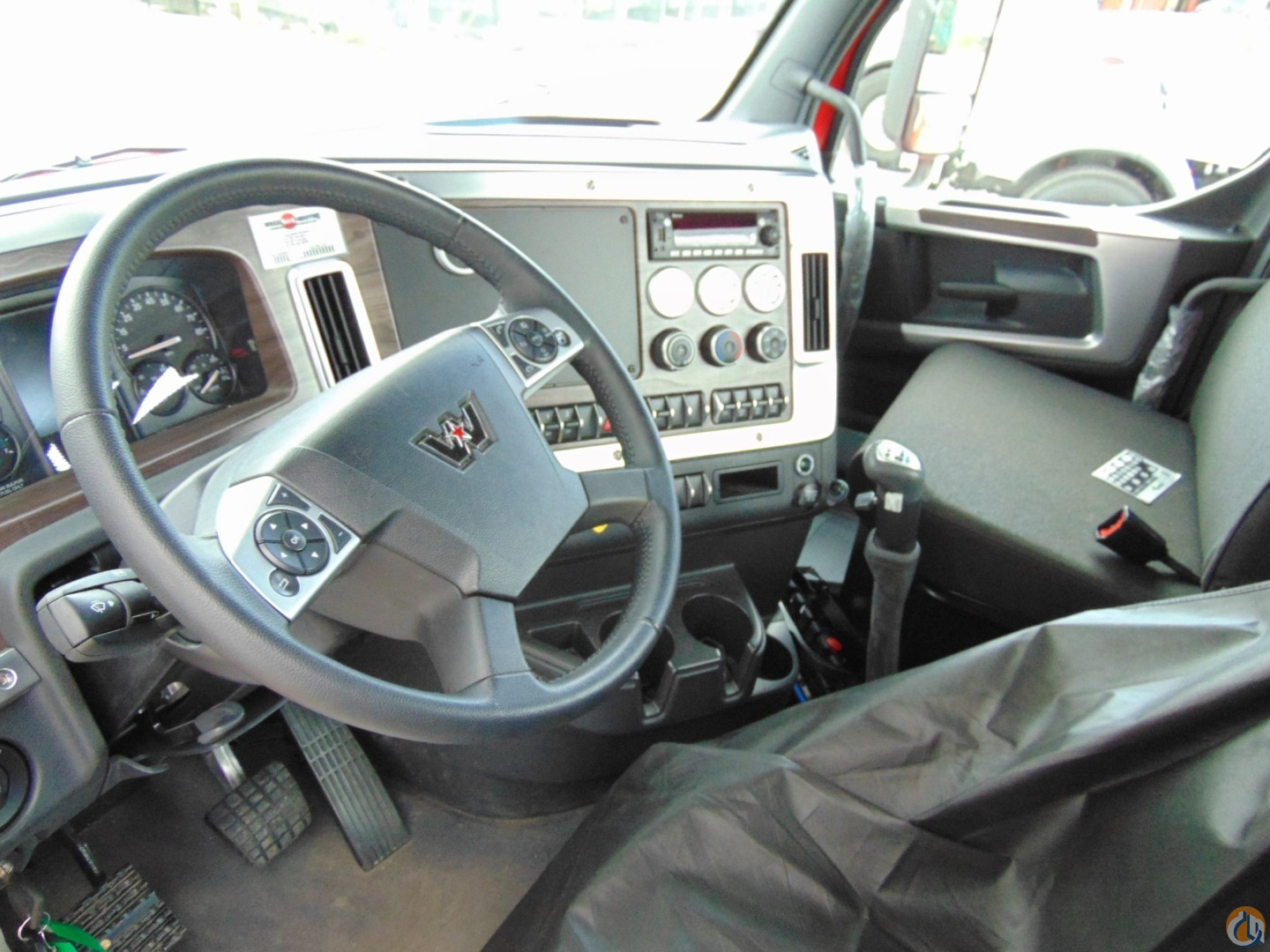

• Truck  Features Include: Two Stage Engine Brake, Air Cond., AM/FM  stereo,  power windows & locks, cruise, tilt/telescopic steer column, chrome bumper & grill, htd mirrors and eng block heater,  painted ext sun visor, diff locks w/rear wheel lock ups, 100 gal alum fuel tank,  etc

Options Included:

• Program Remote control to include engine start/stop and variable engine RPM
• Aluminum Stabilizer Pads (2x) with holders installed at rear and at front
• 1” steel draw plate with heavy duty hutch, air, electric and D ring connections
• (2) x 36″ Aluminum storage box installed under deck.

Options at Extra Cost:

• Hydraulic Oil Tank Heater
