Features

STANDARD EQUIPMENT
- Hoist rated capacity: 60,000 lbs
- Main frame: 8” x 4” x 1/2” A500 C tubing
- Sub frame: 4” x 2” x 1/4” A500 C tubing
- Front stop: 1-1/2” plate
- Container lock: Automatic spring loaded
- Lift cylinder shaft: 2-1/2” plate
- Rear hinge shaft: 3” solid steel
- Cable: 7/8” (6 x 37 EXIWRC)
- Cable sheaves: 10” O.D. bronze-bushed sheave
- Cable anchor: 4 cable clamps
- Cable end: Steel casting
- Rear hold down: 1” plate located for std. containers
- Middle hold down: 3/4” plate
- Lift cylinders: 6” x 72” D.A.
- Reeving cylinders: 7” x 80” D.A.
- Direct mount pump: Gear types 35 gpm @ 1500 rpm
- Operating pressure: 1850 psi
- Hydraulic valve: 2 spool 45 gpm safety bypass
- Hydraulic reservoir: 60 gal. 25 micron filter & screen filter
- Outside rollers: 4” O.D. with bronze bearing
- Inside rollers: 6” O.D. hardened roller & pins
- Working points: Greaseable
- Safety stand: Factory installed
- I.C.C. Bumper: Folding, mounting lugs factory installed
- Rear bumper: Pre-drilled bolt mount - sealed beam backup, clearance and tail lights
- Hoist up: 30 sec. approx.
- Hoist down: 15 sec. approx.
- Cable in: 46 sec. approx
- Cable out: 37 sec. approx.
- Container length: 18'-22'
- Approximate weight: 6100 lbs
- Hydraulic valve: 3 spool 45 GPM safety bypass
- Cable end: Steel casting, knuckle-type
- Rear flange roller: 8” O.D. hardened w/2 1/2” c-1045
- Rear center sheave: 8” O.D. hardened

Included Options

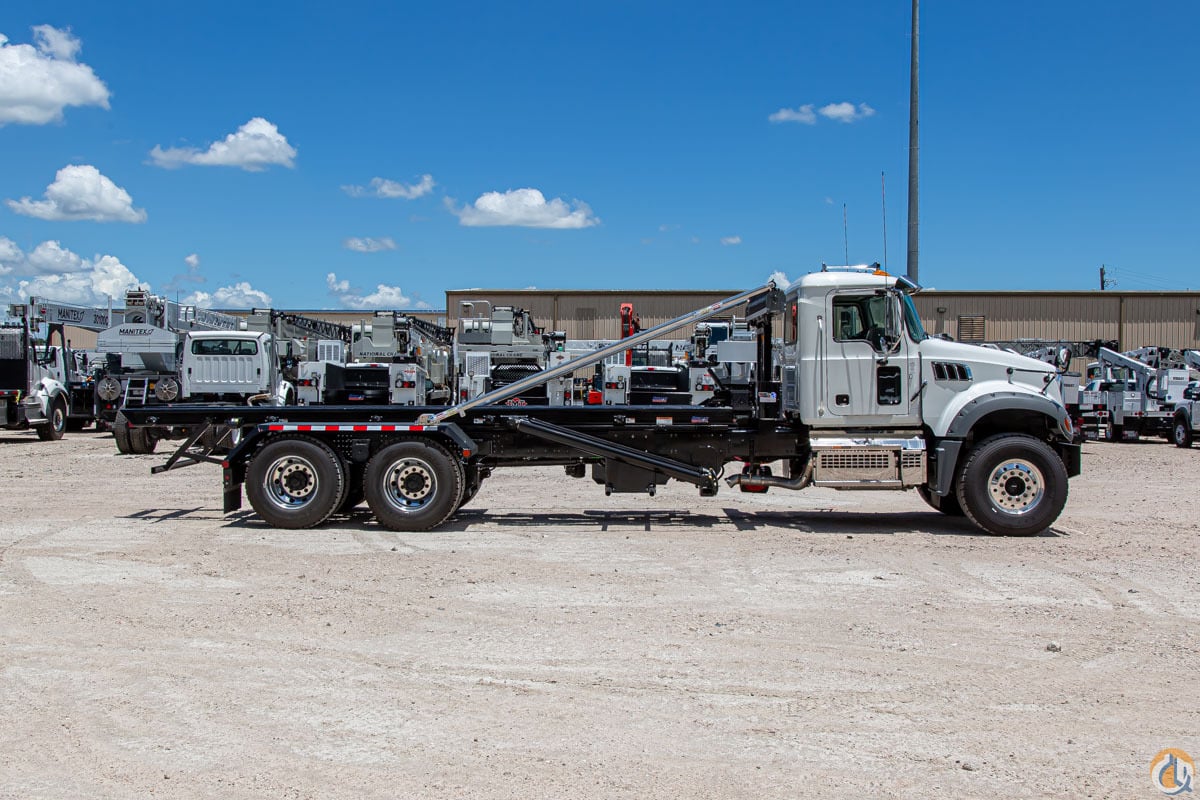

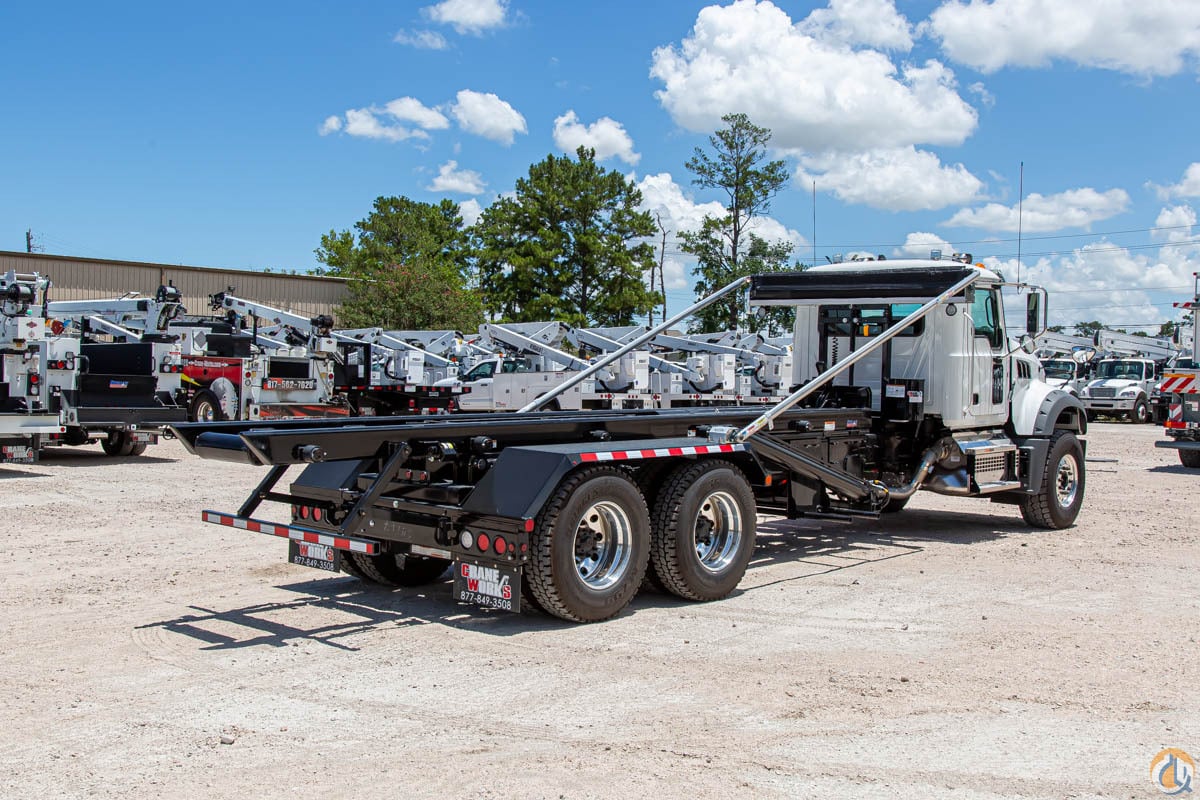

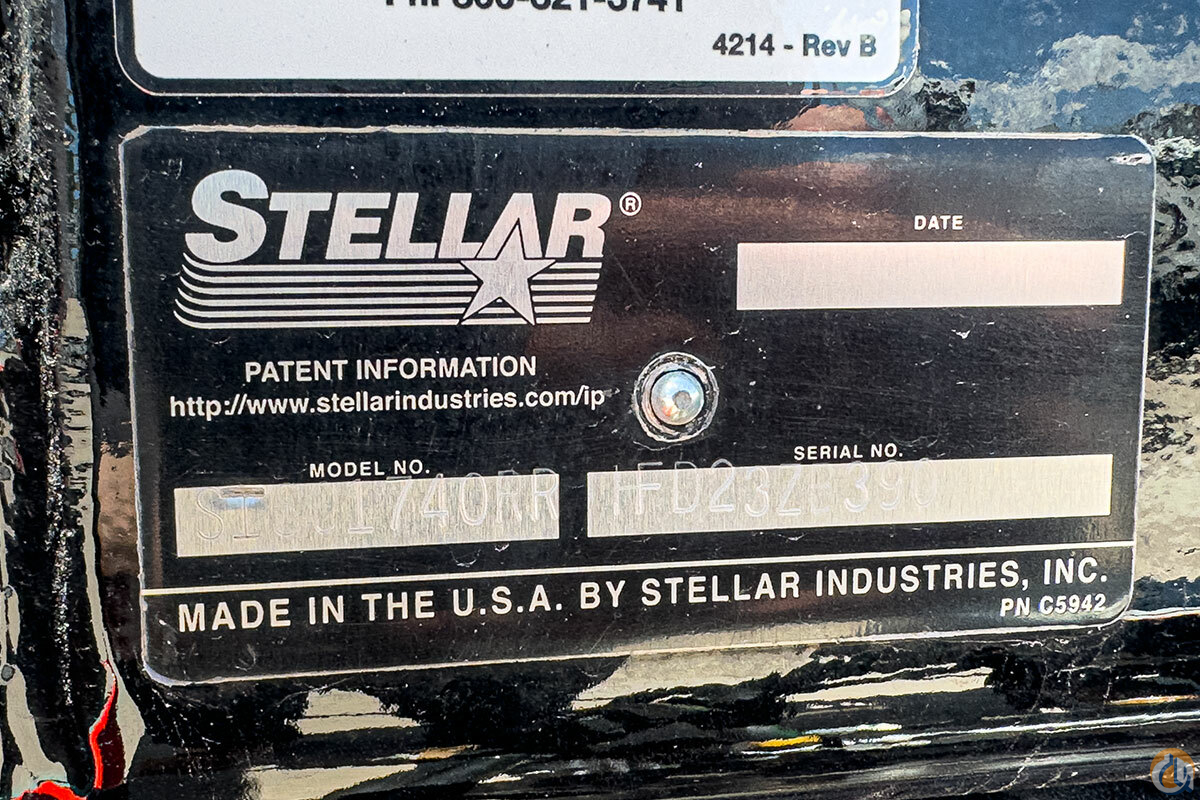

• Stellar SI60-174ORR Cable Hoist Assembly-Outside Rail, Reverse Mount Lift Cylinders, 60,000 lb Capacity, Designed to Handle 18"-22' Long Containers
• Standard Black Paint

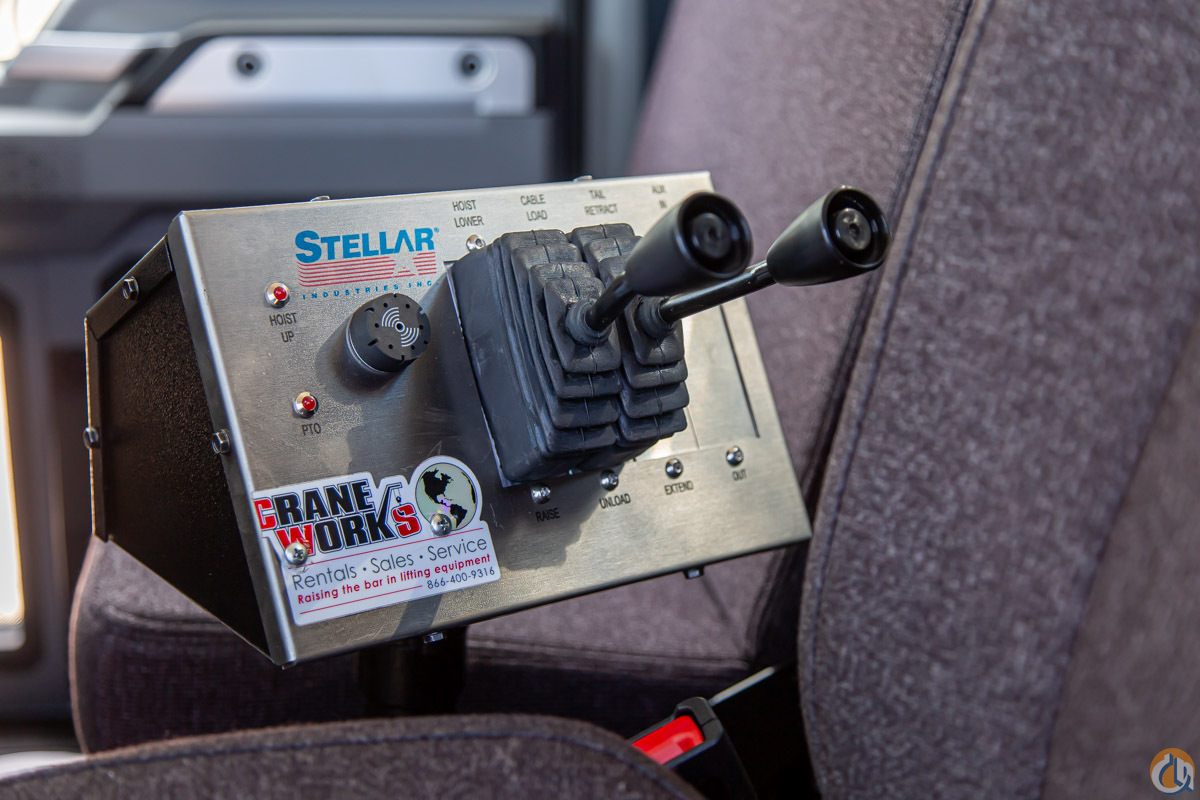

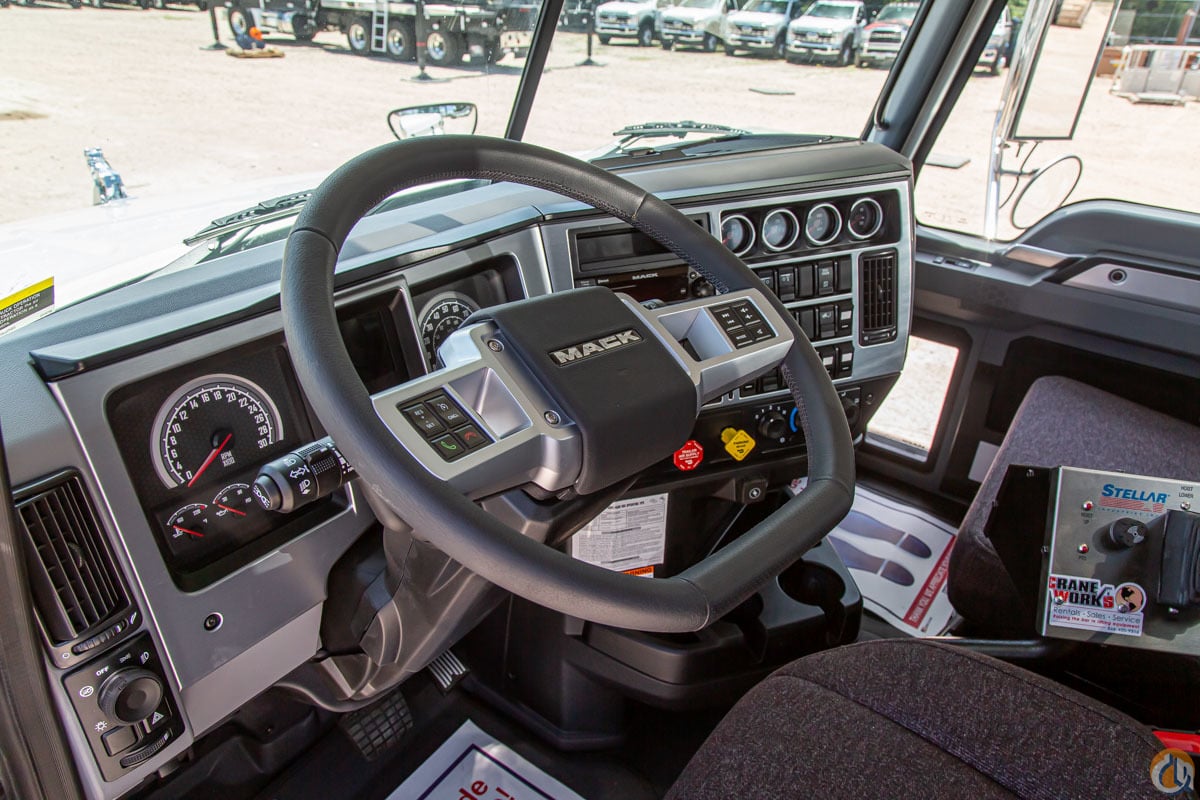

• 2 Section Air Controller Pedestal for Use w/ Cable Hoists
• 60 Gallon Reservoir and 2 Section Valve Bank Assembly
• Direct mount bi-rotational, 7/8" shaft, 13 spline, SAE "B" gear type hydraulic pump
• Standard Bumper Assembly for use w/ Folding ICC Bumper
• Auto Folding ICC Bumper for Use with Standard Bumper Assembly
• Tandem Axle Steel Fender Assemblies with Mounting Brackets. For Stellar Cable Hoist Only

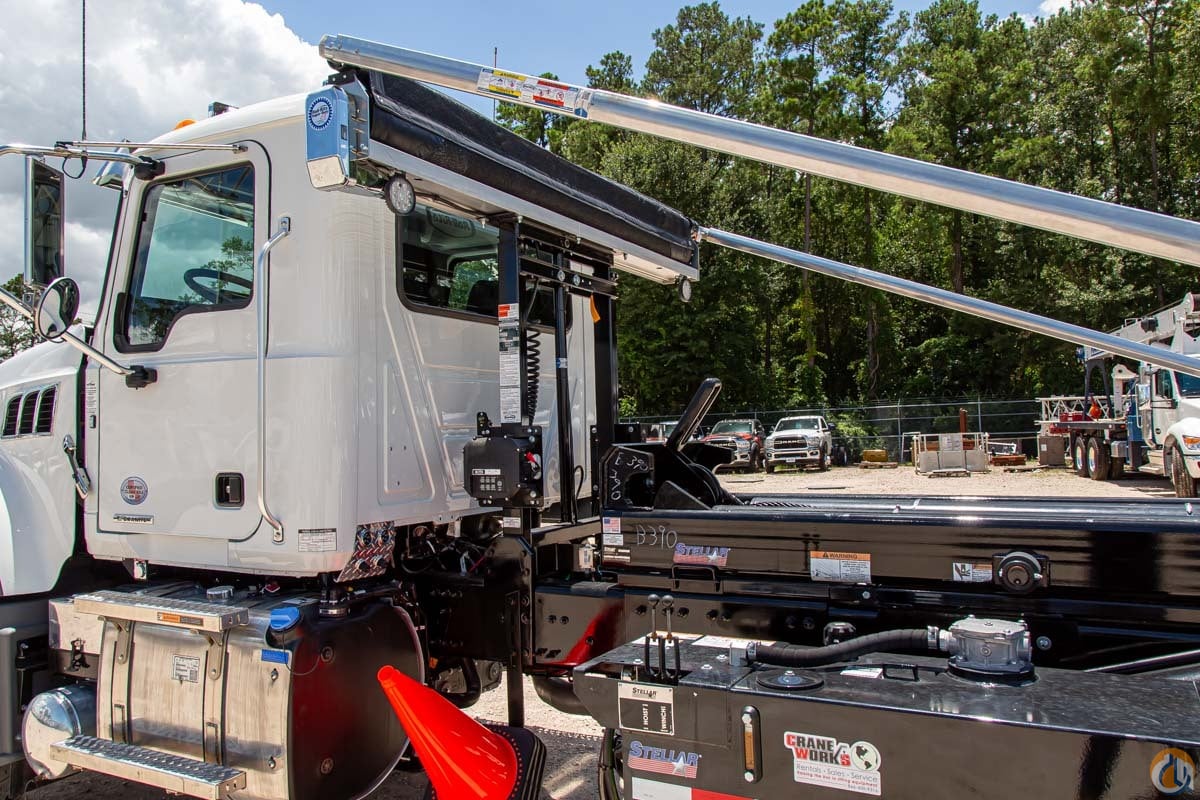

• Roll-Rite DC400 Automatic Roll-Off Tarp System with Single-
Stage Telescopic Gantry for Tandem Axle Chassis Applications, Up to 24’ Long Containers, Gantry Raises 5’ to 8’, 12V Self-Contained
Electric/Hydraulic Power Unit with Wireless Controls for Extend and Retract of the Tarp, Torsion Springs for Arms, Heavy Duty Mesh Tarp.
