National NBT45-2 - Inquire for…

National NBT45-2

National NBT45-2

National NBT45-2

National NBT45-2

National NBT45-2

National NBT45-2

National NBT45-2

National NBT45-2

National NBT45-2

National NBT45-2

National NBT45-2

National NBT45-2

Photo 1 of 12 | Click the Image to View More

Date Listed: 06-11-2024
Date Updated: 06-25-2024

National NBT45-2

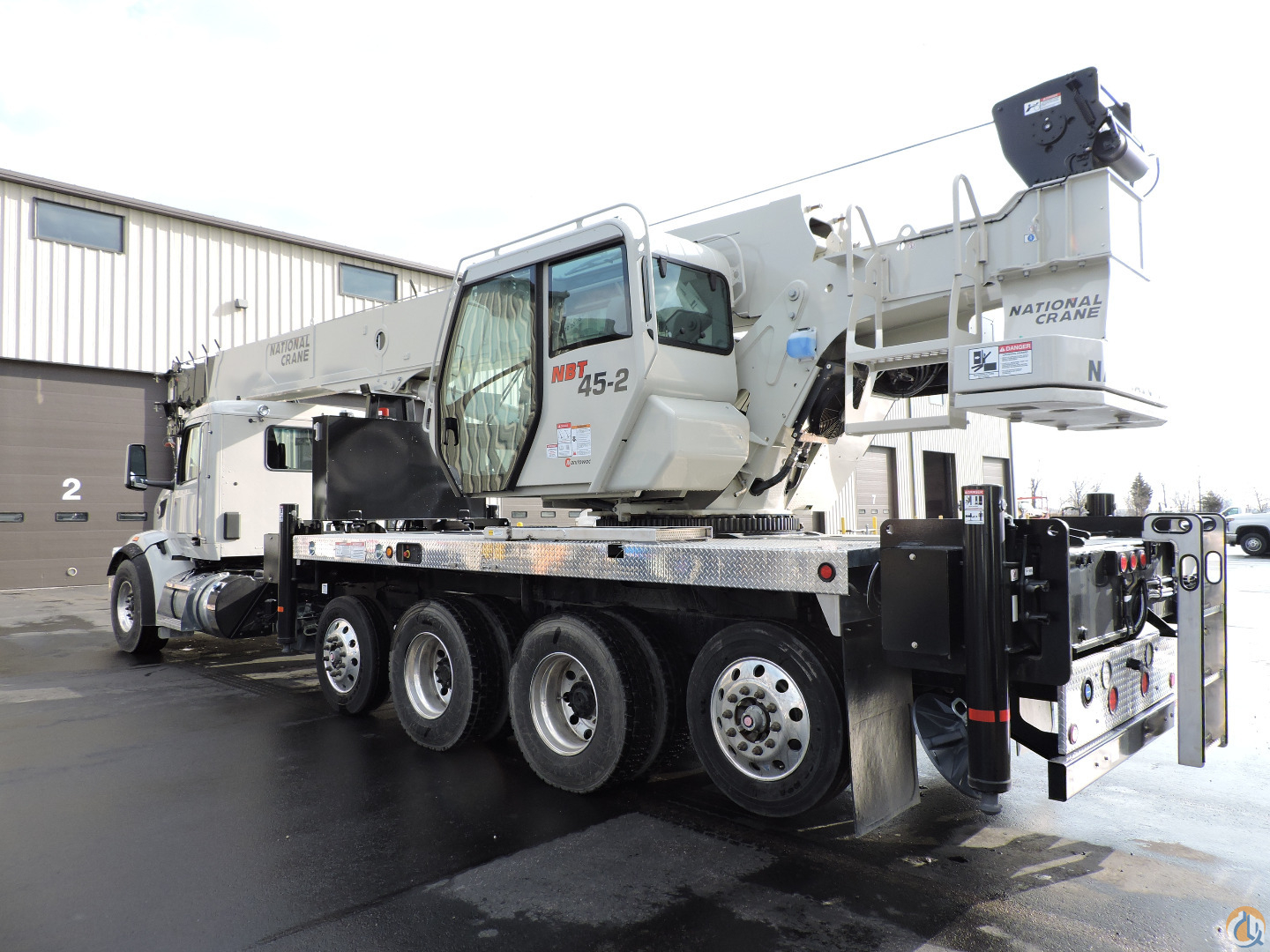

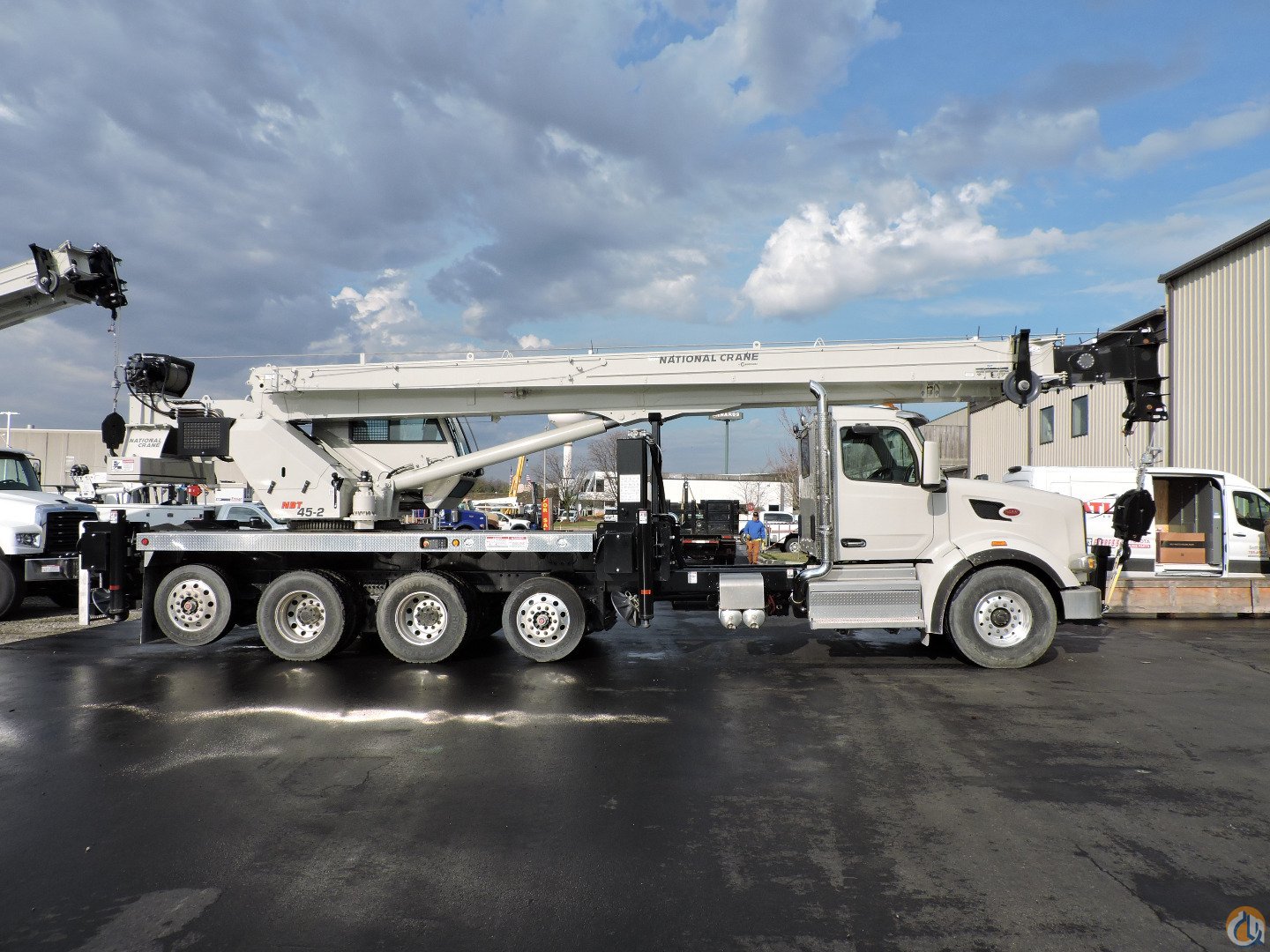

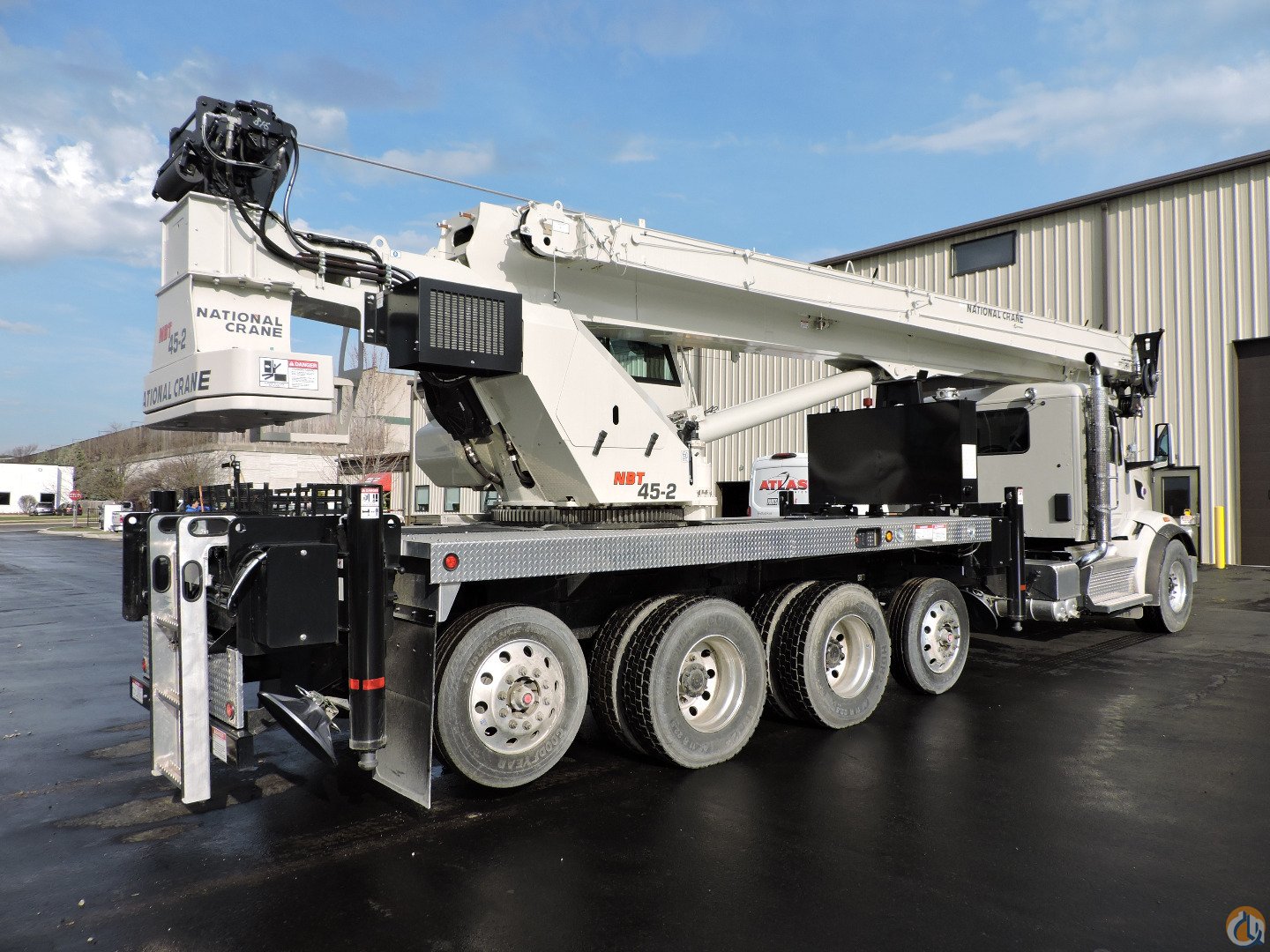

National Crane NBT45-2 equipped as follows:

-          45-ton capacity

-          5-section boom 31’ – 127’, 137’ tip height

-          Three quick reeve cast iron sheaves

-          31’ - 55’ manually telescoping jib

-          Two (2) total rotating, superstructure mounted, non-removable counterweight slabs, 4,000 lbs

-          Rated Capacity Limiter (RCL) and anti-two block system; graphical, color RCL system with audio/visual warning system and control lever lockout.  Electronic display of boom angle, boom length, relative load moment indication, rated load, load, radius and boom tip height.

-          Internal anti-two block system.

-          Standard work area definition system (WADS) allows the operator to pre-select and define safe working areas. When crane approaches set limits, audio/visual warnings alert the operator of jobsite obstructions

-          0° to 20° tilting cab with all steel construction crane cab, acoustical lining, and tinted glass

-          Deluxe heated seat with armrest mounted single-axis electric controllers

-          Windshield with electric wiper

-          Sliding skylight with sunshade

-          Hot water cab heater with defroster (diesel fired with remote diesel tank mounted to cab)

-          Air conditioning and circulating fan

-          AM/FM/Bluetooth radio with two (2) speakers

-          Fire extinguisher

-          Dual cab mounted work lights

-          Engine start/stop switches

-          Signal horn

-          360-degree continuous rotation

-          Planetary glide swing with foot actuated multi-disk brake and pinion guard

-          Pressure compensated, load sense, closed center hydraulic system

-          Variable displacement piston pump

-          122-gallon hydraulic reservoir

-          Filter condition indicator

-          Oil temperature transducer and oil cooler with electric fan and butterfly valve on suction line

-          Main hoist with grooved drum, two-speed power up and down, automatic multi-disc brake, electronic drum rotation indicator and drum cable follower.  Bare drum maximum pull 17,250 lbs.

-          450’ of 5/8” diameter 35x7 wire rope (5:1 design factor) for main hoist

-          Single line pull 11,280 lbs.

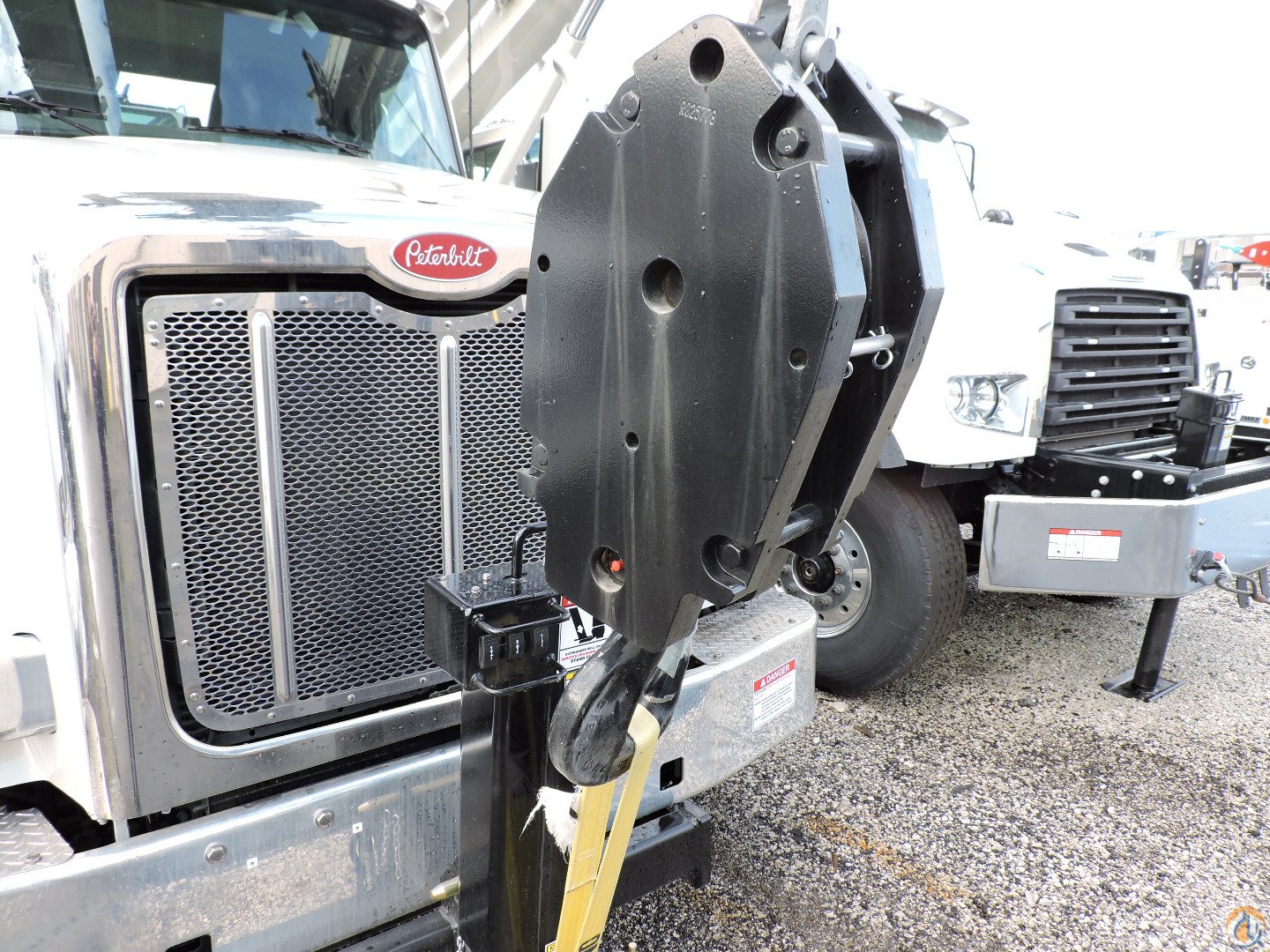

-          20-ton single sheave “Quick Reeve” type block with swivel hook and safety latch

-          Hydraulic front and rear outriggers. Two section extendable beams with integral check valves. 20” diameter polymeric outrigger floats. Controls located in crane cab and on both sides of sub frame.

-          Single front outrigger

-          Hydraulic reservoir mounted on top of front outrigger box

-          Outrigger Monitoring System included

-          Outriggers have three position settings (0%, 50%, 100%)

-          Outrigger motion alarm

-          360 degrees stable

-          Back-up alarm

-          Marker and indicator lights

-          Full-length aluminum decking – 102” wide

-          Fold down ladder on driver’s side for crane cab access

-          One removable ladder stowed/locked at the rear of the crane frame





MOUNTED ON:



2024 Peterbilt 567 equipped as follows:

-          Cummins X15 500 hp @1900 rpm, GOV@2000, 1650 ft/lb @950 rpm

-          Engine block heater 110-120V

-          Allison 4500 RDS-P Transmission, Gen 5

-          20,000 lb PACCAR front axle

-          20,000 lb front Taper-leaf spring suspension with heavy resistance shocks

-          46,000 lb Dana Spicer rear axle

-          46,000 lb Hendrickson Haulmax HMX460 rear suspension

-          4.30 rear axle ratio

-          Differential lock tandem axles

-          Watson-Chalin 13,500 lb self-steering tag axle

-          Watson-Chalin 13,500 lb self-steering pusher axle

-          Tires

-          Front – 20 ply 425/65R22.5

-          Rear – 14 ply 11R22.5

-          Tag/Pusher – 18 ply 275/70R22.5

-          Aluminum wheels with clean buff finish

-          4 PACCAR premium 12V batteries – 2920 CCA total

-          Exhaust single RH side of cab, chrome

-          Bendix air dryer with heater

-          Polished aluminum air tanks outside

-          26” aluminum 90-gallon fuel tank

-          Aluminum bumper swept back polished

-          Stainless steel cover for DEF tank

-          Thermal insulation package in cab

-          Rubber fender lips 4.5” extra wide

-          Peterbilt high-back driver seat, air ride, vinyl, w/ dual arm rests

-          Peterbilt high-back passenger seat, fixed, vinyl

-          Adjustable steering column, tilt/telescope

-          ConcertClass stereo – AM/FM, WB, USB, BT phone

-          Power lift windows

-          Power door locks

-          Outside sunvisor stainless steel

-          Air horn

-          Cab air suspension

-          Triangle reflector kit

-          Fire extinguisher

-          Painted Sand Gray



STOCK PHOTOS

  • Make:

    National
  • Model:

    NBT45-2
  • Type:

    Boom Truck Cranes
  • Year:

    2024
  • Condition:

    New
  • Price:

    Inquire for Price USD
  • Location:

    Hodgkins/Illinois/United States
  • Transport Options

  • Get a Shipping Quote

Seller Contact Information


  • Contact:

    Dan Runnion
  • Title:

    Sales
  • Phone:

    708-541-1066
  • Fax:

    708-447-3730
  • Address:

    6201 East Ave, Hodgkins, IL 60525, USA Map
