BOOM DETAILS

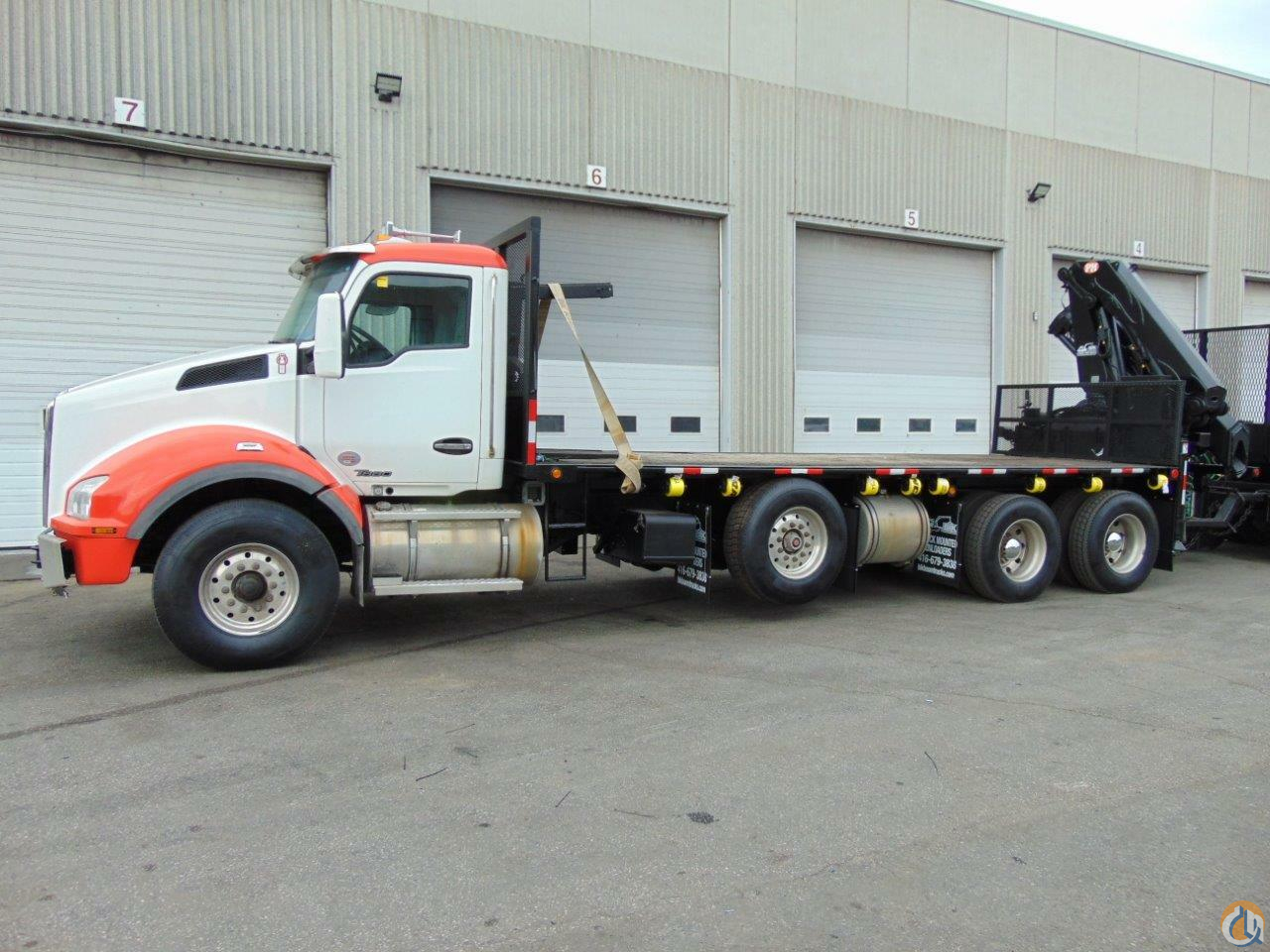

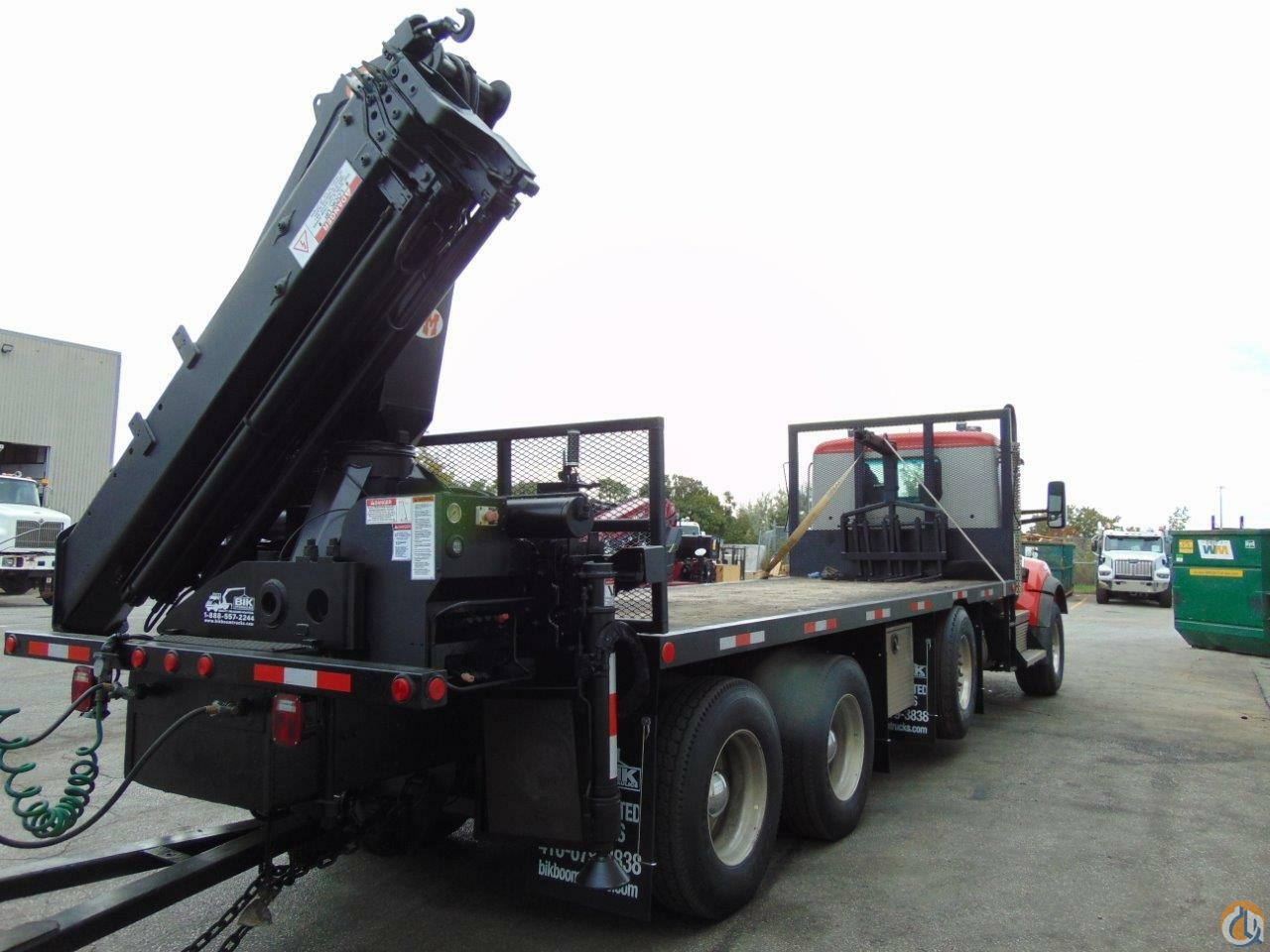

Used – PM 26523 Knuckle Boom (was New in 2019)
- 3-hyd extensions to 35’ horizontal reach (47’ vertical),
- Horizontal Capacity:
- 18,200 lb @ 10’
- 12,400 lb @ 15’
- 8,500 lb @ 20’
- 6,200 lb @ 28′
- 5,000 lb @ 35’
- 408 Degrees Rotation on Main Hydraulic Slewing, Crane Painted PM Blue, Double pilot operated on slewing and pilot operated check valves on all cylinders
- Hydraulic Oil Cooler
- High-pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls – single-sided operator control station
- SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
- Radio Remote includes: 5-micro speed reducing settings at a handheld, emergency stop, 2 batteries with in-cab charger, 50’ back-up cord
- Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to the bottom of the cylinder.
- 15-degree negative angle on folding arm
- Hydraulic Overload Protection
- Simplified system that prevents the boom from overload
- Load Holding Valves on each cylinder for the Safety and Security of the Operator and Load
- Heavy Duty Pedestal Turning Cylinders for greater turning torque, reduced wear, and improved precision
